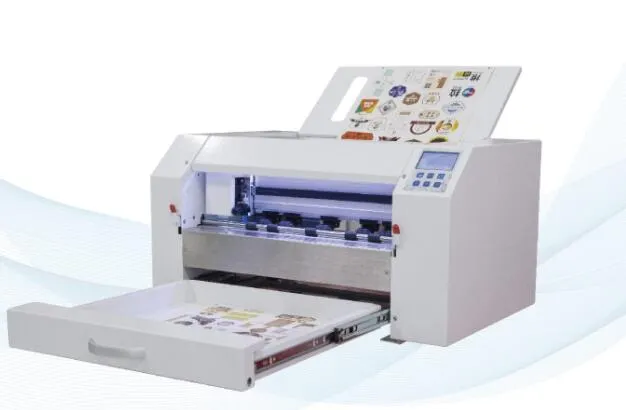

Sg-Sc Automatic Sheet Cutter Machine for Sale
Product DescriptionModelSG-SC A3-IISG-SC A3-II ProCutting control systemDigital servo motorPositioning sensor typeOptical SensorDigital camera (CCD)Scanning code typeBar codeMarker points & QR codeSheet feedingUp to 100 pcs depends on thickness of the paperSheet feeding methodFriction feedScanni......
Send Inquiry
Product Description
| Model | SG-SC A3-II | SG-SC A3-II Pro |
| Cutting control system | Digital servo motor | |
| Positioning sensor type | Optical Sensor | Digital camera (CCD) |
| Scanning code type | Bar code | Marker points & QR code |
| Sheet feeding | Up to 100 pcs depends on thickness of the paper | |
| Sheet feeding method | Friction feed | |
| Scanning speed | 5-30s | 50-10S |
| Maximum sheet size | 483mmX330mm | |
| Maximum cutting size | 475mmX320mm | |
| Minimum cutting character | About 5mm² | |
| Maximum actual cutting speed | 960mm/s | |
| Maximum cutting force | 750g | |
| Maximum paper weight | 350g | |
| Control panel | LCD touch with keys | |
| Mechanical resolution | 0.02mm | |
| Programmable resolution | HPGL 0.025mm | |
| Package dimensions | 850mm×700mm×550mm | 850mm×700mm×550mm |
| Actual dimensions | 670mm×494mm×365mm | 670mm×494mm×365mm |
| Net/Gross weight | 38kg/56kg | 38kg/56kg |
| Tools | Single tool holder with one blade and one pen | |
| software and compatibility: | ||
| Connectivity | USB/RS-232 | |
| Software and compatibility | Dragon.cut.for computer , compatible for windows 7,8,10 (USB directly connection to the computer) corel draw / illustrator plug-in (SD directly connection to the computer) | |
| power and working environment requirements | ||
| Voltages | AC 100-240V 50/60HZ | |
| Power | 150W | |
| Operation environment | Temperature +5ºC to +35 ºC (Fahrenheit 41-95), Humility 30% -75% (Non-condensing) | |
| Stand /pocke | ----- | Included |
Features:
1. Lightweight and space-saving design, suitable for desktop use.
2. Optimized auto sheet feeding mechanism ensures productivity with minimized paper jams
3. Auto-recognition of registration marks guarantees scanning and cutting accuracy, multi-cutting jobs
