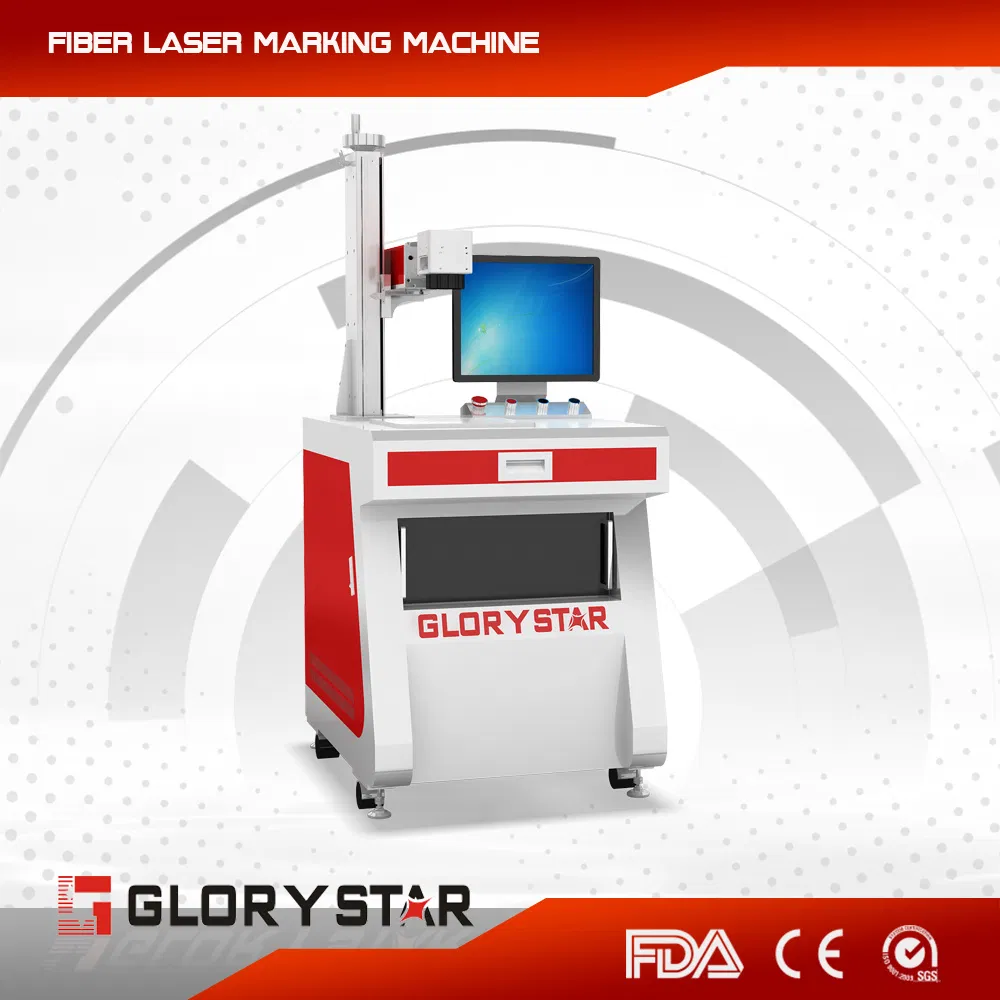

10W/20W Fiber Laser Marking Machine
Product Features This creative laser system makes the optical conversion rate up to 38%-50%. The air cooling can meet the system requirements. This laser system is small and compact size. Fiber output,can flexibly makes 3D processing s......
Send Inquiry
Product Description
Product Features
This creative laser system makes the optical conversion rate up to 38%-50%. The air cooling can meet the system requirements. This laser system is small and compact size. Fiber output,can flexibly makes 3D processing system. The backward reflecting isolator,which uses the particularity of wavelength and direction of laser, and the special structure inside the backward reflecting isolator can block the laser reflected by work piece to avoid the laser entering the laser oscillator again to damage the laser oscillator.
Applicable Industry
Translucent plastic buttons, IC chips, digital product components, precision machinery, jewelry, sanitary ware, measuring and cutting tools, watch glasses, electrial appliances,electronic components, hardware accessories, hardware tools, mobile communications components, automobile parts, plastic products, medical equipment, building materials,pipes and other high-precision product marking.
Technical Data
This creative laser system makes the optical conversion rate up to 38%-50%. The air cooling can meet the system requirements. This laser system is small and compact size. Fiber output,can flexibly makes 3D processing system. The backward reflecting isolator,which uses the particularity of wavelength and direction of laser, and the special structure inside the backward reflecting isolator can block the laser reflected by work piece to avoid the laser entering the laser oscillator again to damage the laser oscillator.
Applicable Industry
Translucent plastic buttons, IC chips, digital product components, precision machinery, jewelry, sanitary ware, measuring and cutting tools, watch glasses, electrial appliances,electronic components, hardware accessories, hardware tools, mobile communications components, automobile parts, plastic products, medical equipment, building materials,pipes and other high-precision product marking.
Technical Data
| Model | FOL-10 / 20 |
| Power | 10W/ 20W |
| Wavelength | 1064nm |
| Beam quality | <1.5 |
| Output power | 10% ~ 100% continuously to be adjusted |
| Output frequency | 20 KHz ~ 100KHz continuously to be adjusted |
| Power stability | < ±1% rms |
| Focus spot diameter | <0.01mm |
| Matching size | 50mm*50mm / 110mm*110mm / 175mm*175mm |
| Carving depth | ≤1.2mm |
| Carving speed | 800 standard characters / second |
| Minimum line width | 0.012 mm |
| Minimum character | 0.15mm |
| Repeated accuracy | ± 0.003mm |
| System operation environment | WindowsXP/ 2000 / 98 |
| Cooling mode | Air cooling |
| Temperature of operation environment | 15ºC ~ 35ºC |
| Power requirement | 220V / single phase / <400W |
| Life of laser module | 100000 Hrs |
