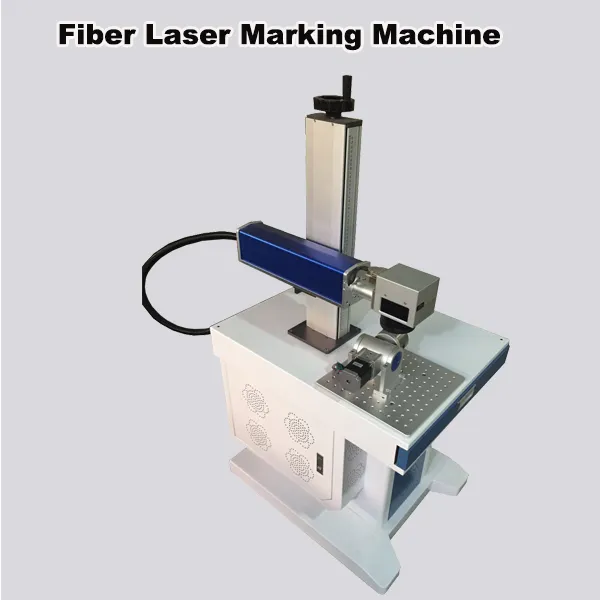

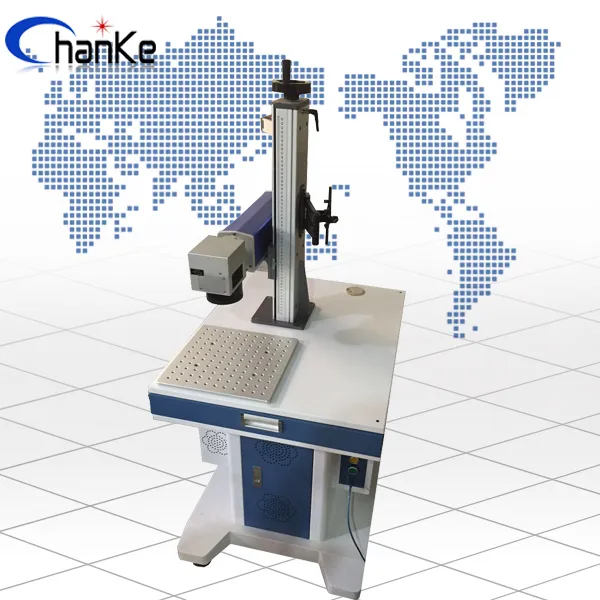

20W Smallest Fiber Laser Marking Machine

Product Description

mini fiber laser marking machine Features
(1)It is the third Generation laser marking system which is used the most advanced fiber laser tachnology mini fiber laser marking machine
(2) Longest lifetime for marking machine seried,100000hours free ofmaintenance ,stable performance,high laser energy,can engraving on all the metal materials and some of nonmetal materials mini fiber laser marking machine
(3)Location by red light,testing and changing holder will be easier

(4) Adopt air cooling system and the size is small,good quality of the laser beam,suitable for precise strips pattern marking

Model	CK-10W mini fiber laser marking machine
Average laser output power	10W
Laser wavelength	1064nm
Power adjustment range	10-100%
Repetition frequency	20-100KHz
Output beam quality	<1.5M²
Marking Linear deep	≤1.2mmMin.
Highlight spot	0.005mm
Min. character size high	0.15mm
Repetition accuracy	±0.001mm
Max. Linear marking speed	9000mm/s
Marking depth:	0.01mm-0.03mm(according the materials)

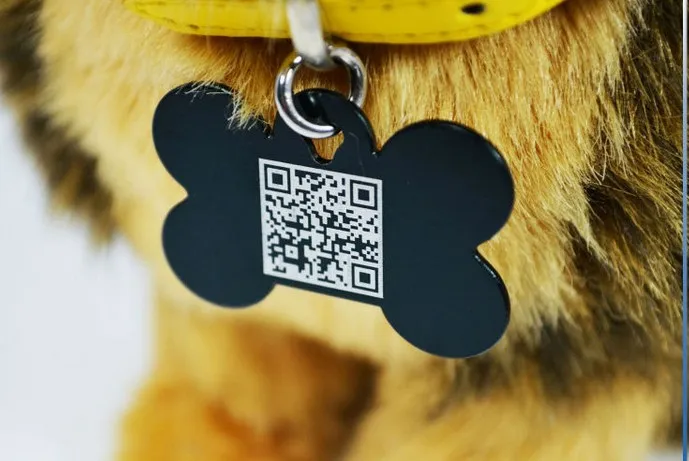

Marking format:	Graphics, character, bar code, two-dimensional code
Software	WINXP +ezcad
Standard marking area	100mm×100mm
Marking area option	50mm×50mm 150mm×150mm 200mm×200mm
Power consumed	≤160W
Electrical demand	220V±10%/50Hz/4A
Cooling Mode	Air-cooled
Control interface	USB
Laser module life	100000 hours
Resonance mirror	high speed
Usage environmentClean	no shaking

Application materials

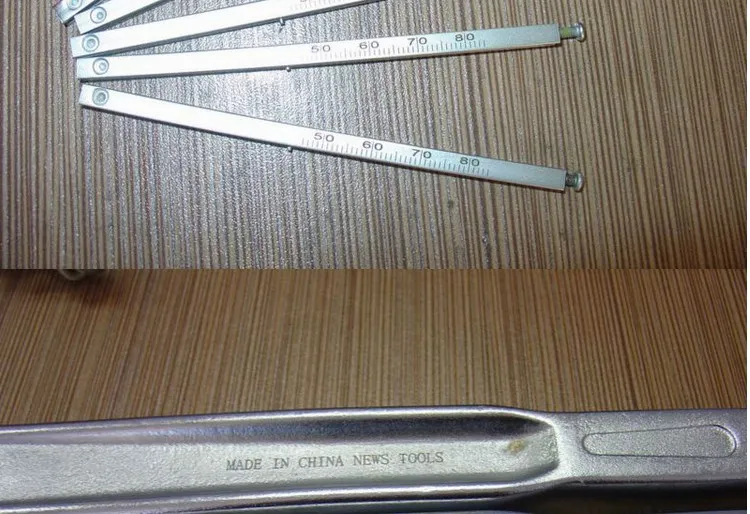

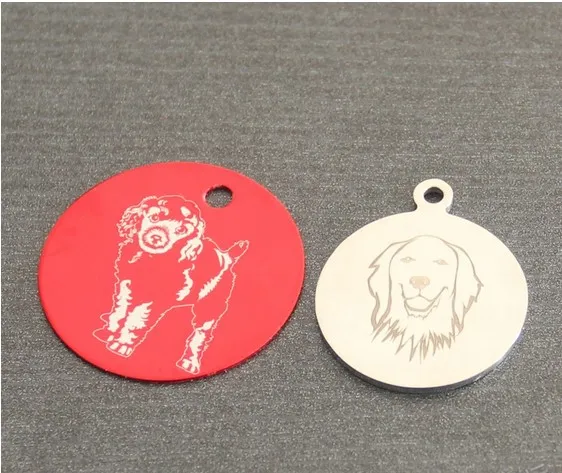

The fiber laser machine can marking metal(including the rare metals) such as steel, titanium,copperetc,and some of nonmetal such as nylon,light button, ABS, PVC,PES
Application area

The area with the higher requirement foor depth,smoothness and degree of thickness such as clock industry,mould industry,bitmap marking and so on.the other area such as electroni compnent,eletrical prducts.IT industry,auto-partas,metal tools,accurate instruments,present and adornment,medicalInstrument,high or low voltage electric equipment and so on.

FAQS:

1. How about the documents after shipment?

After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.

2, How long is the delivery time?

For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.

3, Do You Arrange Shipment For The Machines?

Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.

4, How is the packing?

Water-proof plastic film package with foam protection in each cornerSolid Seaworthy Wood Box Package with Steel BeltSave space as much as possible for container loading
Professional Service
From producing in our factory to shipping the goods directly to your port
or company, we supply all-in-one service for our customers. With the rich
experience of dealing with shipping issue and custom clearance, we can
make the most economical delivery plan for you and ensure the quick
leading time. No matter your quantity is our MOQ or very big, we take
each customer as the only one.

We aslo has 20w/30w fiber laser marking machine, power is more bigger the marking thickness and colour more better.

If you want to marking on the ring circle a, then add one rotary is ok.
