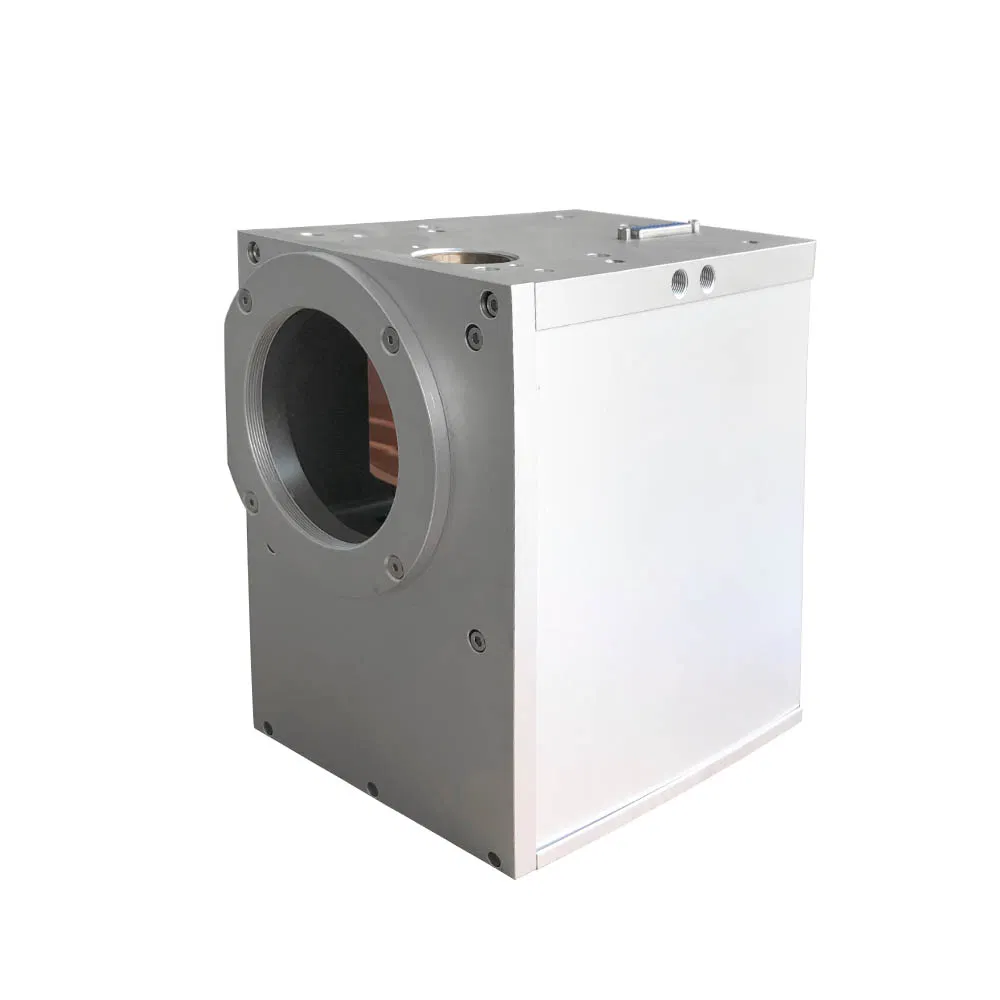

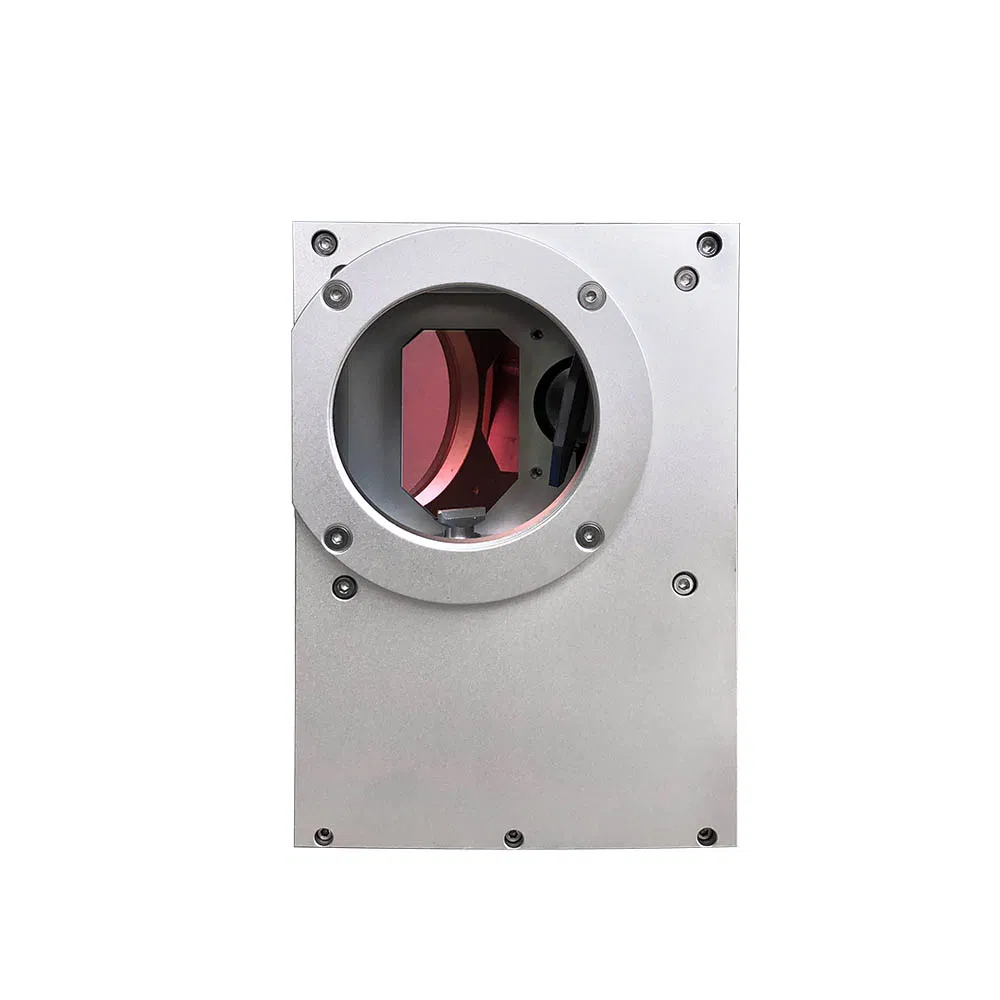

Sannylaser SL-Us50A1 Laser Head Marking Cutting Welding Fiber CO2 UV Laser Machine Part 50mm Scanner
Sannylaser SL-US50A1 Laser Head marking cutting welding fiber CO2 UV laser machine part 50MM ScannerProduct descriptionSannylaser SL-US50A1 the input aperture is50mm (compatible with 1064nm 355nm 532nm 10.6um lenses ), uses digital driver, fully self-developed driver/ control algorithm/ motor. Stron......
Send Inquiry
Product Description
Sannylaser SL-US50A1 Laser Head marking cutting welding fiber CO2 UV laser machine part 50MM Scanner
Product description
Sannylaser SL-US50A1 the input aperture is50mm (compatible with 1064nm 355nm 532nm 10.6um lenses ), uses digital driver, fully self-developed driver/ control algorithm/ motor. Strong interference resist performance, high repeatability, low temperature drift, low switch drift, suitable for precision welding.
Product details:
| Model | SL-US50A1 |
| Input Beam Aperture (mm) | 50 |
| Beam Displacement (mm) | 62.25 |
| Tracking Error (ms) | 1 |
| Repeatability (µrad) | <2 |
| Offset Drift (µrad/K) | <15 |
| Gain Drift (ppm/K) | <80 |
| Long-term drift over 8 hours (mrad) | <0.3 |
| 1% of full scale (ms) | 1.5 |
| 10% of full scale (ms) | 6.5 |
| Positioning Speed (m/s) | 1 |
| Typical Scan Angle (°) | ±12.5 |
| Gain Error (mrad) | <5 |
| Zero Offset (mrad) | <5 |
| Nonlinearity (%) | <0.4 |
| Power Requirements | ±15VDC, ≥3A |
| Digital Interface | XY2-100 |
| Operation Temperature (ºC) | 25±10 |
| Weight (kg) | 8.8 |
