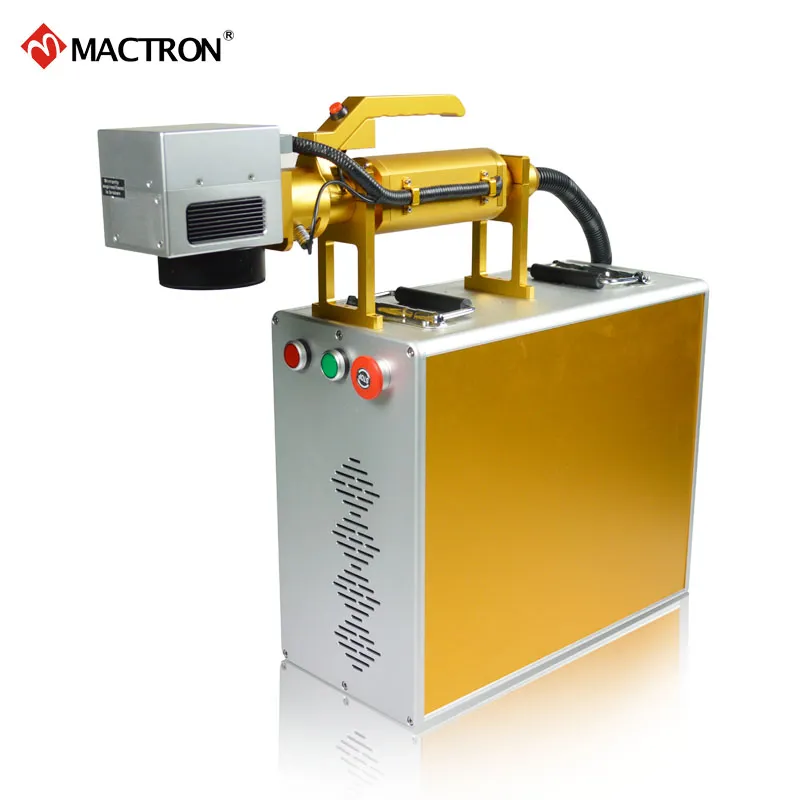

Portable 20W 30W Desktop Fiber Laser Engraving Machine for Steel and Aluminum
20W/30W Color Laser Marking Machine1. Product DescriptionMopa Laser Marking Machine is featured with high quality and high performance.Based on the needs of domestic and foreign markets, the Mopa Laser Marking Machine is equipped with core optical devices like fiber lasers and scanning galvanometer ......
Send Inquiry
Product Description
20W/30W Color Laser Marking Machine
1. Product Description
Mopa Laser Marking Machine is featured with high quality and high performance.
Based on the needs of domestic and foreign markets, the Mopa Laser Marking Machine is equipped with core optical devices like fiber lasers and scanning galvanometer imported from some internationally prestigious brands. These core optical devices enhance laser machines' performance and stability and greatly lower the failure rate of products.
Simultaneously, this kind of Mopa Laser Marking Machine is armed with our self-developed high-speed marking control card and powerful software. It could enable high-precision and high stability marking applications from various industries. For example, metal laser marking, plastic laser marking, food and beverage's packing laser marking, It is specially used for the color mark on the stainless steel and aluminum oxide.
Model | MT-FP20M | MT-FP30M |
Work Area(MM) | 75X75/110X110/200X200 | |
Laser Power | 20W | 30W |
Laser Repetition Frequency | 25KHz-400KHz | |
Wavelength | 1065±10nm | |
Beam Quality | <2M2 | |
Min Line Width | 0.01mm | |
Min Character | 0.15mm | |
Marking Speed | ≤10000mm/s | |
Marking Depth | ≤0.5mm | |
Repeat Precision | ±0.002mm | |
Power Supply | 220V(±10%)/50Hz/4A | |
Gross Power | <500W | |
Laser Module Life | 100000h | |
Cooling Style | Air Cooling | |
System Composition | Control System ,Industrial Computer,Working Table | |
Working Environment | Clean and Dust Free | |
Operating Temperature | 10ºC-35ºC | |
Humidity | 5% to 75% (Free of Condensed Water) | |
Power | AC220V, 50HZ, 10Amp Stable Voltage | |
Warranty | 12 Months | |
Dimension(cm) | 85*85*68 | |
Weight(kg) | 58 | |
1. One-unit structure with the manual focusing system and user-friendly operation.
2. Imported isolator for protection of the fiber laser generator to increase the stability and prolong the laser life.
3. Laser beam quality is much better than the traditional laser marking machine. Fiber laser beam mode is TEM00; focus diameter is less than 20um; expanding angle is only 1/4 of the YAG-DP. Therefore it is esp. good at delicate marking.
4. High electricity-laser exchange ratio, gross electricity consumption is less than 500W, which is 1/10 of the YAG's consumption.
5. Free from maintenance, long working life, small size, suitable for any working environment.
6. Fast marking speed, 2-3 times faster than the traditional marking machine.
7. The 20W Laser Engraving Machine supports files such as CorelDraw, AutoCAD, Photoshop and PLT, PCX, DXF, BMP; SHX OR TTF can be directly adopted; the functions such as auto coding for sequence No., group mark, date, barcode and so on.
8. The 20W Laser Engraving Machine is environment-Friendly, and low material consumption and pollution-free.
2.SAMPLE
3.ABOUT US
Mactron Technology's managerial spirit: "Solidarity, Exertion, Truthfulness, Innovation"Mactron's mainly product is including:
Laser Cutting Machine, Laser Engraving Machine, Laser Marking Machine, Mini Laser Engraver, CNC Laser Cutter, YAG Laser System, Diode Pump Laser Equipment, Co2 Laser Tube, Laser Focusing Lens, Laser Reflector Mirror, Laser Power Supply, Laser Cooler Unit, Laser Scanner Head, Laser Control System, Laser Cutting Head, Beam Expander, Red Pointer, Krypton Lamp and accessories etc.
Mactron Technology's business tenet is "Do Honest Bussiness ".
A: After received our machine, customers do not need to install it and can use it directly.
Q: How to operate the machine? is training necessary?
A: The machine is mainly controlled by software. It's very easy, not complicated. Before shipment, we will make a simple operation manual with pictures and provide user manual of software. Generally speaking, an operator, who is not familiar with fiber laser printing machine before can still operate it very well. According to customers' requests, we can send our technician to customer' plant for machine training or customers can come to our plant for machine training if needed.
Q: In case A: It does not have consumable. It's very economical and cost-effective.machine exists the problem, how to do after sales service?
A: We provide two years machine warranty. During the two-year warranty, in case of machine exists the problem, we will provide parts required with free of charge by express. But as for the parts damaged by artificially, it does not fall on our warranty list. After the warranty, we still provide lifetime service.
Q: What's package?
A: We have 3 layers package. For the outside, we adopt plywood case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by the waterproof plastic bag.
Q: What's delivery time?
A: Generally speaking, lead time is 5-7 working days after receiving the payment.
Q: Can we add a protection cover?
A: Yes, we can add a protection cover if you need. We can customize the design as customers' requests.
Q: What're consumables for fiber laser marking machine?
