High Quality Stringer Tabbing Solar Cell for Producing Solar Panel
High quality stringer tabbing solar cell for producing solar panelParameters Welding speed 3000 pcs/h Ribbon with specifications Thickness: 0.15-0.3mm Width: 0.7-2mm The welding way Infrared welding Breakage ≤0.1% Cells grid line 2-6BB Power AC380V(3phases ,5lines)/50~60Hz/35KW Use the width......
Send Inquiry
Product Description

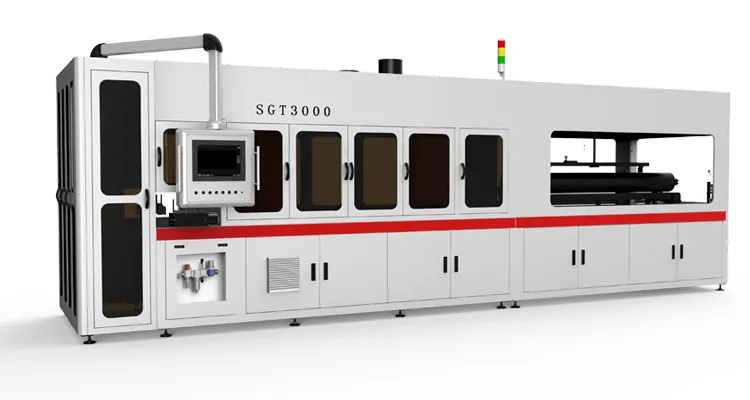

High quality stringer tabbing solar cell for producing solar panel
| Welding speed | 3000 pcs/h | Ribbon with specifications | Thickness: 0.15-0.3mm Width: 0.7-2mm |
| The welding way | Infrared welding | Breakage | ≤0.1% |
| Cells grid line | 2-6BB | Power | AC380V(3phases ,5lines)/50~60Hz/35KW |
| Use the width of the weld band | 1.2mm, 1.6mm, 1.8mm, 2.0mm (optional) | Number of battery cells per battery | 1-12 pcs |
| Misalignment | ≤±0.1mm | Battery gauge | 156*156mm,156*78mm |
| Size | 6000*1450*2100mm | Net weight | 3500 Kg |
Characteristics
1. CCD visual defect detection and positioning, the soldering flux adopts immersion method, the unique flexible pressure holding welding band mechanism.
2. Infrared heating, section welding. The welding temperature and power closed-loop control, the temperature climbs gently, the thermal shock is small, reduces the battery chip fragment rate effectively.
3. Battery string detection system can be used to detect the position of main gate misalignment and busbar(optional)
4. Classification, handling and positioning of two high speed four-axis manipulator batteries.

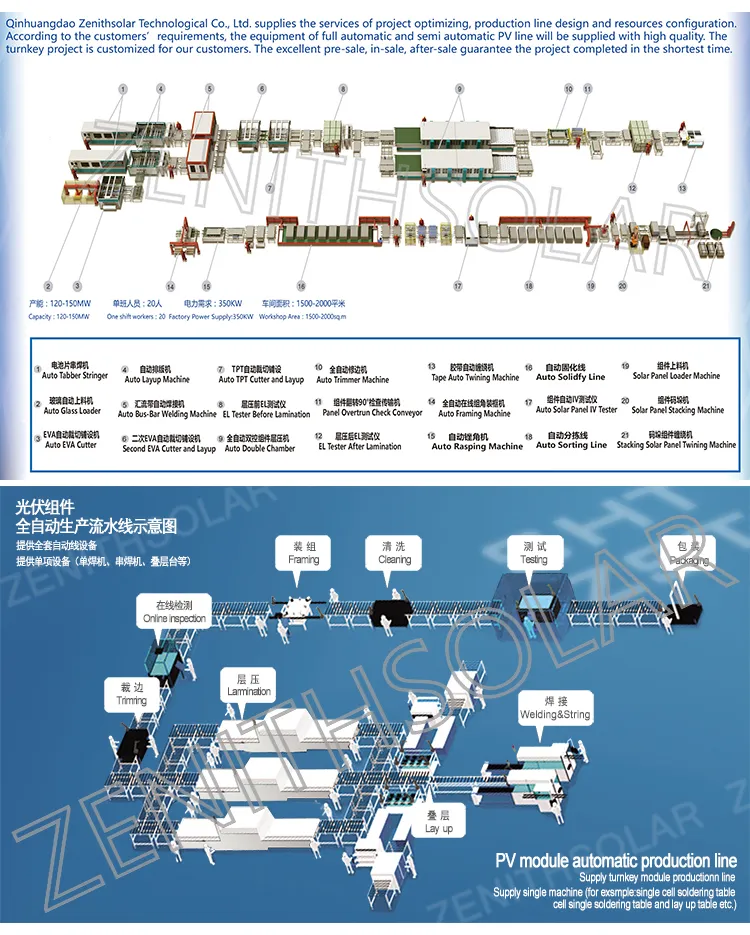

About production line
We can supply the customized complete production line. The engineer can adjust the layout and performance of the production line according to different requires of customers.
Contact us
