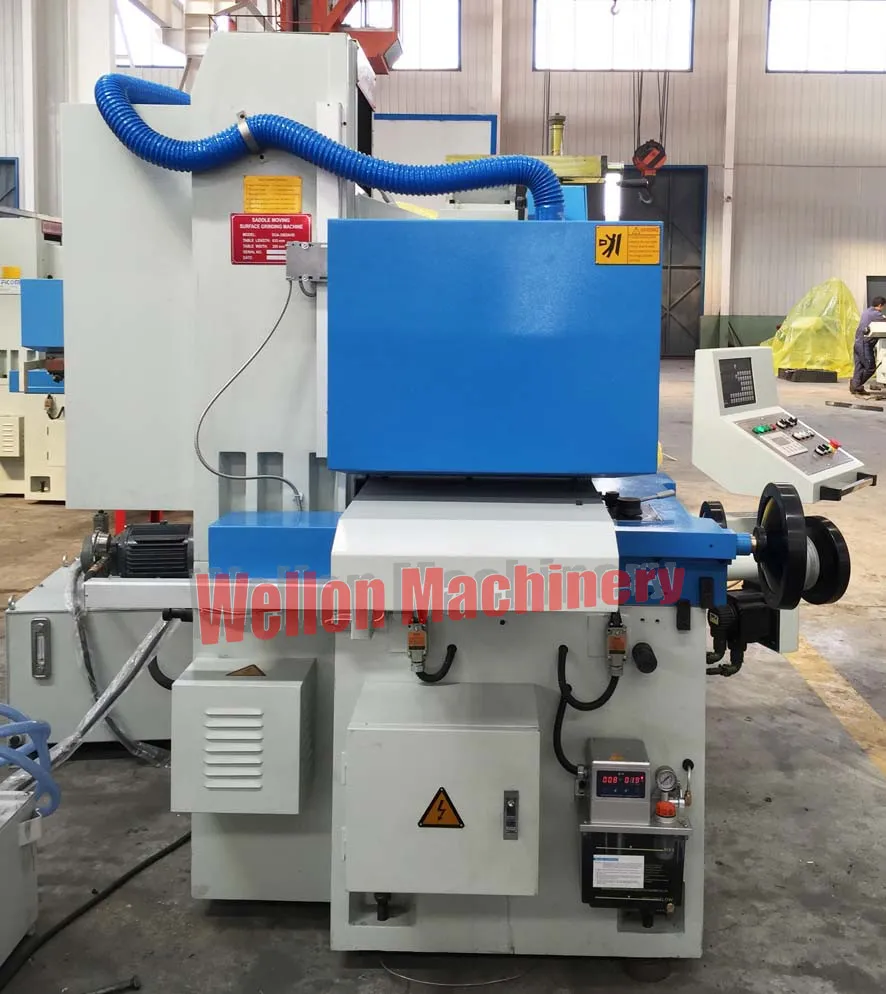

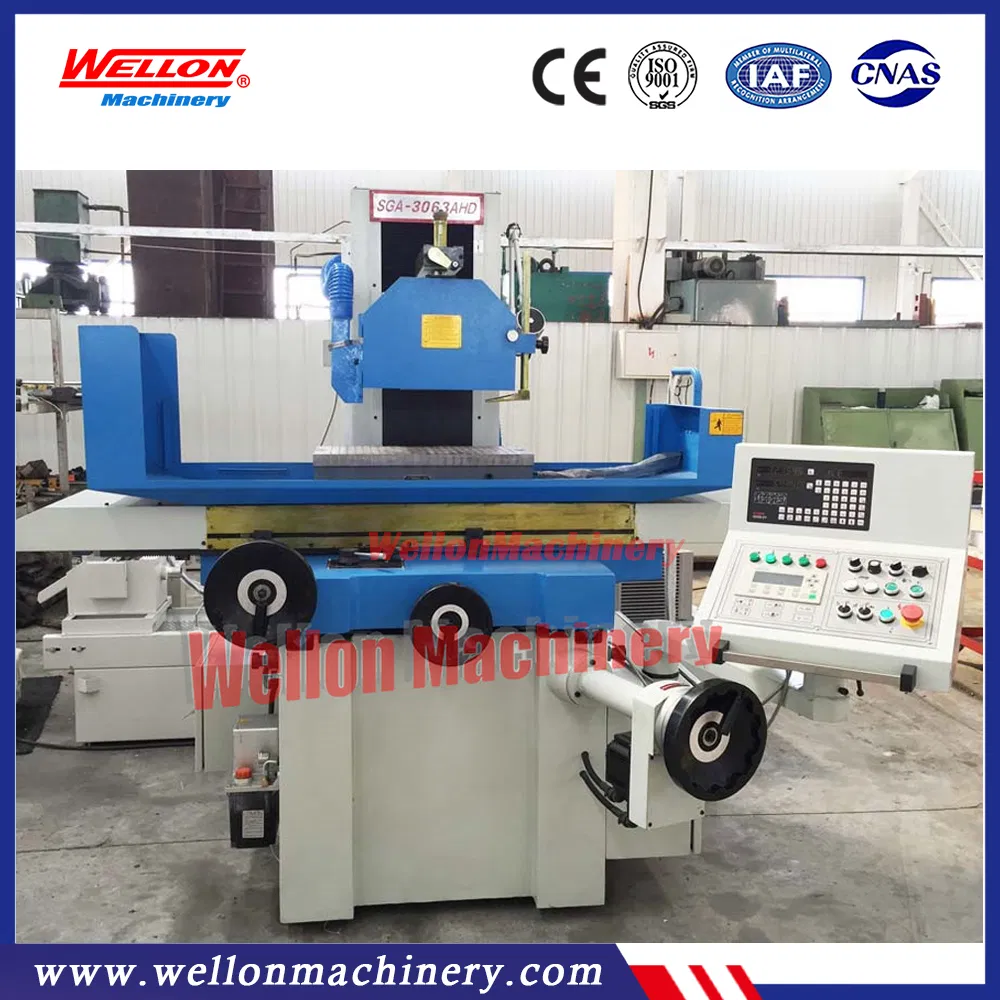

Precision Surface Grinding Machine SGA3063AH/ AHR /AHD
Products Description: Precision Surface Grinding Machine SGA3063AH/AHR/AHD Specifications:Designed for continuous operation at maximum speed, very quiet operation, maximum accuracy and minimal heat accumulation ensure optimum machining results Grinding spindle runs in maintenance-free p......
Send Inquiry
Product Description
Products Description:
Specifications:
Designed for continuous operation at maximum speed, very quiet operation, maximum accuracy and minimal heat accumulation ensure optimum machining results Grinding spindle runs in maintenance-free preloaded precision angular ball bearings
Automatic transverse and longitudinal feed
Rapid feed for setup to desired work height(HFS VC)
Adjustable roughing, finishing, and spark-out strokes hydraulic longitudinal table movement on Y axis(HFS VC)
Double table V-guide in transverse table, V-guide and flat guides in longitudinal table
Table guide ways are hardened, ground, and PTFE counter laminated-ensuring maximum wear resistance
High table load capacity for heavy parts
External hydraulic unit ensures high temperature stability
Automatic central lubrication
AH:Wheel head Manual up and down
AHR:Wheel head Motorized up and down
AHR:Wheel head servo motor up and down
Technical parameter:
Contact Us:
Precision Surface Grinding Machine SGA3063AH/AHR/AHD
Specifications:
Designed for continuous operation at maximum speed, very quiet operation, maximum accuracy and minimal heat accumulation ensure optimum machining results Grinding spindle runs in maintenance-free preloaded precision angular ball bearings
Automatic transverse and longitudinal feed
Rapid feed for setup to desired work height(HFS VC)
Adjustable roughing, finishing, and spark-out strokes hydraulic longitudinal table movement on Y axis(HFS VC)
Double table V-guide in transverse table, V-guide and flat guides in longitudinal table
Table guide ways are hardened, ground, and PTFE counter laminated-ensuring maximum wear resistance
High table load capacity for heavy parts
External hydraulic unit ensures high temperature stability
Automatic central lubrication
AH:Wheel head Manual up and down
AHR:Wheel head Motorized up and down
AHR:Wheel head servo motor up and down
Technical parameter:
| MODEL | Unit | SGA3063AH/AHR/AHD | |
| Table size(W x L) | mm | 305x635 | |
| Max longitudinal travel | mm | 765 | |
| Max cross travel | mm | 340 | |
| Max distance from spindle center to table | mm | 580 | |
| Electro magnetic chuck size | mm | 300x600 | |
| Speed of table longitudinal movement | m/min | 5-25 | |
| Table transverse movement | Auto feed | mm/min | 0.1-8 |
| Rapid speed | mm/min | 990 | |
| Feed of handwheel | Mm/div | 0.02 | |
| Wheelhead vertical movement | Auto feed | mm | 0.005-0.05(AHD) |
| Rapid speed | Mm/min | 650(AHR) 480(AHD) | |
| Feed of handwheel | Mm/div | 0.005 | |
| Grinding wheel | speed | rpm | 1450(50Hz) 1750(60Hz) |
| size | mm | 350x40x127 | |
| Spindle motor | kw | 4 | |
| Max loading capacity of table | KG | 270 | |
| Gross weight | kg | 2900 | |
| Package dimensions(L x W x H) | mm | 2350x2220x2150 | |
Standard accessories :
Wheel flange
Balancing arbor
Wheel exactor
Coolant tank
Working lamp
Tools box and tools
Wheel dresser stand
Standard electro magnetic chuck
Leveling wedge and bolt
Built in electro magnetic chuck controller
Optional accessories :
Dust collect
Balance stand
Wheel flange
Coolant tank with magnetic separator
Coolant tank with paper filter
Coolant with magnetic separator and paper filter
Parallel wheel dresser screw rod type
Company Information:
Wheel flange
Balancing arbor
Wheel exactor
Coolant tank
Working lamp
Tools box and tools
Wheel dresser stand
Standard electro magnetic chuck
Leveling wedge and bolt
Built in electro magnetic chuck controller
Optional accessories :
Dust collect
Balance stand
Wheel flange
Coolant tank with magnetic separator
Coolant tank with paper filter
Coolant with magnetic separator and paper filter
Parallel wheel dresser screw rod type
