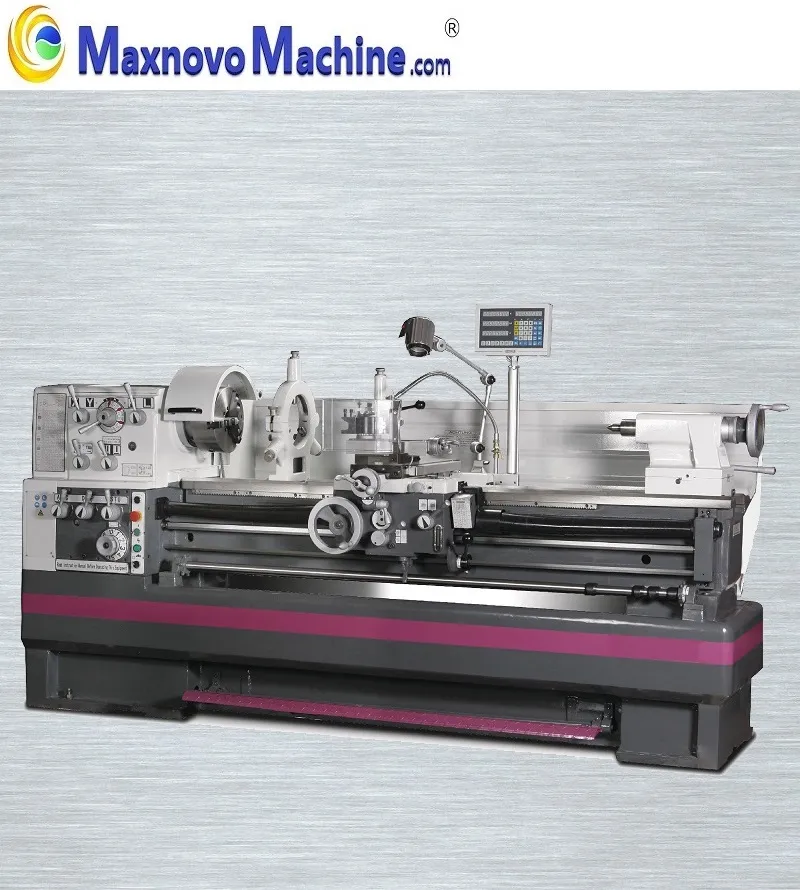

Heavy Duty Metal Turning Gap-Bed Engine Lathe Machine (mm-D460X1500)
MM-D460X1500 / Metal Lathe / Engine Lathe / Manual Lathe / Gap-bed Lathe / Conventional Lathe / Universal Lathe / Precision Lathe / Turning Lathe / Heavy-Duty Lathe / Horizontal Lathes / Lathe Machine / Mechanics LatheThis MM-D460X1500 is 18 X 60 inch Heavy Duty Engine Lathe / Lathe / Metal Lathe / ......
Send Inquiry
Product Description
MM-D460X1500 / Metal Lathe / Engine Lathe / Manual Lathe / Gap-bed Lathe / Conventional Lathe / Universal Lathe / Precision Lathe / Turning Lathe / Heavy-Duty Lathe / Horizontal Lathes / Lathe Machine / Mechanics Lathe
This MM-D460X1500 is 18 X 60 inch Heavy Duty Engine Lathe / Lathe / Metal Lathe / Lathe Machine / Manual Lathe / Gap-bed Lathe / Precision Lathe / Turning Lathe / Horizontal Lathes with THREE PHASE INDUSTRY Powerful MOTOR has many main Features for demanding users.
Heavy Duty 18" X 60" inch High Precision Gear Head Lead Screw Metal Turning Engine Lathe Machine with Adavanced Technology, Complete Equipment, Easy-To-Operate, Perfect For Small Industry.
Heavy centre lathe completely equipped, particularly smooth running and low-vibration. Substructure and machine bed cast in one piece.
Main Feature :
Convincing Arguments: Quality, Efficiency and Price
-Hardened and ground bed guide-ways
-Camlock spindle seat DIN ISO 702-2 No. 6
-Coolant equipment with separate coolant tank separately with filling level display and oil separator
-Easy and compete draining and cleaning according to DIN
-Guaranteed true running accuracy of the spindle nose of better than 0.015mm
-Right-handed / Left-handed rotation on the bed slide switchable via stem
-Mechanic longitudinal feed Switch-off of the slide with four adjustable eccentric
-Cover for leading spindle
-Foot brake
-Electrical system with Siemens components
-First filling with high grade Mobil oil
-Adjustable scale of the threading gauge
-Halogen machine lamp with articulated arm
-Quick action tool holder with tool holder for square tools
-Central lubrication at the bed slide
-Digital Position Display is Optional
-Considerable reduction of the manufacturing times
-High working accuracy
-Error rate is reduced
-Clearly-arranged keyboard
-Certificate of Original (CO, FORM A, FORM E, FORM F )
Technical Data :
We are Recognized OEM / ODM manufacturer cooperation with world Famous Germany Machinery Companies for more than 25 years, As a result, Our Team has Prodessional Experience and Innovation Technology to support customers in worldwide. If you want to buy Machine Tools, Welcome to visit our company website to send your enquiry to us, Our team is willing to cooperate with you together.
FAQ:
1. Question: Are you a factory or trading company?
Answer: We are an SGS recognized OEM/ODM manufacturer factory with export license. We have an outstanding and experienced team made up of "A" player who have a passion for doing something great to create more value for customers world-wide.
2. Question: Why choose cooperate with us?
Answer: Right people, Right product, Right price;
Company-wide customer awareness;
Reliable Quality and All components from world leading suppliers;
Cost-effective export infrastructure and total supply chain management;
3. Question: Where is your factory located? How can I visit there?
Answer: With an ISO90001 certified factory located in Yangzhou city, Jiangsu Province, P. R. China. It takes about 2 hours from Shanghai by train. It is very pleasure for clients to visit us.
4. Question: Can you do OEM?
Answer: Yes, we have the ability to do OEM / ODM to meet clients' requirements.
5. Question: How does your factory do regarding quality control?
Answer: Assuring Quality is our dignity and quality control engineers specially be responsible for quality checking in each process such as Incoming Quality Control, In Process Quality Control, Outgoing Quality Control, Environment Control, Product Traceability System, Internal Audits & Calibration, Equipment Control & Maintenance, Control of Non-Conforming Materials and etc.
This MM-D460X1500 is 18 X 60 inch Heavy Duty Engine Lathe / Lathe / Metal Lathe / Lathe Machine / Manual Lathe / Gap-bed Lathe / Precision Lathe / Turning Lathe / Horizontal Lathes with THREE PHASE INDUSTRY Powerful MOTOR has many main Features for demanding users.
Heavy Duty 18" X 60" inch High Precision Gear Head Lead Screw Metal Turning Engine Lathe Machine with Adavanced Technology, Complete Equipment, Easy-To-Operate, Perfect For Small Industry.
Heavy centre lathe completely equipped, particularly smooth running and low-vibration. Substructure and machine bed cast in one piece.
Main Feature :
Convincing Arguments: Quality, Efficiency and Price
-Hardened and ground bed guide-ways
-Camlock spindle seat DIN ISO 702-2 No. 6
-Coolant equipment with separate coolant tank separately with filling level display and oil separator
-Easy and compete draining and cleaning according to DIN
-Guaranteed true running accuracy of the spindle nose of better than 0.015mm
-Right-handed / Left-handed rotation on the bed slide switchable via stem
-Mechanic longitudinal feed Switch-off of the slide with four adjustable eccentric
-Cover for leading spindle
-Foot brake
-Electrical system with Siemens components
-First filling with high grade Mobil oil
-Adjustable scale of the threading gauge
-Halogen machine lamp with articulated arm
-Quick action tool holder with tool holder for square tools
-Central lubrication at the bed slide
-Digital Position Display is Optional
-Considerable reduction of the manufacturing times
-High working accuracy
-Error rate is reduced
-Clearly-arranged keyboard
-Certificate of Original (CO, FORM A, FORM E, FORM F )
Technical Data :
| Product Name : | Heavy Duty Metal Centre Engine Lathe Machine |
| Product Item : | MM-D460X1500 |
| Machine Data | |
| Max Swing over Bed : | Ø 460 mm |
| Distance between Centers : | 1500mm |
| Turning over Cross Slide : | Ø 270 mm |
| Turning Diameter in Bed Bridge : | Ø 690 mm |
| Centre Height : | 230 mm |
| Length of Bed Bridge : | 240 mm |
| Bed Width : | 300 mm |
| Spindle Speed : | 25-2000 RPM |
| Number of Steps : | 12 Steps |
| Headstock | |
| Spindle Taper : | MT 6 |
| Spindle Seat : | Camlock DIN ISO702-2 Nr.6 |
| Spindle Hole, rod passage : | Ø 58 mm |
| Slide | |
| Travel Top slide : | 128 mm |
| Travel Cross slide : | 285 mm |
| Longitudinal feed in range of : | 0.031-1.7 mm/rev (40 feeds) |
| Transverse feed in range of : | 0.014-0.784 mm/rev (40 feeds) |
| Pitch-Metric in the range of : | 0.1-14mm / rev (53 thread pitches) |
| Pitch-Inch in the range of : | 2-112 TPI (40 thread pitches) |
| Trapezoid thread in range of : | 4-112 (50 trapezoid thread) |
| Modular Thread in range of : | 0.1-7 (34 modular thread) |
| Height of quadruple tool holder : | Max. 25 X 25 mm |
| Tailstock Taper : | MT 4 |
| Tailstock -- Sleeve Travel : | 130 mm |
| Main Motor : | 5500W |
| Coolant Pump Motor : | 100W |
| Connecting Voltage : | Three Phase 400V |
| Gross Weight : | 2300 KGS |
| Packing Size: | 2800 X 1245 X 1650 mm |
| Standard Accessory : | 3-Jaw Chuck Ø 250mm, 4-Jaw Chuck Ø 300mm, Face clamping disc Ø 350mm, Machine Substructure, Coolant Equipment, Change Gear Kit, Machine Lamp, Tools and Toolbox |
We are Recognized OEM / ODM manufacturer cooperation with world Famous Germany Machinery Companies for more than 25 years, As a result, Our Team has Prodessional Experience and Innovation Technology to support customers in worldwide. If you want to buy Machine Tools, Welcome to visit our company website to send your enquiry to us, Our team is willing to cooperate with you together.
FAQ:
1. Question: Are you a factory or trading company?
Answer: We are an SGS recognized OEM/ODM manufacturer factory with export license. We have an outstanding and experienced team made up of "A" player who have a passion for doing something great to create more value for customers world-wide.
2. Question: Why choose cooperate with us?
Answer: Right people, Right product, Right price;
Company-wide customer awareness;
Reliable Quality and All components from world leading suppliers;
Cost-effective export infrastructure and total supply chain management;
3. Question: Where is your factory located? How can I visit there?
Answer: With an ISO90001 certified factory located in Yangzhou city, Jiangsu Province, P. R. China. It takes about 2 hours from Shanghai by train. It is very pleasure for clients to visit us.
4. Question: Can you do OEM?
Answer: Yes, we have the ability to do OEM / ODM to meet clients' requirements.
5. Question: How does your factory do regarding quality control?
Answer: Assuring Quality is our dignity and quality control engineers specially be responsible for quality checking in each process such as Incoming Quality Control, In Process Quality Control, Outgoing Quality Control, Environment Control, Product Traceability System, Internal Audits & Calibration, Equipment Control & Maintenance, Control of Non-Conforming Materials and etc.
