Magnetic Tensioner (MT-30) Coil Winding Wire Tensioner
Magnetic Tensioner (MT-30) Coil Winding Wire TensionerDetailed Product Description:MT Series Horizontal Type Magnetic Tensioner is used on coil winding machine by using permanent magnet, tension is generated to the damp wheel. The non-contact mechanism design provides stable, consistence and precisi......
Send Inquiry
Product Description
Magnetic Tensioner (MT-30) Coil Winding Wire Tensioner
Detailed Product Description:

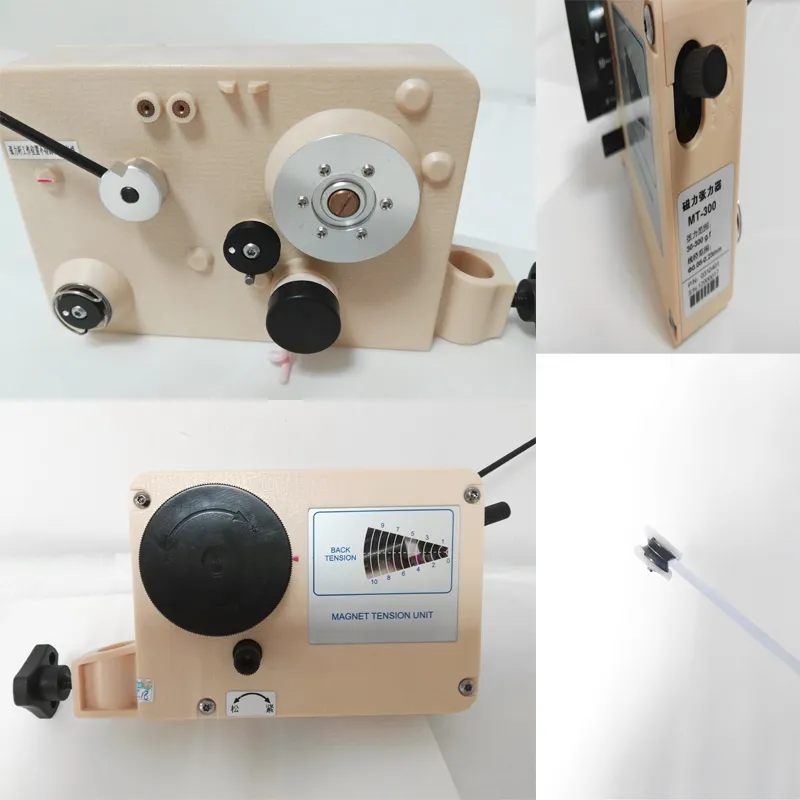

MT Series Horizontal Type Magnetic Tensioner is used on coil winding machine by using permanent magnet, tension is generated to the damp wheel. The non-contact mechanism design provides stable, consistence and precision tension to the wire. Excellence for both high and normal speed winding.
Specifications
Contact Information
Detailed Product Description:
MT Series Horizontal Type Magnetic Tensioner is used on coil winding machine by using permanent magnet, tension is generated to the damp wheel. The non-contact mechanism design provides stable, consistence and precision tension to the wire. Excellence for both high and normal speed winding.

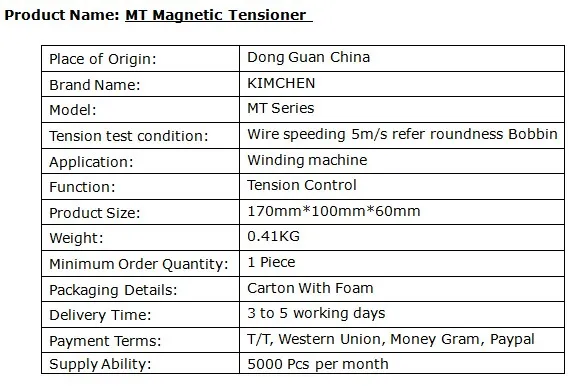

Specifications
| Model | Applied wire diamiter(mm) | Tension scope(g.f) |
| MT-30 | φ0.02-φ0.06 | 3-30 |
| MT-100 | φ0.04-φ0.12 | 10-100 |
| MT-200 | φ0.06-φ0.16 | 20-200 |
| MT-400 | φ0.08-φ0.25 | 50-400 |
| MT-600 | φ0.12-φ0.35 | 80-600 |
| MT-800 | φ0.14-φ0.40 | 100-800 |
