Hcvac Hard Chrome Plating Equipment, PVD Zirconium Chrome Coating Machine
Hard zirconium chrome plating equipment, PVD chrome coating machineIs a high-tech environmentally friendly products for a variety of metal surface coating. For example: The watch industry (strap, case, dial, etc. ), hardware industry (sanitary ware, , door handles, door knobs, locks, etc. ), the arc......
Send Inquiry
Product Description

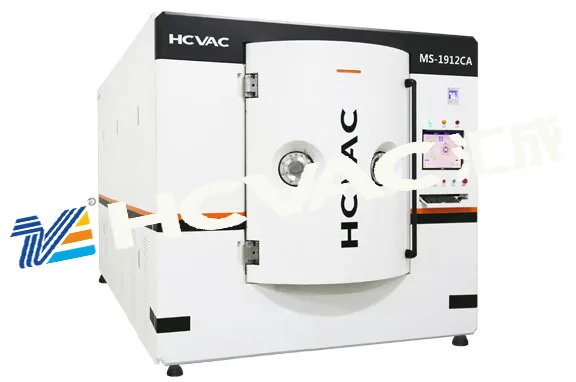

Hard zirconium chrome plating equipment, PVD chrome coating machine

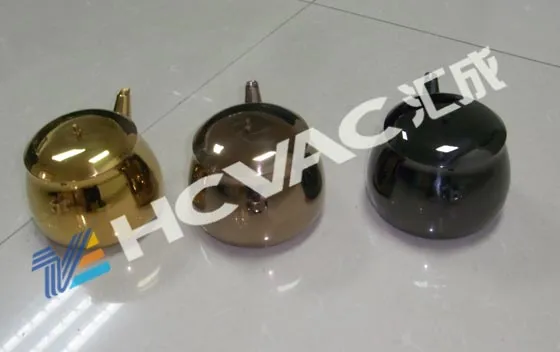

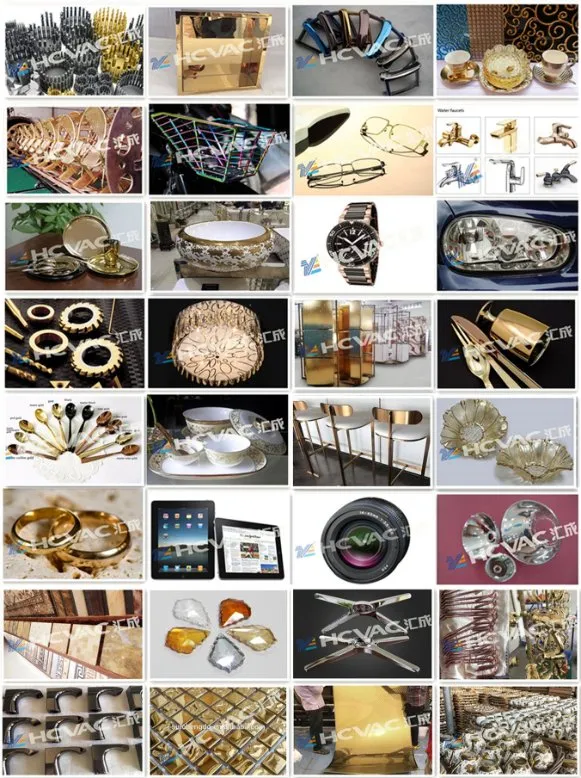

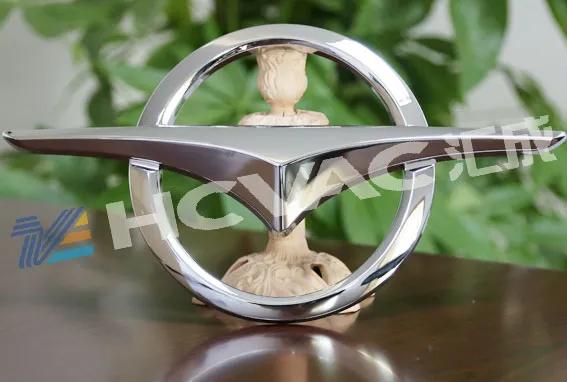

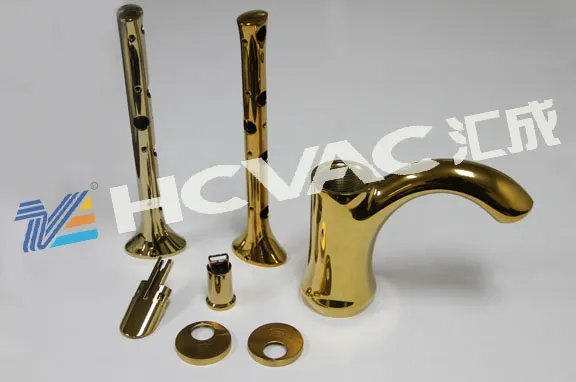

Is a high-tech environmentally friendly products for a variety of metal surface coating. For example: The watch industry (strap, case, dial, etc. ), hardware industry (sanitary ware, , door handles, door knobs, locks, etc. ), the architecture industry (stainless steel plate, stair railings, columns, etc. ), precision mold industry (standard mold, etc. ), the tool industry (drill bits, carbide cutters, broaches, shaving heads), the automotive industry (car wheels, car parts, piston, piston rings, etc. ), as well as pens, glasses, etc., to the surface both beautiful and wear functional wear layer. The main coated film: Ions of gold, silver ion, titanium nitride film, titanium carbide film, zirconium nitride film, titanium aluminum film, chromium nitride, and RP-plated and other superhard functional metal film, the workpiece coated by ion coating machine can improved hardness, wear resistance, anti-corrosion and more beautiful.
Characteristics:
1. The equipment uses the vacuum magnetron sputtering technique, twin cathode, MF sputtering technique, and matching with advanced control systems.
2. The production process all automated, continuous. The highest temperature of the plating workpiece is up to 350 centi-degree, the temperature is zone control and adjustable.
3. The vacuum chamber materials adopts SUS304, polishing inner vacuum chamber wall, spraying beads external vacuum chamber wall after polishing.
Easy to implement
To many people unfamiliar with the process, PVD coating technology seems complicated. However, with the right investments and a good support, it is easier than expected. HCVAC has developed a turnkey coating process that makes a PVD coating centre easy to implement. A complete coating process consists of several steps: Stripping (depending on the part's history); Pre-treatment; Quality control; Cleaning & drying; Fixturing & visual inspection; PVD coating; Quality control & thickness measurement and post-treatment (depending on the application). These steps are all available from one partner: HCVAC Technology, including mature technics and coatings.
We will make the special coating solution for each customer; Combine the full set production technics to meet your requirements, to ensure high efficiency of production.
Contact: Lillian Yang
Please send us your detailed requirements. We will provide the best solution for you!
Technical parameters:
Why a HCVAC system?

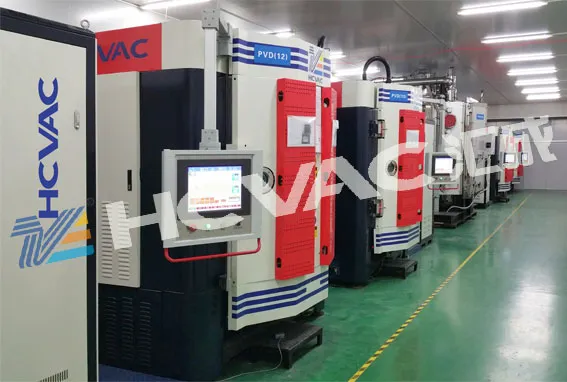

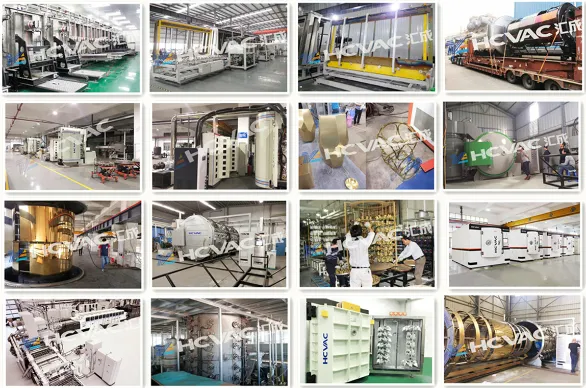

Over 1000 plants installed worldwide
Quick cycle times
High production capability with low energy consumption
More up time due to ease of loading/unloading and low maintenance
High productivity with only a single operator
Steel process chambers, built to last
Eco-friendly
Space saving design
PVD option available on all plants
1 year component warranty and 12 years minimum guaranteed working life
Complete global network of consulting, engineering and renowned after sales service
Is a high-tech environmentally friendly products for a variety of metal surface coating. For example: The watch industry (strap, case, dial, etc. ), hardware industry (sanitary ware, , door handles, door knobs, locks, etc. ), the architecture industry (stainless steel plate, stair railings, columns, etc. ), precision mold industry (standard mold, etc. ), the tool industry (drill bits, carbide cutters, broaches, shaving heads), the automotive industry (car wheels, car parts, piston, piston rings, etc. ), as well as pens, glasses, etc., to the surface both beautiful and wear functional wear layer. The main coated film: Ions of gold, silver ion, titanium nitride film, titanium carbide film, zirconium nitride film, titanium aluminum film, chromium nitride, and RP-plated and other superhard functional metal film, the workpiece coated by ion coating machine can improved hardness, wear resistance, anti-corrosion and more beautiful.
Characteristics:
1. The equipment uses the vacuum magnetron sputtering technique, twin cathode, MF sputtering technique, and matching with advanced control systems.
2. The production process all automated, continuous. The highest temperature of the plating workpiece is up to 350 centi-degree, the temperature is zone control and adjustable.
3. The vacuum chamber materials adopts SUS304, polishing inner vacuum chamber wall, spraying beads external vacuum chamber wall after polishing.
Easy to implement
To many people unfamiliar with the process, PVD coating technology seems complicated. However, with the right investments and a good support, it is easier than expected. HCVAC has developed a turnkey coating process that makes a PVD coating centre easy to implement. A complete coating process consists of several steps: Stripping (depending on the part's history); Pre-treatment; Quality control; Cleaning & drying; Fixturing & visual inspection; PVD coating; Quality control & thickness measurement and post-treatment (depending on the application). These steps are all available from one partner: HCVAC Technology, including mature technics and coatings.
We will make the special coating solution for each customer; Combine the full set production technics to meet your requirements, to ensure high efficiency of production.
Contact: Lillian Yang
Please send us your detailed requirements. We will provide the best solution for you!
Technical parameters:
| Mode Dimension | LH-800 | LH-1100 | LH-1250 | LH-1600 | LH-1800 |
| 800*1000mm | 1100*1000mm | 1250*1500mm | 1600*1800mm | 1800*1800mm | |
| Maily application | Metal decorative coating and Ceramic decorative coating | ||||
| Coating mode and main confirguration | Eight multi-arc targets | Ten multi-arc targets | Twelve multi-arc targets | Twenty multi-arc targets | Twenty two multi-arc targets |
| Power source | Electric-arc power, Filament power, | ||||
| Process gas control | Mass flowmeter + Electromagnetic ceramic valve | ||||
| Vacuum chamber structure | Vertical side opening door, pump system postposition, double water cooling | ||||
| Vacuum system | Molecule pump +Roots pump +Mechanical pump(8.0*10 -5 Pa) Diffusion pump +Roots pump +Mechanical pump(8.0*10 -4 Pa) | ||||
| Workpiece baking temperature | Normal temperature to 350 centi-degree PID control, radiation heating. | ||||
| Workpiece motion mode | Public rotation Frequency control: 0-20 rotation per minute | ||||
| Measure mode | Number display composite vacuum gauge: from atmosphere to 1.0*10 -5 Pa | ||||
| Control mode | Manual/Automatic/PC/PLC + HMI/PC four choice of control mode | ||||
| Remark | We can design the dimension of the equipment according to customer's special technique requirement. | ||||
Why a HCVAC system?
Over 1000 plants installed worldwide
Quick cycle times
High production capability with low energy consumption
More up time due to ease of loading/unloading and low maintenance
High productivity with only a single operator
Steel process chambers, built to last
Eco-friendly
Space saving design
PVD option available on all plants
1 year component warranty and 12 years minimum guaranteed working life
Complete global network of consulting, engineering and renowned after sales service
