Chinese Manufacturer of High-Precision Metal Polishers
R-Y Series Metal Sanding MachineProduct Parameter:Model numberST80R-YST110R-YST140R-YWorking width30-800mm30-1100mm30-1100mmWorking length≥100mm≥100mm≥100mmWorking thickness0.5-100mm0.5-100mm0.5-100mm1st shaft linear speed3-16m/sVFD control3-16m/sVFD control3-16m/sVFD controlDis......
Send Inquiry
Product Description

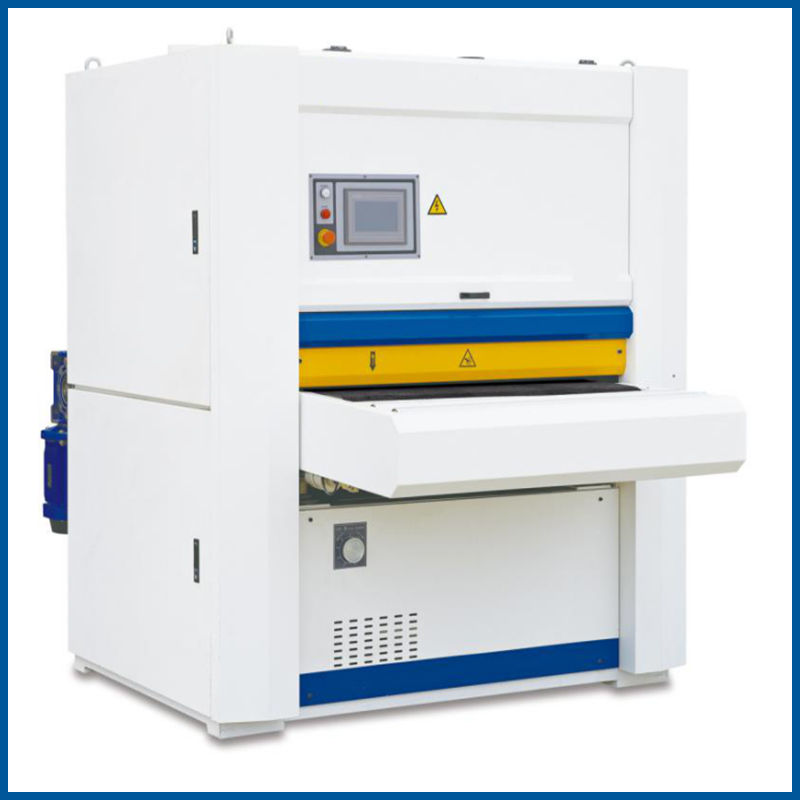

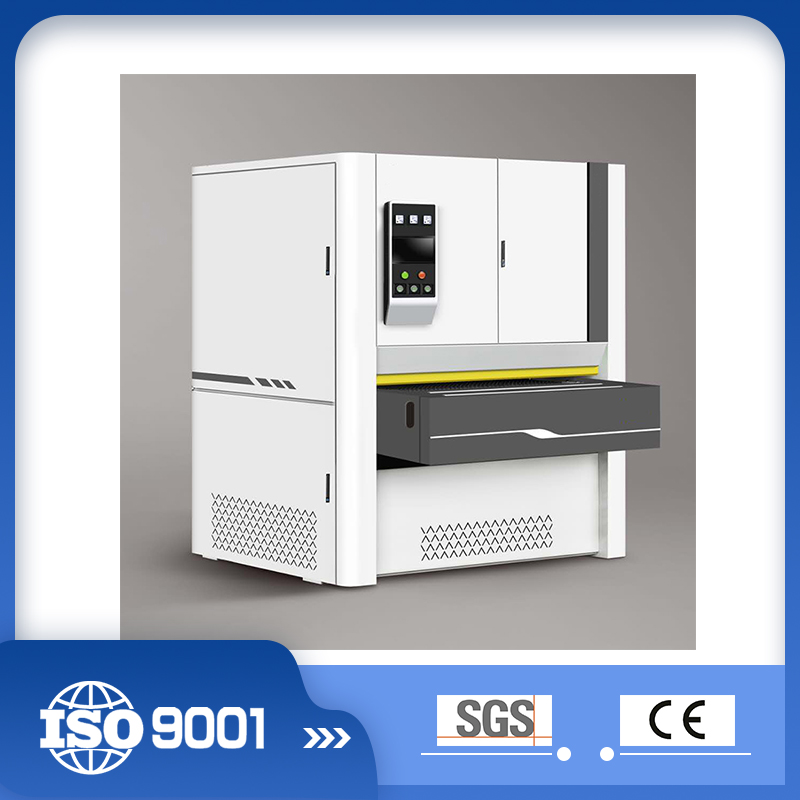

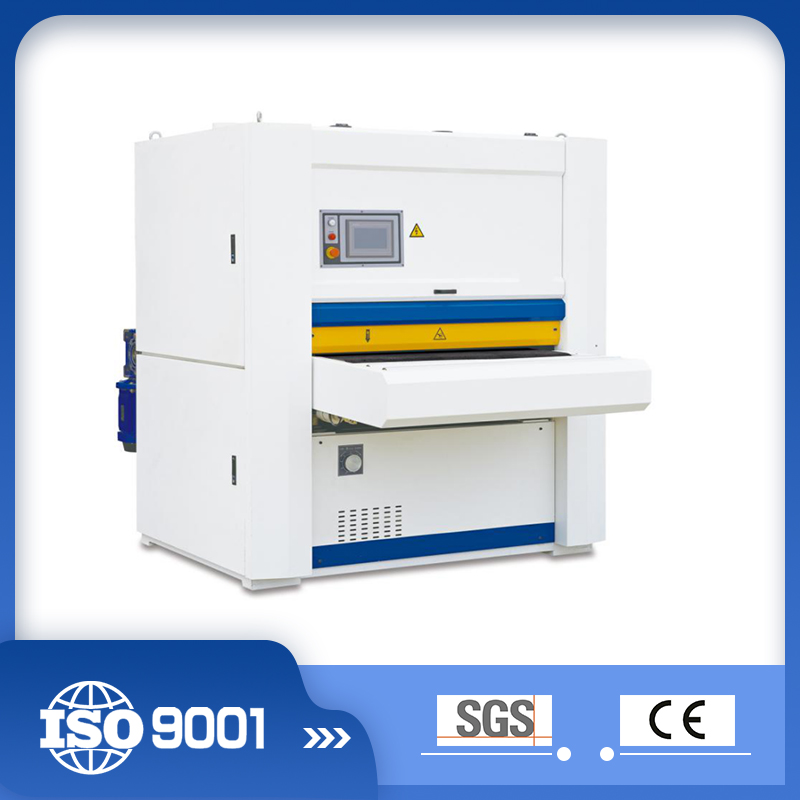

R-Y Series Metal Sanding Machine
Product Parameter:

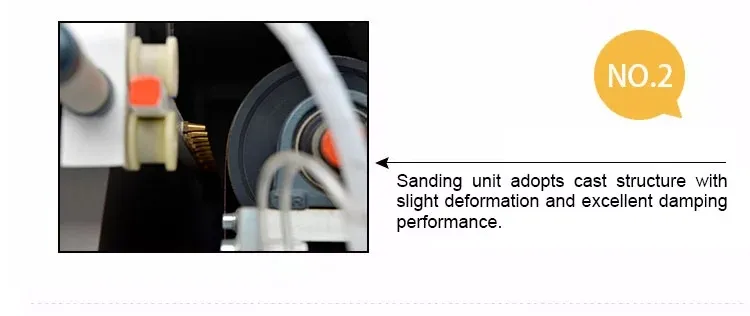

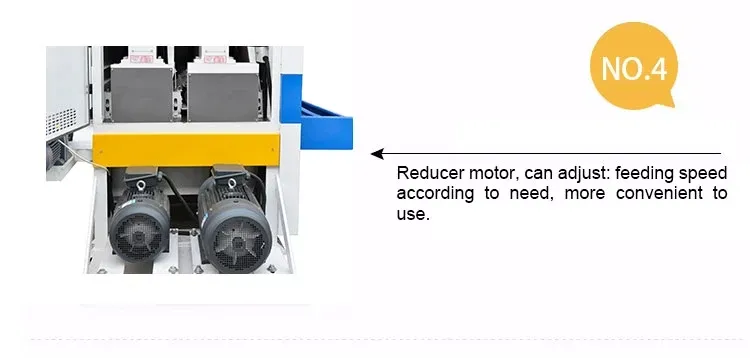

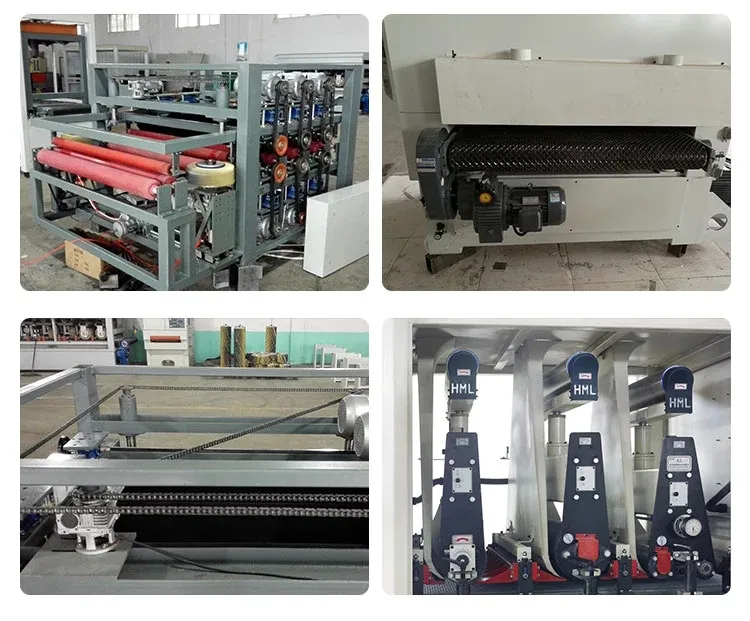

Product details:
Machine Function:

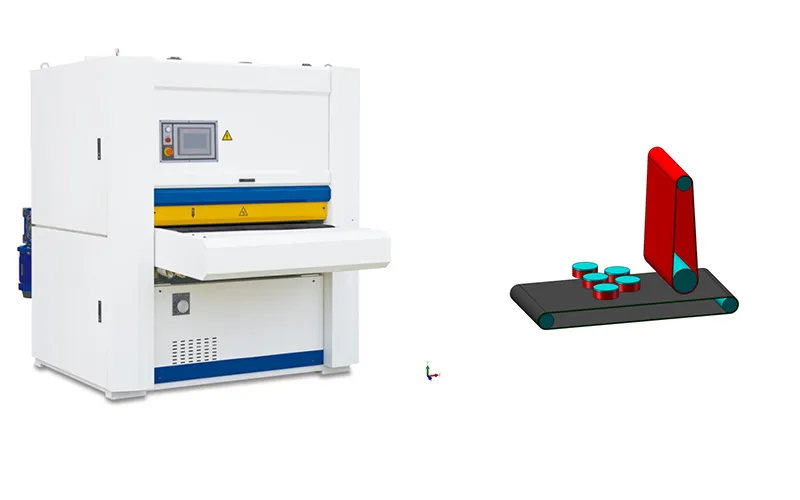

R-Y series metal sanding machine is a kind of equipment processed by contact roller and brush disc. It is mainly used for surface treatment of flat plate in sheet metal industry, such as laser, plasma cutting, digital punching, reduction plate, mechanical processing and other equipment. After processing, the remaining burr, slag removal and drawing on the surface of flat plate are removed.
Machine Features:
•Through processing, one-time feeding to complete surface drawing, deburring, slag removal and other work;
•Wide belt contact roller is used for drawing workpiece surface;
•In the process of operation, the wide belt contact roller can switch from positive to negative according to the actual situation;
•Brush disc is used to remove slag, burr and smooth edge;
•Vacuum adsorption table, with a minimum processing of 100 * 100mm;
•Two groups of stations can be processed separately to meet various process requirements;
•The cleaning brush roller, used to remove the metal plate residues in the working process of the conveyor belt;
Low processing cost and energy consumption;

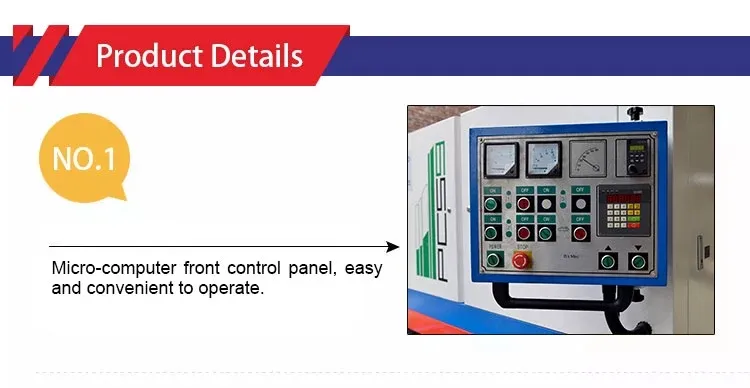

• convenient operation, touch screen operation panel, LED light source inside the equipment, easy to observe the workpiece processing.
Our certificate:
Our company :
QingDao Samac International Trading Co., Ltd. Specializes in the export of woodworking, glass processing, metal processing and Stone Processing machinery. Our woodworking machinery series is mainly used to process real wood, wooden plates, plywood and related types of wood.
Since the foundation of our company, we have always introduced first-class Chinese machinery to the entire world. We cooperate with many local famous factories on R&D to keep in pace with this modern world. Our company aims to help our customers select the best quality and most suitable products for their needs. Simultaneously, we also undertake OEM/ODM projects which can satisfy customers' special requirements.
Quality: We are scrupulous about every detail, professional QC and strict checking porcedure ensure our work and guarantee eac machine which is in it's best presentation. All our goods pass through our rigid quality control before shipment.
With high-quality products, powerful strength, a professional team and excellent after-sales service, we have gained a good reputation among our customers. It is our sincere desire to develop more customers' business through trustworthy cooperation.
Our customer:

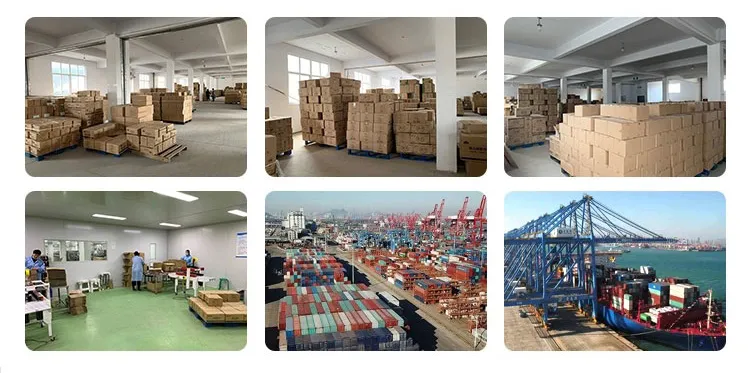

Packaging and Logistics:
FAQ:
1. What's the delivery time?
We will deliver the product in 7 days after receiving the deposit.
2. What's your payment terms?
We can accept various payment terms if it is convenient for you.
3. what's your MAQ?
Our MAQ is 1 piece.
4. What's the lifetime of the wearing parts?
The material of our product is of high quality, and the lifetime of our wearing parts is twice longer than the others,including the roller skin, die and bearing.
Product Parameter:
| Model number | ST80R-Y | ST110R-Y | ST140R-Y |
| Working width | 30-800mm | 30-1100mm | 30-1100mm |
| Working length | ≥100mm | ≥100mm | ≥100mm |
| Working thickness | 0.5-100mm | 0.5-100mm | 0.5-100mm |
| 1st shaft linear speed | 3-16m/s VFD control | 3-16m/s VFD control | 3-16m/s VFD control |
| Disc amount | 9 | 12 | 16 |
| Infeed belt speed | 0.5-5m/min | 0.5-5m/min | 0.5-5m/min |
| Infeed belt motor power | 1.5kw | 1.5kw | 3kw |
| Vacuum suction motor power | 7.5kw | 7.5kw | 7.5kw |
| Cleaning brush motor power | 0.37kw | 0.37kw | 0.37kw |
| Total motor power | 26.62kw | 30.62kw | 37.62kw |
| 1st sanding shaft specification | Ø190mmSH45 Eccentric rubber roller | Ø190mmSH45 Eccentric rubber roller | Ø240mmSH45 Eccentric rubber roller |
| 2nd sanding shaft specification | 3 groups of sanding disc | 4 groups of sanding disc | 6 groups of sanding disc |
| Air pressure | 0.6Mpa | 0.6Mpa | 0.6Mpa |
Machine Function:
R-Y series metal sanding machine is a kind of equipment processed by contact roller and brush disc. It is mainly used for surface treatment of flat plate in sheet metal industry, such as laser, plasma cutting, digital punching, reduction plate, mechanical processing and other equipment. After processing, the remaining burr, slag removal and drawing on the surface of flat plate are removed.
Machine Features:
•Through processing, one-time feeding to complete surface drawing, deburring, slag removal and other work;
•Wide belt contact roller is used for drawing workpiece surface;
•In the process of operation, the wide belt contact roller can switch from positive to negative according to the actual situation;
•Brush disc is used to remove slag, burr and smooth edge;
•Vacuum adsorption table, with a minimum processing of 100 * 100mm;
•Two groups of stations can be processed separately to meet various process requirements;
•The cleaning brush roller, used to remove the metal plate residues in the working process of the conveyor belt;
Low processing cost and energy consumption;
• convenient operation, touch screen operation panel, LED light source inside the equipment, easy to observe the workpiece processing.
Our certificate:
Our company :
QingDao Samac International Trading Co., Ltd. Specializes in the export of woodworking, glass processing, metal processing and Stone Processing machinery. Our woodworking machinery series is mainly used to process real wood, wooden plates, plywood and related types of wood.
Since the foundation of our company, we have always introduced first-class Chinese machinery to the entire world. We cooperate with many local famous factories on R&D to keep in pace with this modern world. Our company aims to help our customers select the best quality and most suitable products for their needs. Simultaneously, we also undertake OEM/ODM projects which can satisfy customers' special requirements.
Quality: We are scrupulous about every detail, professional QC and strict checking porcedure ensure our work and guarantee eac machine which is in it's best presentation. All our goods pass through our rigid quality control before shipment.
With high-quality products, powerful strength, a professional team and excellent after-sales service, we have gained a good reputation among our customers. It is our sincere desire to develop more customers' business through trustworthy cooperation.
Our customer:
Packaging and Logistics:
FAQ:
1. What's the delivery time?
We will deliver the product in 7 days after receiving the deposit.
2. What's your payment terms?
We can accept various payment terms if it is convenient for you.
3. what's your MAQ?
Our MAQ is 1 piece.
4. What's the lifetime of the wearing parts?
The material of our product is of high quality, and the lifetime of our wearing parts is twice longer than the others,including the roller skin, die and bearing.
