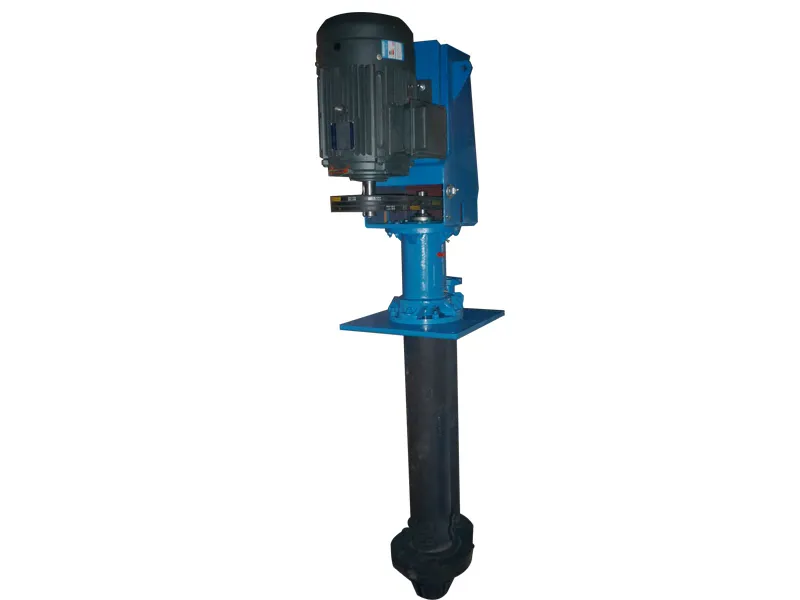

65qv-Sp Vertical Sump Slurry Pumps Made in Naipu Factory

Product Description

65QV-SPR vertical rubber slurry pumps and metal slurry pumps

65qv-Sp Vertical Sump Slurry Pumps Made in Naipu Factory

SP & SPR LURRY PUMP CLEAR WATER PERFORMANCE DATASHEET
MODEL	MAX	MATERIAL		CAPACITY		HEAD	SPEED	MAX	No.of
	POWER	LINER	IMPELLER	m3/h	l/s	H(m)	n(r/m)	η%	Vanaes
	KW	LINER	IMPELLER	m3/h	l/s	H(m)	n(r/m)	η%	Vanaes
40PV-SP	15	M	M	19~43	5~12	4.5~28.5	1000~2200	40	5
40PV-SPR	15	RU	RU	17~39	4~11	4~26	1000~2200	40	5
65QV-SP	30	M	M	23~111	6~30	5~30	700~1500	50	5
65QV-SPR	30	RU	RU	23~105	6~29	5~30	700~1500	51	5

100RV-SP	75	M	M	54~289	15~80	5~35	500~1200	56	5

100RV-SPR	75	RU	RU	64~285	18~79	7~36	600~1200	62	5
150SV-SP	110	M	M	108~479	30~133	8~40	500~1000	52	5
200SV-SP	110	M	M	189~891	152~247	6~37	400~850	64	5
250TV-SP	200	M	M	261~1089	72~302	7~33	400~750	60	5
300TV-SP	200	M	M	288~1267	80~352	6~33	350~700	50	5

Rubber material is suitable for slurry with the maximum particle size less than 10 m(average particle size 3 mm).Its wear resistance is better than the metal material, so the transport of no edges and corners of fine particle slurry is mostly used rubber pump.Although ceramic material has the characteristics of high hardness, wear resistance and corrosion resistance, but because of its more brittleness, it is difficult to be used in slurry pump.However, ceramic coating is formed on the metal surface by means of surface coating, which not only gives play to the wear and corrosion resistance characteristics of ceramic materials,However, there are still many problems to be solved in the practical application of this method. but Rubber material is more mature than others.

Rubber slurry pump spare parts: cover plate liner and frame plate liner.
the wet end parts of our slurry pumps can metal or rubber. For rubber wet end parts, it inlcuding cover plate liner, frame plate liner,impeller, throat bushing and back liner,etc.
Our rubber slurry pump spare parts material: R08,R26,S31,S42etc.
Our rubber wet end parts are suitable for many model pumps
1) AHR series slurry pump
1.5/1B-AH,2/1.5B-AH,3/2,4/3,6/4,8/6,10/8,12/10,14/12,16/14,ect.
2)Vertial slurry pumps
40PV-SPR,65QV-SPR,100RV-SPR,150SV,etc.

65qv-Sp Vertical Sump Slurry Pumps Made in Naipu Factory
