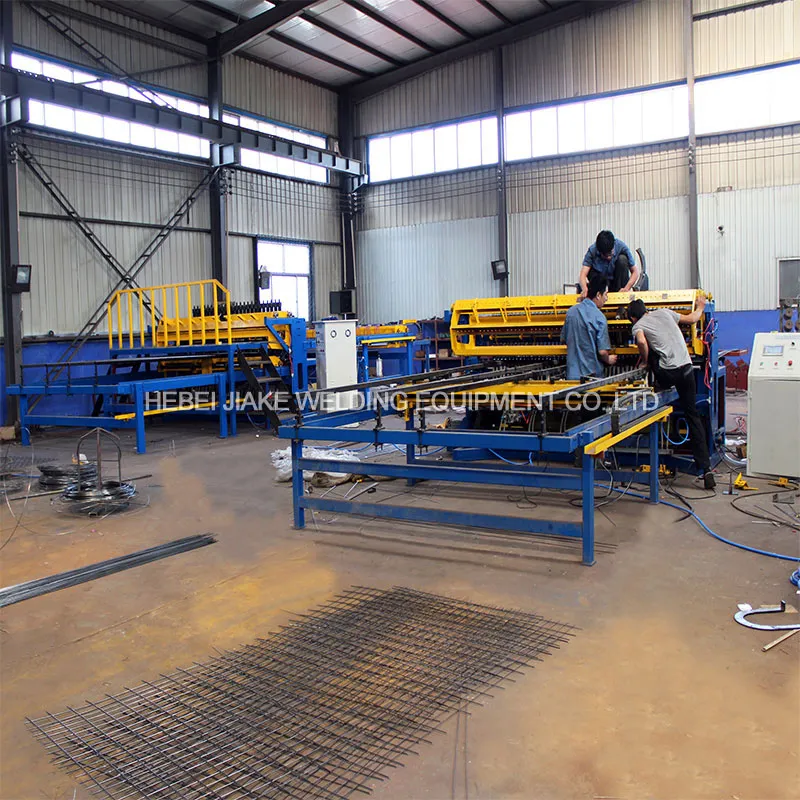

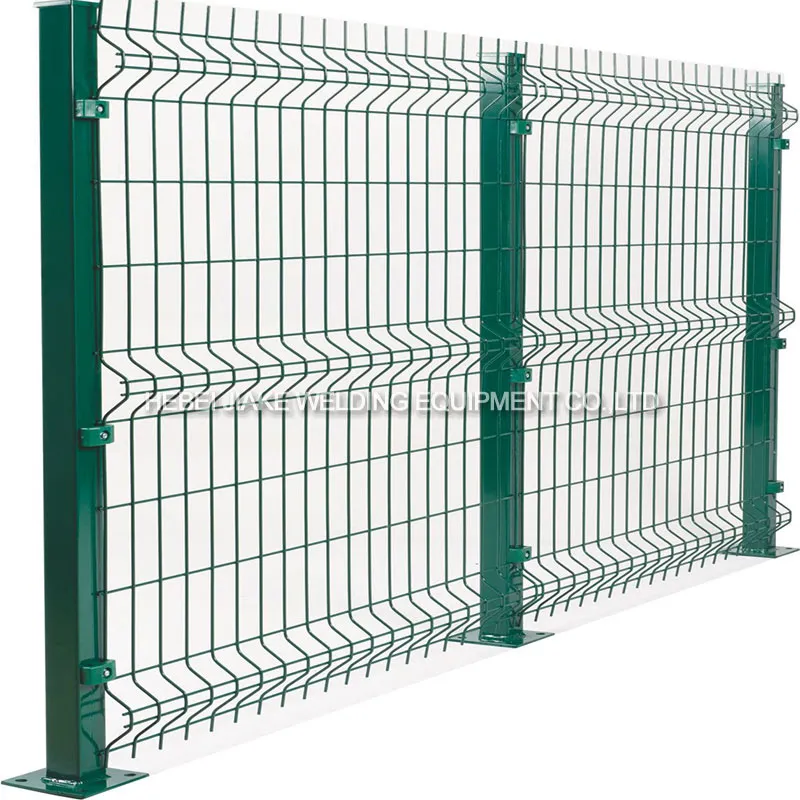

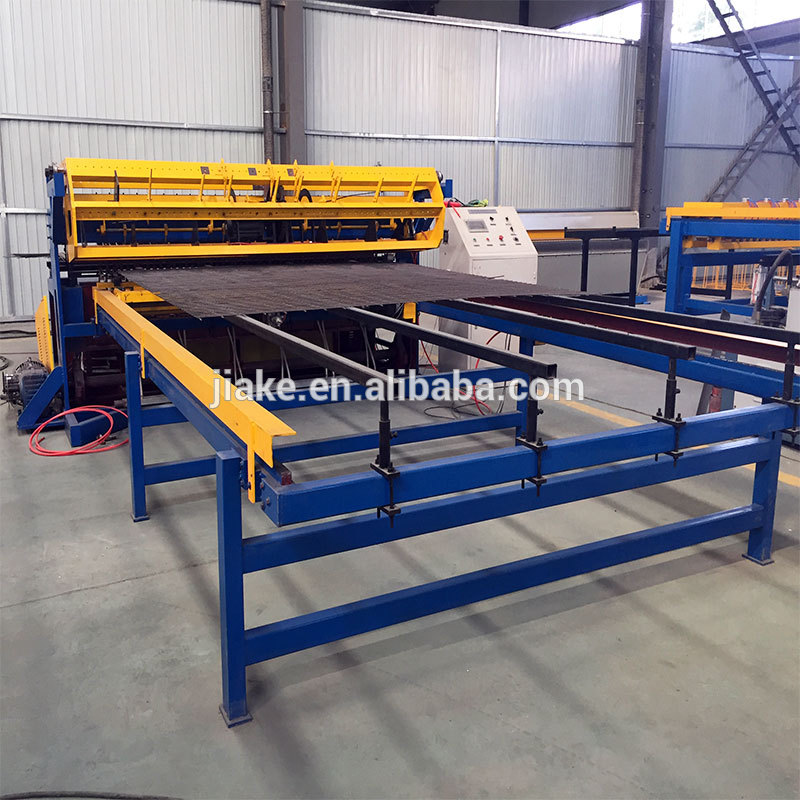

China 3D Welded Steel Fence Panel Mesh Welding Machine
Technical ParametersModelDP-FP-1200ADP-FP-2500ADP-FP-3000AWelding widthMax.1200mmMax.2500mmMax.3000mmWire diameter2.5-6mmLongitude wire space50-300mmCross wire spaceMin.25mm/12.7mmMesh lengthMax.6mWelding electrodes25pcs48pcs61pcsWelding speed50-75 times/minWelding transformers125kva*3pcs125kva*6pcs......
Send Inquiry
Product Description
Technical Parameters
| Model | DP-FP-1200A | DP-FP-2500A | DP-FP-3000A |
| Welding width | Max.1200mm | Max.2500mm | Max.3000mm |
| Wire diameter | 2.5-6mm | ||
| Longitude wire space | 50-300mm | ||
| Cross wire space | Min.25mm/12.7mm | ||
| Mesh length | Max.6m | ||
| Welding electrodes | 25pcs | 48pcs | 61pcs |
| Welding speed | 50-75 times/min | ||
| Welding transformers | 125kva*3pcs | 125kva*6pcs | 125kva*8pcs |
| Need air compressor | 0.3m^3 | ||
| Machine Size | 4.9*2.1*1.6m | 4.9*3.4*1.6m | 4.9*3.9*1.6m |
| Weight | 2T | 4T | 4.5T |
When 5-6mm, min.longitude wire space is 100mm.
Advantages of Machine
1.Inside of Electric control cabinet:
Panasonic (Japan) PLC
Weinview (Taiwan) touch screen
Schneider (France) low-voltage apparatus
ABB (Switzerland Sweden) switch
Schneider (France) air switch
Meanwell (Taiwan) power supply
Delta (Taiwan) Variable-frequency Drive
Autonics (South Korea) encoder
Panasonic (Japan) servo drive
2. Cast iron slot tunnel, good quality
3.Upper connected copper wire, 200mm^2
4.Upper welding electrodes 20mm, lower welding electrodes 20*20*20mm, can be used 6 sides.
5.Special cross wire feeder, controlled by new type step motor 36N.M with SMC (Japan) device
6.Clutch motor&reducer connect the main axis directly, welding high stable. The motor is not easily broken. (Patent technology)
7.Cast water-cooling welding transformer 125kva, the welding current can be adjusted by PLC.
8. Electric board, our engineers develop it with professors in university, it is our paten technology.
9.Water-cooling system
10.Hook with SMC (Japan) air cylinders, cycle for Mesh pulling system.
11.Panasonic servo motor
12. Igus brand cable carrier, imported from Germany, not hung down.
13. Ladder and stand, easy for feeding cross wires
14.Welding speed: max.75 time/min
Commercial Terms
| Payment | 30%T/T in advance, the balance 70% by T/T after check the machine before shipping or irrevocable L/C at sight. |
| Delivery time | 50 days after receiving the advance payment |
| Guarantee time | One year since the machine was installed at buyer's factory but within 18 months against B/L date |
| After-sales service | We can send our one best technician to buyer's factory for installation and training. The buyer should be in charge of: 1. Two way air tickets for seller's engineer 2. Accommodation and meals for the engineer 3. Visa fee 4. Salary of the engineer, 80 USD per day, usually, 7-10 days 5. Translator |
