CNC Machining/Machined/Machinery Part, Standard Components Plastic Injection Metal Latck Mold Parts
Standard Components Plastic Injection Metal Latck Mold Parts1: mechanical interlocking design, safe and reliable.2:Insert bar, end of pull rod adopt high frequency annealing treatment, so that easy to second time processing installed holes.3: This latch parts not only control opening mold sequence ,......
Send Inquiry
Product Description

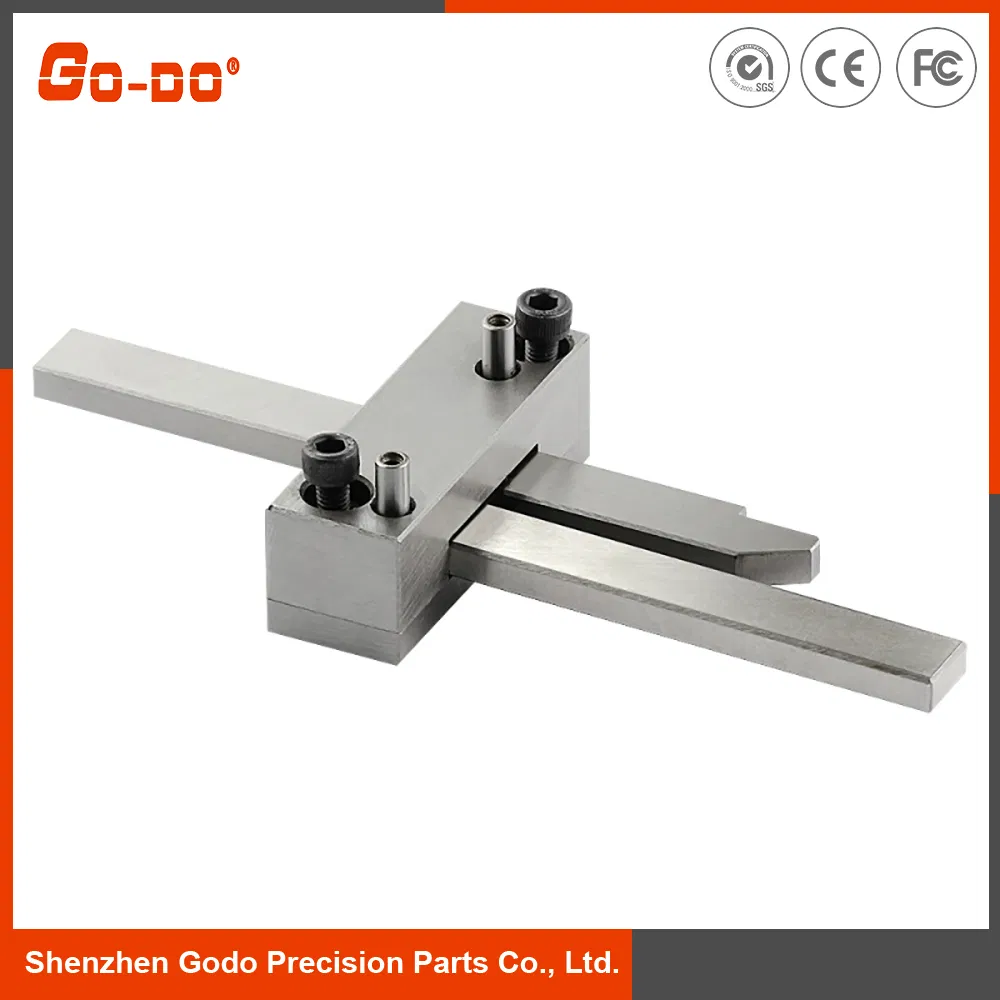

Standard Components Plastic Injection Metal Latck Mold Parts
1: mechanical interlocking design, safe and reliable.
2:Insert bar, end of pull rod adopt high frequency annealing treatment, so that easy to second time processing installed holes.
3: This latch parts not only control opening mold sequence ,But also control closed open sequence.
4: Ater installed, carry out a functional test, check whether the individual parts of the latch lock units moves smoothly, the stroke is applicable. Recommend testing on matched Molds machine or Injection machine, no Lifting Machine.
5:Some important parts are made of SKD61,Provide good lubricating while working,longer life
Product Description Mold Parts
How to order:
(1) Send us drawing or standard code & size
(2) We quote you within 1 day (except Saturday and Sunday)
(3) Get agreement with price and sign PO or Contract
(4) Make payment in advance
(5)If sample required,we will make sample first.
Why choose us:
*-Quality: Qualified Raw Material
Reliable Machines
Mature process
Skilful employees
Strict Quality Control
*-Price: Competitive price /Reasonable margin
*-Service: Any inquiries replied within 24 hours
Quick Delivery
Quick Response
Warranty: Depend on product type
1: mechanical interlocking design, safe and reliable.
2:Insert bar, end of pull rod adopt high frequency annealing treatment, so that easy to second time processing installed holes.
3: This latch parts not only control opening mold sequence ,But also control closed open sequence.
4: Ater installed, carry out a functional test, check whether the individual parts of the latch lock units moves smoothly, the stroke is applicable. Recommend testing on matched Molds machine or Injection machine, no Lifting Machine.
5:Some important parts are made of SKD61,Provide good lubricating while working,longer life
Product Description Mold Parts

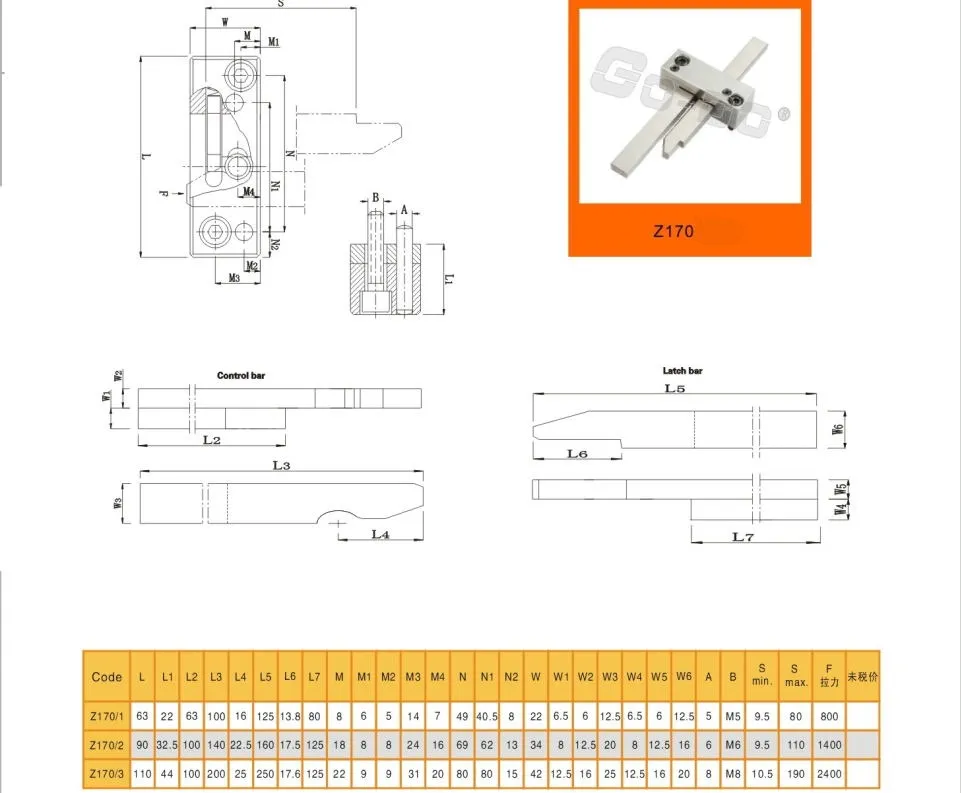

| Code | L | L1 | L2 | L3 | L4 | L5 | L6 | L7 | M | M1 | M2 | M3 | M4 | N | N1 | N2 | W | W1 | W2 | W3 | W4 | W5 | W6 | A | B | S/min | S/max | F | ||
| Z170/1 | 63 | 22 | 63 | 100 | 16 | 125 | 13.8 | 80 | 8 | 6 | 5 | 14 | 7 | 49 | 40.5 | 8 | 22 | 6.5 | 6 | 12.5 | 6.5 | 6 | 12.5 | 5 | M5 | 9.5 | 80 | 800 | ||
| Z170/2 | 90 | 32.5 | 100 | 140 | 22.5 | 160 | 17.5 | 125 | 18 | 8 | 8 | 24 | 16 | 69 | 62 | 13 | 34 | 8 | 12.5 | 20 | 8 | 12.5 | 16 | 6 | M6 | 9.1 | 110 | 1400 | ||
| Z170/3 | 110 | 44 | 100 | 200 | 25 | 250 | 17.6 | 125 | 22 | 9 | 9 | 31 | 20 | 80 | 80 | 15 | 42 | 12.5 | 16 | 25 | 12.5 | 16 | 20 | 8 | M8 | 10.5 | 190 | 2400 |
| Manufacture | Shenzhen Godo Precision Parts Co., Ltd. |
| Mold type | Plastic injection mould,Die-casting injection mould,Precision machining |
| Industry | Automotive,Medical,Cosmetics,Mobile Phone,Stationery |
| Mould size | According to customer requirements |
| Material | DAC, SKH-51, HPM38, STAVAX, 1.2343, 1.2344, 1.2767, 8407, ect |
| Standard | DEM,HASCO,Misumi,Puch ect |
| Surface | Mirro polished,Technical Polished,Mold Tech texture, Nitriding , |
| plating ,VDI texture ect | |
| Delivery | 10-15 days after payment |
| Shipment | Sea shipment,Air shipment |
| Package | in bubble bag,plastic bag,carton,Customized |
| QC System | 100% inspection before shipment |
| Equipment | The main processing equipment: Taiwan centerless grinder, |
| within / outside the original red molding machine, | |
| surface grinder, table lathe, high-speed lathes, | |
| CNC lathes, sparks machine ect |
How to order:
(1) Send us drawing or standard code & size
(2) We quote you within 1 day (except Saturday and Sunday)
(3) Get agreement with price and sign PO or Contract
(4) Make payment in advance
(5)If sample required,we will make sample first.
Why choose us:
*-Quality: Qualified Raw Material
Reliable Machines
Mature process
Skilful employees
Strict Quality Control
*-Price: Competitive price /Reasonable margin
*-Service: Any inquiries replied within 24 hours
Quick Delivery
Quick Response
Warranty: Depend on product type
