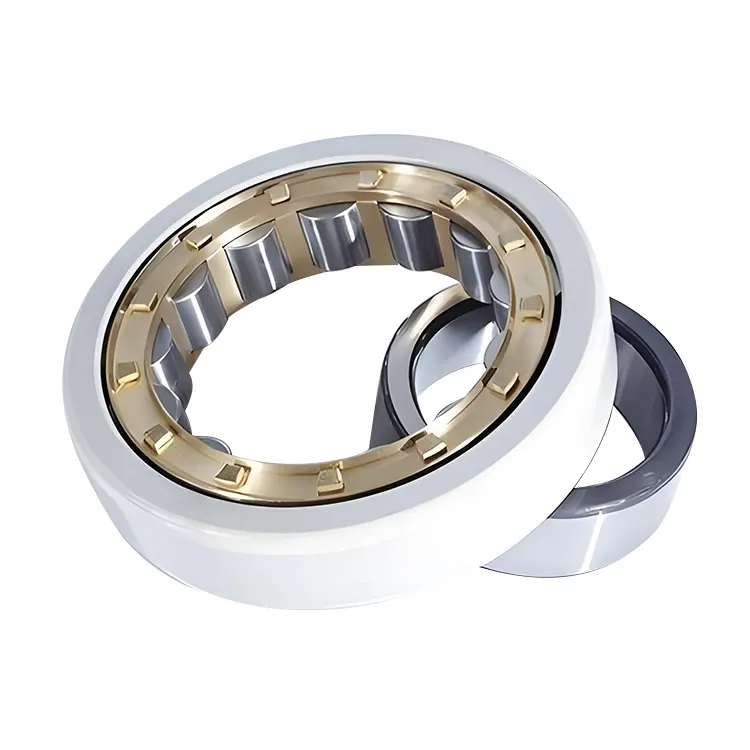

How to maintain Electrical Insulated Bearing

Maintaining Electrically Insulated Bearings (EIBs) is crucial to ensure their longevity and performance, especially in applications involving variable frequency drives (VFDs), electric motors, and generators, where stray electrical currents can damage standard bearings. Here’s a comprehensive guide on how to maintain insulated bearings:

1. Visual and Physical Inspection

Inspect the insulation layer regularly for any signs of cracking, flaking, or wear.

Check the outer coating (typically ceramic or polymer-based) for mechanical damage or contamination.

Ensure that the insulation is intact and not compromised due to impact or corrosion.

2. Cleanliness and Environment

Keep the bearing housing and surrounding areas clean to avoid conductive dust accumulation.

Avoid moisture ingress and chemical exposure that might degrade insulation.

Use sealed or shielded bearings where contaminants are likely.

3. Lubrication

Use only recommended lubricants – avoid conductive greases that may short the insulation.

Maintain a proper lubrication schedule to avoid overheating and wear.

Avoid over-lubrication, as excess grease can cause increased temperature and leakage.

4. Electrical Testing

Periodically check for insulation resistance using a megohmmeter or insulation tester.

Ensure insulation resistance is within acceptable limits (typically >10 MΩ, but check manufacturer specifications).

If insulation is compromised, the bearing may conduct stray currents and must be replaced.

5. Proper Installation

Avoid hammering or force-fitting the bearing, which can damage the insulation layer.

Use proper heating tools (like induction heaters) that don’t exceed manufacturer-recommended temperatures.

Make sure there is no metal contact bridging the insulation layer (e.g., through shaft keys or retaining rings).

6. Monitoring and Vibration Analysis

Perform regular vibration analysis to detect early signs of bearing wear or electrical fluting

Look for patterns typical of electrical erosion, such as evenly spaced pits or washboard patterns on raceways.

7. Replacement and Spare Parts

Always use OEM-approved replacements that meet insulation requirements.

Keep spares in dry, controlled environments to prevent insulation degradation in storage.

Common Mistakes to Avoid

Bypassing insulation: Installing a grounding brush or ring incorrectly can render insulation ineffective.

Reusing damaged bearings: If the insulation is damaged, the bearing cannot be reused safely.

Using standard bearings in place of insulated ones where electrical protection is needed.
