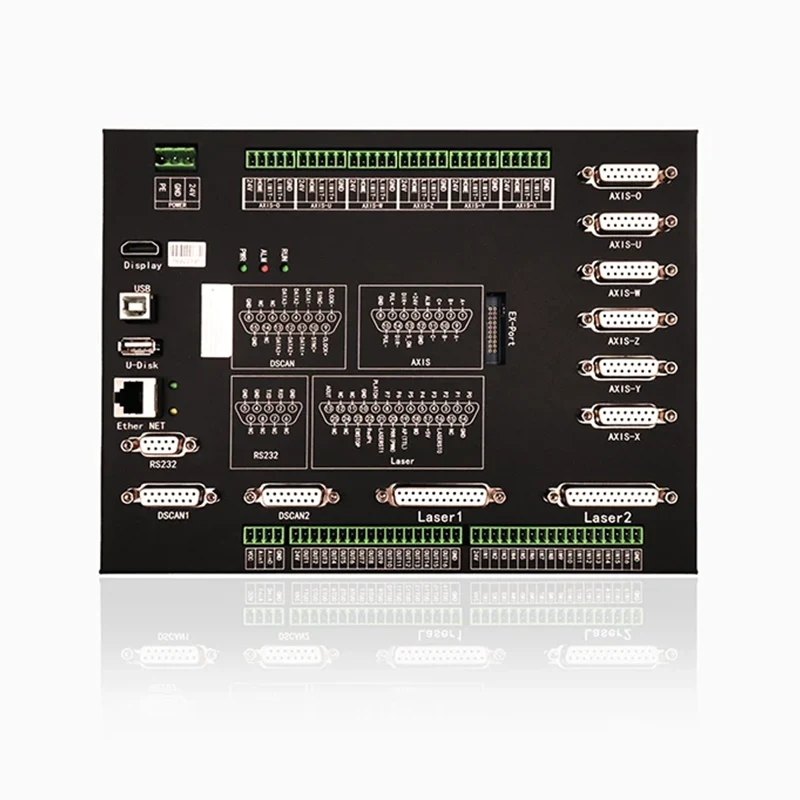

How to Select the Galvanometer Dual Flight Laser Control Board Control Mode According to the Application

In modern laser processing systems, especially in high-speed and precision-demanding environments, galvanometer-based dual flight laser control boards play a pivotal role. These control boards offer multiple operating modes, including position mode, speed mode, and PID (Proportional-Integral-Derivative) control mode. Selecting the appropriate control mode is essential to optimizing system performance, efficiency, and accuracy. The right choice depends heavily on the specific application, material type, processing requirements, and desired output precision.

1. Understanding the Control Modes

Before selecting the control mode, it is important to understand the nature of each:

Position Control Mode: This mode focuses on accurate positioning of the galvanometer mirrors. It is suitable for applications requiring high precision at specific coordinates, such as micro-marking or PCB etching.

Speed Control Mode: In this mode, the controller manages the mirror velocity rather than its exact position. This is ideal for continuous or high-speed engraving where motion fluidity is prioritized over pinpoint accuracy.

PID Control Mode: PID control is a feedback-based system that adjusts the galvanometer mirror based on proportional, integral, and derivative error calculations. It balances accuracy, stability, and responsiveness, making it highly versatile across diverse tasks.

2. Matching Control Modes with Applications

a. Fine Marking and Micro-engraving

For intricate designs, such as in jewelry engraving or microelectronics, position control mode is most suitable. It ensures the laser hits exact coordinates with minimal deviation, which is critical for maintaining pattern integrity on small scales.

b. High-speed Coding and Packaging

In dynamic production lines like packaging or serial number marking, speed control mode is often preferred. The galvanometer must follow moving products or belts, where consistent velocity matters more than precise placement. Speed mode ensures smooth, rapid movements to keep pace with production speeds.

c. Precision Cutting and Multi-material Processing

For complex tasks involving variable materials and dynamic laser paths—such as cutting different layers of composite materials or variable-depth engraving—PID control mode is advantageous. Its ability to adapt to feedback and correct in real-time helps maintain performance under changing load or environmental conditions.

3. Consideration of System Integration and Load Conditions

The mechanical load on the galvanometer mirrors and the response characteristics of the system also influence mode selection:

Low-load, high-response systems favor position mode for optimal precision.

Variable-load systems, such as those with large mirror inertia or changing thermal conditions, benefit more from PID control, which adjusts output dynamically.

Lightweight, high-speed applications align well with speed mode, reducing overshoot and vibrations during rapid transitions.

4. Software Compatibility and User Control

Advanced laser systems often come with software interfaces that support all three control modes. However, the level of user customization, tuning capabilities, and diagnostics can influence the choice. Applications requiring real-time correction or adaptive behavior should use PID mode, particularly when the software allows fine-tuning of gain values.

Conclusion

Choosing the correct control mode for a Galvanometer Dual Flight Laser Control Board is essential for achieving optimal laser system performance. Position control offers unmatched accuracy, speed control enhances efficiency for dynamic applications, and PID control provides balanced and adaptive performance for complex scenarios. Understanding the specific needs of the application—whether precision, speed, or adaptability—is the key to making the right decision. A well-matched control mode not only improves output quality but also extends the lifespan of the equipment and enhances overall productivity.
