Top Hammer Drilling: Drill Bit Types and Selection Criteria

Top hammer drilling is a widely used method in mining, construction, and quarrying due to its efficiency in hard rock formations. The effectiveness of the operation largely depends on the proper selection of drill bits. Here’s a concise overview of the main types of top hammer drill bits and key selection criteria.

Types of Top Hammer Drill Bits

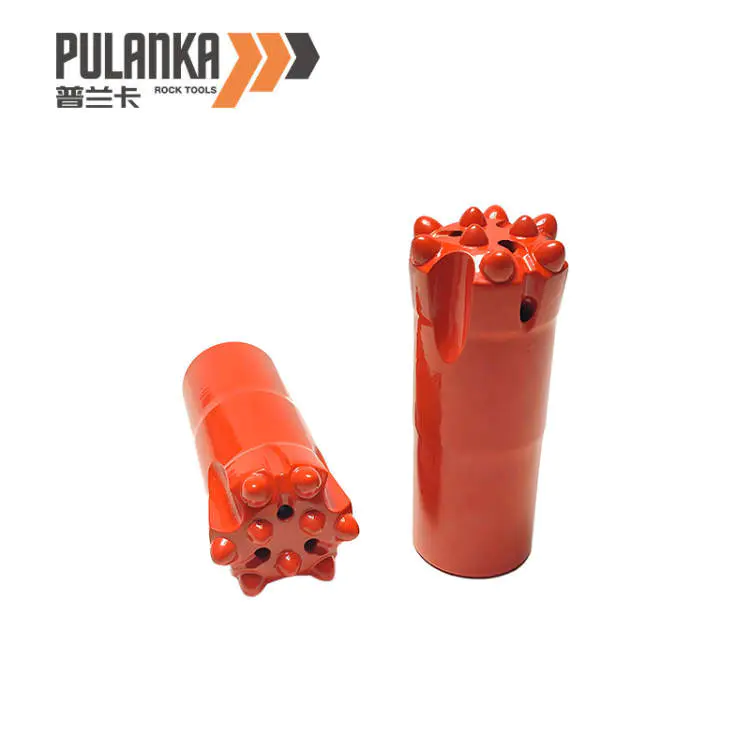

Button Bits

The most common type, featuring spherical, ballistic, or conical tungsten carbide buttons. These bits provide excellent wear resistance and high impact strength, making them ideal for hard to very hard rock formations.

Cross Bits (X-type)

Designed with intersecting chisel-shaped edges, cross bits are best suited for medium-hard formations and provide good directional stability, though they have lower penetration rates.

Chisel Bits

These bits have a single chisel-shaped edge and are used for soft to medium rock. They offer high penetration rates but are less suitable for directional accuracy and wear resistance.

Retrac Bits

With a modified body for improved hole straightness and retraction in fractured or broken rock, retrac bits are excellent for deep hole applications and challenging ground conditions.

Reaming Bits

Used to enlarge pre-drilled holes, especially in tunneling and raise boring, reaming bits ensure smooth and accurate hole profiles.

Selection Criteria

Rock Hardness: Use button bits for hard rock; chisel or cross bits are better for softer formations.

Hole Depth and Straightness: Choose retrac or button bits for deep or critical alignment drilling.

Wear Life vs. Penetration Rate: For long-lasting performance, spherical buttons are preferred; for faster drilling, consider ballistic tips.

Drilling Conditions: In fractured or abrasive rock, bits with higher toughness and wear resistance are essential.

Rig Compatibility: Match bit diameter and shank type with the drilling rig and rod system used.

Choosing the correct drill bit type enhances penetration efficiency, prolongs tool life, and reduces operational costs in top hammer drilling.
