Understanding Cartridge Heaters: A Comprehensive Guide

Cartridge heaters are essential components in many industrial and commercial heating applications. These compact and efficient heating devices play a critical role in a wide range of processes, from plastics manufacturing to food processing. In this blog, we’ll explore what cartridge heaters are, their benefits, applications, and key considerations for selecting the right heater for your needs.

What is a Cartridge Heater?

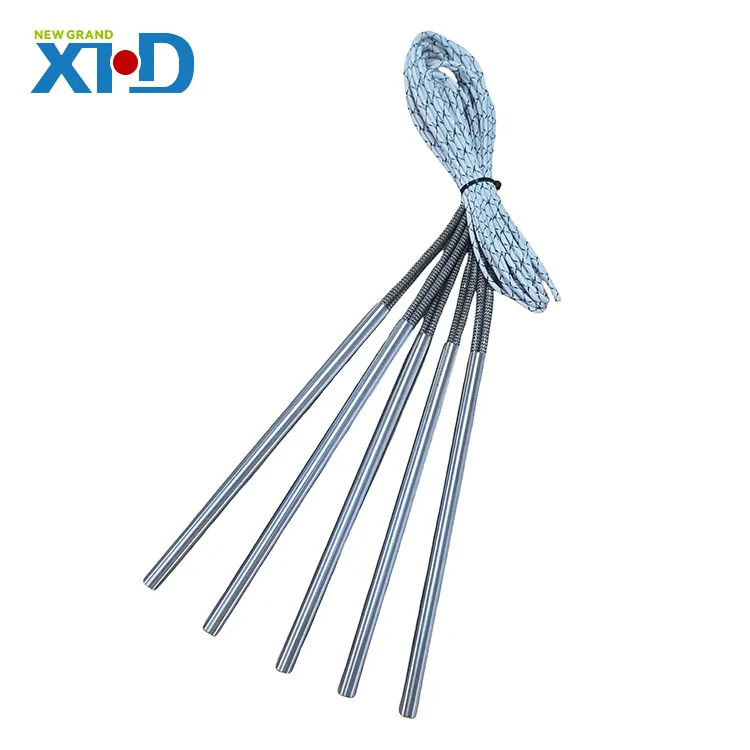

A cartridge heater is a cylindrical heating element designed to provide localized heat in various applications. It consists of a metal sheath (usually made of stainless steel or Inconel) that encases one or more resistive heating wires. The heater is designed to be inserted into a specially drilled hole in a component or machine, allowing it to transfer heat directly to the surrounding material.

Key Benefits of Cartridge Heaters

1. Compact Design

  Cartridge heaters are small and easy to install, making them suitable for applications where space is limited. Their cylindrical shape allows them to fit into tight areas without requiring much room.

2. Efficient Heat Transfer

  With their design, cartridge heaters provide rapid and efficient heat transfer. They can heat up quickly and maintain consistent temperatures, reducing energy consumption and improving process efficiency.

3. Wide Temperature Range

  Cartridge heaters can operate across a broad temperature range, typically from -40°C to 700°C (-40°F to 1300°F), depending on the materials used. This makes them suitable for various applications, including those that require high temperatures.

4. Durability and Longevity

  The metal sheath protects the heating elements from damage and corrosion, enhancing the heater’s durability. With proper usage, cartridge heaters can provide reliable performance over extended periods.

5. Versatile Applications

  Cartridge heaters can be used in various industries, including plastics, packaging, food processing, and medical equipment, making them a versatile choice for heating applications.

Applications of Cartridge Heaters

1. Plastic Molding

  In plastic injection molding, cartridge heaters are commonly used to maintain the temperature of the melt in barrels and molds. They ensure that plastic remains in a molten state for proper injection and shaping.

2. Food Processing

  Cartridge heaters are used in food processing equipment to maintain the temperature of sauces, chocolates, and other materials during production. They help ensure food safety and consistency in product quality.

3. Heat Shrink Applications

  In packaging and labeling, cartridge heaters are used for heat shrink tubing, which shrinks around products for protection and presentation. They provide the necessary heat for the tubing to conform tightly to the product.

4. Die Heating

  Cartridge heaters are often utilized in die heating applications to maintain the temperature of molds and dies, ensuring smooth operation and quality output.

5. Thermal Management in Medical Devices

  In medical devices, cartridge heaters can provide precise temperature control for applications such as blood sample warming, ensuring accuracy in diagnostics and treatments.

Selecting the Right Cartridge Heater

When choosing a cartridge heater, consider the following factors:

1. Diameter and Length: Cartridge heaters come in various sizes. Select the appropriate diameter and length based on the application and the hole specifications in the workpiece.

2. Watt Density: The watt density (watts per square inch) will determine how quickly the heater can reach the desired temperature. Higher watt densities provide faster heating but can also increase the risk of overheating.

3. Material: The sheath material should be chosen based on the application. Stainless steel is common for general use, while Inconel may be preferred for high-temperature or corrosive environments.

4. Termination Type: Consider the wiring and termination options. Depending on your setup, you might need lead wires, connectors, or even thermocouples for temperature monitoring.

5. Temperature Control: Integrating a temperature controller or thermocouple with your cartridge heater can enhance performance and ensure precise temperature regulation.

Conclusion

Cartridge heaters are invaluable tools across various industries, offering efficient, compact, and reliable heating solutions. Their versatility and adaptability make them suitable for numerous applications, from manufacturing and food processing to medical device production. By understanding the key benefits and considerations for selecting cartridge heaters, you can ensure optimal performance and efficiency for your specific heating needs.

As industries continue to evolve, the demand for innovative heating solutions like cartridge heaters will only grow. Investing in high-quality cartridge heaters can significantly enhance operational efficiency, product quality, and overall process reliability.
