What Are Smooth Plug Gauges and Why Are They Essential in Precision Engineering?
2025-08-07
In precision manufacturing and quality control, Smooth Plug Gauges play a vital role in verifying the dimensions of components. These gauges are fundamental tools for inspecting the inner diameter (ID) of holes with high accuracy. Used across aerospace, automotive, defense, and mechanical industries, Smooth Plug Gauges ensure that components meet strict dimensional tolerances—minimizing errors, ensuring safety, and maintaining production consistency.
At Dongguan Drilling and Milling Tapping Tools Co., Ltd. , we specialize in producing Smooth Plug Gauges with high precision and durability. All our products are manufactured to international standards such as ISO, DIN, ANSI, and JIS, ensuring consistent performance in the most demanding industrial environments.
Why Choose Smooth Plug Gauges?
Smooth Plug Gauges are designed to check the GO and NOGO limits of a hole. They are a non-adjustable, simple-to-use tool for confirming whether an internal diameter is within the specified tolerance. When precision is non-negotiable, they provide a fast, accurate, and cost-effective solution.
Product Specifications
To ensure transparency and aid your purchasing decision, here is a breakdown of our Smooth Plug Gauges specifications:
✔ Product Overview:
| Specification | Description |
|---|---|
| Product Name | Smooth Plug Gauges |
| Material | Hardened Tool Steel / Carbide Tipped / Stainless Steel (optional) |
| Accuracy Grade | Class X, XX, or Z (based on ANSI/ASME B89.1.5) |
| Surface Finish | Ra < 0.2 μm (Highly polished, scratch-resistant) |
| Tolerance Standards | ISO, DIN, ANSI, JIS |
| Size Range | Ø 0.20 mm to Ø 200.00 mm |
| Handle Type | Steel, Aluminum, or Insulated Plastic |
| Markings | Laser-etched with size, tolerance, and serial number |
| Customization | Available (on material, handle, size range, and coatings) |
| Certification | ISO 9001:2015, Calibration Certificate Included |
Available Gauge Types
We provide various types of Smooth Plug Gauges depending on your measurement needs:
✔ GO / NOGO Configuration
| Gauge Type | Description |
|---|---|
| GO Plug Gauge | Used to confirm the minimum material condition (MMC). Hole must allow pass. |
| NOGO Plug Gauge | Used to confirm the maximum material condition (LMC). Hole must block entry. |
✔ Single-Ended and Double-Ended Gauges
| Design | Description |
|---|---|
| Single-Ended | Only GO or NOGO side; used where space is limited. |

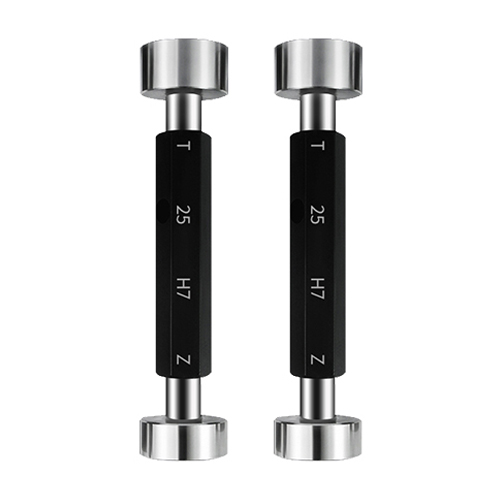

| Double-Ended | Contains both GO and NOGO ends, color-coded (usually green & red). |
Benefits of Our Smooth Plug Gauges
-
High Durability: Made from hardened steel or tungsten carbide for extended tool life.
-
Superior Precision: Ground and lapped for exact diameter measurement.
-
Ease of Use: Ergonomic handles and clearly marked ends.
-
Versatility: Suitable for manual and automated inspection systems.
-
Cost-Effective: Reduces downtime and part rejections.
Maintenance and Calibration
To maintain the reliability of your gauges:
-
Store in a dry, controlled environment
-
Use only with clean, lubricated bores
-
Periodically calibrate based on usage frequency (typically every 6–12 months)
-
Inspect for wear and tear (especially at the edges)
We offer full calibration services and replacement gauge programs for long-term customers.
FAQs — Smooth Plug Gauges
Q1: What is the difference between a Smooth Plug Gauge and a Thread Plug Gauge?
A1: A Smooth Plug Gauge checks non-threaded holes (plain bores), ensuring that the inner diameter meets specified tolerances. A Thread Plug Gauge, on the other hand, is used for threaded holes and verifies both pitch and major diameter. Smooth Plug Gauges are commonly used in parts where tight clearances are critical, but no threading is involved.
Q2: How often should Smooth Plug Gauges be recalibrated?
A2: Recalibration frequency depends on usage intensity and environment. For high-volume production, gauges should be recalibrated every 6 months. In less demanding environments, annual calibration may suffice. Always monitor for signs of wear, such as changes in fit, scratches, or oxidation. At our facility, we provide calibration services traceable to national standards with full certification.
Q3: What materials are best for different environments?
A3: For general applications, hardened tool steel offers excellent durability. In abrasive or high-wear environments, carbide-tipped gauges are preferred for longer life. For corrosive or cleanroom settings, stainless steel gauges are ideal. We also provide anti-rust coatings and non-magnetic options based on client requirements.
How to Choose the Right Smooth Plug Gauge
Here's a checklist to guide your selection:
-
Identify the Bore Tolerance – Refer to engineering drawings
-
Decide on GO/NOGO or Single Ended – Based on space and inspection needs
-
Select Material – Depending on your environment and longevity requirements
-
Handle Type – Ergonomic options available for manual inspections
-
Surface Finish Requirements – For applications like optics or medical parts
-
Certification Needs – Calibration, ISO compliance, etc.
Summary
Smooth Plug Gauges are indispensable tools for any organization that values dimensional accuracy and production quality. Whether you're checking the bore of an aerospace turbine or inspecting high-volume automotive components, these gauges offer simplicity, precision, and durability. We supply Smooth Plug Gauges with precision you can trust and service you can rely on. If you are interested, please contact me. For technical consultation, pricing, or a quote on custom gauges, feel free to contact our team anytime.
