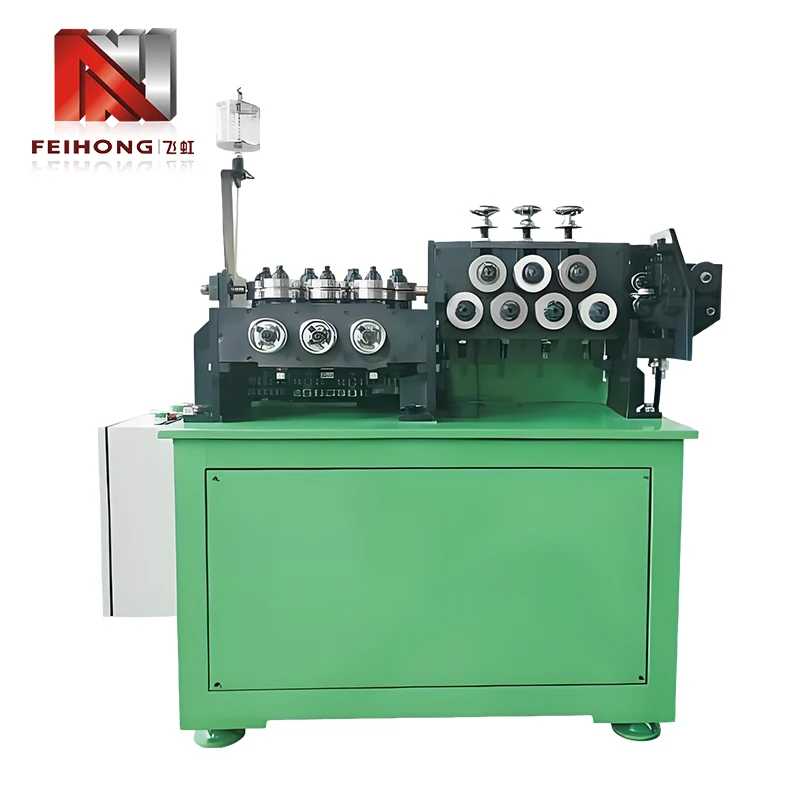

What is Pipe Straightening Machine

A Pipe Straightening Machine is a mechanical device used to correct the curvature or deformation of metal pipes or tubes, ensuring they are perfectly straight for further processing or use. These machines are essential in industries like construction, automotive, aerospace, and manufacturing where precise pipe alignment is critical.

Key Functions:

Straightening: Removes bends or warps from pipes caused during manufacturing, handling, or storage.

Shaping: Maintains or restores the roundness of the pipe cross-section.

Surface improvement: In some cases, it also helps smooth out surface irregularities.

How It Works:

The pipe passes through a series of rolls or rollers (usually 6, 7, or 9 rolls).

These rollers are strategically placed and adjusted to apply pressure at various points on the pipe.

As the pipe moves through, the applied force gradually removes the curvature.

Suitable for:

Steel pipes

Copper tubes

Aluminum pipes

PVC or plastic tubes (specialized models)

Main Components:

Rollers: Hardened steel rolls aligned in top and bottom configurations.

Drive system: Motors that pull the pipe through the rollers.

Adjusting mechanism: Allows fine-tuning of roller positions for different pipe diameters or levels of deformation.

Control panel: For managing speed, pressure, and operational settings.

Benefits:

Improves dimensional accuracy.

Increases productivity in downstream processes like cutting, welding, or assembling.

Reduces material waste.

Enhances safety and efficiency in installation or structural applications.
