Energy Saving Detergent Bottle Handled Bottle Blow Moulding Machine

Product Description

Dawson Machinery & Mould Group

Blow molding machine expert

- Extrusion blow molding machine
- Accumulate blow molding machine
- Injection blow molding machine
- PET blow molding machine
- Injection molding machine

About us

DAWSON MACHINERY & MOULD GROUP,
Our team have more than 16 years' experience in the field of plastic blow molding machines, Plastic Moulds, IBM machines, injection molding machines, PET blow moldings and other accessory machines in this filed. we can provide complete solution for your plastic industry business, as well as all sorts of technical support & after-sale services! We already have customers in more than 45 countries, and had successfully supplied machinery & moulds to customers such as Total, GULF, YAMAHA, MengNiu, Loreal… DAWSON will be your reliable friend in China, and we will always do our best to give you max support!

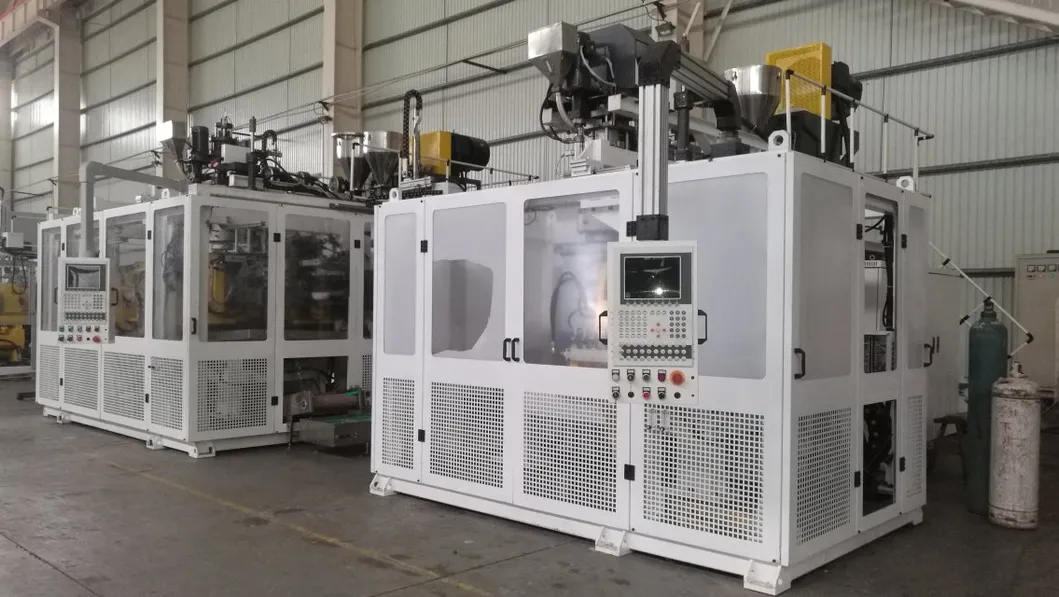

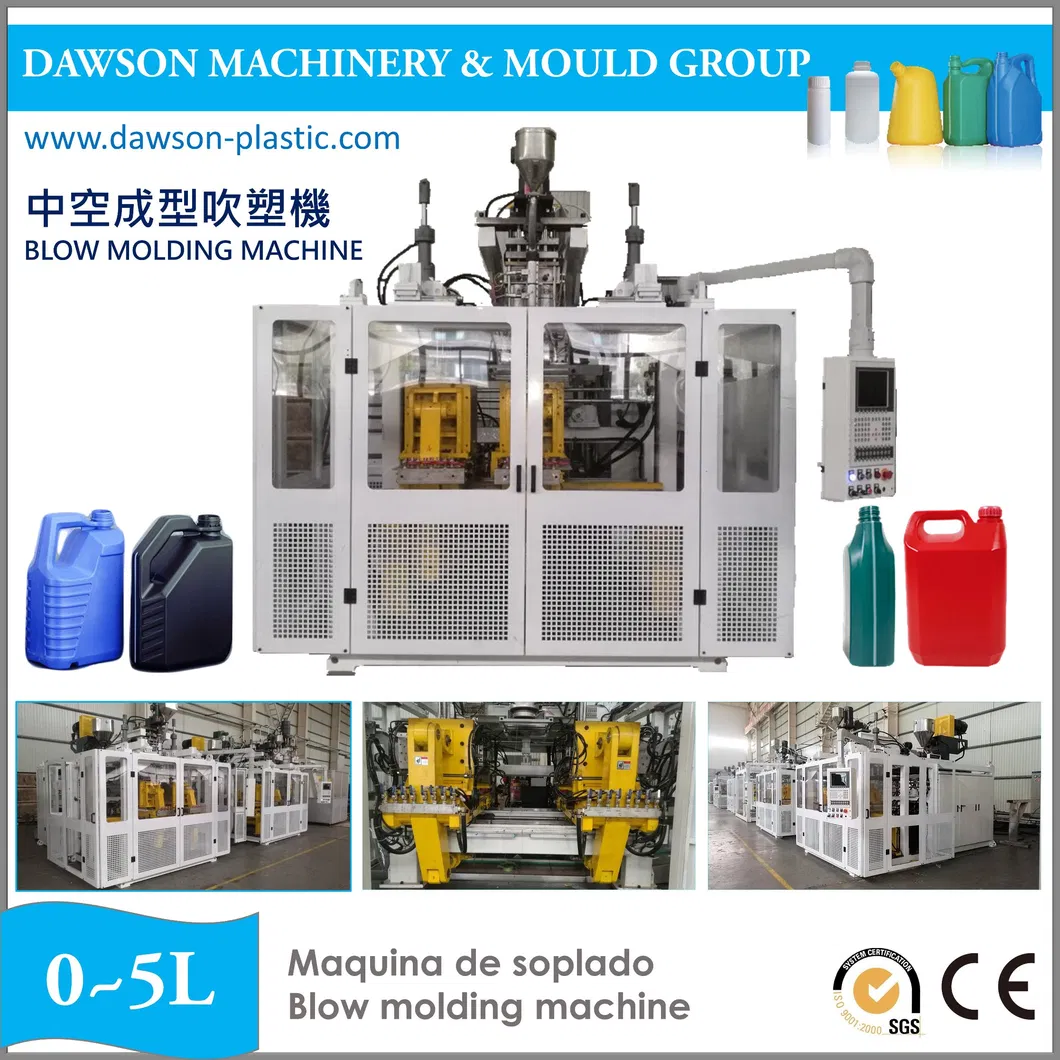

Double Station Extrusion Blow Molding Machine TP5D-75

Energy Saving Detergent Bottle Handled Bottle Blow Moulding Machine

Machine Model TP5D-75
Extrusion Blow Molding Machine Double Station

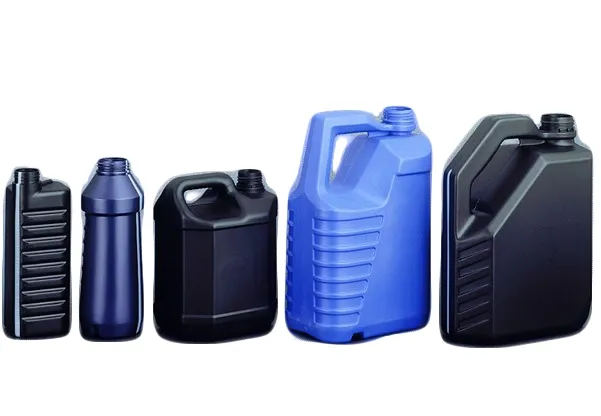

( Single head - 5L Lubricant oil bottles )
Energy Saving Detergent Bottle Handled Bottle Blow Moulding Machine

*Volume 1L to 5L
*Net Weight 100-280g
*Production 250-380 pcs per hour.

Energy Saving Detergent Bottle Handled Bottle Blow Moulding Machine

- Single head can making 2L bottle - 5L bottle
- Double head for making 0-2L bottles
- 3 die head can making max. 750ml bottle
- 4 die head suitable for max. 500ml bottle

( we provide single station blow molding machine too, customer can choose according to the budget and output demands. )

Energy Saving Detergent Bottle Handled Bottle Blow Moulding Machine

Standard Features

1. Double station blow moulding machine with 75mm grooved extruder.

2. Single, double triple and quadruple head capacity.

3. Reliable two-plate axes mould locking.

4. Processing PE, LDPE, PP capacity.

5. Multi-blow extrusion heads with quick color change.

6. In machine automatic deflashing and cooling station.

7. Nitrided screw and berrel.

8. Adopt hydraulic accumulators.

9. Low power consumption.

10. Up blowing system.

11. Machine control by microprocessor B&R

12. SERVO valve for hydraulic and 100/300 point Parison thickness.

13. Gripper for bottle take out inside machine.

14. Carriage fast movement by Prop Valve.

15. Safety ladder and rail protection.

Energy Saving Detergent Bottle Handled Bottle Blow Moulding Machine

Configuration

Main Part	Brand
Servo oil pump	REXROTH from Germany
High pressure oil pump	YUKEN from Japan
Pneumatic	FESTO from Germany or SMC from Japan
Proportional valves	REXROTH from Germany
Directional valves	YUKEN from Japan
Control system	B&R From Austria
Frequency converter	ABB From Switzerland
Contactor	SCHNEIDER From Franch
Linear roller bearings	HIWIN from TAIWAN
Motor	SIEMENS from Germany
Gearbox	SEW from Germany
Electronic ruler	Novotechnik from Germany

#blow molding machine #Extrusion Blow Molding #Injection blow molding machine #PET blow molding machine # injection molding machine # blowing mould # plastic bottle making machine #plastic bottle mould #bottle machine #plastic machinery #blow molding mould #moulding machine # moulding mould #China blow molding machine #blow molding machine made in China

Type of Blow Molding Machine

Extrusion blow molding
In Extrusion Blow Molding (EBM), plastic is melted and extruded into a hollow tube (a parison). This parison is then captured by closing it into a cooled metal mold. Air is then blown into the parison, inflating it into the shape of the hollow bottle, container or part. After the plastic has cooled sufficiently, the mold is opened and the part is ejected.

EBM processes may be either continuous (constant extrusion of the parison) or intermittent. Types of EBM equipment may be categorized as follows:

1. Continuous Extrusion Equipment

Rotary wheel blow molding systems
Shuttle machinery

2. Intermittent Extrusion Machinery

Reciprocating screw machinery
Accumulator head machinery

Examples of parts made by the EBM process include dairy containers, shampoo bottles, and hollow industrial parts such as drums.

Basic polymers, such as PP, HDPE, PVC and PET are increasingly being co-extruded with high barrier resins, such as EVOH or Nylon, to provide permeation resistance to water, oxygen, CO2 or other substances. In dairy applications, it is possible to extrude a black light-blocking layer in the center layer of containers, with opaque white resin used in the inner and outer layers.
Compared to injection molding, blow molding is a low pressure process, with typical blow air pressures of 25 to 150 psi. This low pressure process allows the production of economical low-force clamping stations, while parts can still be produced with surface finishes ranging from high gloss to textured. The resulting low stresses in the molded parts also help make the containers resistant to strain and environmental stress cracking.

Accumulator Head Machinery is used for the extrusion blow molding of large industrial hollow parts. Examples of parts produced on this machinery include drums, trash cans, automotive panels, playground equipment, and large containers, such as Jerry Cans, for liquid storage. Most parts produced on accumulator head machinery are single layer; however, specialized machinery is capable of producing parts with up to seven unique layers of plastic - these machines are used primarily to manufacture automotive gasoline tanks with barrier layers.

Plastic machines we provide ....

Extrusion Blow Molding Machine

Injection Blow Molding Machine

PET Blow Molding Machine

Injeciton Molding Machine

Injection Stretch Blow Molding Machine

Applictions ....

Chemicals : Pesticide bottles and industrial buckets, chemical buckets and other hollow blow-molded buckets.

Cosmetics&Pharmaceuticals : Vaccine bottles, medicine bottles, medical bed boards, cosmetic boxes, jars and vaseline bottles and other plastic machinery products used in cosmetic and medical fields.

House hold : Plastic empty blow-molded bottles, plastic containers, such as shower gel bottles, shampoo bottles, body lotion bottles, laundry detergent bottles, cleaning supplies bottles, hand sanitizer bottle, disinfectant bottle, alcohol disinfectant bottle etc. that are often used in daily life.

Indoor & outdoor : Plastic products are widely used, such as plastic hollow flower pots, plastic watering cans, plastic pet houses, plastic cold storage boxes, plastic children's toys, plastic-bus chairs, plastic tables and chairs, plastic trash cans, plastic traffic cones, plastic life buoys, plastic floats , Plastic buoys, plastic mannequins, etc., plastic machinery products can be seen everywhere.

Food & Beverage : The common applications of plastic products in the food and beverage industry are ketchup bottles, soy sauce bottles, honey bottles, mustard sauce bottles, milk bottles, yogurt bottles, juice bottles, alcohol bottle etc. Baby bottles are also common in plastic machinery in the beverage and food industry Applications.

Lubrication : The most common applications for hollow extrusion blow molding machines are lubricating oil barrels, 1L 2L lubricating oil bottles, 5L 10L cans, 10L 20L 25L to 30L lubricating oil Jerry can, and even 60L ~ 250L large barrels.

Automotive : The application of plastic products also accounts for a large part of automobile parts, such as plastic parts in automobile engines, plastic automobile safety stalks, plastic door handles, plastic car lamp housings, etc.
