800mm Single Extruder Double Die Head Film Blowing Machine
It is used to blow various plastic film of low density polyethylene(LDPE), high density polyethylene(HDPE) and linear low density polyethylene(LLDPE), etc.. Widely used in packing food stuff, garment and textile daily product, industrial products and agricultural field use.modelsuitable materialfilm......
Send Inquiry
Product Description
It is used to blow various plastic film of low density polyethylene(LDPE), high density polyethylene(HDPE) and linear low density polyethylene(LLDPE), etc.. Widely used in packing food stuff, garment and textile daily product, industrial products and agricultural field use.
pictures for reference:

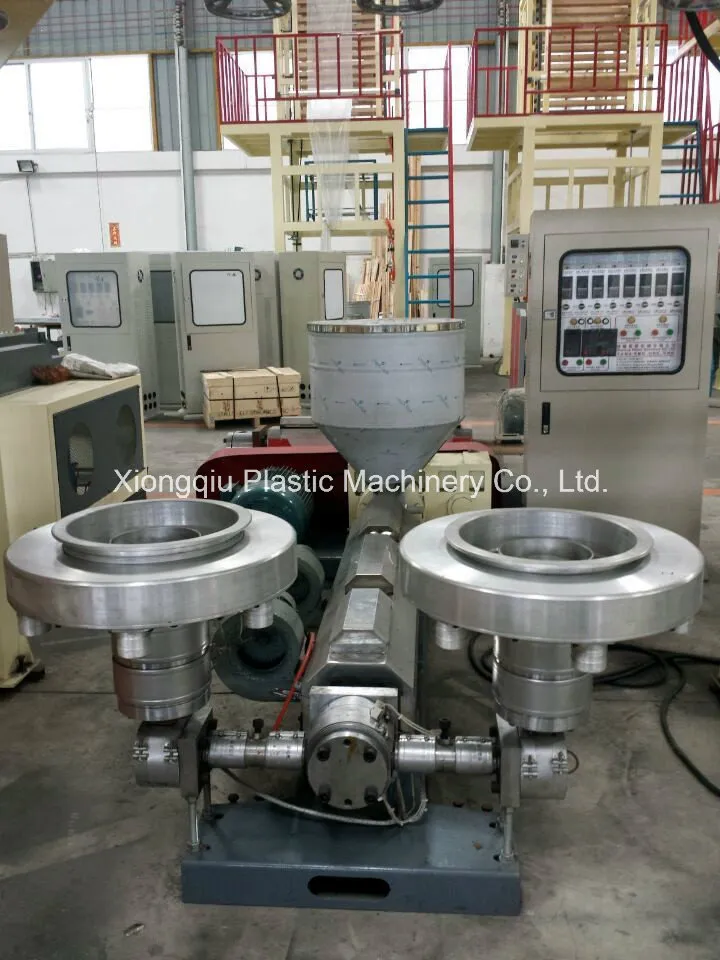

single extruder and double die head:

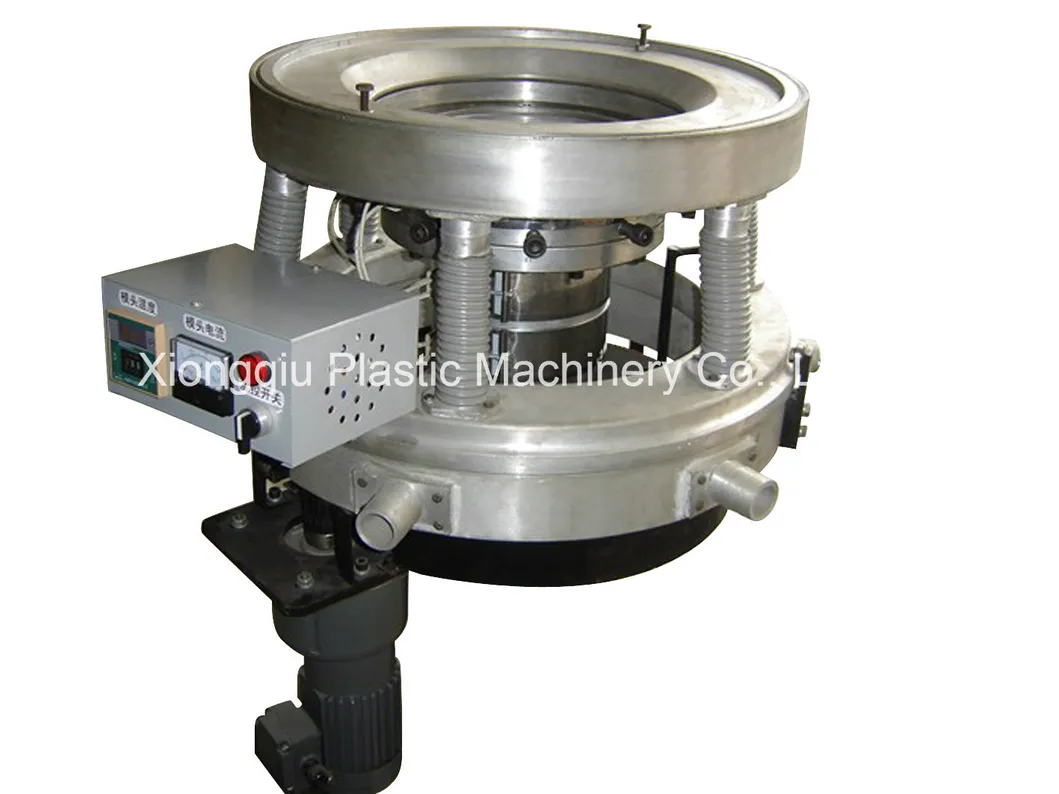

rotary die head:
double wind air ring:
| model | suitable material | film width | thickness | screw diameter | L/D ratio | die diameter |
| FM-800*2 | LDPE,LLDPE,HDPE,MLLDPE,EVA,EAA etc. | 100-700mm | 0.01-0.16mm | Φ75mm | 30:1 | Φ180mm*2 |
| main power | max output | die structure | winder way |
| 30kw | 110kg/h | spiral mandrel die chrome plated surface 40Cr | torque motor center winder |
| optional equipment | quto-loader device, film surface treater, air compressor, fast change net, auto rewinder, rotary die head, double wind air ring |
pictures for reference:
single extruder and double die head:
rotary die head:
double wind air ring:
