Twin Conical Screw and Barrel for Extrusion Machine for Blow Film Granulator
Product FeaturesBrandJINYIProduct NameTwin Screw BarrelBase Material38CrMoAlA High-quality Alloy Structural SteelSurface TreatmentNitrided, Bimetallic,Chromed,Through Hardened,CoatingBimetallic MaterialJYS01(Ni,Cr,Si), JYS02(Ni,Cr,W), JYS03(Co,Cr,W)Quenching and Tempering HardnessHB260-280Nitriding ......
Send Inquiry
Product Description
| Product Features | |
| Brand | JINYI |
| Product Name | Twin Screw Barrel |
| Base Material | 38CrMoAlA High-quality Alloy Structural Steel |
| Surface Treatment | Nitrided, Bimetallic,Chromed,Through Hardened,Coating |
| Bimetallic Material | JYS01(Ni,Cr,Si), JYS02(Ni,Cr,W), JYS03(Co,Cr,W) |
| Quenching and Tempering Hardness | HB260-280 |
| Nitriding Hardness | HV950±50 |
| Nitride Layer Depth & Hardness | 0.4-0.6mm , 56-60HRC |
| Brittleness | ≤2 |
| Surface Finish | Ra0.04 |
| Scope of Application | Suitable Recycling & Engineering Plastics & < 20% reinfored additives & corrosive plastic |

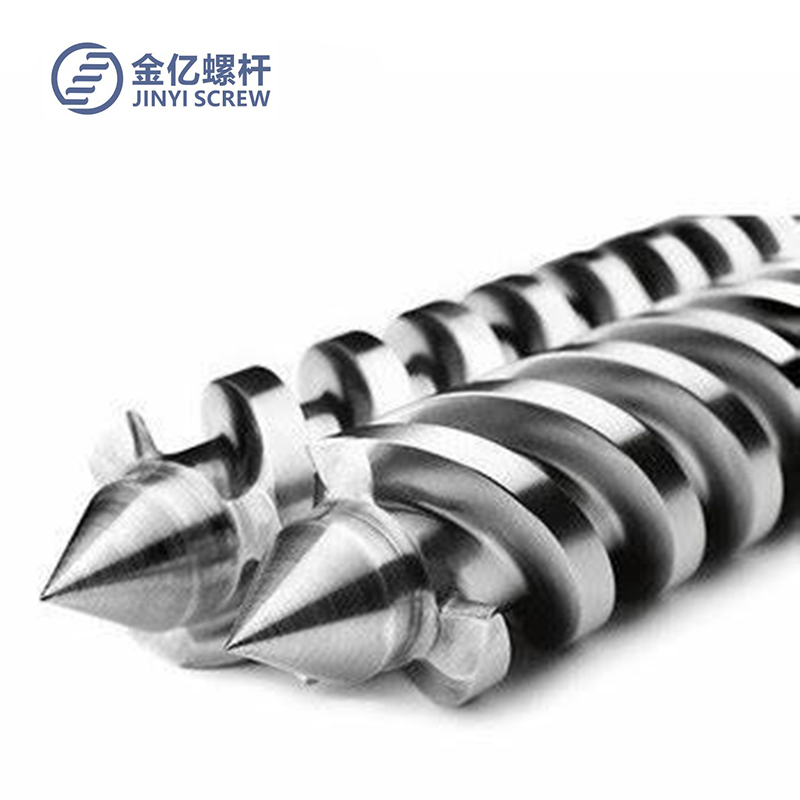

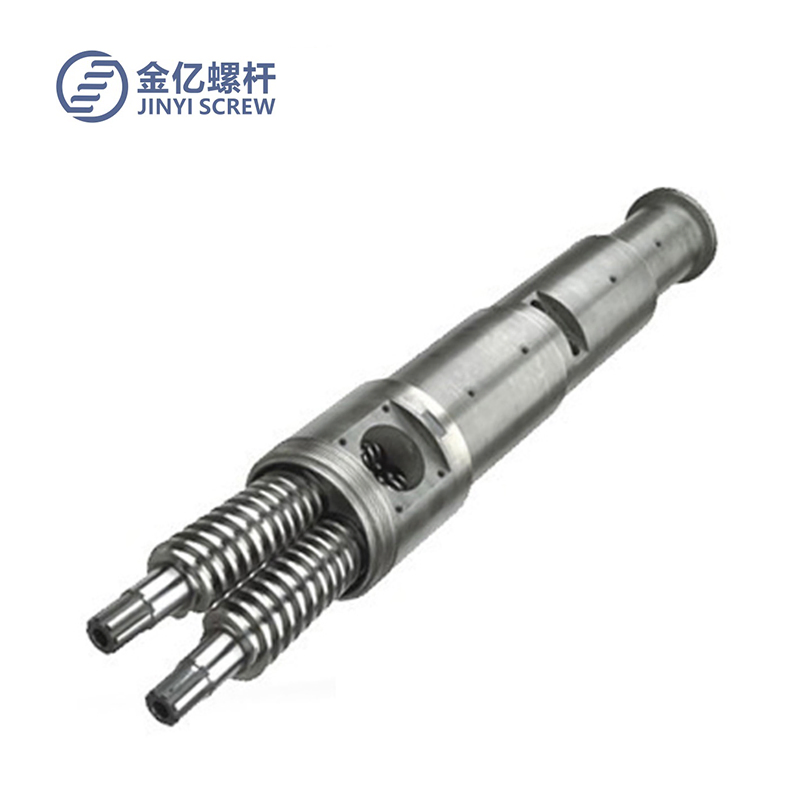

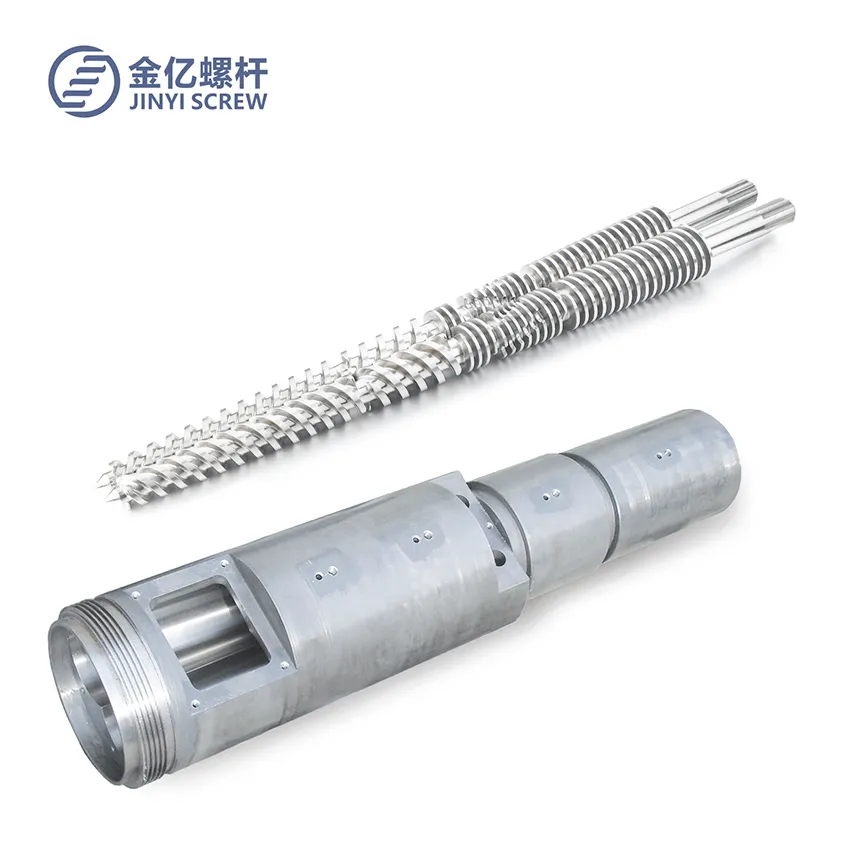

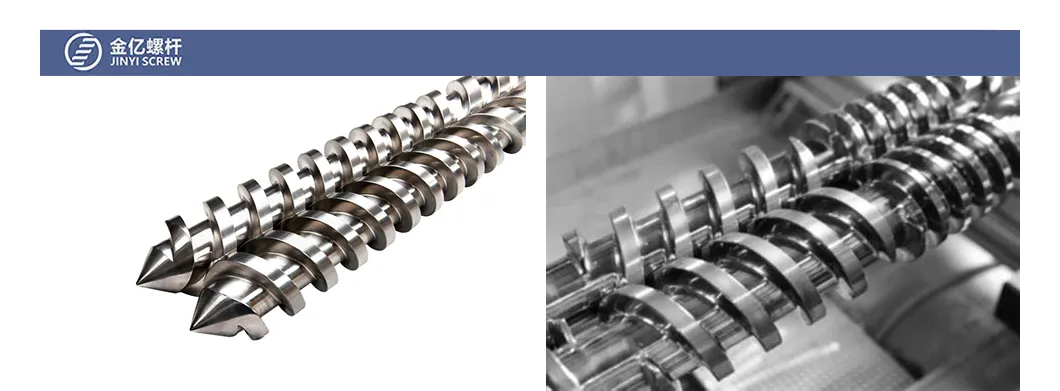

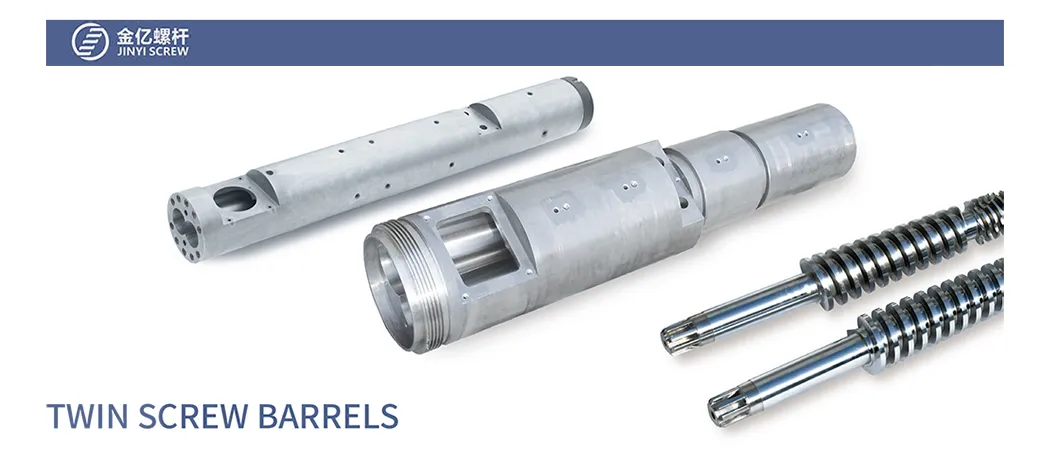

Conical Twin Screw Barrel
Technical Parameters
Product Name: Conical Twin Screw Barre
Base Material: JYN1
Available Size: Φ35 - 188mm, L < 2,500mm
Process Method: Nitrided or bimetallic
Advantage
1. Unique technical design with larger output
2. Advanced equipment with finest machining
3. Perfect match of tolerance
Applications
Suitable for PVC pipes, profiles, sheets and extrusion foaming products.
Suitable for PE, PP corrugated pipe extrusion.
Size and capacity
Here is list of our general design data, which may be updated in some different circumstance.| Specification (d / D) | Working Length (mm) | Rotate Speed (rpm) | Capacity (kg/h) |
| Φ35/75 | 810 | 5-50 | 40-70 |
| Φ45/90 | 990 | 5-45 | 50-80 |
| Φ45/100 | 990 | 5-45 | 60-90 |
| Φ48/112 | 1104 | 4-45 | 70-100 |
| Φ50/105 | 1045 | 4-45 | 100-150 |
| Φ51/105 | 1220 | 4-45 | 100-150 |
| Φ55/110 | 1220 | 4-40 | 120-180 |
| Φ55/120 | 1230 | 4-40 | 130-180 |
| Φ58/126 | 1320 | 4-40 | 140-200 |
| Φ60/125 | 1320 | 4-40 | 150-200 |
| Φ65/120 | 1440 | 4-40 | 200-250 |
| Φ65/132 | 1440 | 4-40 | 200-250 |
| Φ68/146 | 1550 | 4-40 | 220-300 |
| Φ80/143 | 1800 | 4-35 | 300-360 |
| Φ80/156 | 1800 | 4-35 | 300-360 |
| Φ92/188 | 2000 | 3-35 | 400-500 |
FAQ:
Q1. What's your MOQ?
1PC or SET
Q2. Can I place the customized order for different sizes, materials, structure….?
Yes, all customized orders are welcomed.
Q3. Could I get a QC report before delivery?
Yes, the specific QC reports will be sent to you before delivery.
Q4. Can I have our own logo or label on our product?
Yes,we can laser your logo or code number on your product.
Q5. How long is your guarantee?
1year,2 years,5 years base on different requirement.
Q6. How to reach you for other questions?
Please feel free to contact us through E-mail, call or visiting our factory as below address.
