China Mc3032kn High Quality Automatic Wood CNC Turning Copy Lathe

Product Description

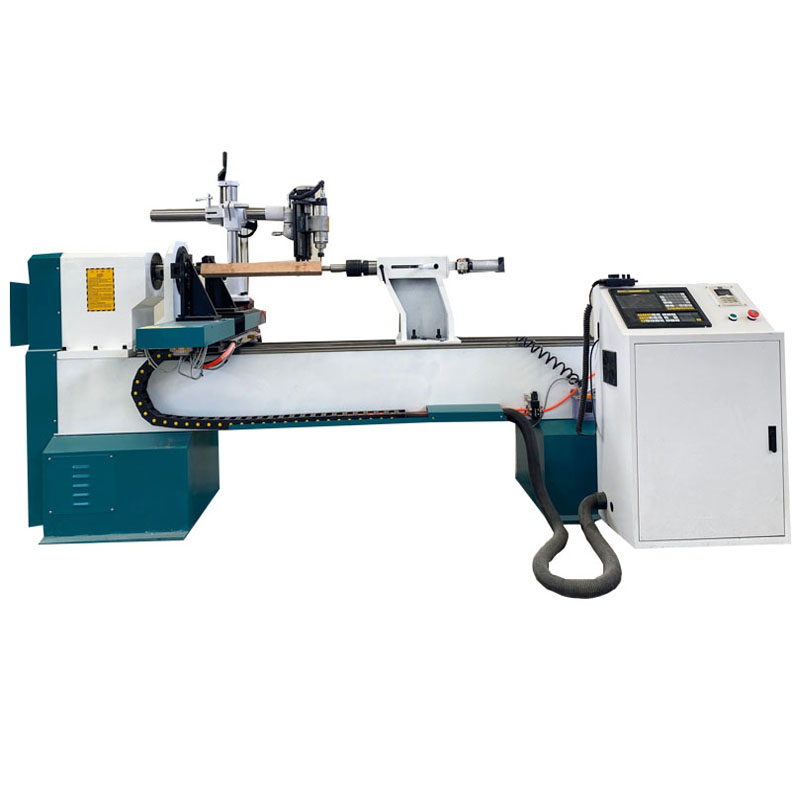

MC3032KN high quality automatic wood cnc turning copy lathe

Product Description

Model	MC3032KN automatic wood lathe machine
Working area	1500mm(length)*300mm (diameter) when one spindle work
Whole Machine	Stable and low inertia
Spindle motor	Stepper motor, 4KW frequency spindle CVT (belt-type drive, easy to relace)
Inverter motor	Berglah(high-end brand)High-precision motor drive, through the program calculates, can ensure the accuracy of processing
Feeding parts	Combined high-quality rails with precise screw drive , effective control error
Working speed	5X60cm Standard staircase column 40S/one
Voltage	380V(if not 380V,need a transformer)
Cutter	2 white steel blades (18x18x200mm), 2 Korea imported alloy blades
Auxiliary hardware and software	Turning center with the knife (5cm wood, 6cm wood) tail top pin manual stretching, combined with pneumatic, convenient and flexible, intelligent protection work table (limit alarm system) to prevent the collision phenomenon.

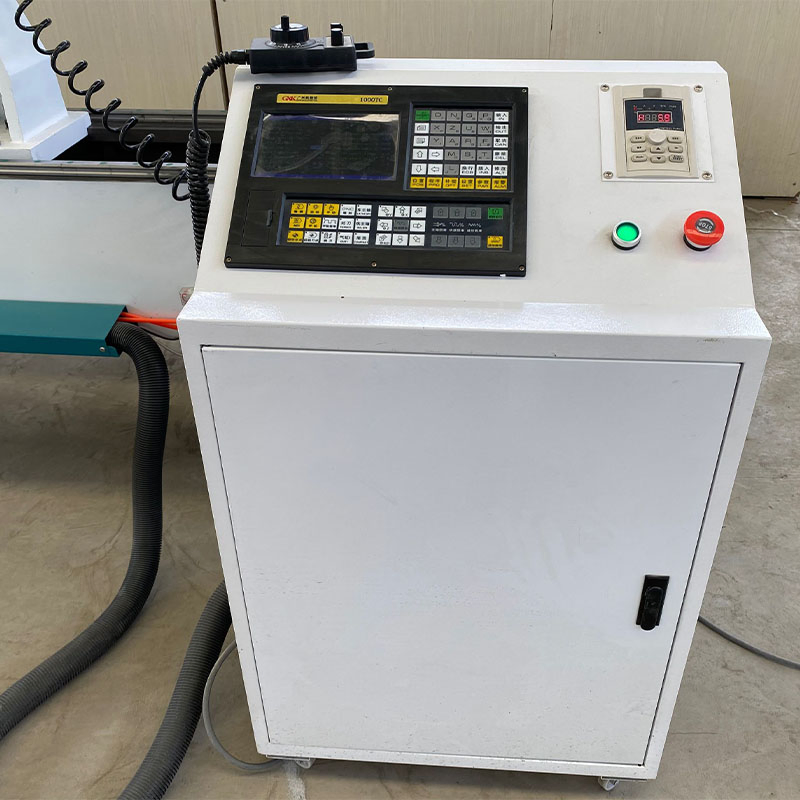

Control system	Original DSP control system
Software supported	TYPE3/ARTCAM/UCANCAM/CAXA/MASTERCAM/Other software output code

CNC Lathe Machine
1,Control: Using mature CNC controller, the work is stable, and the installation and debugging is simple. Adopt international standard CNC language G code. Support a variety of software. Extension of technical functions.
2,Motion: High-precision stepper motor drive, ensuring accurate machining dimensions, using Taiwan guide rails, combined with ball screw drive, strong environmental adaptability, not afraid of dust. Ensure machining accuracy. Frequency control, spindle automatic operation, high degree of processing automation.
3,Bed: Casting, stable structure, high-frequency quenching and grinding imported straight square rail, small vibration, can ensure high-precision machining.

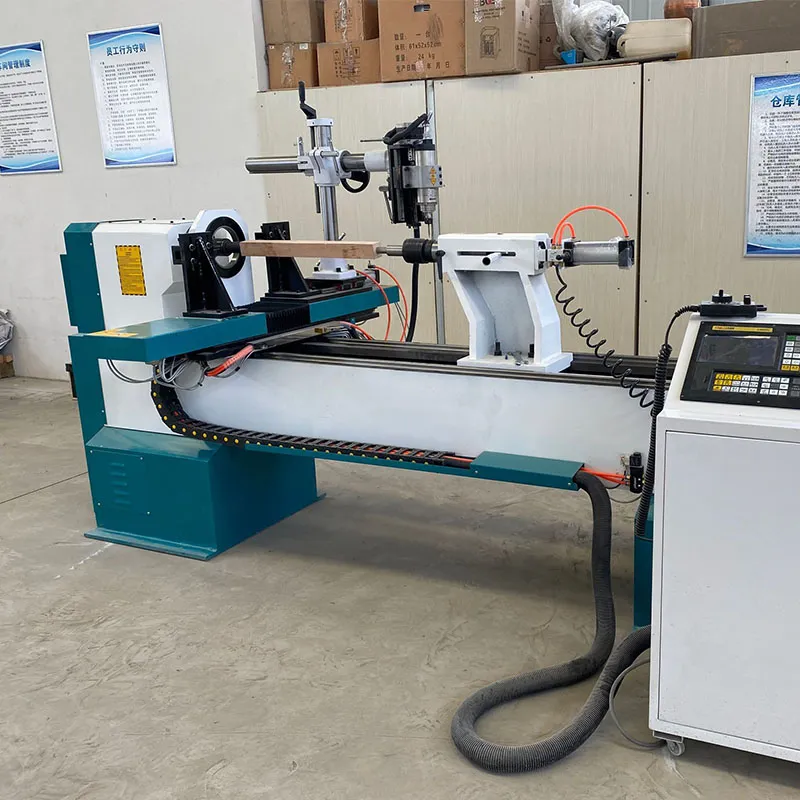

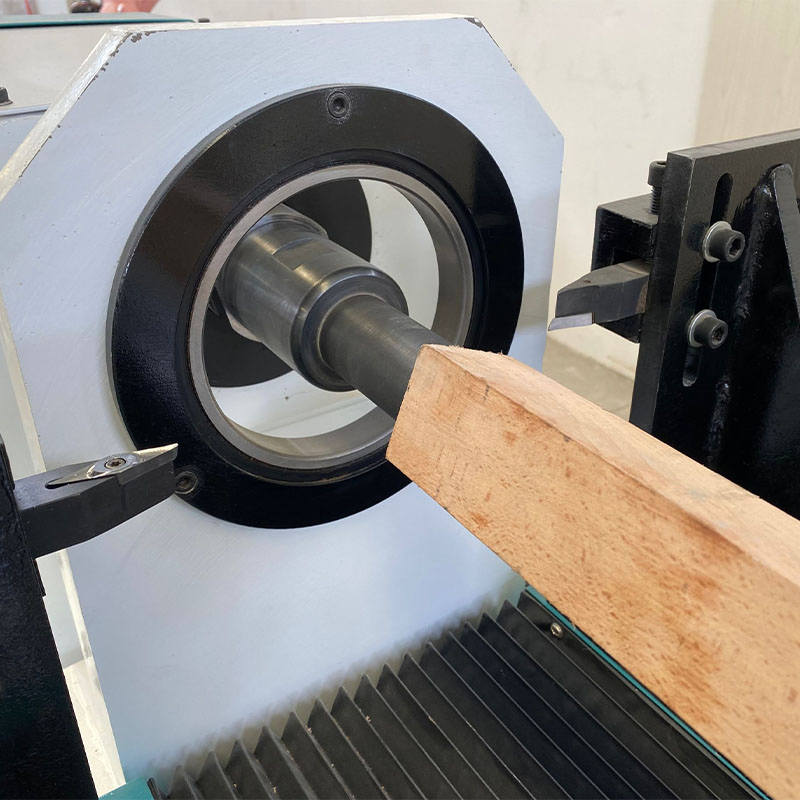

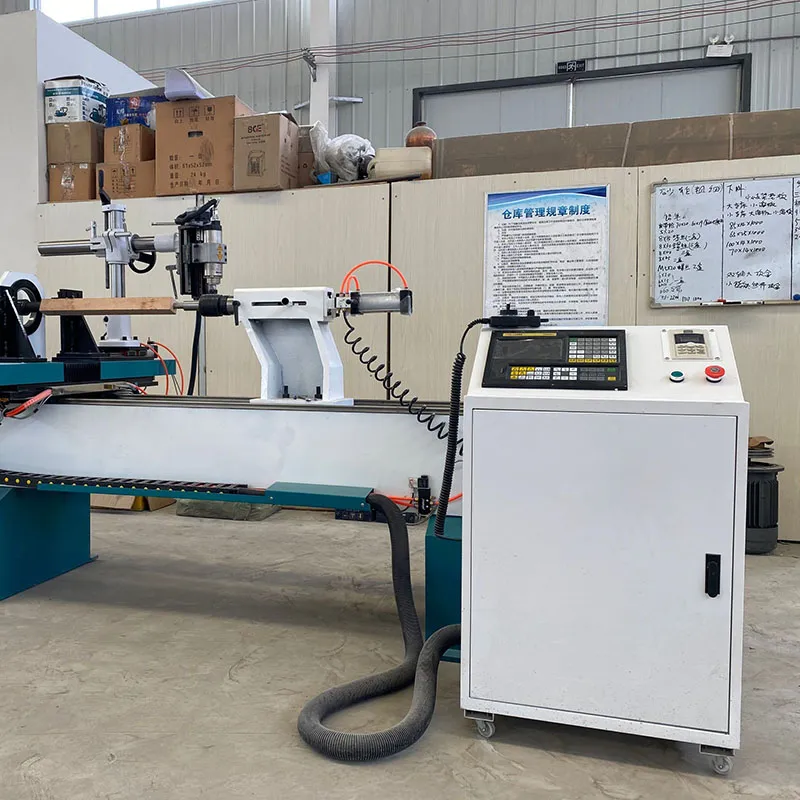

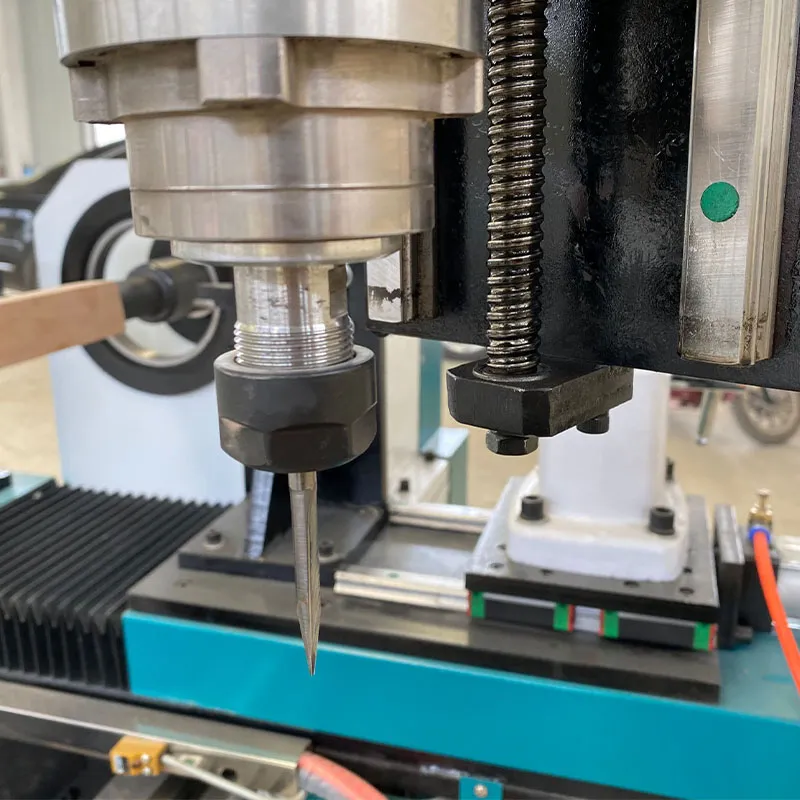

Detailed Pictures
Application

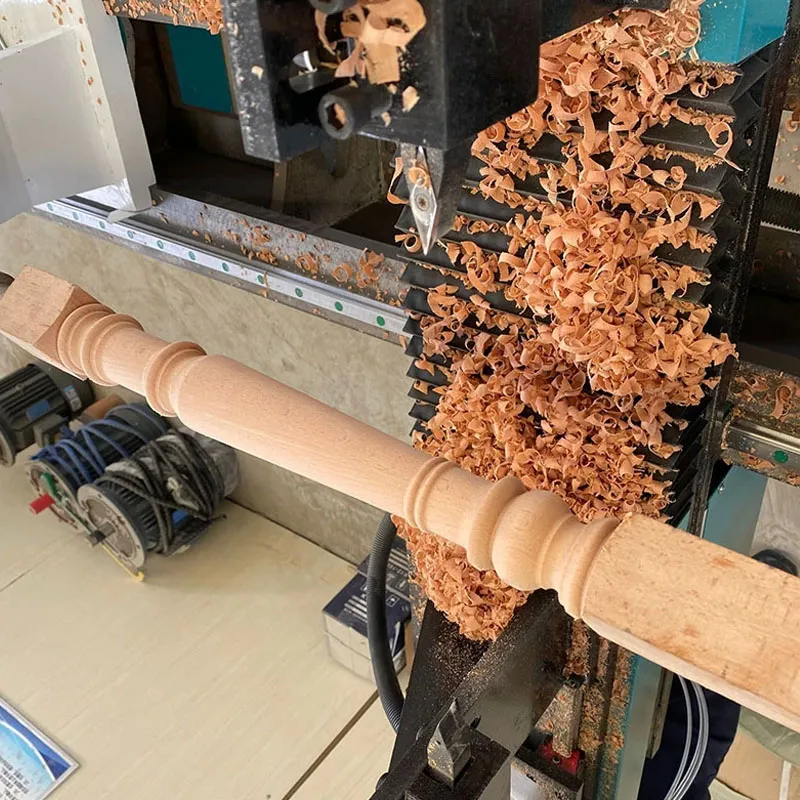

Wood lathe machine mainly used for processing cylindrical handrails, railings, Roman column and other profiling process products. Manual profiling processing to speed,After the double frame, rough car can be fine hand, after grinding can be sanding. Is the best tool for cylindrical processing, can be processed custom semi-automatic.

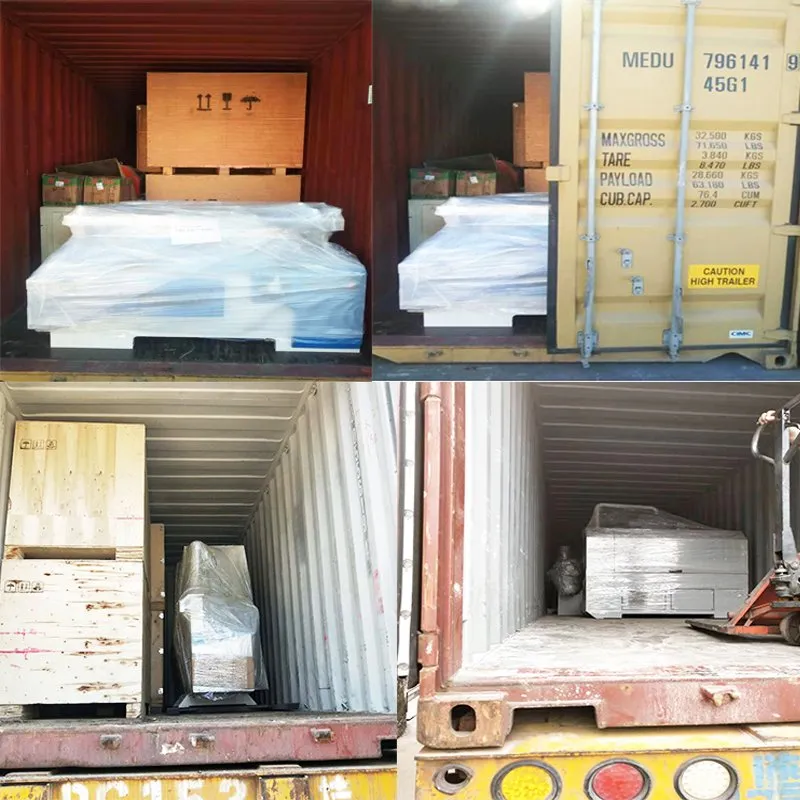

Mc3032kn High Quality Automatic Wood CNC Turning Copy Lathe Packaging & Shipping

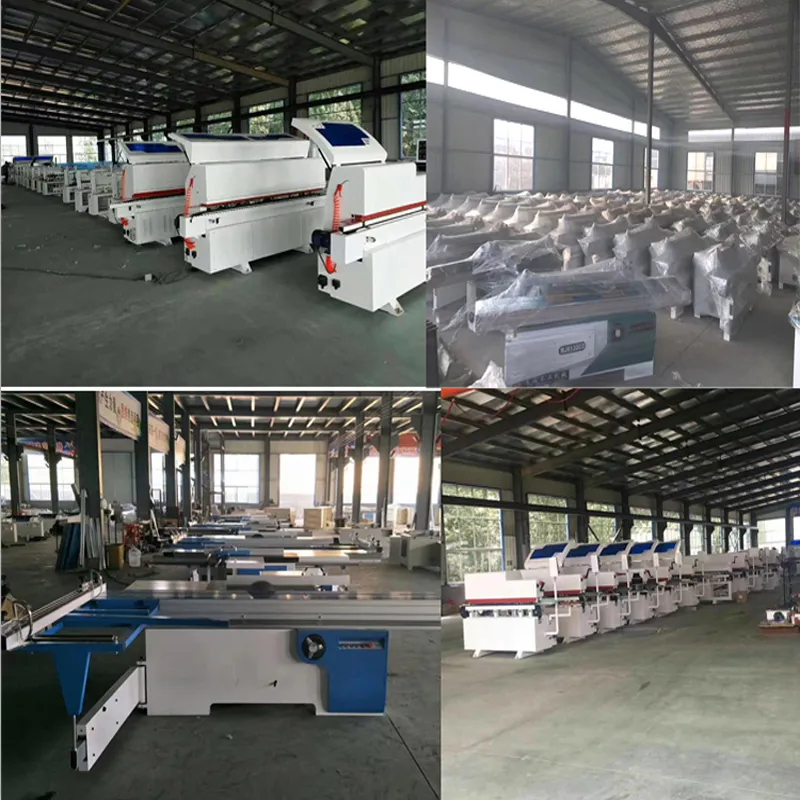

Company Information
FAQ
1,Can you offer good price with fine quality also?

Surely,if without quality,we cannot win long market.we will loose long-terms customers.Quality is our responsibility.we must produce and test machine well.Becasue we are always expecing long term business.Regarding the price.
we are not sure if it is lowest or highest,But we will be offering reasonble.We don't want heavy profits,we want a acceptable price to you,and we are expecting a bigger quantities of sales for different wood machines.

2,We will be protetcted if we are paying for orders?

Surely yes,we have been exported 1000000$ different wood machine every year,We received the payment,we should produce for you and ship to you without delay. It is honesty and reputy.We could understand that you paid,you want to see machines soon and use soon. and these years alibaba trade assurance you could rely on,you will be protected very well.

3,What's your warranty? can you do more service for us? we wish woud be protected after purchasing machine.

We are pleased to give life continious aftersales service. within 12 months, if spareparts broken,we will send you new for change. we would like to help to solve any troubles when you use machine at any time.and don't be worried,we will keep opening 24 hours for all customers problem or difficilaty. we must help to make solutions within 48 hours.

4,What's your production time? we want faster shipping time also.

Mostly machine we have in stock, some machine we produce need about 7-10days. make fast shipment always. shipping time depends on shipping company.
Mc3032kn High Quality Automatic Wood CNC Turning Copy Lathe
