Customized Ring Die Biomass Pellet Production Line for Bagasse, Rice Husk, Straw, Alfalfa , Wood Chips, Sawdust Pelletizing Machine



Introduction

The biomass pellet production line including the process of crushing, drying, de-ashing and high-pressure molding, After being processed, the biomass pellet could approach the moisture of 8 to 10%, the combustion heat of 4000-4800 kilo calories per kilo gram, and ash content of 1% or less. The biomass production line can also process the alfalfa to make feed pellet.

We have biomass pellet production line with different capacity for example 500kg/h, 1t/h, 1.5t/h, 2t/h, 3t/h, 4-5t/h., etc. The final pellet can be 6mm,8mm, 10mm, 12mm, etc.

Application
The biomass pellet production line can used for wood chips, sawdust, bamboo shavings, wood shavings, wood shavings, barley straw, oat straw, wheat straw, rye, straw, rice straw, sorghum straw, stalk and corn straw, and potato vines, etc.

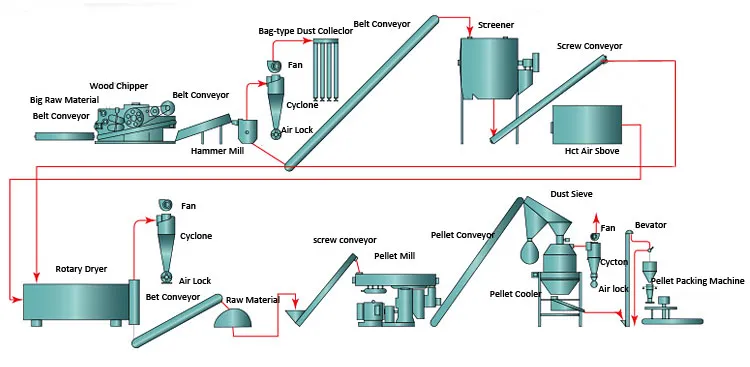

Biomass Pellet Production Line

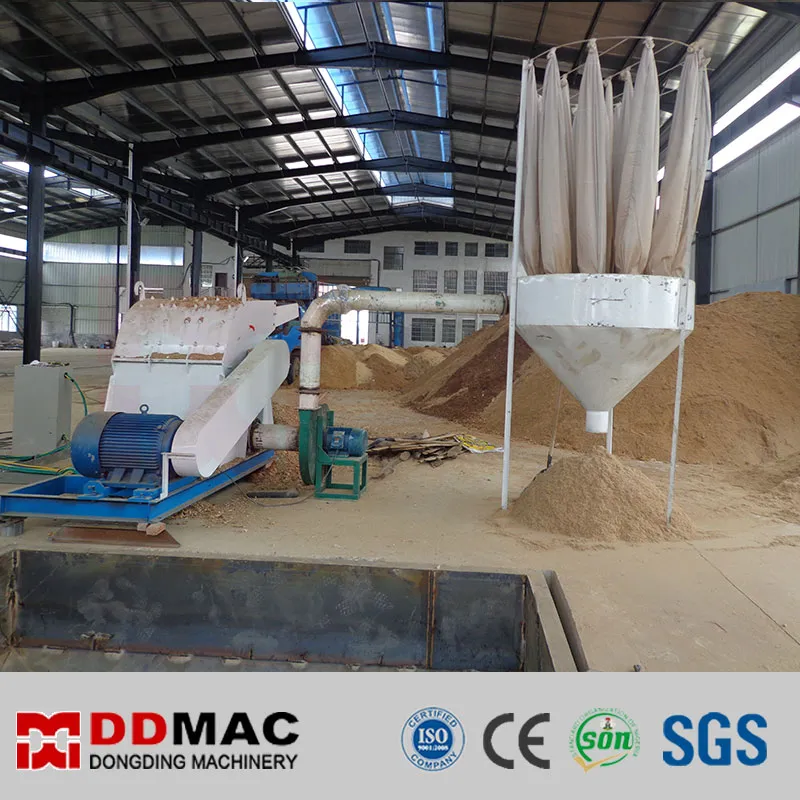

1. Crushing and broken system. If the raw material is the log, straw, leftover material and something bigger, needed to crush raw materials before pelleting.

2. . In general, the material with the moisture of 15-20% is suitable for granulating If more than 20%, needed to dry before granulating.

3. Granulating system. The final moisture of the pellet meets the safe store requirements of the pellet.

4. Cooling screening system. Biomass pellet after cooling screening machine go through belt conveyor into cooling sieve.

5. Packaging system. Send the biomass pellet into in packaging machine.

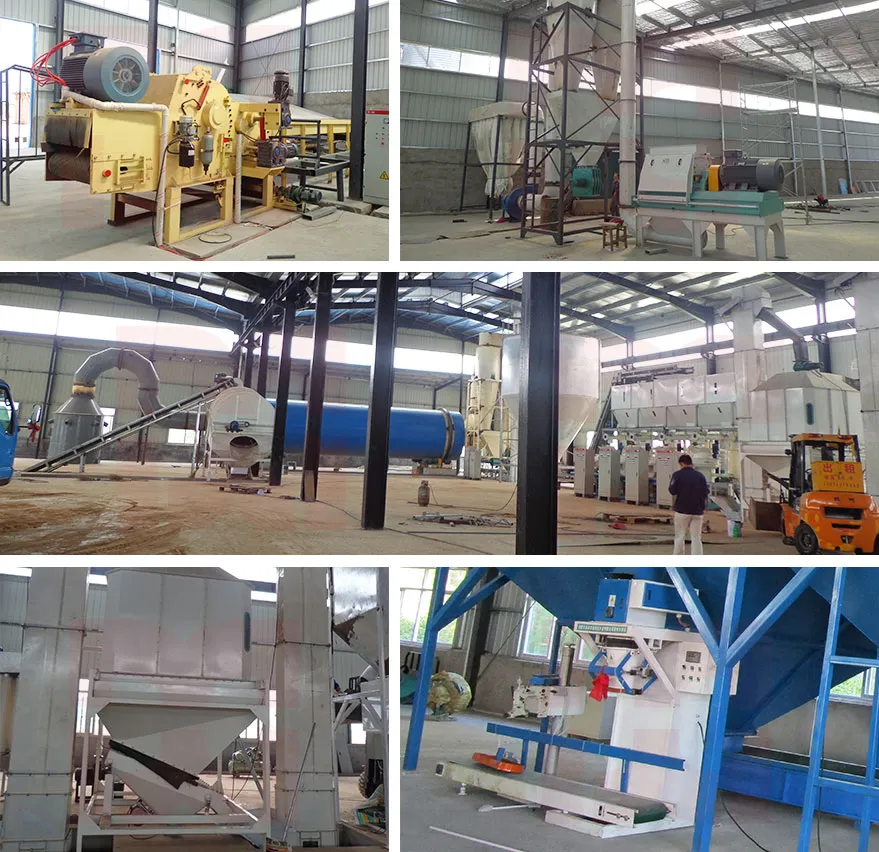

Main Equipment in Biomass Pellet Production Line


Product Parameters

Model	Capacity(t/h)	Motor power(kw)	Weight(ton)	Area(m²)
DDKL1000	0.8-1.0	135	45	10×24m
DDKL1500	1.2-1.5	175	47	10×24m
DDKL2000	1.5-2.0	210	55	10×24m
DDKL3000	2.5-3.0	255	68	12×26m
DDKL5000	4.5-5.0	300	73	12×26m

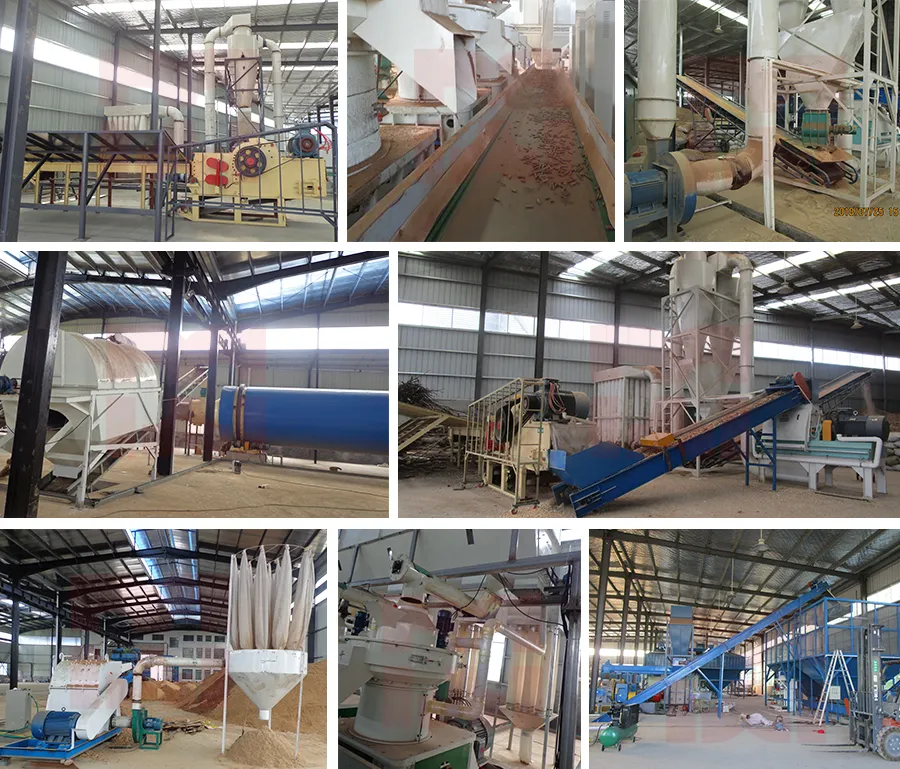

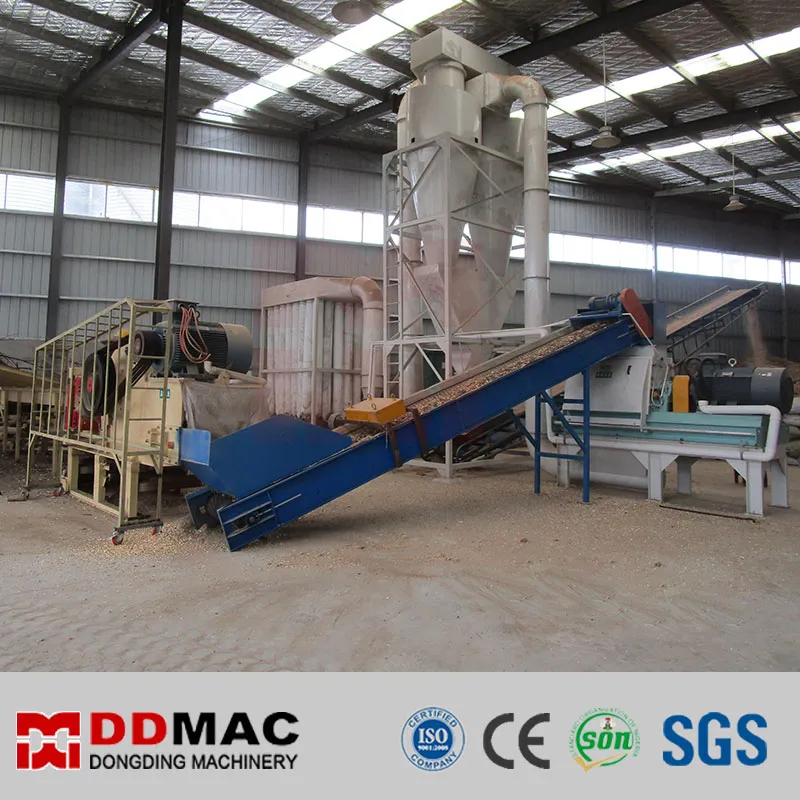

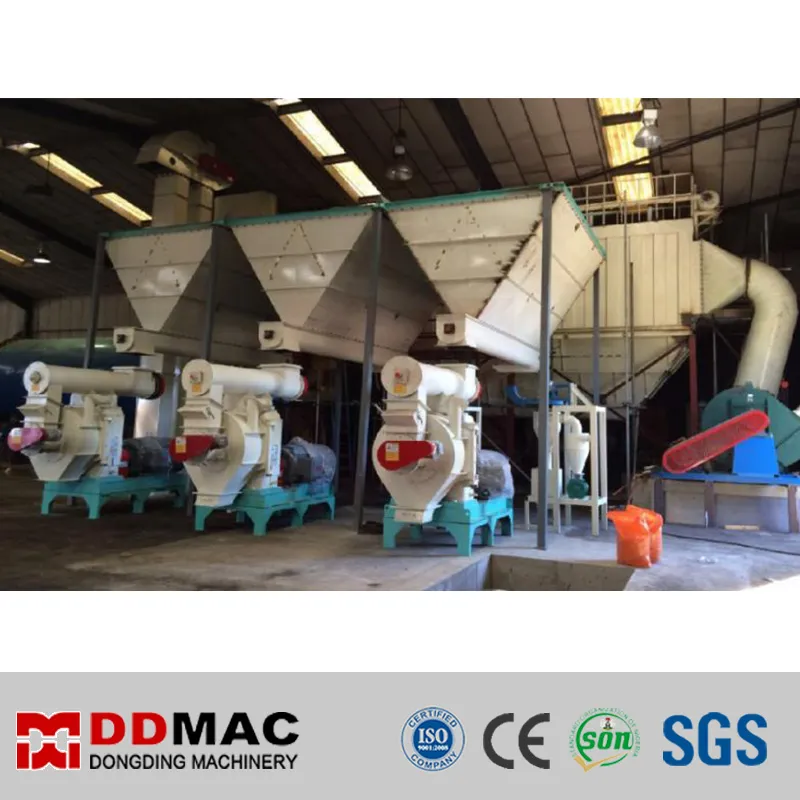

Detailed Photos



Zhengzhou Dongding Drying Equipment Co., Ltd. is a high-tech enterprise integrating R&D design, production installation, production management, sales, after-sales service and technical consultation.
We have core technology system, which integrates the thermal combustion, dehydration, drying, molding, separation and dust removal. Scientific equipment selection and technical process optimization are adopted according to different material characteristics. Currently our equipment has been successfully applied in the coal, feed, biomass fuel, organic fertilizer processing industries. Especially the coal dryers like lignite coal dryer, coal ash dryer, raw coal rotary dryer, coal slime dryer, etc. are well received by the customers at home and abroad.

* More than ten years of experience in R&D and manufacturing of drying equipment
* Equipped with multi-stage dust removal and purification system to reduce pollution
* One - to - one customized production solution to reduce equipment budget
* Our customers are located in more than 60 countries and regions around the world.

At present, our products have been recognized by customers in China and all over the world, and successfully exported to Indonesia, South Africa, Vietnam, Thailand, Myanmar, India, Egypt and other countries and regions.
