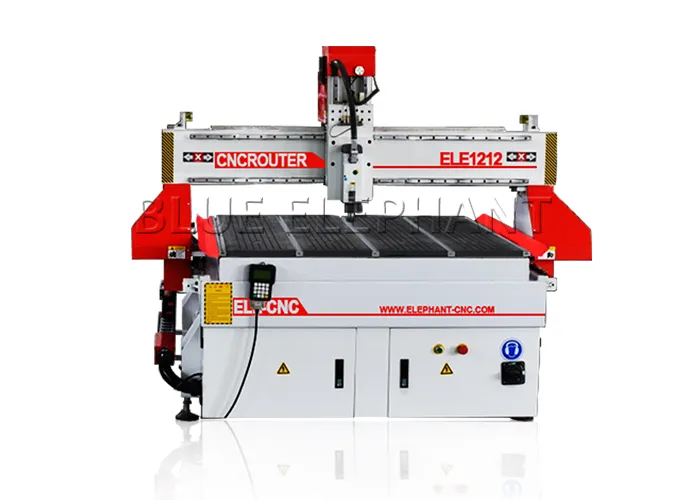

Home > Products > Woodworking Machinery > Wood Router > 1212 CNC Router Wood Cutting Carving Machine 1200X1200mm Working Table for Aluminum
    1212 CNC Router Wood Cutting Carving Machine 1200X1200mm Working Table for Aluminum
    • 1212 CNC Router Wood Cutting Carving Machine 1200X1200mm Working Table for Aluminum1212 CNC Router Wood Cutting Carving Machine 1200X1200mm Working Table for Aluminum
    • 1212 CNC Router Wood Cutting Carving Machine 1200X1200mm Working Table for Aluminum1212 CNC Router Wood Cutting Carving Machine 1200X1200mm Working Table for Aluminum
    • 1212 CNC Router Wood Cutting Carving Machine 1200X1200mm Working Table for Aluminum1212 CNC Router Wood Cutting Carving Machine 1200X1200mm Working Table for Aluminum
    • 1212 CNC Router Wood Cutting Carving Machine 1200X1200mm Working Table for Aluminum1212 CNC Router Wood Cutting Carving Machine 1200X1200mm Working Table for Aluminum

    1212 CNC Router Wood Cutting Carving Machine 1200X1200mm Working Table for Aluminum

    1212 CNC Router Wood Cutting Carving Machine 1200X1200mm Working Table for Aluminum woodworking cnc router 1212 advantageheavy duty frame, stronger and stableVacuum table, can suck the material with vacuum pump automaticHSD air cooling spindle, world famous brand Advertising equipment 1212 technical......

    Send Inquiry

    Product Description

    1212 CNC Router Wood Cutting Carving Machine 1200X1200mm Working Table for Aluminum
    1212 CNC Router Wood Cutting Carving Machine 1200X1200mm Working Table for Aluminum

    woodworking cnc router 1212 advantage

    • heavy duty frame, stronger and stable
    • Vacuum table, can suck the material with vacuum pump automatic
    • HSD air cooling spindle, world famous brand

    Advertising equipment 1212 technical parameter

    Description

    Parameter

    X,Y,Z Working Area

    1200x1200x200mm

    Structure

    New type thicker and bigger heavy duty welded frame and gantry

    Working voltage

    400V, 3PH, 50HZ (220V, 380V for optional)

    Table Surface

    T-slot & vacuum working table

    Spindle

    3kw HSD air cooling spindle

    Spindle speed

    0-18000rpm

    X, Y Structure

    20# Sweden ABBA Linear guide and helical rack

    Z Structure

    Taiwan TBI Ball screw and 20# Sweden ABBA Linear guide

    Motor and driver

    FL118 stepper motors and YAKO 2608 stepper drivers

    Inverter

    3.7kw Taiwan Delta Inverter

    Command Language

    G Code

    Control System

    DSP A11 control system

    Control box

    Inner box

    Lubrication system

    Automatic lubrication system

    Tool sensor

    Manual tool sensor calibration

    Vacuum pump

    5.5kw water circlulation vacuum pump

    Collet

    ER25

    X,Y Resolution

    <0.01mm

    Software Compatibility

    Artcam Software

    Running Environment  Temperature

    0 - 45 Centigrade

    Relative Humidity

    30% - 75%

    Optional

    High flexible towline, fire-proof double-sheathed cable.

    Japan Omron limit switch.

    France Schneider safe handle

    PS:All the working area and specifications can be customized according to your requests.

    1212 wood carving cnc router parts
    1212 CNC Router Wood Cutting Carving Machine 1200X1200mm Working Table for AluminumApplications

    1. Wood furniture industry

    Doors; Cabinets; Tables; Chairs.

    Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

    2. Advertising industry

    Signage; Logo; Badges; Display board; Meeting sign board; Billboard

    Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

    3. Die industry

    A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.

    4. Artwork and Decoration

    wood crafts; gift box; jewelry box

    5. Others

    Relief sculpture and 3D engraving and Cylindrical object.
    1212 CNC Router Wood Cutting Carving Machine 1200X1200mm Working Table for Aluminum

    Packaging & Delivery:

    Packaging Details:
    Three layers---
    -The innermost layer is EPE pearl cotton film package;
    -The middle layer is wrapping up with environmental protection material ;
    -And the outermost layer is winding up with PE stretch film.
    They're very environmentally friendly.
    If you need a wooden box, we will make a wooden box outside the machine.

    Delivery Detail: Shipped in 15 working days after payment.

    1212 CNC Router Wood Cutting Carving Machine 1200X1200mm Working Table for Aluminum
    1212 CNC Router Wood Cutting Carving Machine 1200X1200mm Working Table for Aluminum

    Our Service:

    1, Within 7days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
    2, Exceed 7days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
    3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
    4, We offer 24 hours technical support by call, and email.
    5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
    6, We can record videos of operating the laser machine.
    7, Free training course in our factory.
    8.Machine will be adjusted before it is delivered, operation disk/CD was included.

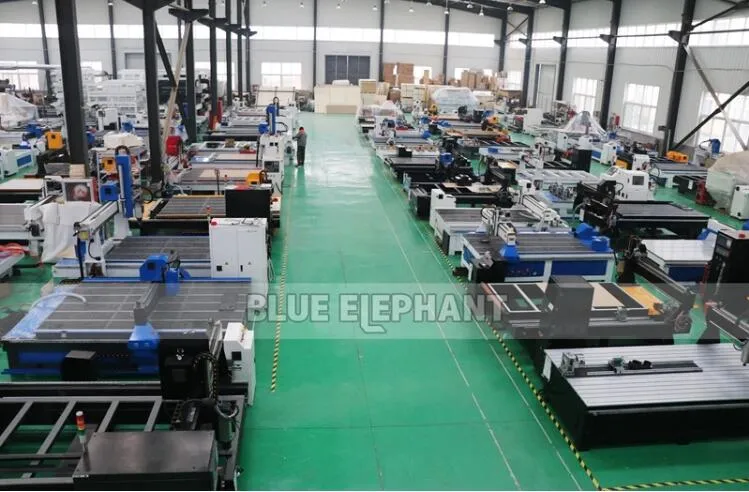

    Our factory
    1212 CNC Router Wood Cutting Carving Machine 1200X1200mm Working Table for Aluminum
    1212 CNC Router Wood Cutting Carving Machine 1200X1200mm Working Table for Aluminum

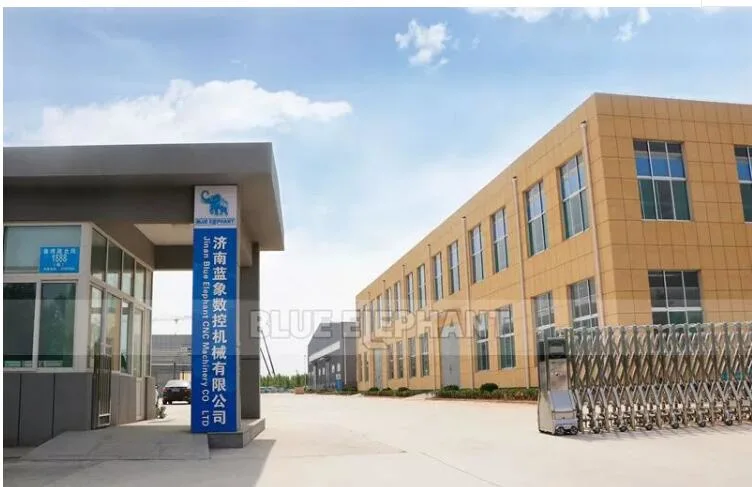

    • Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
    • We have our R & D department, Quality control department, and after sale & service department.
    • Our products are widely used in Woodworking, Advertising, Model, Electric, CAD/CAM Industry model, Clothing, Package Printing, Marking, Laser sealing and so on.
    • We had got CE and ISO9001 certification always offer best quality machine.
    • Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!

    1212 CNC Router Wood Cutting Carving Machine 1200X1200mm Working Table for Aluminum
