ZICAR Wood Sanding Machine Sander Machinery R-R- R1300
ZICAR Wood Sanding Machine Sander Machinery R-R-R1300 Product Description Features 1.Imported cutter roller, roller and the thickness of soft rubber (or a combination of sand,sand polishing process frame) of the first plane, high eficiency and energy saving;2.The back plate to avoid casting device,......
Send Inquiry
Product Description

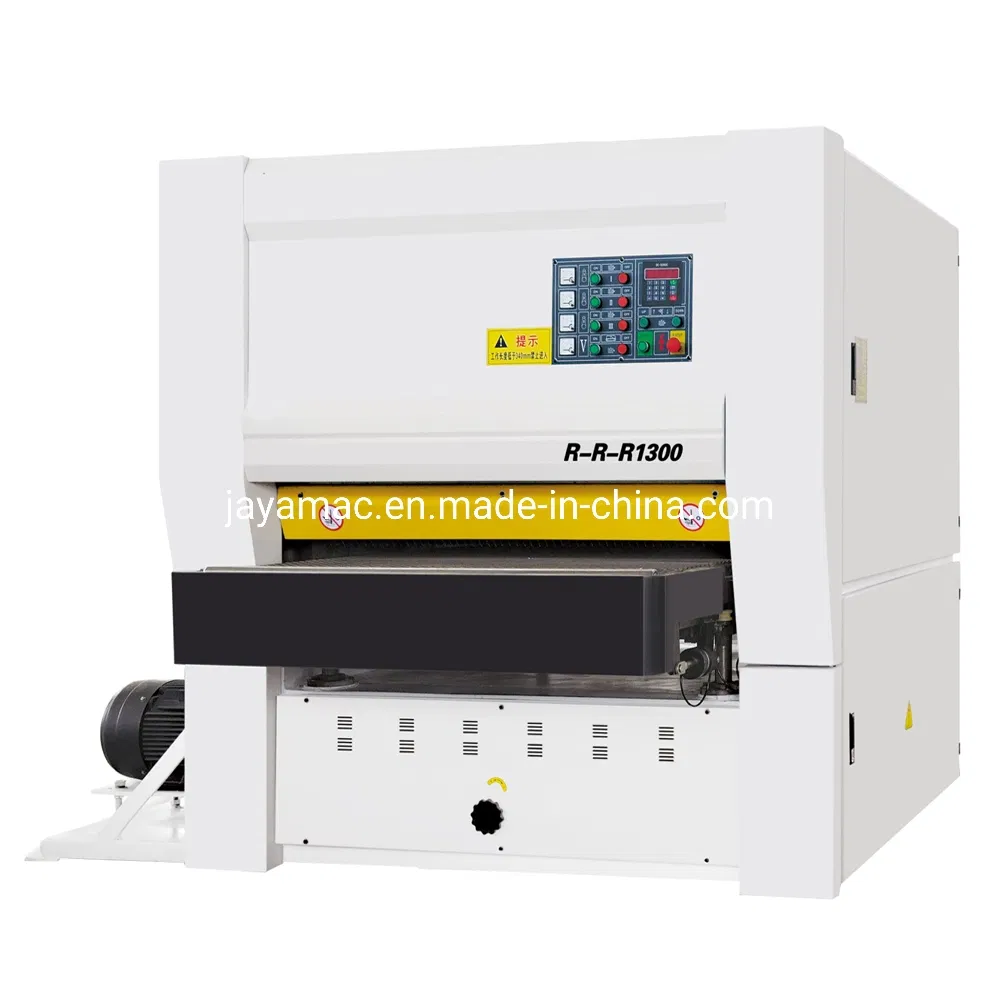

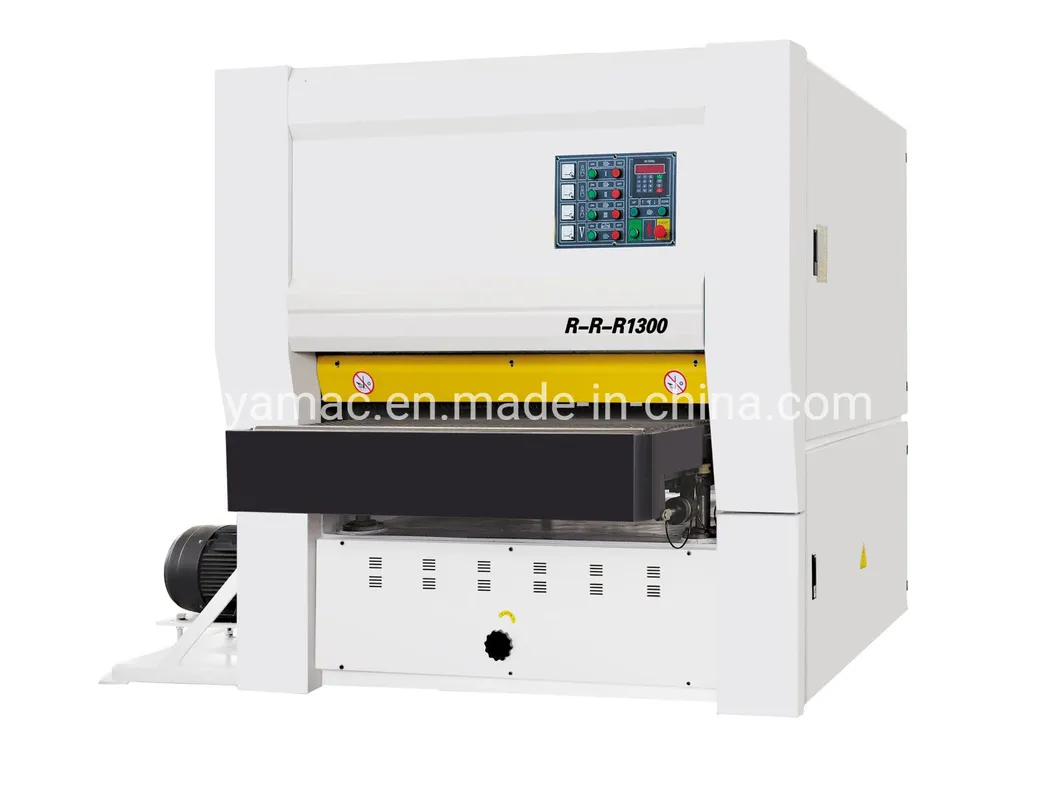

ZICAR Wood Sanding Machine Sander Machinery R-R-R1300
Product Description
Product Description
Features

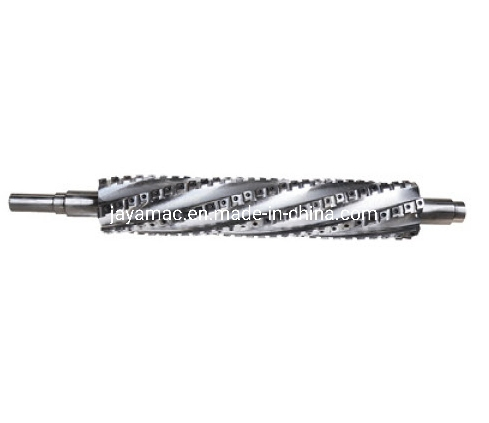

1.Imported cutter roller, roller and the thickness of soft rubber (or a combination of sand,sand polishing process frame) of the first plane, high eficiency and energy saving;
2.The back plate to avoid casting device, in the process of rebound.
2.The back plate to avoid casting device, in the process of rebound.
Product Parameters
| Model | R-R-R1300 |
| Max working width | 1300mm |
| The shortest processing length | 500mm |
| Maximum processing thickness | 160mm |
| Conveyor speed | 6-30m/min |
| Total power | 63.55kw |
| First sand frame motor power | 18.5kw |
| Second sand frame motor power | 22kw |
| Third sand frame motor power | 18.5kw |
| Conveyor motor wattage | 4kw |
| Lifting motor power | 0.55kw |
| First sand frame steel roller diameter | 180mm |
| Second sander roller diameter | 240mm |
| Third sander roller diameter | 240mm |
| Abrasive belt size | 1330x2200mm |
| Working pressure | 0.6Mpa |
| Dust collection | 12500m³/h |
| Outline dimension | 2800x2700x2200mm |
| Weight | 4700kg |

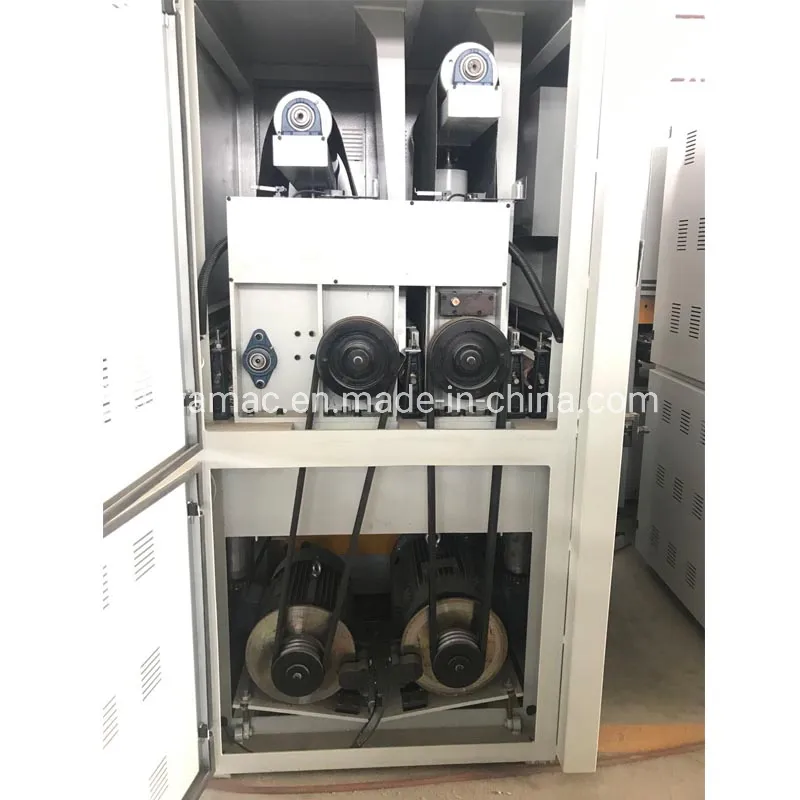

Detail Images

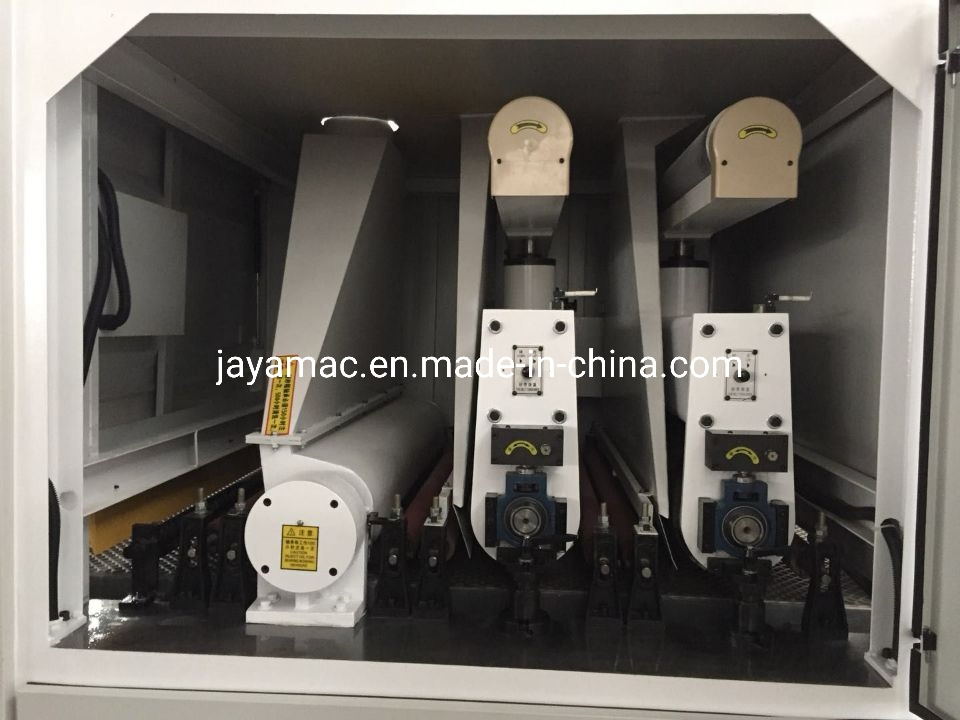

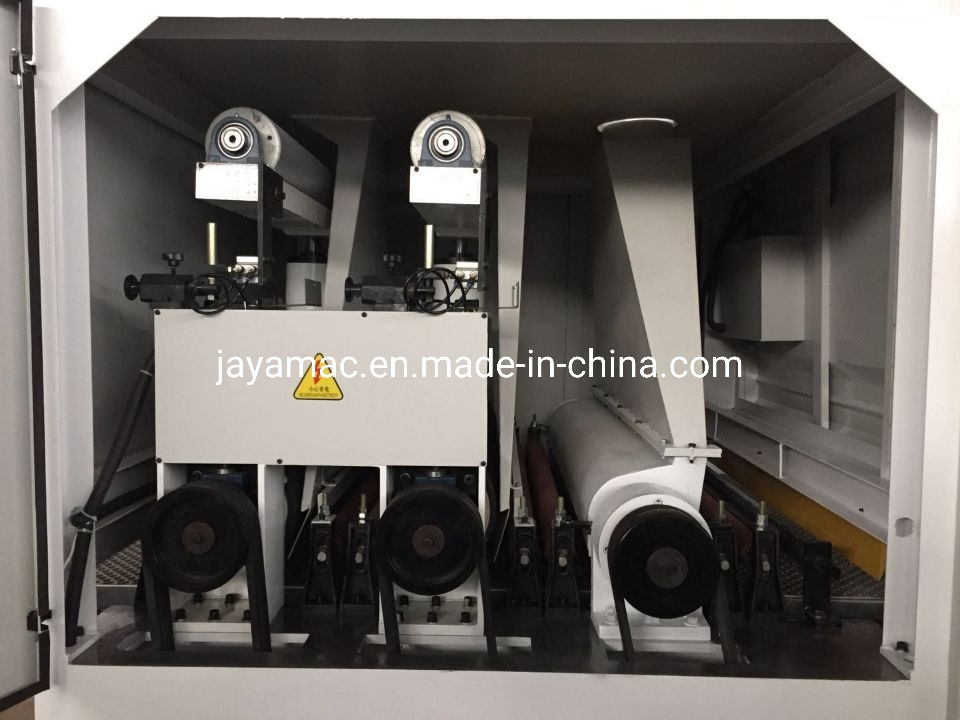

Three sand rack

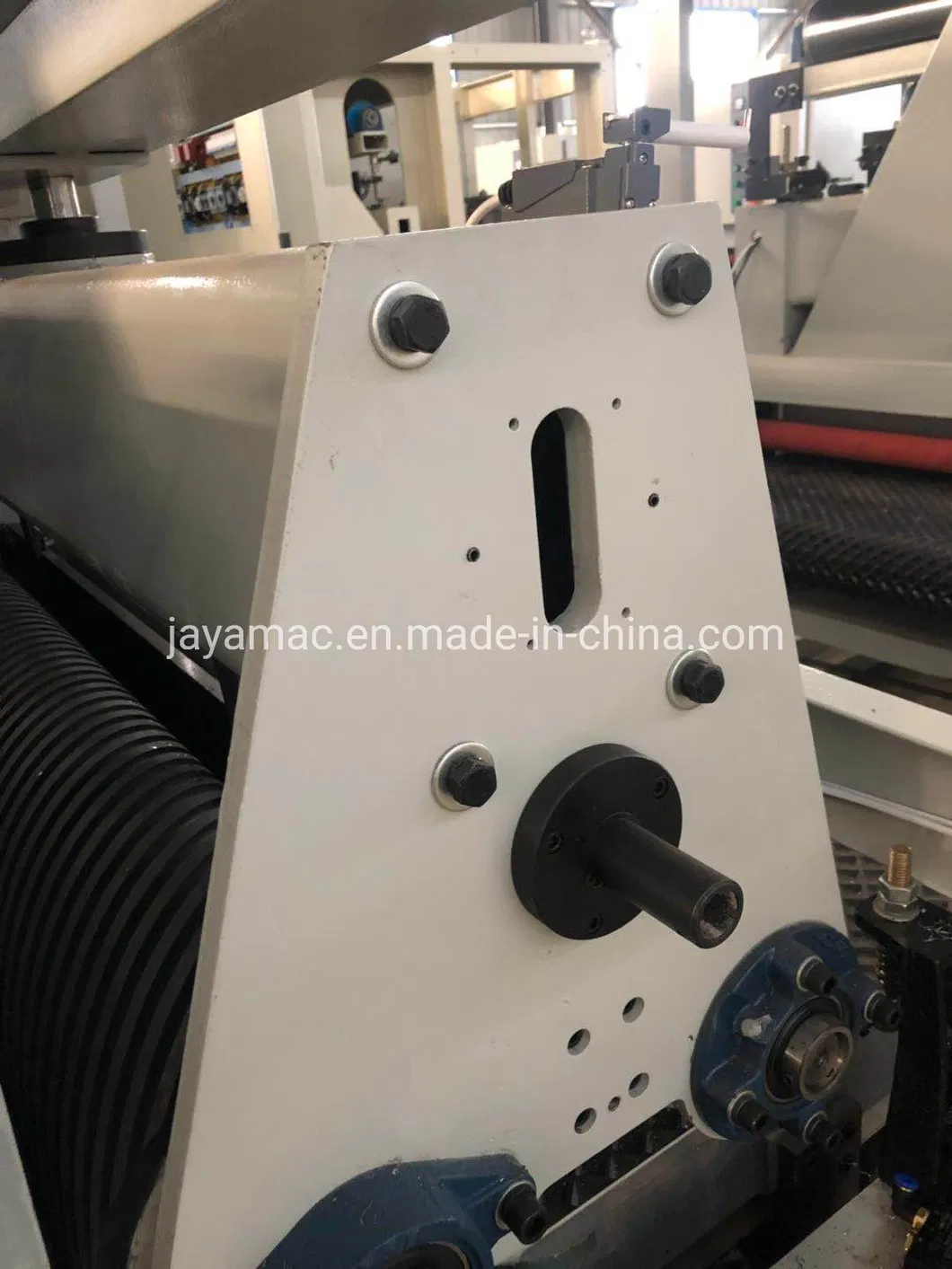

Thickening hanging board

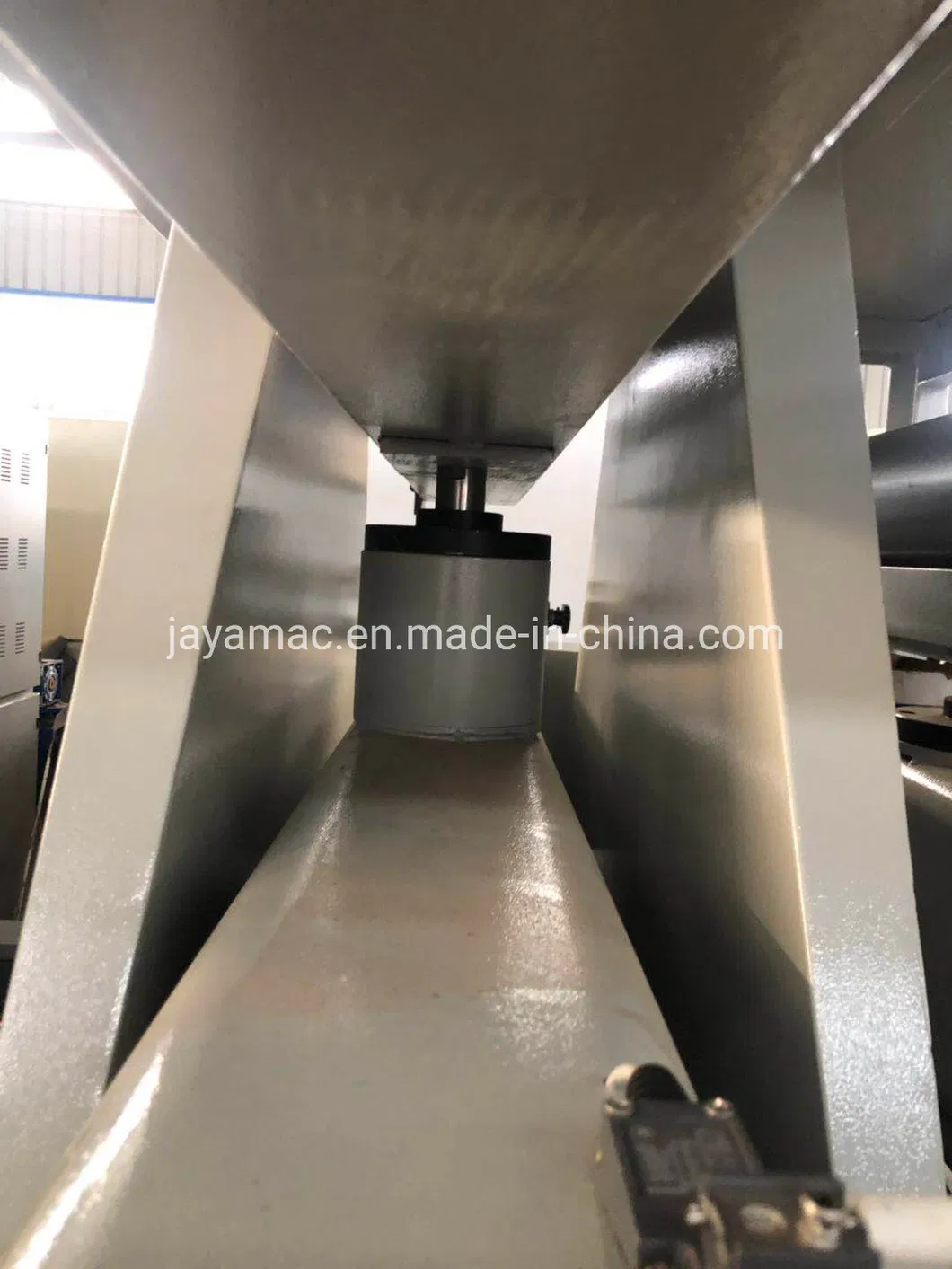

Built-in cylinder
Double sand rack

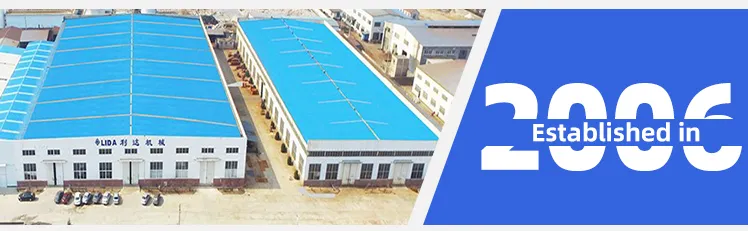

Our Company
JAYA INTERNATIONAL, has been dealing in woodworking machinery for more than 27 years,started from Jaya Trading at the beginning of 1992. In 2008, we made great investment andbecame the holding company of YanTai Lida woodworking machinery Co.,ltd, which has over59 years' history of manufacturing all kinds of China- ·made woodworking machinery since1960, especially for the MQ & ML series combined woodworking machine, it has the extremelyimportant guiding function in the circle. During the past few years, with the development of thecompany and the staff, we also expanded our production line to related fields like general machinery, panel furniture making machinery ,CNC router, Laser machinery, Plywood makingmachine and related hardware, ect.
Thanks for our top quality, excellent service and competitive price, thanks for all the supportfrom our customers, now our machine has got great reputation as the brand ZICAR forwoodworking machinery, MATIC for general machinery , HARRIER for CNC/ laser Machinery,PLYTEC for plywood making machine all over the world with the following advantages:
* More than 300 employees, 56 technicians, covering an area of 35000 square meters.
* ISO9001:2000, CE certified, 15 national patents
* One-stop service, meet needs of the customers from individuals to international companies.
* OEM service accepted.
* Separate trading office: Jaya Trading with 35 experienced sales offering full scale service.
* lnquiries are typically answered within 8 hours.
* After sale Service: experienced and knowledgeable team of technical support
* Annual turnover: USD 20 million
We trust that our experience and intimate knowledge of this line will entitle us to yourconfidence.
The more you know us, the more you trust us!
FAQ
1.Our Payment Way?
L/C and T/T or other ways.
2.Delivery Time?
30 days after downpayment.We have our own forwarder and we havelong term cooperation with each other and have closely relationshipwith each other,so there is no problem in shipment.
3.Our Warranty?
(1)One year guarantee from the delivery date of this machine under the normal operation of oneshift per day.
(2)We will be responsible for the maintenance of damaged part which is under normal situationduring warranty period, and all the round-trip courier transportation cost of damaged/repairedreplacement parts in warranty period should be borne by the buyer. Wearing parts are notincluded.
(3)24 hour technical support by email or calling.
(4)User-friendly English manual for machine using and maintaining.
4.Our srvices?
(1)One-stop service, meet needs of the customers from individuals to international companies.
(2)OEM service accepted.
(3)Separate trading office: Jaya Trading with 30 experienced sales offering full scale service.
(4)After sale Service: experienced and knowledgeable team of technical support , provideengineer oversea service.
L/C and T/T or other ways.
2.Delivery Time?
30 days after downpayment.We have our own forwarder and we havelong term cooperation with each other and have closely relationshipwith each other,so there is no problem in shipment.
3.Our Warranty?
(1)One year guarantee from the delivery date of this machine under the normal operation of oneshift per day.
(2)We will be responsible for the maintenance of damaged part which is under normal situationduring warranty period, and all the round-trip courier transportation cost of damaged/repairedreplacement parts in warranty period should be borne by the buyer. Wearing parts are notincluded.
(3)24 hour technical support by email or calling.
(4)User-friendly English manual for machine using and maintaining.
4.Our srvices?
(1)One-stop service, meet needs of the customers from individuals to international companies.
(2)OEM service accepted.
(3)Separate trading office: Jaya Trading with 30 experienced sales offering full scale service.
(4)After sale Service: experienced and knowledgeable team of technical support , provideengineer oversea service.
