Automatic Woodworking Finger Joint Assembler Press Machine
Full Automatic Finger Joint Line RZJL1525LA*600IIDLDiagramProduct ParametersA-Material preparation belt conveyor B-Finger joint mortising C-Filter type belt conveyor D-Finger joint mortising(with gluing) E-Roller conveyor F-Board turnover G-Chain conveyor H-Finger joint assembleA-Material preparati......
Send Inquiry
Product Description

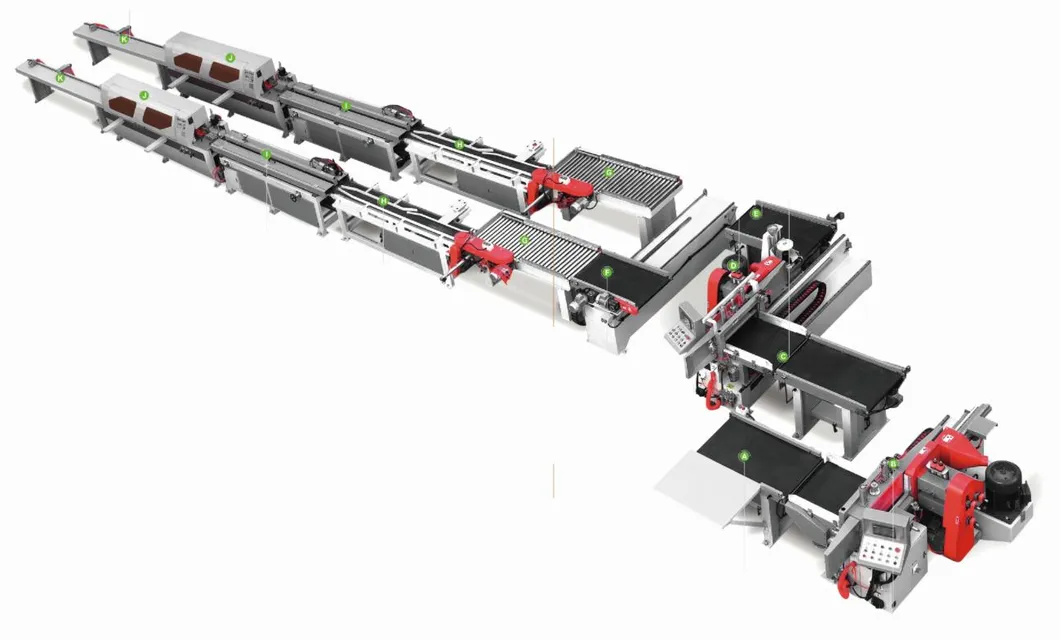

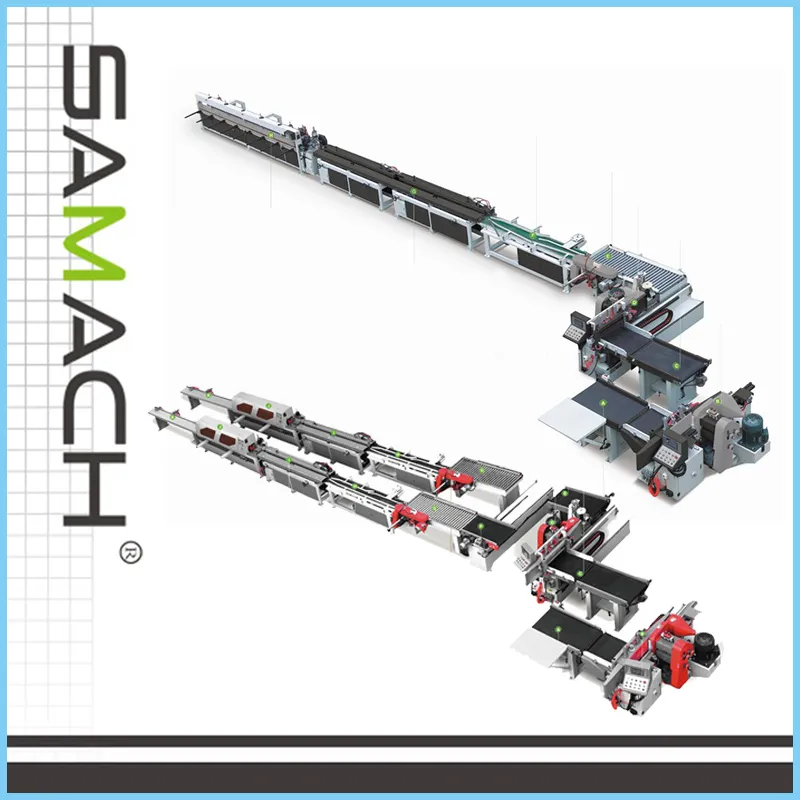

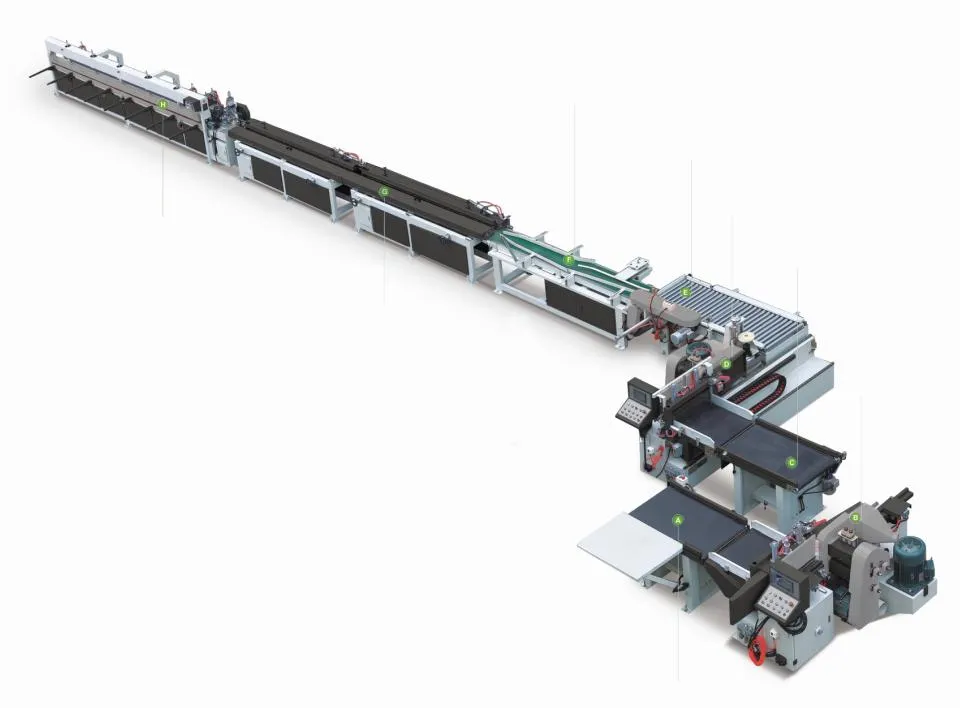

Full Automatic Finger Joint Line RZJL1525LA*600IIDLDiagram
Product Parameters

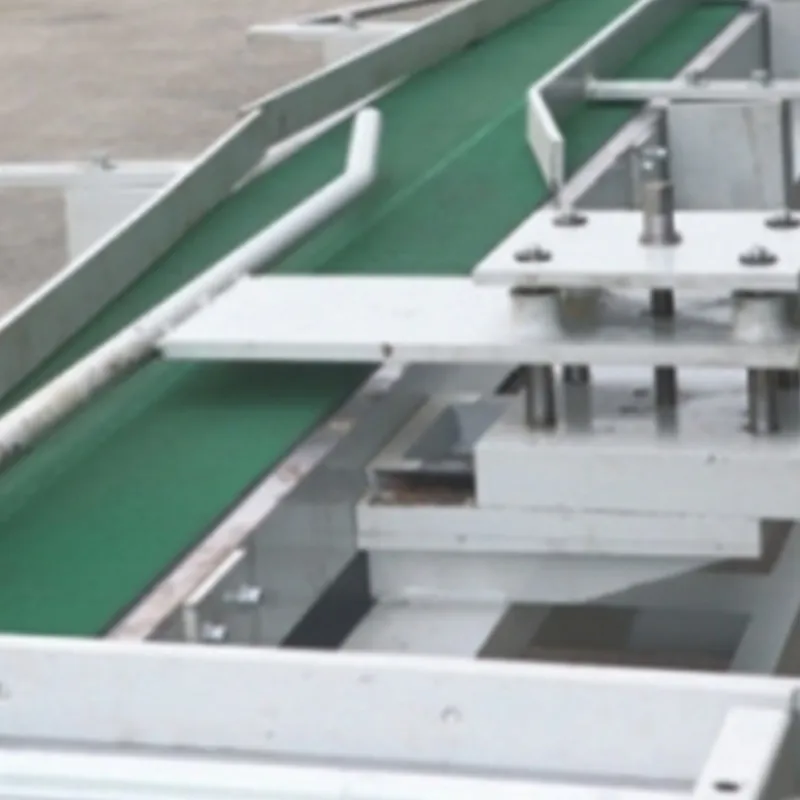

A-Material preparation belt conveyor
B-Finger joint mortising
C-Filter type belt conveyor
D-Finger joint mortising(with gluing)

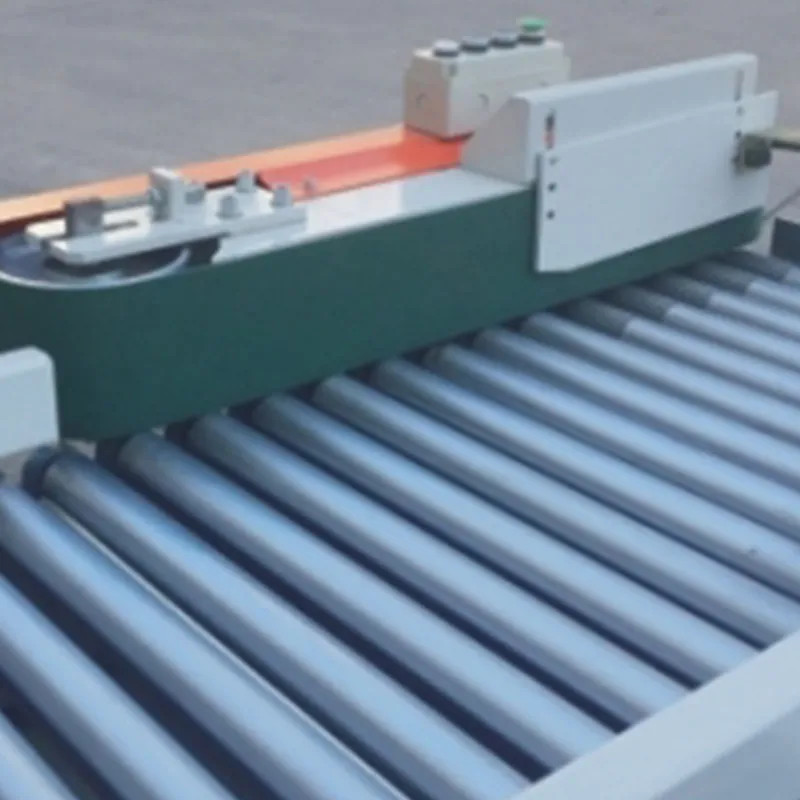

E-Roller conveyor
F-Board turnover
G-Chain conveyor
H-Finger joint assemble

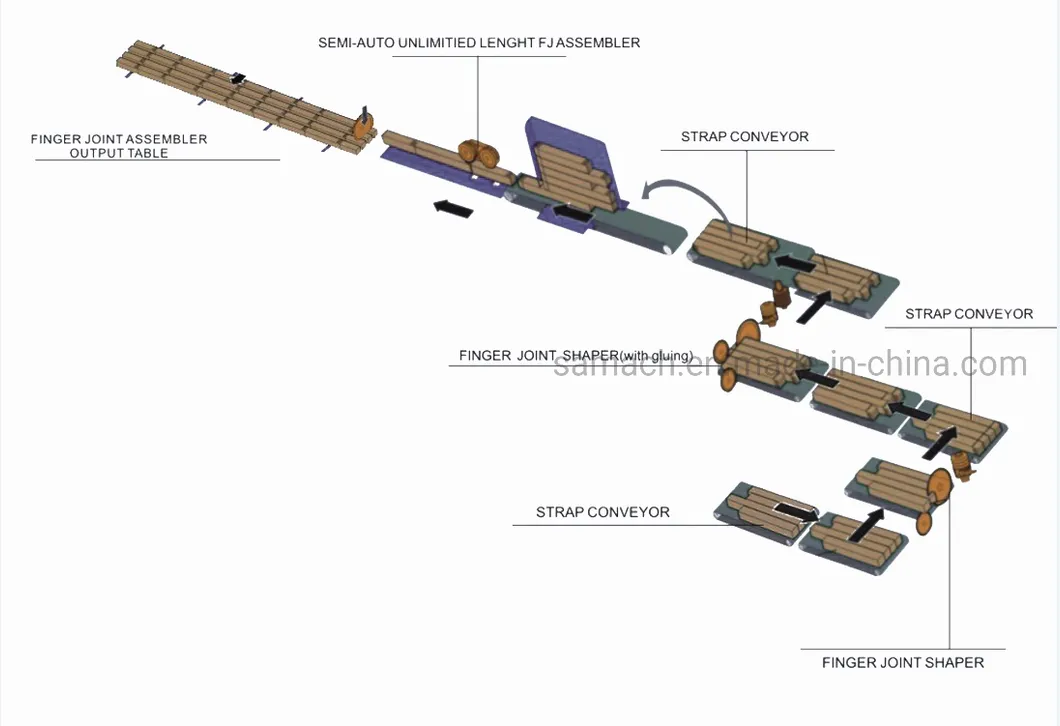

A-Material preparation belt conveyor
B-Finger joint mortising
C-Filter type belt conveyor
D-Finger joint mortising(with gluing)
E-Output belt conveyor
F-Seperate belt conveyor
G-Roller conveyor
H-Board turnover
I-Chain conveyor
J-Unlimited length finger joint assembler
K-Finger joint assembler output table
| Model | RSJ3515-II | RSJ3515T-II |
| Max. working width | 600mm | 600mm |
| Min. working thickness | 150mm | 150mm |
| Max. working length | 850mm | 850mm |
| Cutter speed | 6000r/min | 6000r/min |
| Draw saw speed | 5600r/min | 5600r/min |
| Trimming saw speed | 5000r/min | 5000r/min |
| Diameter of tenoner cutter | 160mm | 160mm |
| Diameter of tenoner cut-off saw | 70mm | 70mm |
| Rated power of cutter motor | 11kw | 11kw |
| Rated power of saw motor | 5.5kw | 5.5kw |
| Rated power of feeder motor | 0.37kw | 0.37kw |
| Rated power of servo motor | 1kw | 1kw |
| Working air pressure | 0.5-0.8Mpa | 0.5-0.8Mpa |
| Net weight | 2000kg | 2200kg |
| Overall diameter | 2380X1700X1400mm | 2380X1700X1400mm |
| Model | RZJ1560A |
| Max. length of inoculation | 6000mm |
| Max. width of inoculation | 150mm |
| Max. thickness of inoculation | 80 mm |
| Min. length of inoculation | 100mm |
| Min. width of inoculation | 30mm |
| Min. thickness of inoculation | 18mm |
| Rotating speed of saw blade | 3700r/min |
| Diameter of saw blade | 355mm |
| Rated power of saw motor | 3kw |
| Rated power of oil pump | 2.2kw |
| Air pressure of working | 0.5-0.8Mpa |
| Max. engaging force | 7800kg |
| Max. feed speed | 30m/min |
| Overall dimension | 7650*1000*1420mm |
| Model | RZJ1525LA |
| Max. working size(L x W x H) | >6200(NO LIMITED) x 150x 65 mm |
| Min. working size(L x W x H) | 1000 x 30 x 15mm |
| Main saw blade size | φ355mm |
| Main saw spindle speed | 3700rpm |
| Working air pressure | 0.5--0.8 Mpa |
| Saw motor power | 3kw |
| Oil pump power | 5.5kw |
| Working air pressure | 0.5-0.8Mpa |
| Max. press power | 7800kg |
| Max. output | 25m/min |
| Overall dimension | 4100*1200*1470mm |
| In-feed system | Double reducer motor control |
| Model | MF756A | MF756B | MF746A | MF762 | MF761A | MF775 |
| Length of work table | 1150mm | 1150mm | - | - | 3500mm | 5000(3000)mm |
| Width of work table | 600mm | 600mm | 150mm | 150mm | 25―150mm | 450mm |
| Rate power of motor | 0.37kw | 0.37kw | 0.75kw*3pcs | 0.75kw | 3kw | 0.37kw |
| Working pressure | 0.5-0.8Mpa | 0.5-0.8Mpa | 0.6Mpa | 0.6Mpa | 0.6Mpa | 0.5-0.8Mpa |
| Overall diameter | 1180X1330X920mm | 1180X725X920mm | 1900*1360*1300mm | 3600*650*1200mm | 3600*650*1200mm | 5000*956*2469mm |

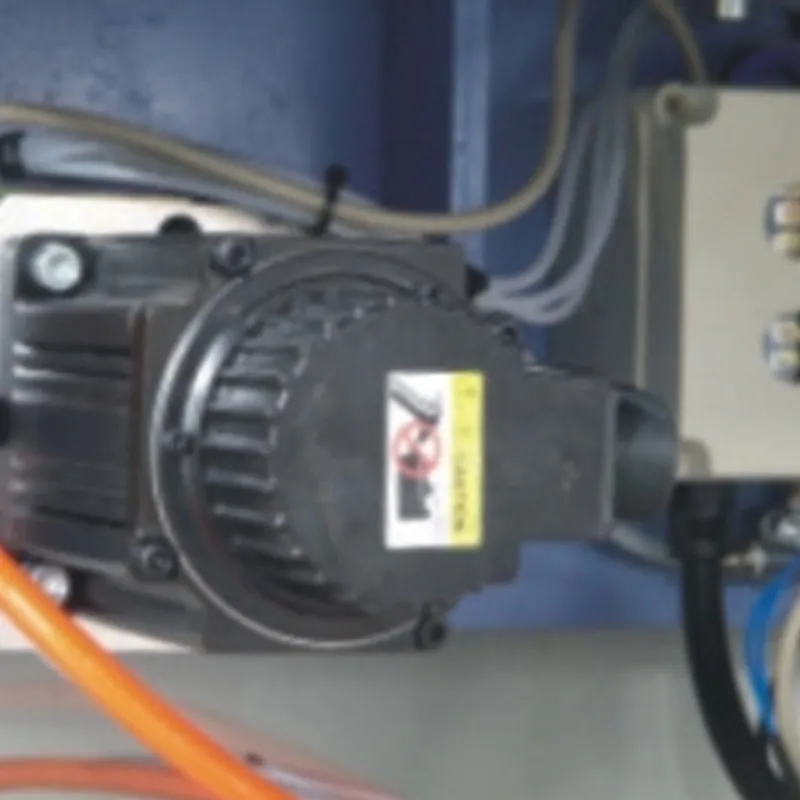

1.Taiwan DELTA servo system.
2.Horizontal type chain conveyor.
3.Automatic feeding device.
4.Automatic coating equipment.
Quality: We are scrupulous about every detail, professional QC and strict checking porcedure ensure our work and guarantee eac machine which is in it's best presentation. All our goods pass through our rigid quality control before shipment.
With high-quality products, powerful strength, a professional team and excellent after-sales service, we have gained a good reputation among our customers. It is our sincere desire to develop more customers' business through trustworthy cooperation.
Reasons to choose Samach:
1: good resources with high quality
2: quick delivery
3: excellent after-sale services
4: 24 hours technical support through email or calls.
5: friend partner relationship.
Get the maximum return on your investment with Samach's affordable, flexible and user-friendly machines, designed to help you succeed by delivering maximum performance!
A2. If u need, our engineers are available to service machinery overseas. But u need pay the tickets and hotel fees for our
engineers.
Q: How about the warranty?
QingDao Samac International Trading Co., Ltd. Specializes in the export of woodworking, glass processing, metal processing and Stone Processing machinery. Our woodworking machinery series is mainly used to process real wood, wooden plates, plywood and related types of wood.
Since the foundation of our company, we have always introduced first-class Chinese machinery to the entire world. We cooperate with many local famous factories on R&D to keep in pace with this modern world. Our company aims to help our customers select the best quality and most suitable products for their needs. Simultaneously, we also undertake OEM/ODM projects which can satisfy customers' special requirements.Quality: We are scrupulous about every detail, professional QC and strict checking porcedure ensure our work and guarantee eac machine which is in it's best presentation. All our goods pass through our rigid quality control before shipment.
With high-quality products, powerful strength, a professional team and excellent after-sales service, we have gained a good reputation among our customers. It is our sincere desire to develop more customers' business through trustworthy cooperation.
Delivery : Soft package +wooden pallet or Wooen case
Reasons to choose Samach:1: good resources with high quality
2: quick delivery
3: excellent after-sale services
4: 24 hours technical support through email or calls.
5: friend partner relationship.
Get the maximum return on your investment with Samach's affordable, flexible and user-friendly machines, designed to help you succeed by delivering maximum performance!
Q: How about after-sales service?
A: 1. We can provide free training in our company.A2. If u need, our engineers are available to service machinery overseas. But u need pay the tickets and hotel fees for our
engineers.
Q: How about the warranty?
A: One year warranty. Spare parts are not included. We suggest u buy some spare parts in stock
Q: What should I do when I have some problems or questions?
A: Pls don't hesitate to contact us, we will reply u ASAP.
Q: How about the quality?
A: Before we pack each machine, we will test it first. If machine has problem in your place, our worker will take responsible for
his mistake. And we will solve your problems.
Q: Which is the most suitable model machine for me?
A: Pls tell us your materials, thickness, size and business industries.
Q: What should I do when I have some problems or questions?
A: Pls don't hesitate to contact us, we will reply u ASAP.
Q: How about the quality?
A: Before we pack each machine, we will test it first. If machine has problem in your place, our worker will take responsible for
his mistake. And we will solve your problems.
Q: Which is the most suitable model machine for me?
A: Pls tell us your materials, thickness, size and business industries.
