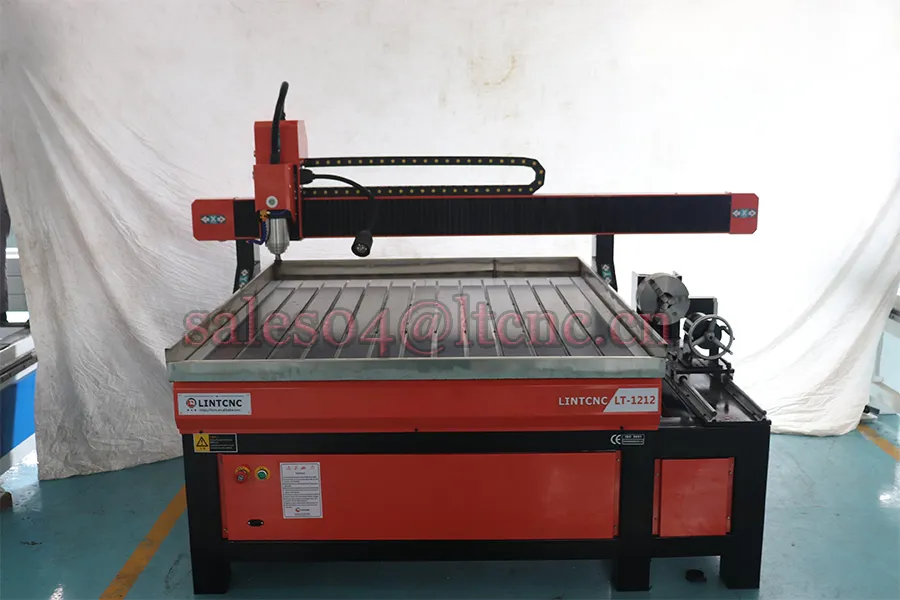

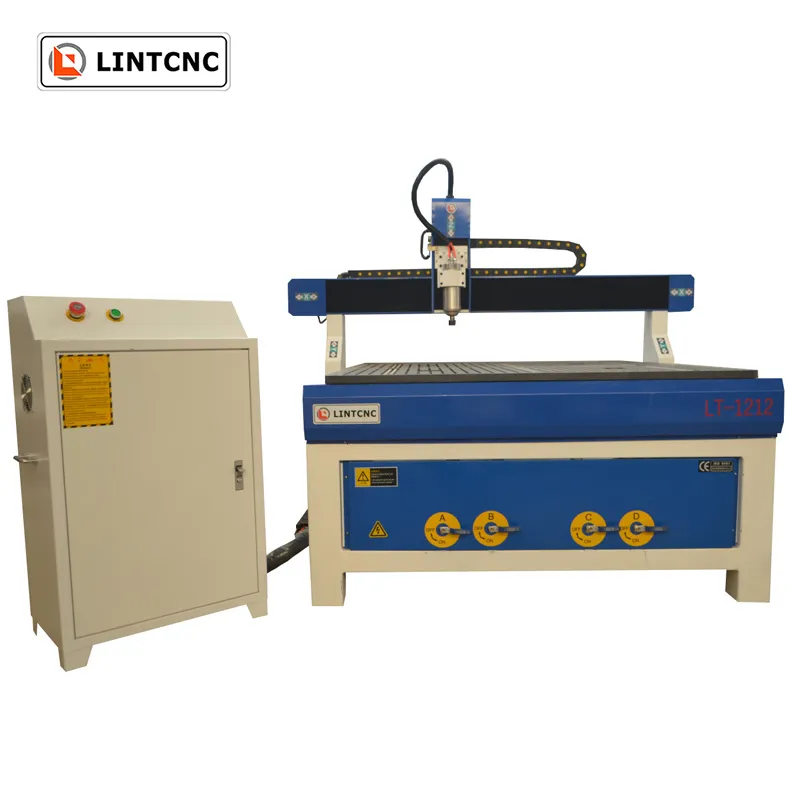

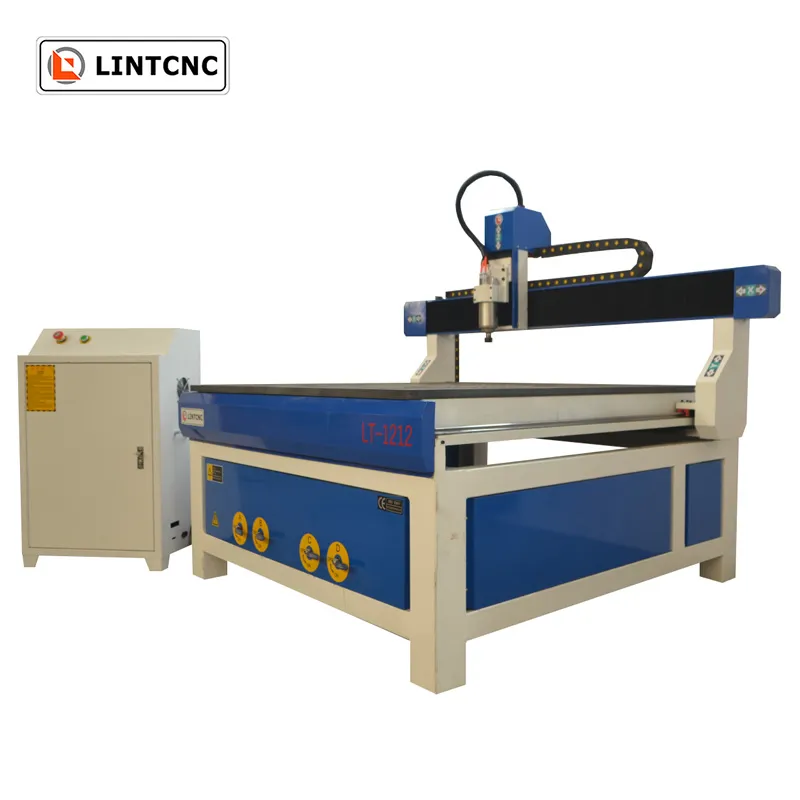

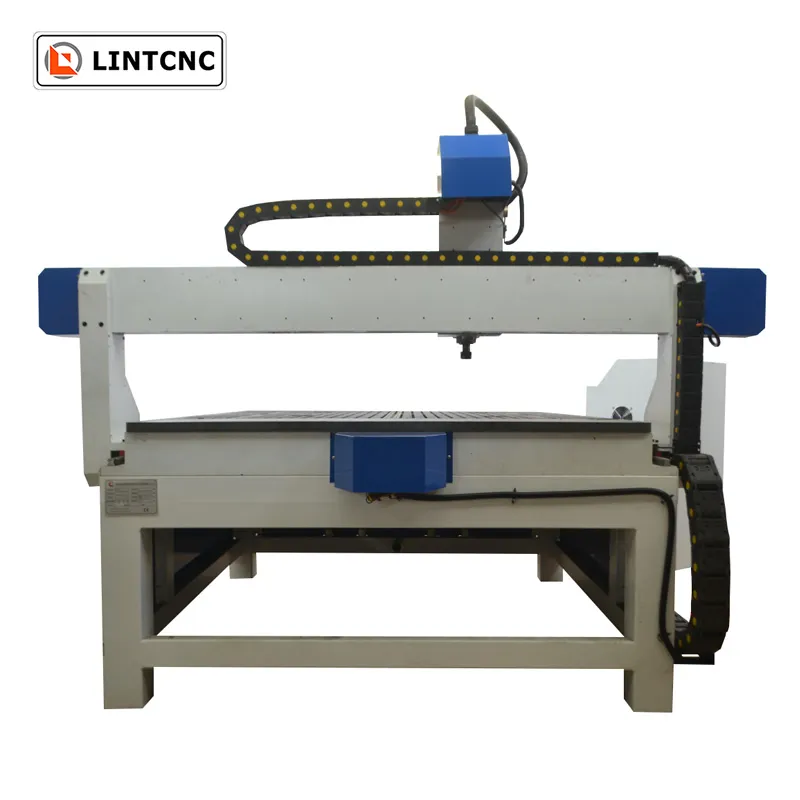

1212 1200*1200mm 4 Axid 3D Woodworking Machine CNC Router
Technical parameters ModelLT-1212 CNC RouterEffective working area1200*1200*200mmTable styleAluminum T-slot table with PVCGuide railHiwin linear square guide railDriving modeTaiwan original TBI ball screwSpindle1.5kw water cooling spindleInvertFuling invertCollect sizeER16Spindle speed0-24000rmpMoto......
Send Inquiry
Product Description
Technical parameters
| Model | LT-1212 CNC Router |
| Effective working area | 1200*1200*200mm |
| Table style | Aluminum T-slot table with PVC |
| Guide rail | Hiwin linear square guide rail |
| Driving mode | Taiwan original TBI ball screw |
| Spindle | 1.5kw water cooling spindle |
| Invert | Fuling invert |
| Collect size | ER16 |
| Spindle speed | 0-24000rmp |
| Motors and Drivers | 86BYG-450B stepper motors and MA860H Leadshine drivers |
| Control sytem | Ncstudio |
| Working voltage | AC220V,single phase,50-60hz |
| Standard software | Artcam2010 |
| Compatible software | TYPE3/Artcam |
| Device | Rotary axis |
| Optional parts | 1.Stainless water tank 2. H2-758 Hybrid servo motor and driver 3.2.2kw/3.0kw water cooling spindle |

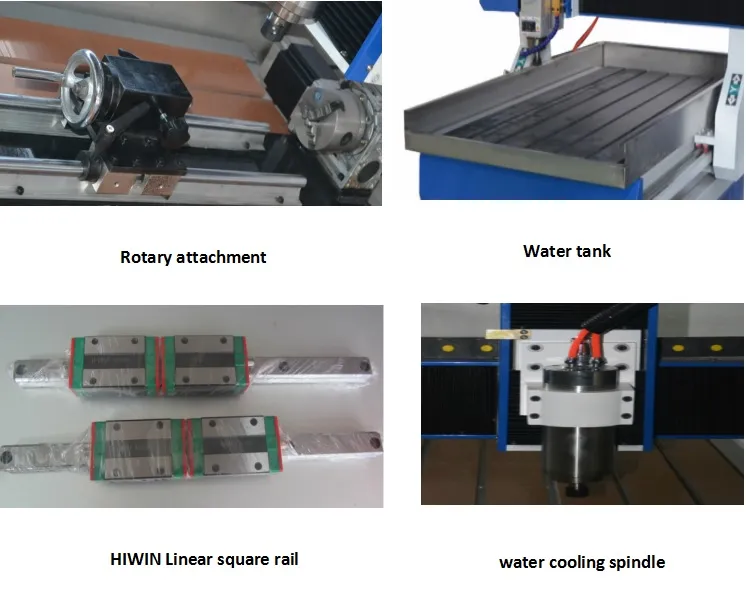

Optional parts
Main Features
1. Integrally cast lathe bed, firm and non-deforming, high rigidity and high accuracy, adopts Taiwan line guide rail.
2. Use high speed drive motor,also servo motors for optional.
3. Memory function ensures the processing point when the blade is broken or having to postpone the process.
4. With better compatibility, can math with many programs such as Typle3, artcam, castmate, proE, Coreldraw/CAD, CAM. It achieves 2D and 3D works easily.

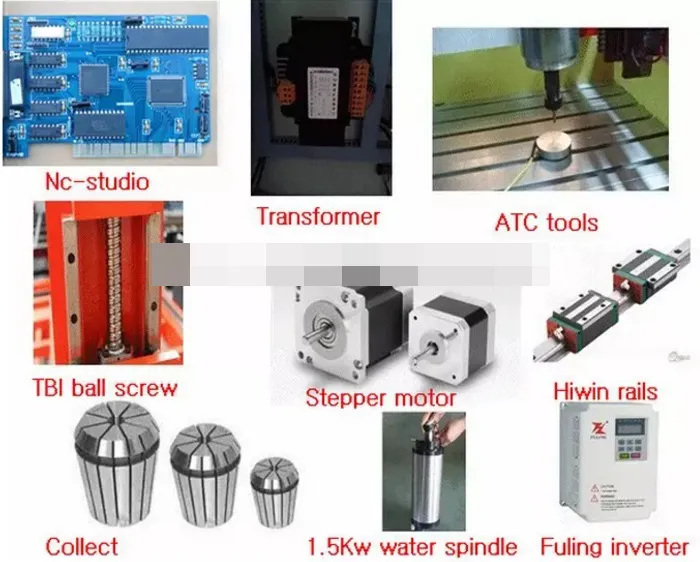

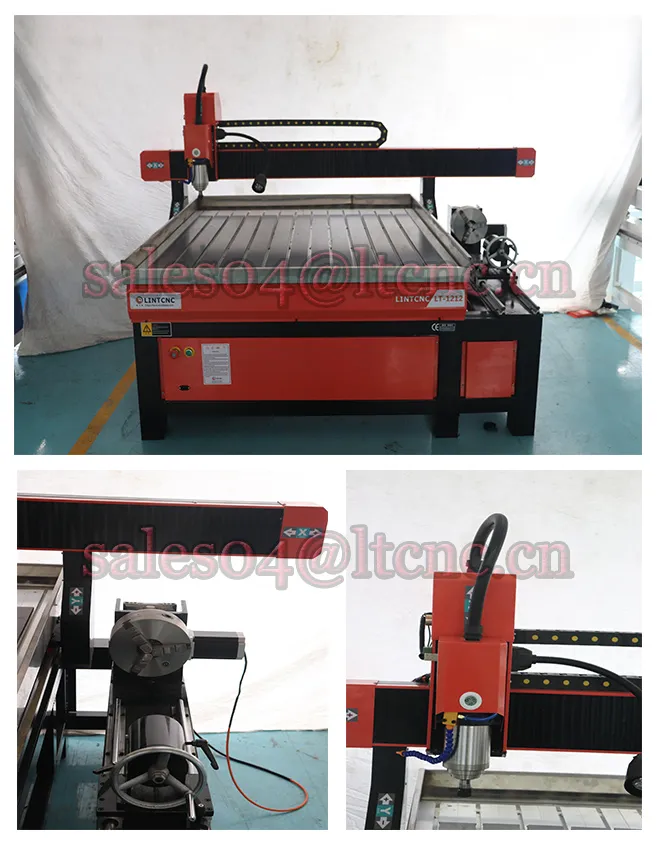

Machine details
Application:
1. Advertising Materials: such as acrylic, plastic, PVC, etc. The cnc router is used for cutting large characters, shape of groove for LED and neon and making sign.
2. Metal: copper, aluminum, stainless steel etc.
3. Wood: all kinds of wood, MDF, plywood. etc.
Package & shipping

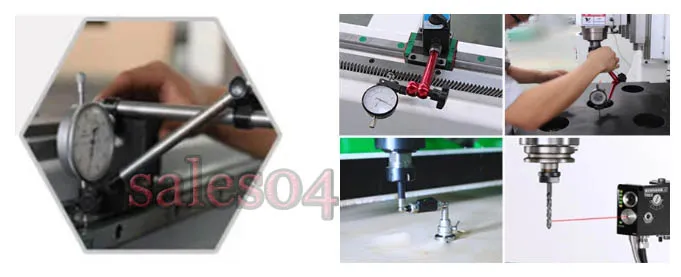

Inspection
Service
After-sale service
1.Two years quality guaranty for the machine and online service everyday day, free technical support.
2.Free training to guarantee you can operate machine correctly.
3.We will provide the consumable parts at an agency price when you need replacement.
4.Our staff can be sent to your company to install or adjust if necessary.
5.The processing demo video and E-catalogue will be mailed as your request.
Technical service
1. Professional technical suggestion before you order a machine.
2. Professional instruction for the operation of machine
3. Compleed machine manual and CD will be provided together with machine.
4. Machine has been adjusted before delivery.
5. 24-hour technical support by email or calling.
6. Machine can e shipped to port within 7 working days after receiving payment.
Company information
Certification
FAQ
There is English manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or Skype.
2)Can you recommend a CNC ROUTER MACHINE to me,thanks?
Yes, In order to give you a suitable router machine, pls tell me the max working area, materials
for processing and the thickness for materials processing engraving or cutting.
Then perfect suitable cnc router will be recommended
3) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have
any problem.
we will give you 24hours service from phone and Whatsapp
