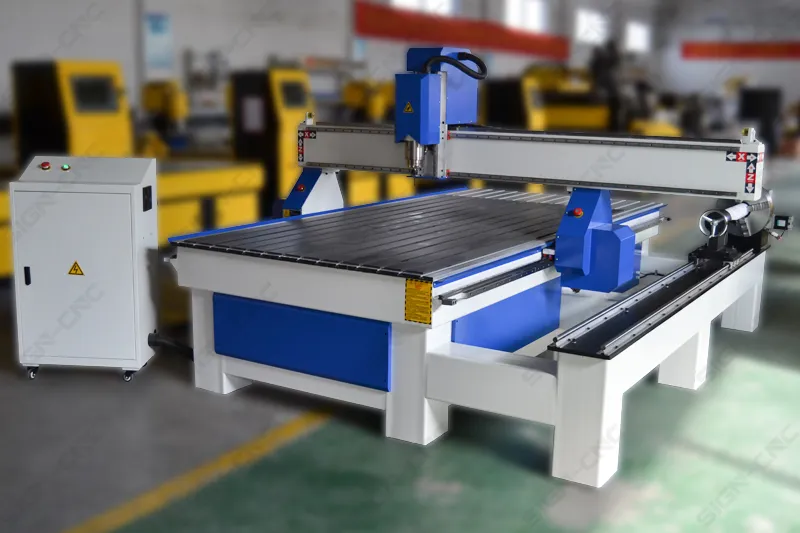

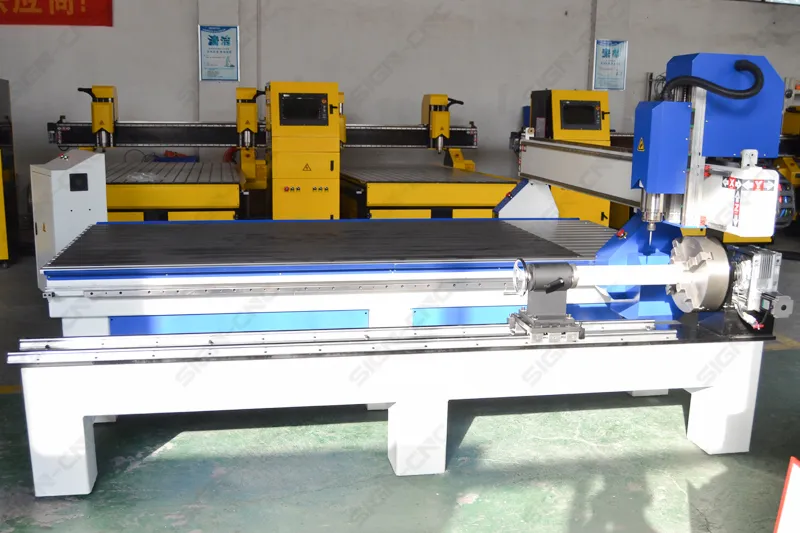

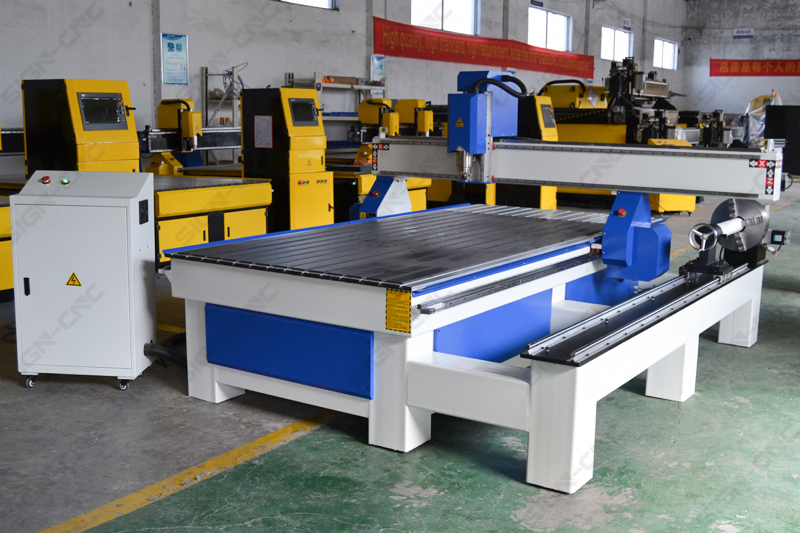

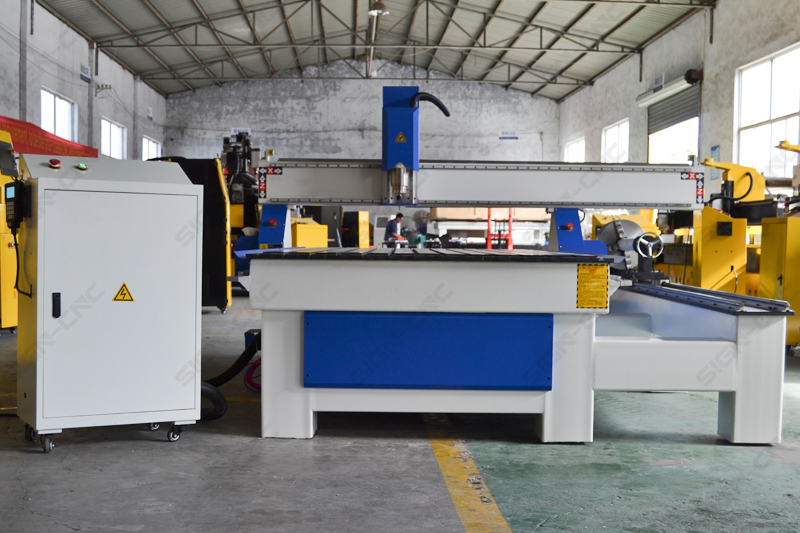

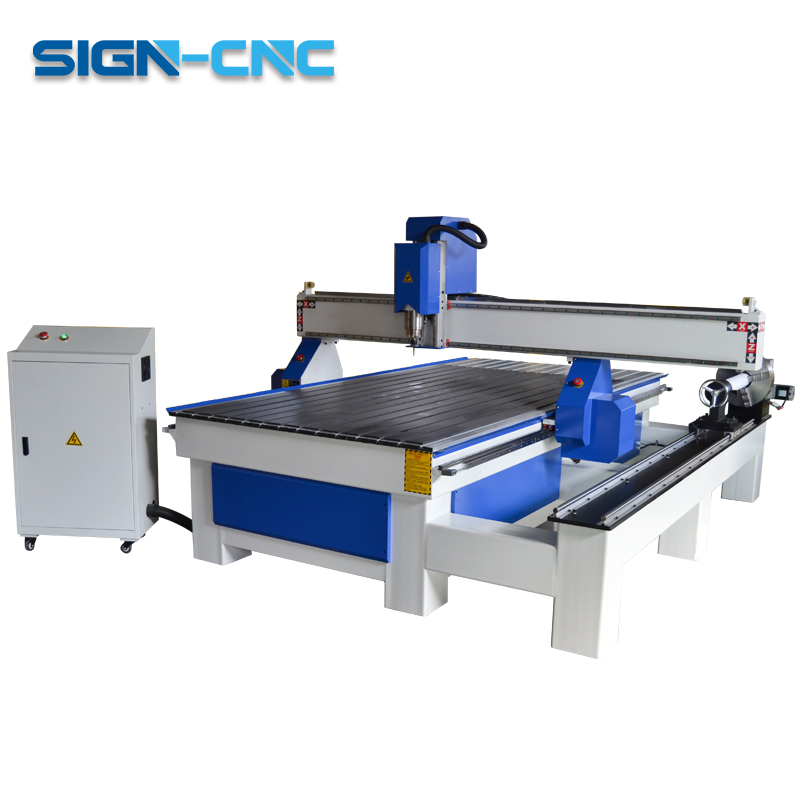

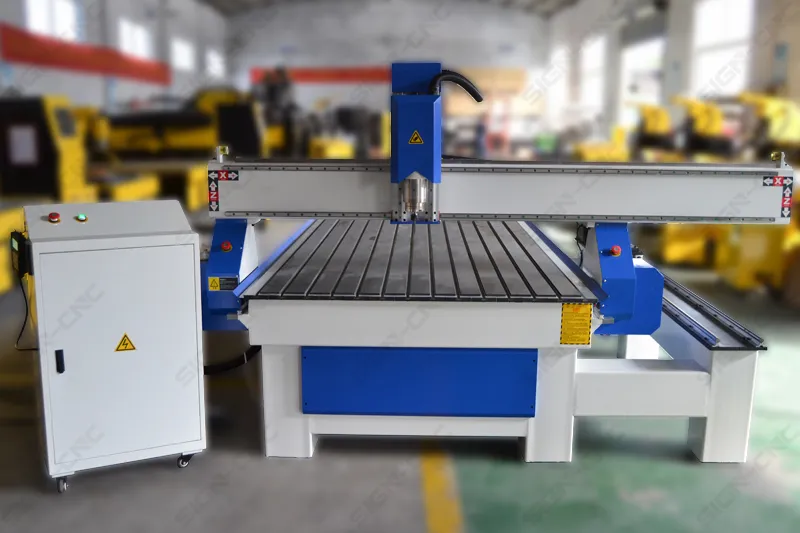

1325 CNC Woodworking Machine with 4 Axis/CNC Wood Working Router Machine/CNC Router Machine for Sale/3D Wood CNC Engraving Rotuer Machines
High Quality 1325 1530 2030 2040 Wood CNC Router With Rotary Spindle 2.Technical Parameters ModelACE 1325 4 AxisACE 1530 4 Axis X,Y,Z Working Area1300x2500x200mmRotary Diameter D80mm---D300mm X,Y,Z repositioning Positioning A......
Send Inquiry
Product Description
2.Technical Parameters
Model | ACE 1325 4 Axis | ACE 1530 4 Axis |
X,Y,Z Working Area | 1300x2500x200mm | |

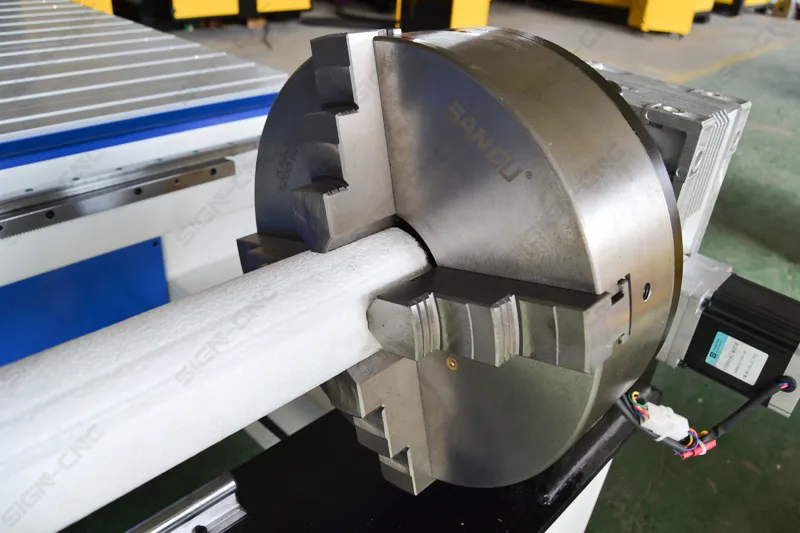

Rotary Diameter | D80mm---D300mm | |
X,Y,Z repositioning Positioning Accuracy | ±0.05mm | |
Frame | Heavy duty steel frame machine body | |
X.Y.Z Structure | Hiwin Rail Linear Bearings and Ball Screw | |
Table surface | Vacuum table with T-slot | |
Spindle Power | 3.2kw water cooling spindle (4.5kw/5.5kw Optional) | |
Max.Rapid Travel Rate | 33000mm/min | |
Max.Working Speed | 25000mm/min | |
Spindle Speed | 0-24000RPM | |
Drive Motors | Stepper system( Servo Motor Optional ) | |
Working Voltage | AC220V/50/60Hz | |
Command Language | G code | |
Control System: | DSP A18 handle control system | |
X,Y Resolution | <0.01mm | |
Surrounding for software | Windows XP/ Windows 7 8 | |
Running Environment | Temperature: 0-45°C Relative humidity: 30%-75% | |
Waranty | 2 Years | |
3. Applications Materials and Samples
1.Woodworking:wooden door and furniture,windows,tables and chairs,cabinets and panels, 3D wave plate,MDF,computer desk,musi
cal instruments,etc
2.Advertising: billboard, logo,sign,3D characters cutting,acrylic cutting,LED/neon channel,literal-hole cut,lightbox mold,stamp,mould
3.Die industry: copper sculpture,aluminum engrave,metal molds,plastic sheeting,PVC,etc
4. Our Service
1.2 years warranty time, we can repair and replace parts for free in 2 year.
2.Technical support in 24 hours online, such as whatsapp,Skype, E-mail,facebook,ect.
3.Life time free maintenance service.
4.Free training course at our factory with professional engineers.
5.We provide the consumable parts at agent price when you need replacement.
FAQ
1.I need a CNC Router, Can you give me some suggestions?
A: Of course . but to suggest you the most suitable machine, I need to know further informations such as effective processing area , materials etc.
2.If we do not know how to use the machine, can you teach us?
A:Yes,we will ,if you come to China,we will offer you free training until you can use the machine freely..
3.which kind of materials can be processed on this machine ?
A;Wood, MDF stone, acrylic, glass, plastic, foam, aluminum, copper, and almost all kinds of non-steel materials
Please contact with us by whatsapp skype or email address for more machine details and prices
