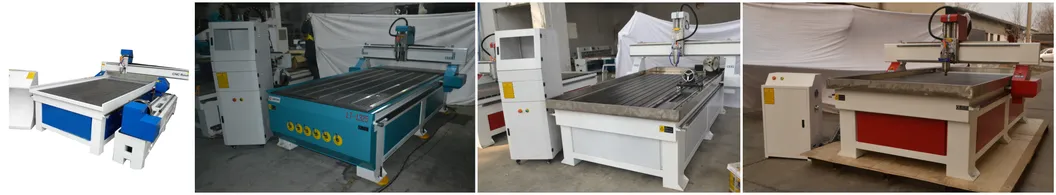

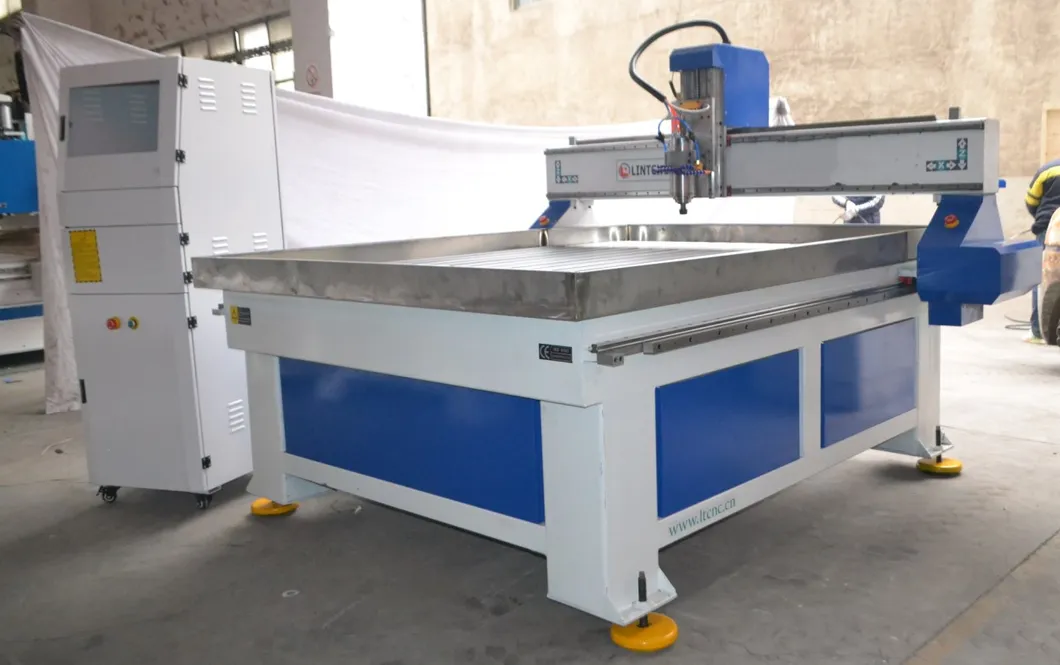

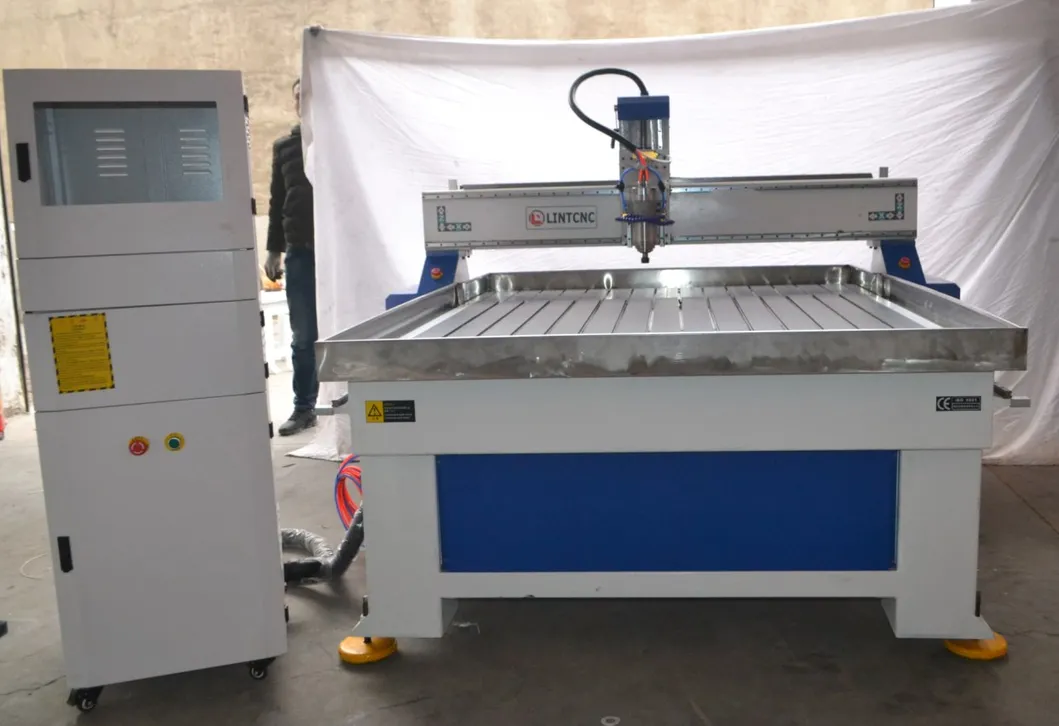

2D 3D Stone Carving CNC Router 1224 Tombstone Marble Granite Stone Engraving Machine
Main Features 1. Z axis feeding height 200mm2. Square tube welded steel frame structure-8mm thickness3. Aluminum T-slot table or Vacuum table +5.5kw Vacuum pump4. X axis rack and pinion drive, ......
Send Inquiry
Product Description
Main Features
1. Z axis feeding height 200mm
2. Square tube welded steel frame structure-8mm thickness
3. Aluminum T-slot table or Vacuum table +5.5kw Vacuum pump
4. X axis rack and pinion drive, Y axis 2 way rack and pinion drive and Z axis Ball screw
5. X, Y, Z axis Taiwan square rails PMI
6. 450B stepper motor and MA860H Leadshine driver or servo motor and driver
7. 3.0KW water cooling spindle and 3.7kw Fuling inverter, other spindles are optional
8. Nc-Studio-5.4.49 control system, DSP or Mach 3 is optional
| Model | LT-1224 wood CNC Router |
| Working area | 1200(X)*2400(Y)*200(Z)mm |
| Machine structure | cast iron vertical shafts and steel gantry |
| Table surface | Aluminum T-slot table with PVC |
| Spindle | 3.0KW water cooling spindle |
| spindle rotating speed | 0-24000 rpm |
| Collect size | ER20 |
| Guide rail | Taiwan Hiwin linear square guide rail |
| Transmission | X,Y axis by helical gear rack, Z axis by TBI ball screw |
| Motors and drivers | Stepper motor 450B and leadshine drivers MA860H |
| Control system | Ncstudio control system |
| Invert | Fuling invert |
| Max. idling speed | 25m/min |
| Max. working speed | 12m/min |
| Working Accuracy | <0.05/300mm |
| Instruction formate | G code *.u00 *.mmg *.plt |
| Working voltage | AC220V/AC380V,single phase/3 phase,50-60Hz |
| Standard software | Artcam2010 |
| Compatible software | Type3/Castmate/Coreldraw/AutoCAD and other CAM/CAD software |
| Control Cabinet | Independent |
| Other | Tool Sensor; Oiling system; Water pump; Tool Box,English manuals etc. |

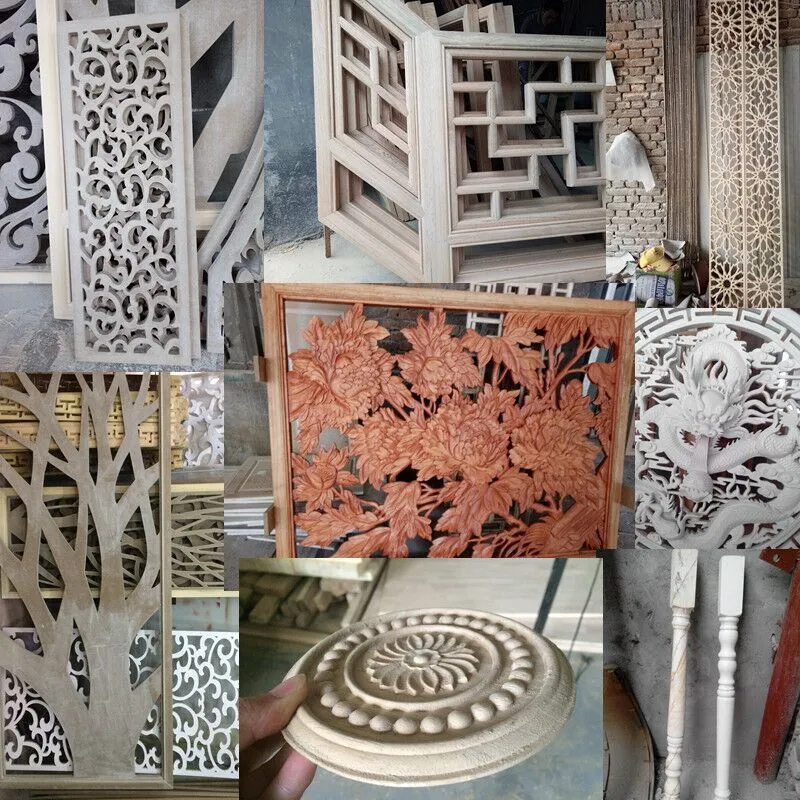

Application
Wood Processing: processing of various furniture such as door, window, cabinet, screen and so on
Advertisement: engraving and cutting various labels and number plate.
Art crafts: engraving characters of any languages and graphics on gifts and souvenirs.
Applicable materials
wood, aluminum board, brass board, plastic, density board, MDF board, wave board, PVC, acrylic, crystal, light marble and other nonmetal materials and light metal materials.
Our Services
After-sale service
1.Two years quality guaranty for the machine and online service everyday day, free technical support.
2.Free training to guarantee you can operate machine correctly.
3.We will provide the consumable parts at an agency price when you need replacement.
4.Our staff can be sent to your company to install or adjust if necessary.
5.The processing demo video and E-catalogue will be mailed as your request.
Technical service
1. Professional technical suggestion before you order a machine.
2. Professional instruction for the operation of machine
3. Compleed machine manual and CD will be provided together with machine.
4. Machine has been adjusted before delivery.
5. 24-hour technical support by email or calling.
6. Machine can e shipped to port within 7 working days after receiving payment.
Package
CE certification

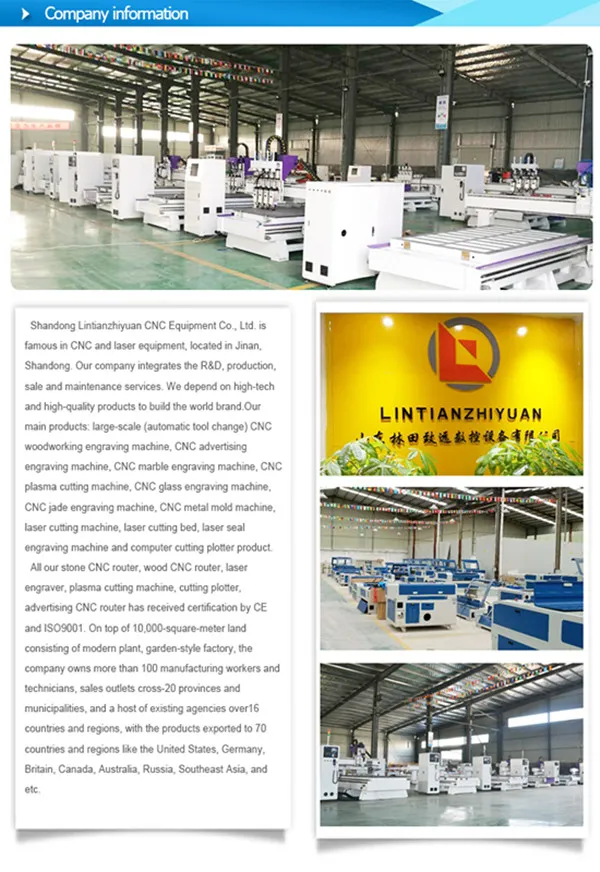

Our company
FAQ
1) This is the first time I use this kind of machine, is it easy operate?
There are English manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or Whatsapp.
2)Can you recommend a CNC ROUTER MACHINE to me,thanks?
Yes, In order to give you a suitable router machine, please tell me the max working
area, materials for processing and the thickness for materials processing engraving
or cutting. Then perfect suitable CNC router will be recommended
3) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem.we will give you 24hours service from phone and Skype.
4) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly,
please tell us your port name. There will be best shipping freight and machine price
send to you
5)Payment terms
a. 30% by T/T in advance,70% by T/T before shipping b. L/C is acceptable ,if the amount is big,please issue the draft for our confirmation at first.
6)Delivery terms
We will arrange the delivery as the terms we both agreed with after the confirmation by the buyer.
