3 Axis 4 Axis 5 Axis 1325/2030/2550/2040/6060/6090 6012 1212 2030 3D Woodworking Machine CNC Router for Wood/Acrylic/PVC

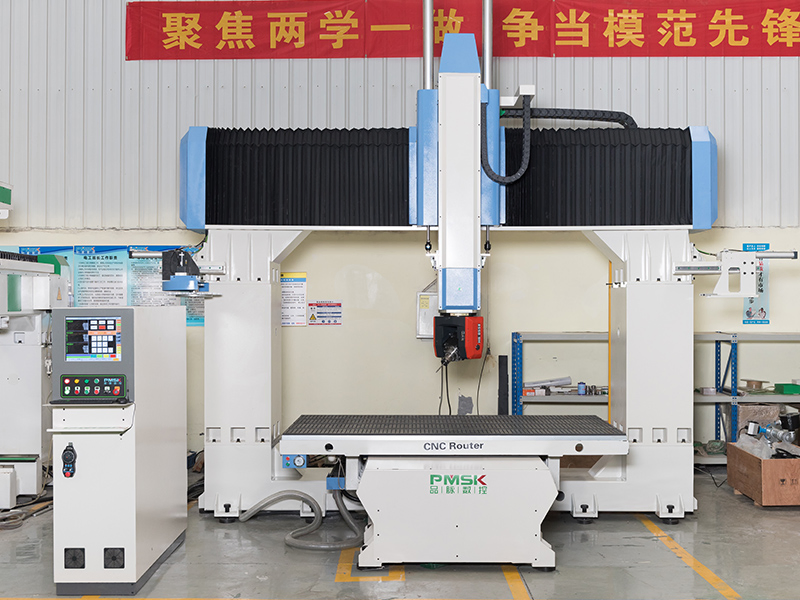

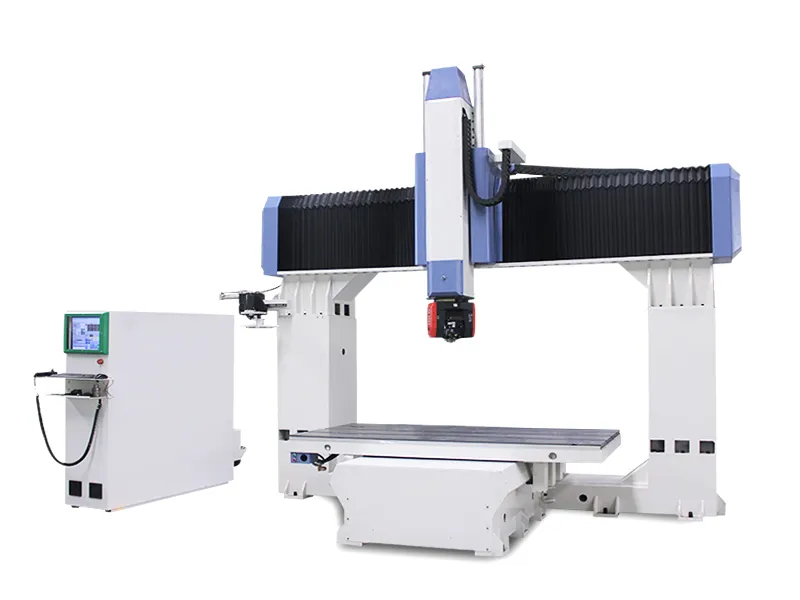

P9 high performance 5 axis cnc machining center is a high-tech, high-precision machining center specially used for processing complex curved surfaces. This machining center system is important for a country's aviation, aerospace,  scientific research, and precision. Industries such as equipment and high-precision medical equipment have a decisive influence. At present, the five-axis linkage CNC machining center system is the only means to solve the processing of impellers, blades, marine propellers, heavy generator rotors, steam turbine rotors, large diesel crankshafts, and so on.
Feature

• The machine tool adopts an advanced gantry worktable mobile structure, which has the perfect milling technology characteristics of a high-speed milling machine. The mobile worktable ensures that the machine tool has the best dynamic motion characteristics and the best driving rigidity.

• The worktable moves smoothly in the axial direction. During processing, the five axes drive the tool to move and process around the workpiece to achieve five-axis five-linkage three-dimensional operation

• The main components of the machine tool adopt a welded steel structure, and all main components have undergone strict two-time aging treatment, which eliminates the internal deformation stress of the components to the greatest extent, effectively improves the stability of the components, and avoids deformation, so that the machine tool has extremely high dynamic accuracy. , Static accuracy and stability.

• Five-axis five-linkage, with RTCP function, suitable for large-scale three-dimensional surface processing and modeling.

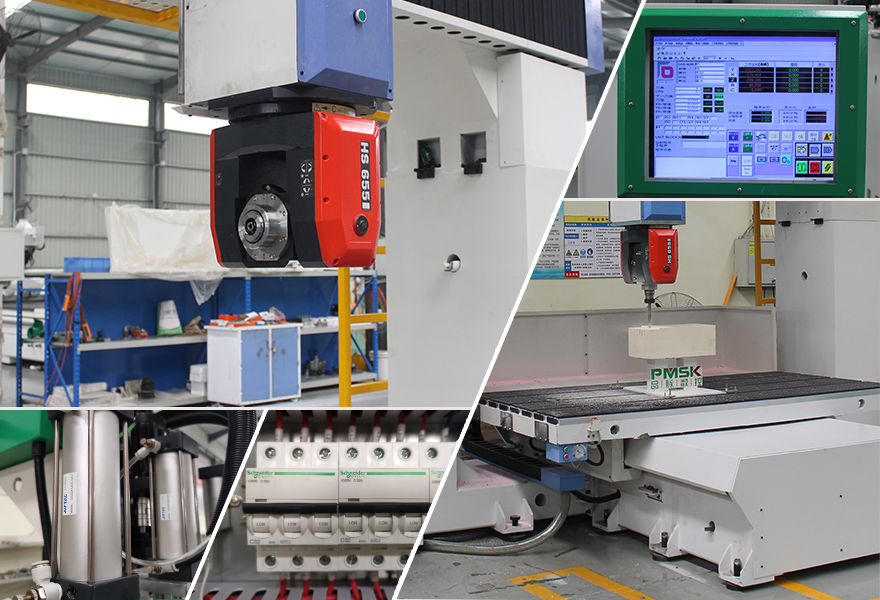

DetailsTechnical parameters

Machine model:P9-1313/P9-1325/P9-1531

XYZ axis travel range:1720x1820x750mm/1720x3040x950mm/2060x3680x950mm

AC axis travel range:A axis:±185° C axis:±320°

Max working size:1220x1220x500mm/1220x2440x700mm/1560x3080x700mm

Travelling speed:60m/min,50m/min,50m/min

Max working speed:20m/min

Transmission:Y axis gear rack/XZ axis ball screw

spindle parameter:10KW/24000rpm,12KW/24000rpm,12KW/24000rpm

Magazine:8 pieces/disc

Table structure:Aluminum profile T-slot table

Drivering system:servo motors

Working voltage:AC380/3PH/50HZ

Whole weight:4000KG/7000KG/8000KG

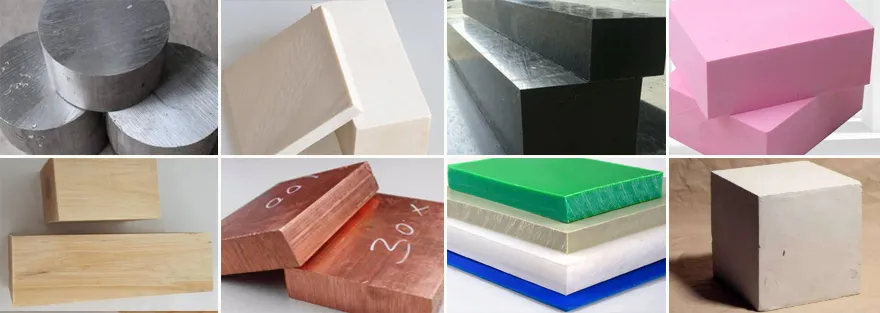

Solvable processing:

There is one more rotation axis above the four axes, which is generally 360°rotation on the vertical surface. The five axes can already be fully processed, which can realize one-time clamping, which can reduce clamping costs and reduce product scratches. It is suitable for processing more Pores and planes of the workstation, parts with high machining accuracy requirements, especially parts with strict shape machining accuracy requirements. With RTCP function, it is especially suitable for large-scale three-dimensional surface processing and modeling.

Applicable industries

After-sales services

We provide 12 months warranty for the machine.

Consumable parts will be replaced free during the warranty.

Our engineer could provide technical support and training for you in your country, if necessary.

Our engineer could service for you 24 hours online, by Whatsapp, Wechat, QQ, or by cellphone, etc.

Pre-Sale Service

1) Free sample cutting service:

For free sample processing/testing, please send us your CAD file, we will do cutting in our factory and make a video to show you the process and result, or send samples to you to check the processing quality.

2) Progressing Solution Design:

According to the customer's product processing requirement, we can design a unique solution that supports higher manufacturing efficiency and better processing quality for the customer.

3) Customized machine design:

According to the customer's application, we may revise our machine according to customer's convenience and high production efficiency.
