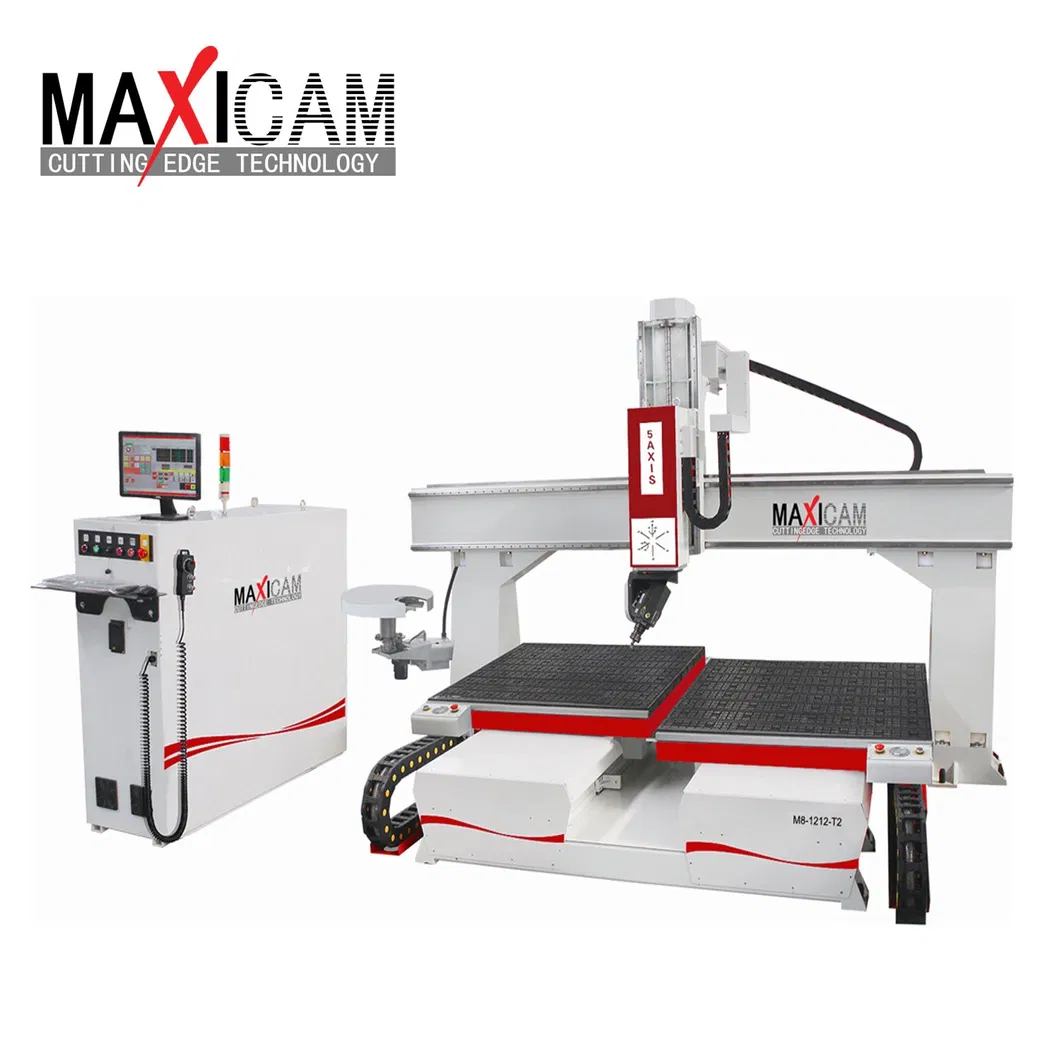

Maxicam M8- 1212 -T 3D Wooden Carving 5 Axis CNC Router
High Quality China Factory Supplier 5Axis CNC Machine Wood RouterProduct DescriptionFeatures:European OSAI control system, powerful and easy to operate, high precision.Z axis travel can increase to 1.5 meters, large format, suitable for large-scale three dimensional surface protection.Intelligent pr......
Send Inquiry
Product Description
Features:
- European OSAI control system, powerful and easy to operate, high precision.
- Z axis travel can increase to 1.5 meters, large format, suitable for large-scale three dimensional surface protection.
- Intelligent processing of cross-border protection.
- Diversified control can promise the processing speed, idling speed, cutting speed , greatly improving the quality of processed products and processing efficiency.
- All components adopt international famous brands.
Technical Parameters:
| Item | Description |
| Model | M8-1212-T 5 axis cnc router |
| Movement type | Movable table |
| X ,Y,Z working area (mm) | 2400*1200*900mm |
| C travelling | ±213° |
| A travelling | ±120° |
| Beam spacing(mm) | 4260 |
| Beam Height(mm) | 2150 |
| Vacuum pump | Germany Becker pump |
| Supplier for Double pendulum head | 10.0 KW Italian HSD |
| Range of speeds | 22000 RPM/min |
| Servo Motor brand | YASKAVA |
| Table size (mm) | 1200*2400 |
| Product fixed form | Vacuum table |
| Tool magazine | 8 positions Carousel Tool Storage |
| Control system | OSAI |
| Machine size | 3600*4000*3500mm |
| Total weight | 12T |
| Total Power(kw) | 24KW |
| Voltage | AC380V/60HZ |
| Maximum lifting weights | 20T |
| File exchange | G code |
| X,Y axis Maximum speed | 45m/min |
| Z,C axis Maximum speed | 20m/min |
| A axis Maximum speed | 20m/min |
| Guarantee time | One year of guatantee in case of non-human damage |
| Option items: | Change the 3.0 KW single bag dust collector to 5.5 KW double bag,Original Alphacam software |
Applications
1. Wood furniture industry
Doors; Cabinets; Tables; Chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration
wood crafts; gift box; jewelry box
5. Others
Relief sculpture and 3D engraving and Cylindrical object.
Packaging Details:
Three layers---
-The innermost layer is EPE pearl cotton film package;
-The middle layer is wrapping up with environmental protection material ;
-And the outermost layer is winding up with PE stretch film.
They're very environmentally friendly.
If you need a wooden box, we will make a wooden box outside the machine.
Delivery Detail: Shipped in 25 working days after payment.
Our Service:
1, Within 7days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.
