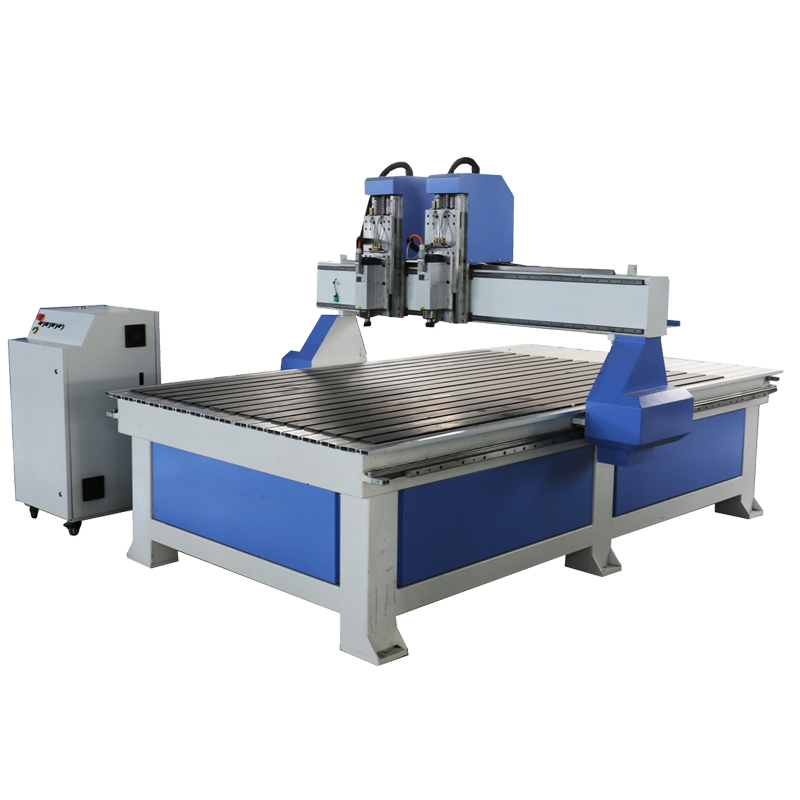

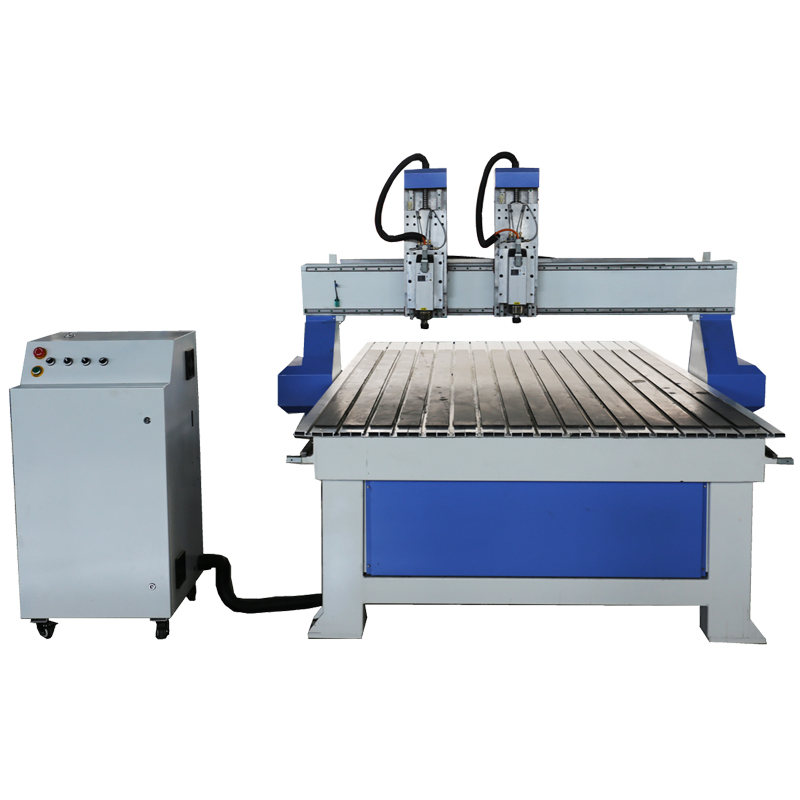

Ready to Ship! ! Heavy Duty Structure Wooden Advertisement CNC Machine 1212 Router

Product Description

Parameters

Parameters	Standard Specifications ABS-2
X,Y,Z Working Area for Panel	13002500200mm/1500X3000mm/1800X2500mm/2000X3000
Spindle Power	3.5kw*2pcs of spindle (4.5kw, 6kw spindle for option)
X,Y,Z Traveling Positioning Accuracy	±0.025mm
Table Surface	T-slot (hybrid T-slot&Vacuum table for option)
X,Y,Z Rail and Transmission	X Y axis helical gear transmission, Z axis Taiwan TBI Ball Screw
Max. Rapid Travel Rate	25,000mm/min
Max. Working Speed	20,000mm/min
Spindle Speed	Water cooling spindle: 0-24,000RPM Air cooling Spindle: 0-18,000RPM
Drive Motors	Stepper motor and driver
Working Voltage	AC380V/3PH/50Hz(option:220V or custom made)
Command Language	G Code
Operating System	DSP handheld controller
Interface	USB
Software capabilities	Artcam, Vectric Aspire, Powermill, Type 3, etc.
Running Environment	Temperature: 0ºC~45ºC Relative Humidity: 30%~75%
Machine Dimensions Packing Dimensions	300020001700mm 320022001850mm

Detailed Images

Ready to Ship! ! Heavy Duty Structure Wooden Advertisement CNC Machine 1212 Router

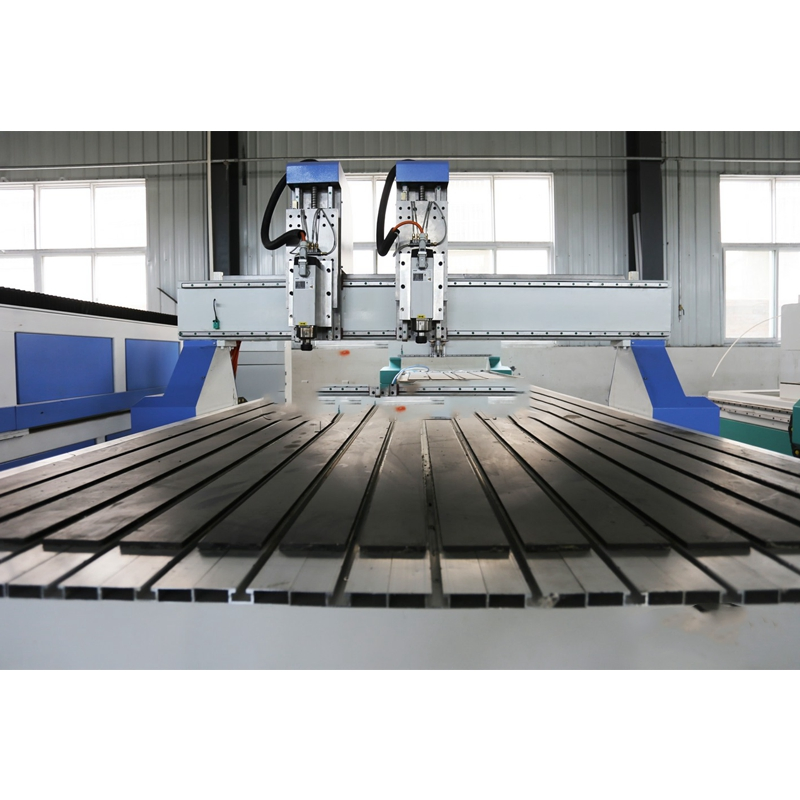

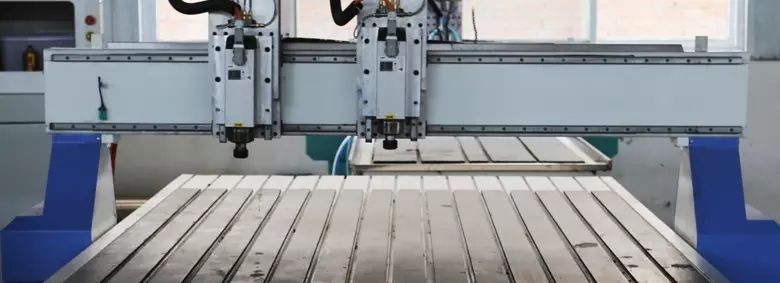

Gantry

The gantry is constructed of tubular steel with reinforcing ribs welded throughout the length of the column which results in a steady firm beam assembly. This quality engineering and workmanship result in smooth precision cutting.

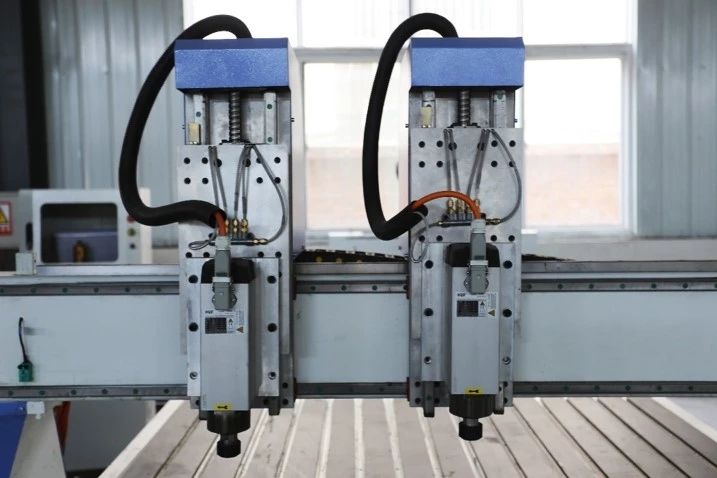

High Frequency Powerful spindle

The High quality Alpha ABS series CNC Router machine comes standard with 4.5kw high frequency spindle. This precision spindle requires no maintenance. Fully programmable speeds from 6000 to 18000 RPM, more powerful and less noise.

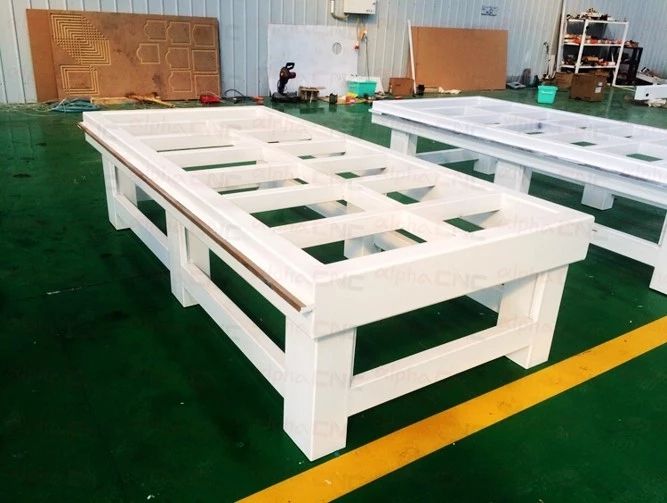

Base Frame

The base frame is fabricated from heavy-duty tubular steel that is welded, precision machined and stress relieved so that the foundation remains true and steady over the operational life of the machine.

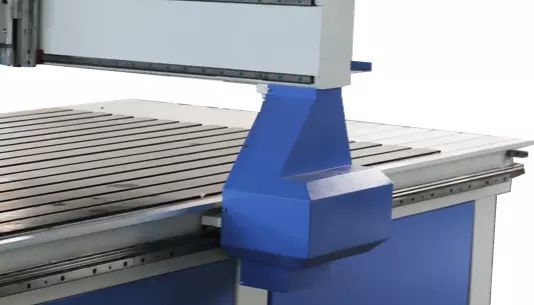

Gantry Support (Uprights)

The Gantry uprights are cast iron with heavy duty gussets formed into the casting. Each support is machined for housing the various drive assemblies including motors, bearings, belts, and wiring harnesses.

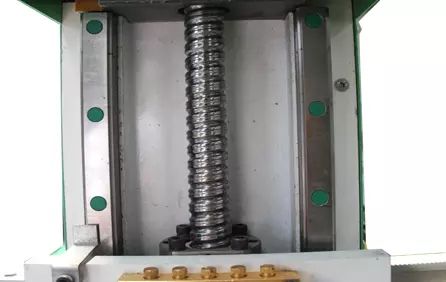

Z Axis TBI Ball screw

Z axis is with TBI ball screw to ensure the machine with higher precision and longer service life.

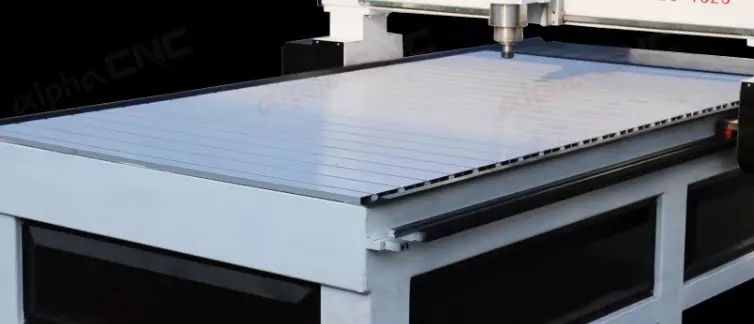

Aluminum PVC T-slot table

Work table with "T" -slot for mechanical fastening
The working table of the machine is made of panels of special reinforced aluminum separated by grooves to accommodate the clamps. A frequent step in the placement of the grooves makes it possible to fasten the workpiece of almost any size and does not require additional manipulation. The surface of the table, in the processing area, is covered with a special protective layer of wear-resistant plastic. In the event of errors and passing the tool below the workpiece zero point, the protective layer keeps the tool and the table from damage.

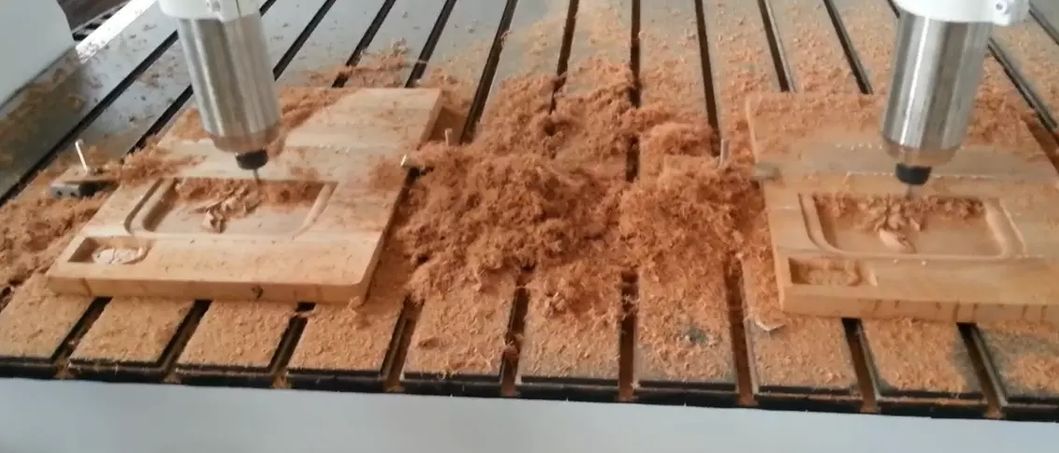

Sample

Payment&Shipment
Ready to Ship! ! Heavy Duty Structure Wooden Advertisement CNC Machine 1212 Router

Our Company
Alpha CNC Co., Ltd. was established in 2000, specializing in CNC machinery with rich experience! The company has two factories: CNC Router and Laser Machine factories and plants.
Alpha CNC is comprehensive in the production, designing, manufacturing, trading and supplying service of CNC machine, and provide high quality and good efficient CNC machines worldwide. With a strong staff team, "Brand AlphaCNC " gained success in woodworking engraving machine, advertising engraving machine, stone engraving machine, metal engraving machine, laser engraving machine and laser cutting industry equipment. The production facilities occupies China's forefront in development and expansion.
"AlphaCNC Products are widely used in the fields of advertising, furniture, gifts, decoration, packaging etc., and materials of wood, acrylic, stone, fabric, leather metal, etc."AlphaCNC "is well-known not only in China, but also in Russia, Europe, Southeast Asia, Middle East, Africa, the Americas, India and other more than 120 foreign countries.
AlphaCNC is with advanced and powerful machining capability. We have imported high precision 5 axis CNC Machining center to process the machine frame, the top milling, side milling, and side drilling will be finished in one machining center, which ensure our CNC machine is with higher precision, Moreover, the small machine parts are machined by American imported Haas ATC CNC Center.
AlphaCNC has strong technical strength. We has more than 10 engineers to develop new machines every year, and our engineers will design the machine according customer's special request. We have more than 20 after-sale service engineers to serve our customers 7*24.
ALPHACNC always adhere to the principle --- First class reputation, first-class service and excellent products.
