S100 -L Lamino Linear Tool Change Machining Center

S100-L Lamino linear tool change machining center1,Basic informationProduct NameLamino Linear Type ATC CNC Machining CenterBrand & Model No.Mars S100-LWorking Stroke1300*2500*200mmSize of Equipment2000*3900*500mmPackagePlywood boxesNet. Weight3000KGSPicture of Product2,Technical ParameterControl......

Send Inquiry

Product Description

S100-L Lamino linear tool change machining center

1,Basic information

Product Name	Lamino Linear Type ATC CNC Machining Center
Brand & Model No.	Mars S100-L
Working Stroke	13002500200mm
Size of Equipment	20003900500mm
Package	Plywood boxes
Net. Weight	3000KGS

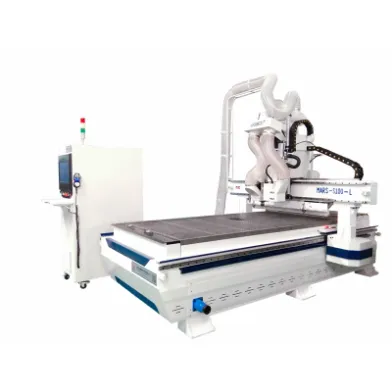

Picture of Product

2,Technical Parameter

Control System	Delta system
Drive System	Delta Bus servo motor
Spindle	9KW air cooling spindle; 0 ~ 24000 rpm/min
Tool Magazine	12pcs linear type tools magazine+Lamino saw blade
Max.Travelling Speed	808030m/min (X/Y/Z)
Vacuun Pump Power	11kw Water cycle
Lubrication System	Automatic
Transmission Mode	X,Y reducer helical gear drive ,Z ball srew
Running Commands	G code, F/S command compatible
XY Axis Servo Motor	Taiwan Delta Bus servo
Z Axis Servo Motor	Taiwan Delta Bus with band-type brake
Adsorption Method	Cavity vacuum adsorption
Pushing device	Automatic pushing and dust collection,Dockable unloading platform
Positioning Device	L-type cylinder positioning
Tooling Setting	Automatic tooling setting
Re-Positioning Accuracy	±0.05MM
Guide Rail	Taiwan CSK/LAPPING
Ball Screw	Taiwan PYM/PMI
Reducer	Planetary
Frequency Converter	MARS/Zoncn/ Fuling optional
Cable	Guangdong CNC special high flexible cable
Electric	Delixi

3,Scope of Application

Processing	Cutting+Milling+Drilling+Slotting
Material	Artificial stone, wood, bamboo, marble, organic board, color plates and other materials
Application	Cabinet doors, wooden doors, solid wood, panels, doors, windows, tables, chairs, folding screens, waved plate, large wall hangings, advertising boards, sign makings

4,Performance Features

1	Mainly used for cutting,drilling,slotting and one-time processing for the special shape plate in customized panel furniture enterprises,it can also be used for home decoration or cabinet door multi process modeling processing
2	Optional auxiliary feeding function for panel furniture industry,automatic unloading,the automation degree and production efficiency of the equipment are further improved
3	he equipment body welded by thick steel pipe,after high temperature tempering,Formed by CNC gantry machining center at one time,the structure is stable and never deformed
4	All three axes adopt the rectangular track imported from Taiwan,Z axis adopts Taiwan imported precision ball screw,XY axis adopts grinding gear and rack and is matched with imported high precision helical gear reducer,Y-axis double rack double motor drive, so that the machine can run stably at high speed
5	The euipment adopts high-strength phenolic board rectangular adsorption vacuum table,equipped with high efficient vaccum pump,table adsorption capacity is strong,has long service life,Delixi special electrical components
6	Humanized design of machine control interface,fool-style operation, the operator can be on duty after simple training without skilled workers

5,About our factory

1,About us	We are a professional manufacurer of R&D, manufacturing and sales of panel furniture production line equipment,wooden door composite door production line equipment,intelligent cutting machine,intelligent electronic panel saw equipment,six-sides drilling machine,edge banding machine,PTP drilling machining center, five axis cnc machining center, atc cnc machining center, woodworking cnc router, stone cnc router, jade cnc router, three-dimensional circular carving machine, mold-making cnc router etc. Numerical control technology with over 20 years experience and more than 30 national patents, our company has passed the ISO9001: 2008 quality management system and EU CE certificate
2,Warranty and Service	Guarantee:12 months for the whole machine Within 12 months under normal use and maintenance, if something is wrong with machine, you will get spare part for free. Out of 12 months, you will get spare part at cost price. Technical support: You will also get technical support and service all the lifetime 1,Technical support by phone, email or Whatsapp/Skype around the clock 2,Friendly manual and operation video online 3,Engineer available to service machinery overseas
After sales Services	1,Normal machine is properly adjusted before dispatch. You will be able to use the machines immediately. 2,You will be able to get free training advice towards our machine in our factory. 3,You will also get free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support.
