S100 Automatic Tools Change with Ce Approved Digging Machine for Interior Doors

Product Description

S100 Automatic Tools Change with CE Approved Digging Machine for Interior Doors

Keywords:15 years experience of production
ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
Three Brand: Mars, Golden Eagle,Borio

Description:

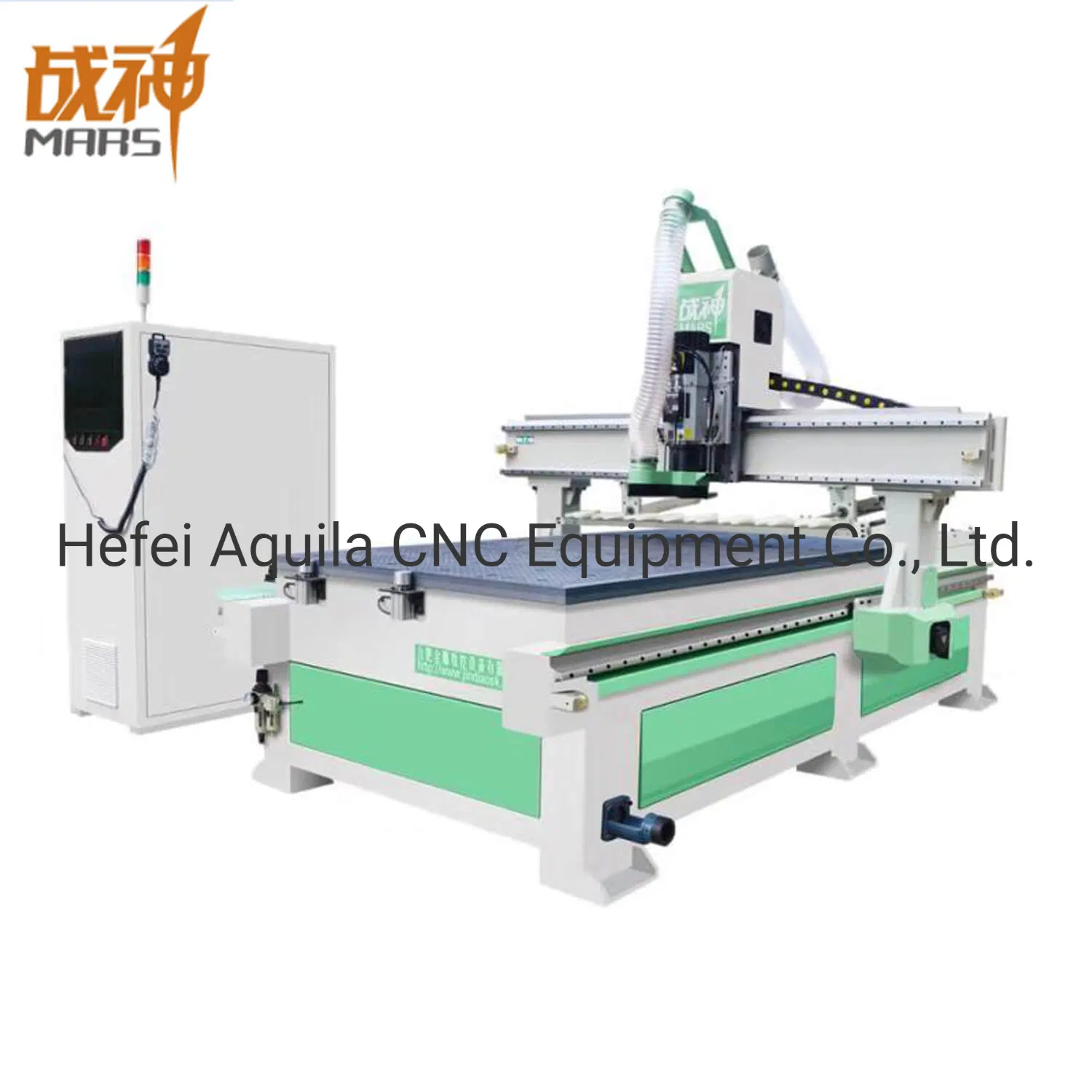

S100 Automatic Tools Change with CE Approved Digging Machine for Interior Doors is MARS featured machine for processing molded doors, wooden windows, wooden cabinet, wood panels. MARS design it for many years, now popular in the market, it's economic machining center of woodworking cutting machine.

Functions:
The functions of this machine include cutting,milling,drilling and slotting.
S100 Automatic Tools Change with Ce Approved Digging Machine for Interior Doors

Applicable Materials:
MDF, block board, solid wood board, particleboard, polymer door plates, plywood etc.
S100 Automatic Tools Change with Ce Approved Digging Machine for Interior Doors

Application Scope:
Cabinet doors, wooden doors, solid wood, panels, doors, windows, tables, chairs, folding screens, waved plate, large wall hangings, advertising boards, sign makings.
S100 Automatic Tools Change with Ce Approved Digging Machine for Interior Doors

Parameters:

Model	Simple and Easy S100 Atc Linear Tool Change Engraving Machine
X/Y/Z axis working stroke	13002500300mm
Table surface	vacuum Table
Frame machine	Thick steel tube welded structure, with aging treatment

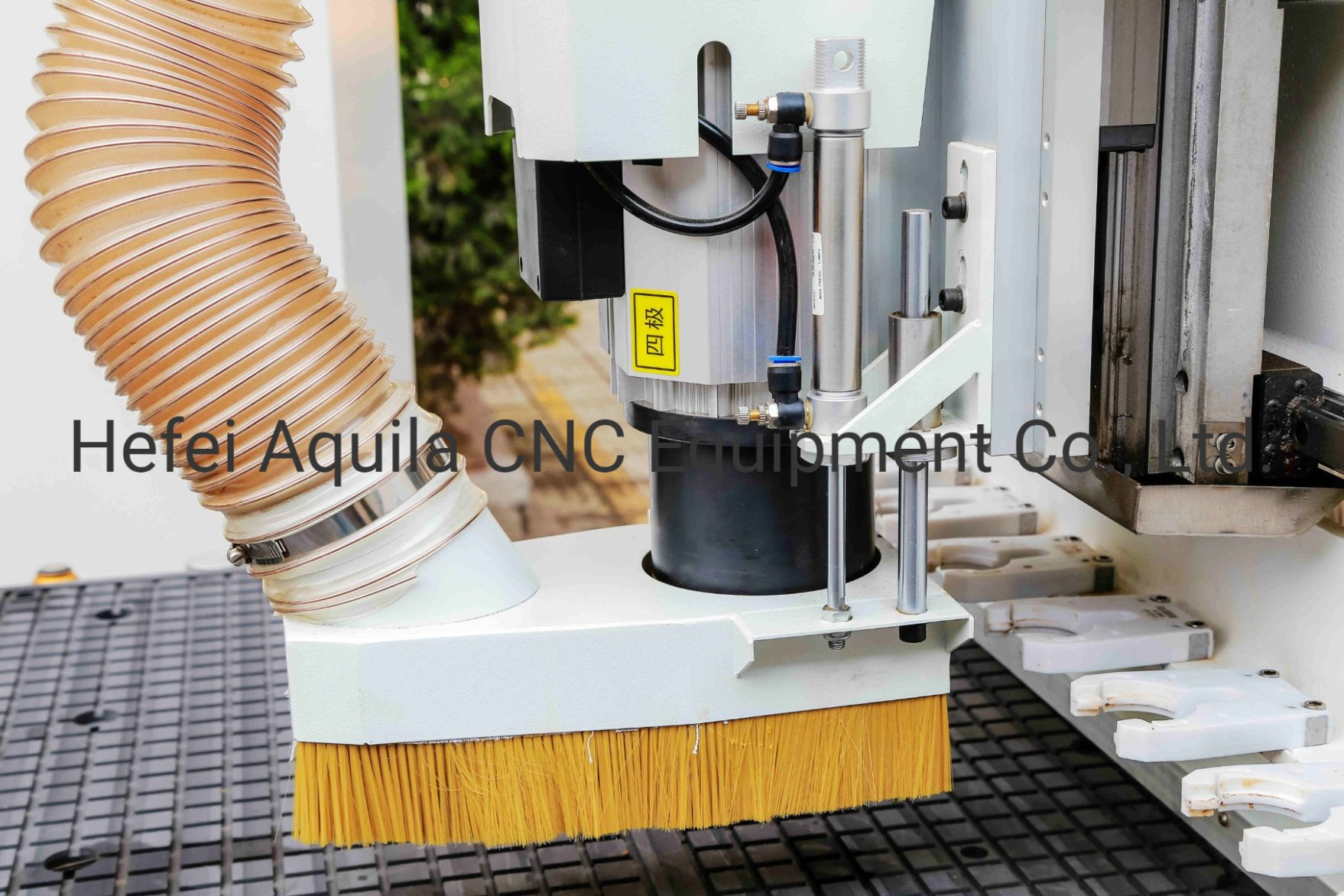

Spindle power	9KW Italy HSD ATC air cooling spindle
Spindle speed	0-24000 rpm
Automaitc tool change	Straight, 8pcs
Control system	Taiwan Syntec 4 axis control System
Drive sytem	Japan Yaskawa servo motor & driver
Transmission	X/Y axis helical rack & pinion, Z axis ball screw
Guide rail	Taiwan imported linear guide rail

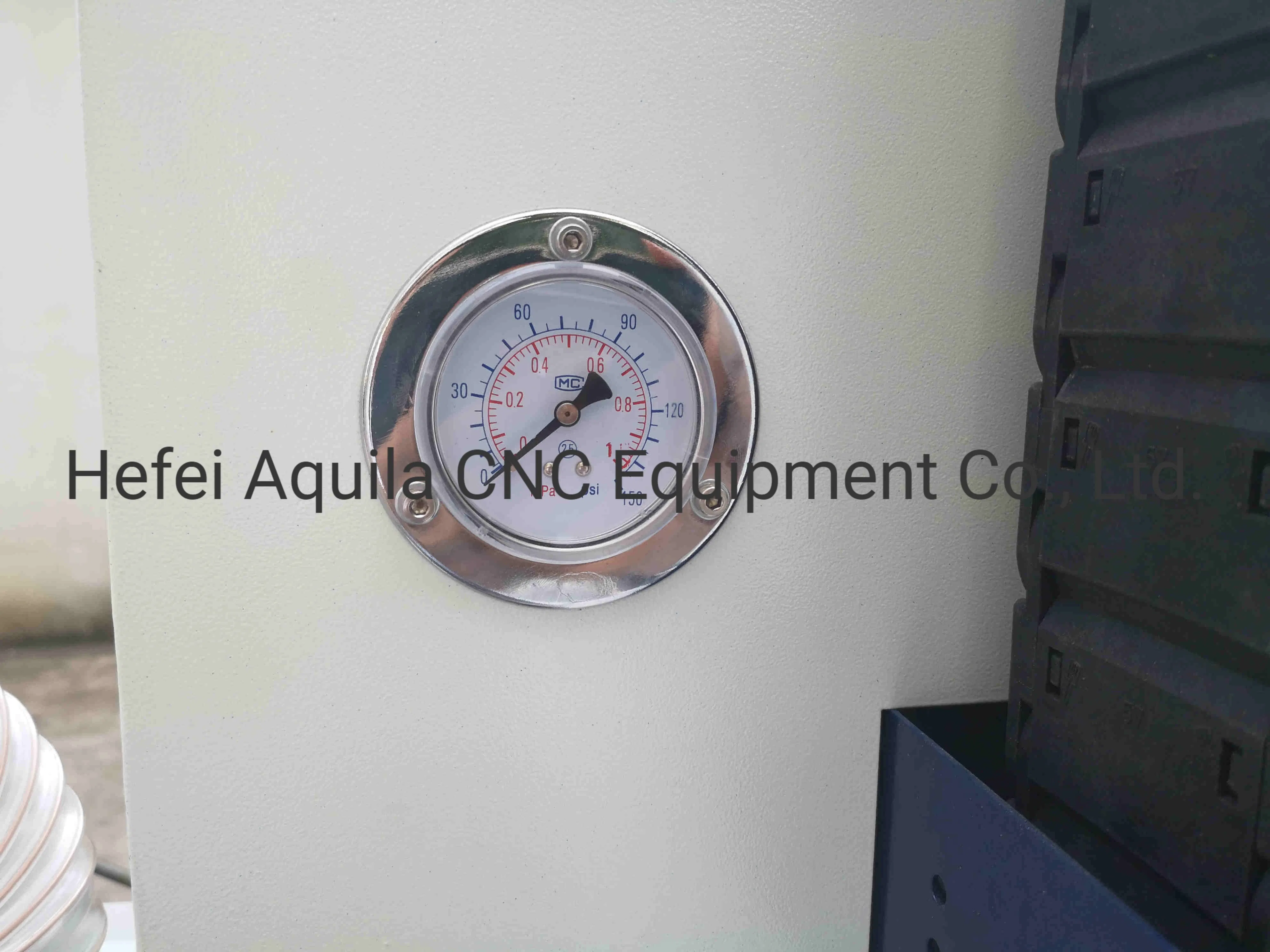

Vacuum pump	7.5kw vacuum pump
Inverter	Fuling or Zoncn
Oil lubrication	Automatic
Positioning Accuracy	± 0.03mm

Accessories:

Performance Features:

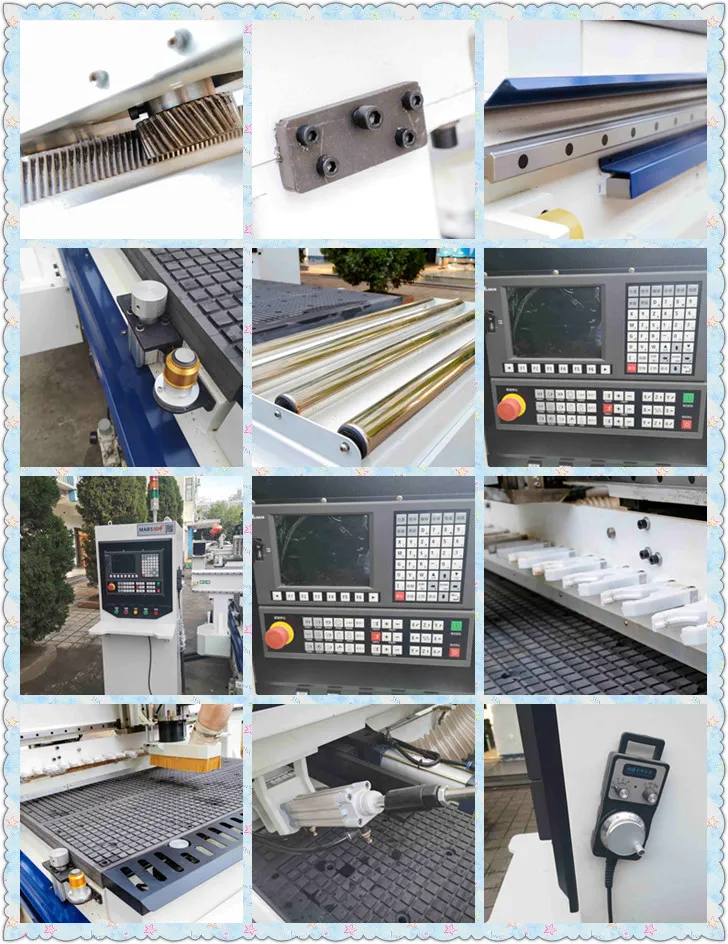

1	Equipped with all the leading international brand components, Taiwan Syntec control system, Japan Yaskawa servo motor and driver.
2	Linear type tool magazines support automatic tool changer, improve processing efficiency.
3	Italy 9KW high-power air-cooling spindle can withstand high-speed, heavy loading, low noise characteristics.
4	Vacuum table, high adsorption capacity, able to adsorb materials of different sizes.
5	Taiwan-made guide rail and ball screw, high precision, long service life, good stability.
6	Intelligent protection work table can prevent table damages caused by misuse or software errors. Intelligent processing cross-border protection can prevent mechanical collisions while design layout exceeds processing area.
7	Syntec CNC control system can automatically accomplish multi-layer 3D job. Easy to operate, fully support automatic production.
8	Taiwan planetary reducer, small volume, withstand large torque, high transmission efficiency, wide range of deceleration.
