    Powerful One Machine Multi-Purpose Orchard Agricultural Rotary Tiller 32HP Diesel Engine/Agricultural Trencher
    • Powerful One Machine Multi-Purpose Orchard Agricultural Rotary Tiller 32HP Diesel Engine/Agricultural TrencherPowerful One Machine Multi-Purpose Orchard Agricultural Rotary Tiller 32HP Diesel Engine/Agricultural Trencher
    • Powerful One Machine Multi-Purpose Orchard Agricultural Rotary Tiller 32HP Diesel Engine/Agricultural TrencherPowerful One Machine Multi-Purpose Orchard Agricultural Rotary Tiller 32HP Diesel Engine/Agricultural Trencher
    • Powerful One Machine Multi-Purpose Orchard Agricultural Rotary Tiller 32HP Diesel Engine/Agricultural TrencherPowerful One Machine Multi-Purpose Orchard Agricultural Rotary Tiller 32HP Diesel Engine/Agricultural Trencher
    • Powerful One Machine Multi-Purpose Orchard Agricultural Rotary Tiller 32HP Diesel Engine/Agricultural TrencherPowerful One Machine Multi-Purpose Orchard Agricultural Rotary Tiller 32HP Diesel Engine/Agricultural Trencher

    Powerful One Machine Multi-Purpose Orchard Agricultural Rotary Tiller 32HP Diesel Engine/Agricultural Trencher

    Product DescriptionMini crawler cultivator machine is a kind of easy-to-use and widely-used agricultural machinery.3 + 1 walking gearbox, 230mm international engineering rubber track, one machine with nine functions.Only one host is needed to realize the functions of rotary ploughing, furrowing, wee......

    Send Inquiry

    Product Description

    Product Description

    Mini crawler cultivator machine is a kind of easy-to-use and widely-used agricultural machinery.3 + 1 walking gearbox, 230mm international engineering rubber track, one machine with nine functions.Only one host is needed to realize the functions of rotary ploughing, furrowing, weeding, fertilizing, pesticide application, backfilling, ridge, bulldozer and transportation platform by changing different attachments.


    Powerful One Machine Multi-Purpose Orchard Agricultural Rotary Tiller 32HP Diesel Engine/Agricultural Trencher
    Powerful One Machine Multi-Purpose Orchard Agricultural Rotary Tiller 32HP Diesel Engine/Agricultural Trencher
    Powerful One Machine Multi-Purpose Orchard Agricultural Rotary Tiller 32HP Diesel Engine/Agricultural Trencher

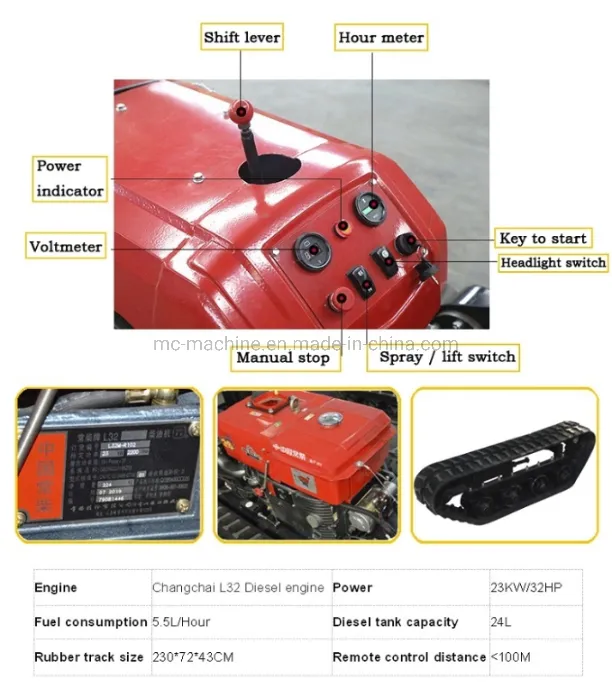

    Detailed Photos
    Powerful One Machine Multi-Purpose Orchard Agricultural Rotary Tiller 32HP Diesel Engine/Agricultural Trencher
    Powerful One Machine Multi-Purpose Orchard Agricultural Rotary Tiller 32HP Diesel Engine/Agricultural Trencher

    Powerful One Machine Multi-Purpose Orchard Agricultural Rotary Tiller 32HP Diesel Engine/Agricultural TrencherPowerful One Machine Multi-Purpose Orchard Agricultural Rotary Tiller 32HP Diesel Engine/Agricultural TrencherPowerful One Machine Multi-Purpose Orchard Agricultural Rotary Tiller 32HP Diesel Engine/Agricultural Trencher


    Product Parameters
    Product nameCrawler Cultivator Main Machine
    Power23KW/32HP
    Gear3 forward gear 1 reverse gear
    Climbing30°
    EngineDiesel engine
    Fuel consumption5.5L/h
    Transport size290*110*100cm
    Weight800KG
    Rubber track size230*72*43cm

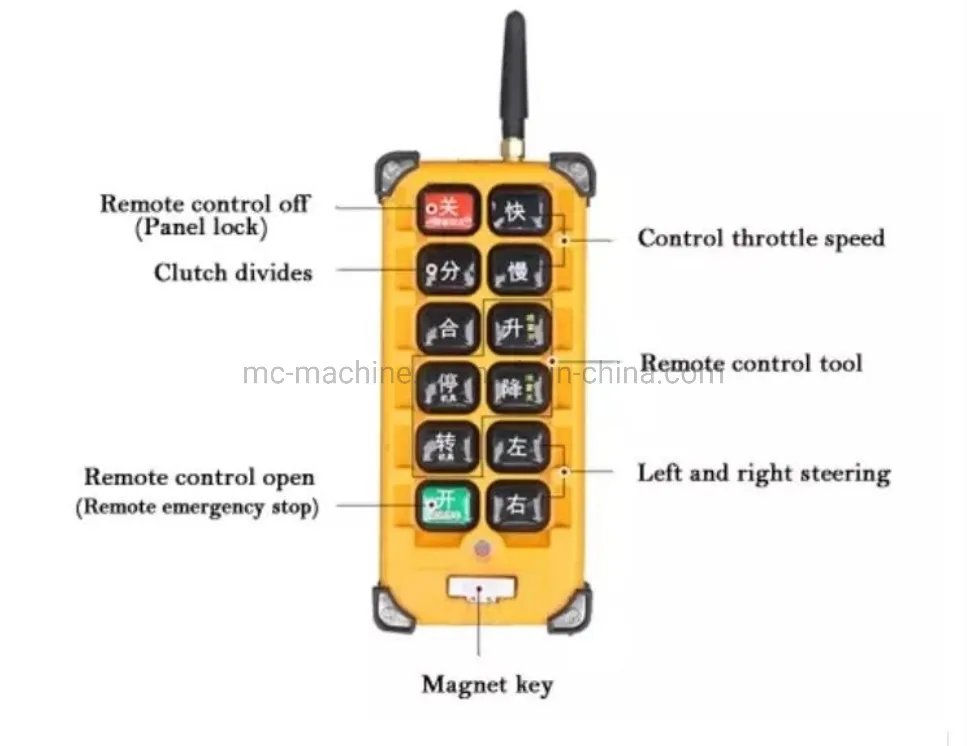

    Remote control distance≤200M
    Ground clearance28cm
    Diesel tank capacity24L
    Rotary cultivator
    TypeRotary knife type integral or split knife shaft
    Quantity of blades28
    Rotating speed350 r/min
    Rotary tillage depth20-22cm
    Rotary tillage width1.2m
    Blade material65 Model manganese steel

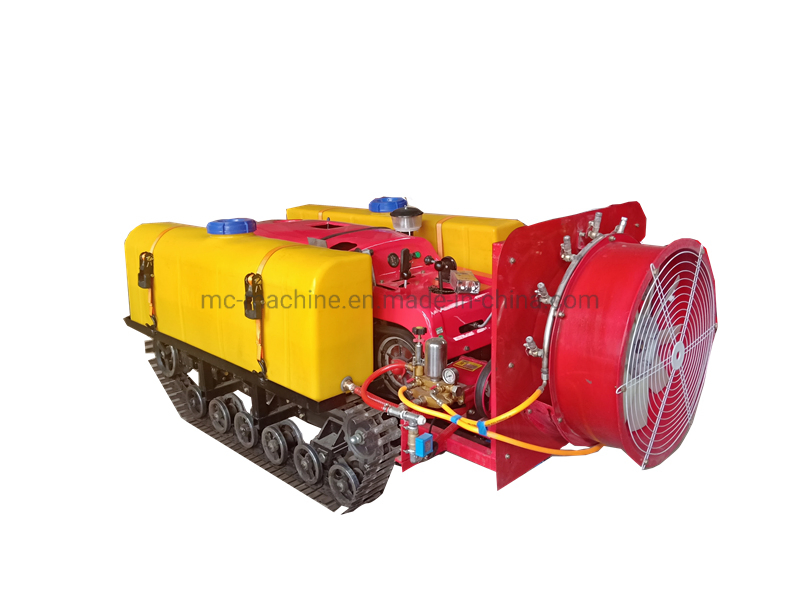

    Sprayer
    ModusAir spray
    Spray radius10-12M
    Medicine box capacity320L( Two Medicine boxes)
    Nozzle quantity7

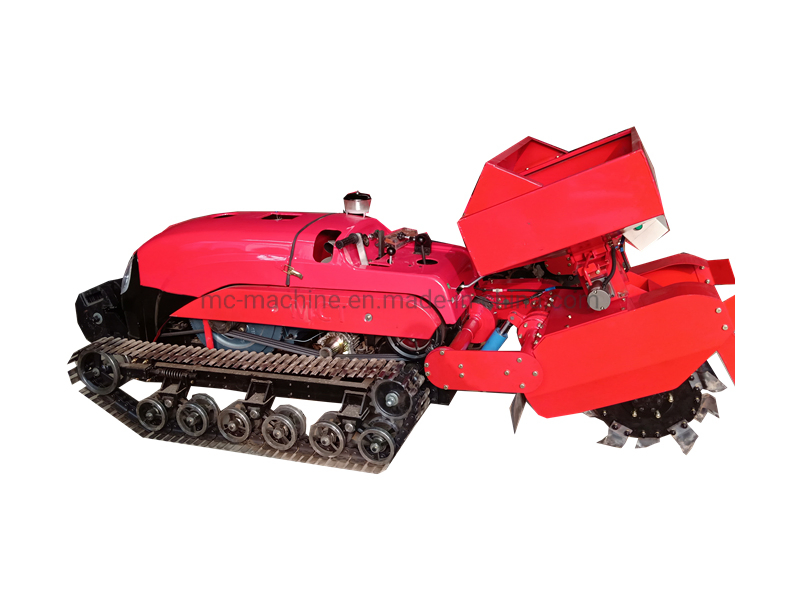

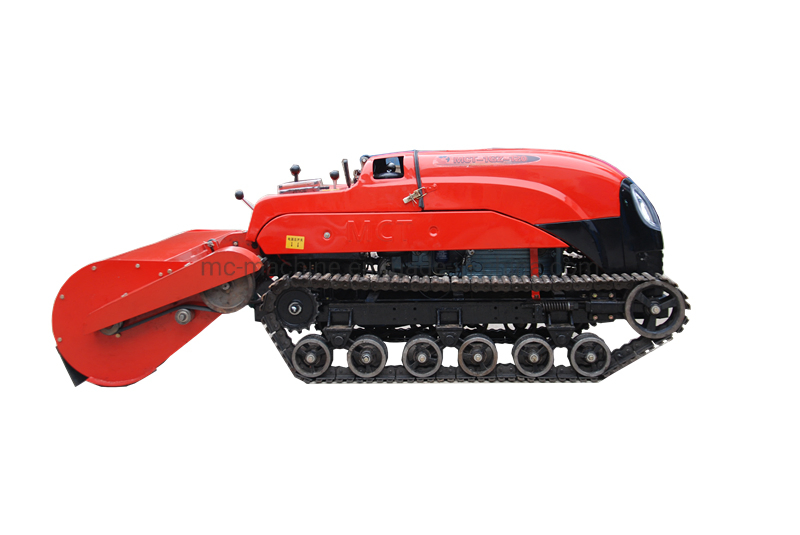

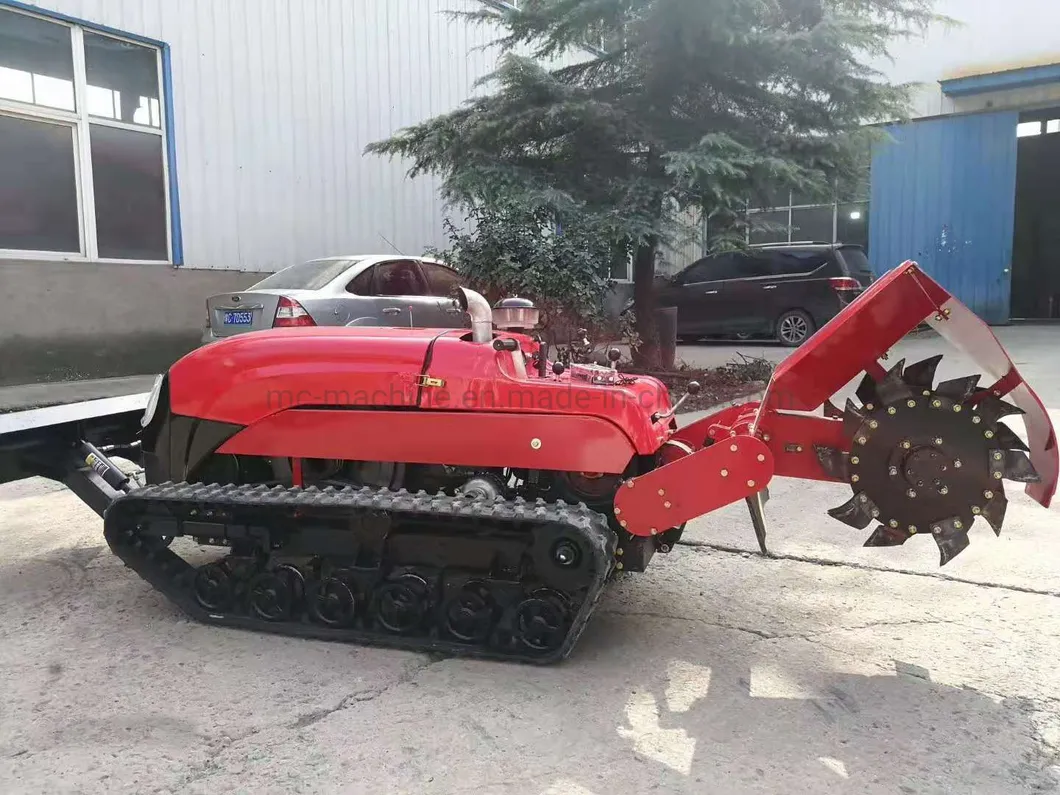

    Trencher
    Blade material65 Model manganese steel
    TypeKnife disc type
    Work efficiency800-1000 m/hour
    Ridging depth25cm-30cm
    Rotating speed550 r/min

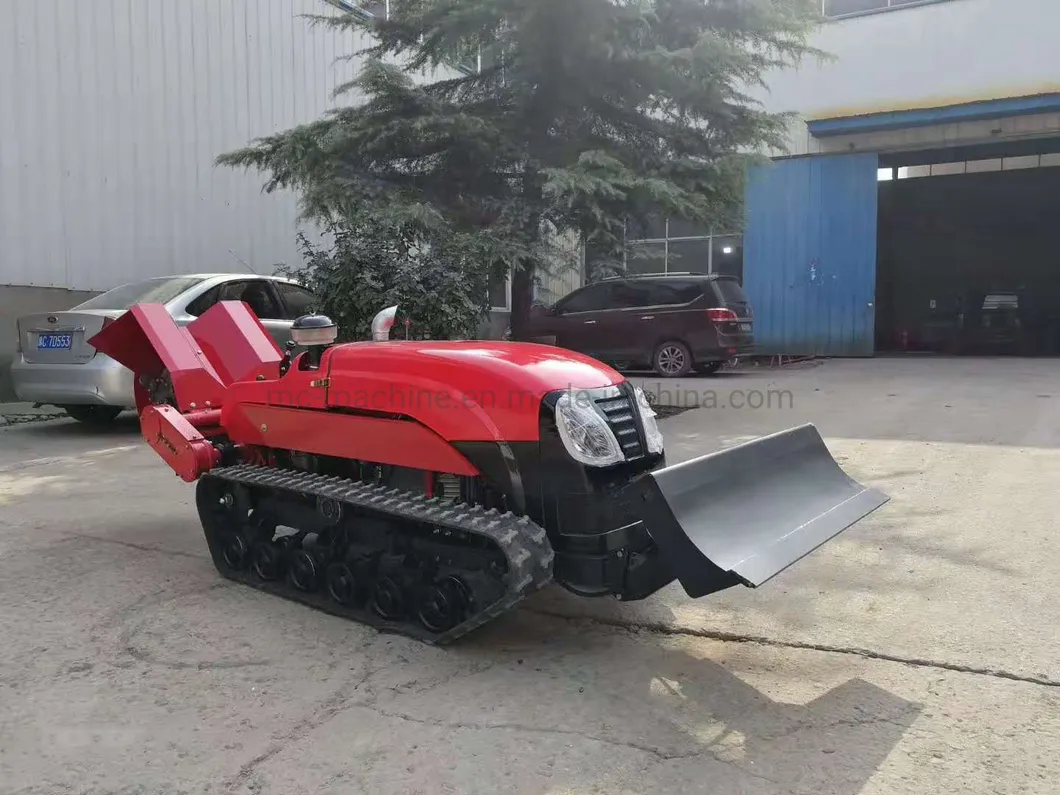

    Bulldozer
    Width1.12m
    Height36cm
    Backfill
    TypeSpiral type
    Rotating speed550 r/min
    Working width1m-1.2m(customizations)
    Lawn mower
    TypeVertical knife
    Stubble height3cm-5cm
    Mowing width120cm
    Knife disc rotating speed950 r/min

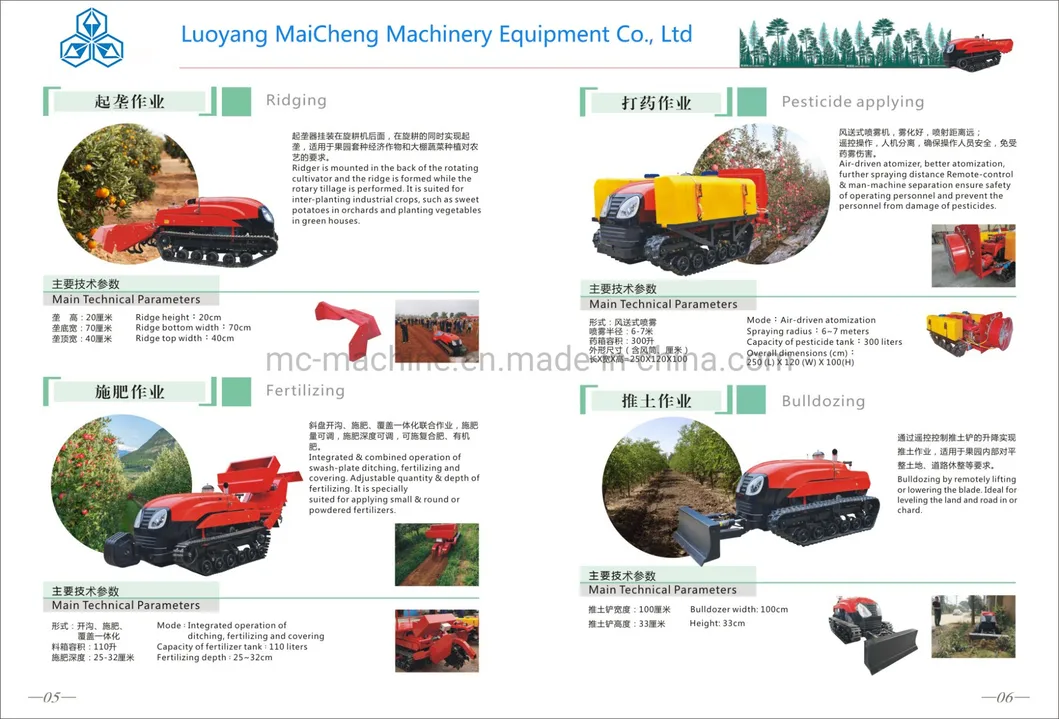

    Ridging
    Ridge height20cm
    Up ridge width40cm
    Down ridge width70cm
    Transportation platform
    Platform area120cm*124cm
    Driving load500kg
    Ground clearance180cm
    Fertilize
    fertilizer tank capacity150L
    Fertilization depth5-25cm
    Packaging & Shipping



    Powerful One Machine Multi-Purpose Orchard Agricultural Rotary Tiller 32HP Diesel Engine/Agricultural Trencher

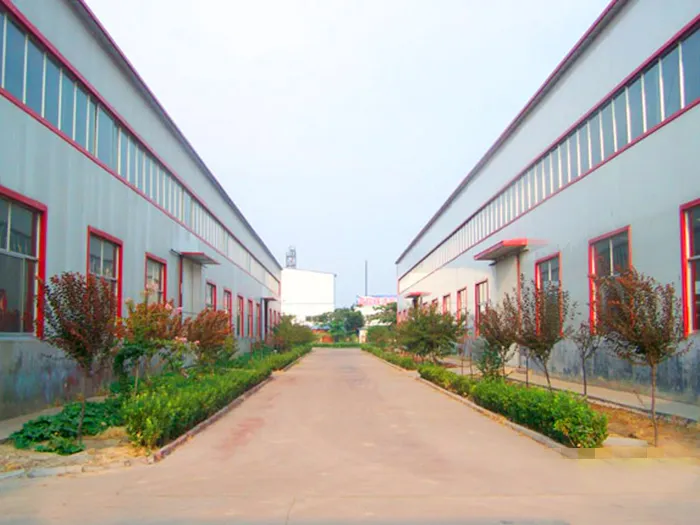

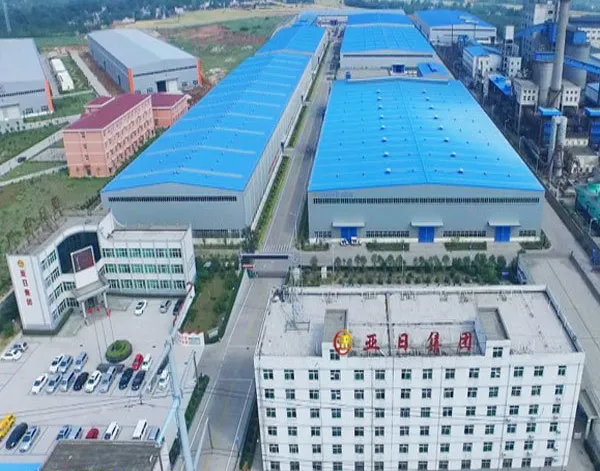

    Luoyang MaiCheng Machinery Equipment Co., Ltd., founded in 2016 and located in the Industrial Cluster area of Yichuan,Luoyang, covers an area of more than 60,000 square meters, is an independent export-oriented enterprise, professionally engaged in design, manufacturing and trade. Our business mainly includes industry, agriculture, graziery, mining machinery and accessories. hardware, electromechanical, new energy equipment and auxiliary products, as well as the manufacturing and trade of municipal rescue supporting materials.

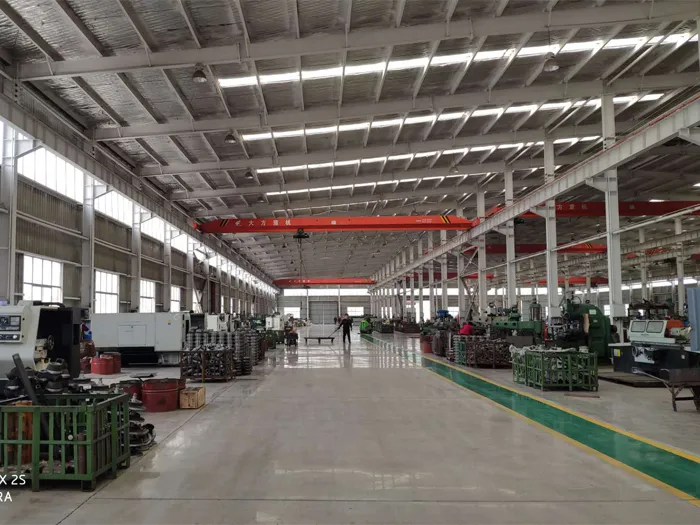

    MaiCheng has over 200 employees, produces 10,000 sets agricultural implements and 1,000,000 pcs of accessories annually and photovoltaic bracket system 800 MW. MaiCheng owns advanced mechanical processing, welding, stamping, forging,sandblasting, painting production lines, etc., We export products to the United States, Germany, France, Australia, Africa,Southeast Asia and other more than 70 countries and regions, and trusted by customers.

    Powerful One Machine Multi-Purpose Orchard Agricultural Rotary Tiller 32HP Diesel Engine/Agricultural Trencher
    Powerful One Machine Multi-Purpose Orchard Agricultural Rotary Tiller 32HP Diesel Engine/Agricultural Trencher
    Powerful One Machine Multi-Purpose Orchard Agricultural Rotary Tiller 32HP Diesel Engine/Agricultural Trencher

    After Sales Service
    1. All products enjoy 12 months warranty period. The warranty period is calcualted from the date of bill of lading .For the defect of material or workmanship has occurred in normal operation, The defective parts will be repaired or replaced free of charge.
    2. The guarantee parts will be offered to you in two ways.for the urgent request parts, We will ship the spare parts by international courier, The client will assure the courier expense. For the regular claim spare parts, we will ship them together with next order.
    3. We provide our clients with genuine spare parts with the highest quality,exact fitness .If needs,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately.
    4. We can also provide training services to different users.
    FAQ



    1. Q: Full price list for these products

     A: If you need the price list for these products, please notify the product model so that I can quote you accordingly.Please understand we have a very wide product range, we don't usually offer full products price list.
    2. Q: Business terms
    A: Shipment time: 20-30days after your payment Shipment: By sea
      Loading port: qingdao/Tianjin port, China
      Destination port: ...To be advised
      Payment: T/T, L/C, DP
      Warranty: 1 year
    3. RE: CE
    A: Most of our products are certified by CE.
    4. Q: Sample test
    A: If you need one sample for test, we could supply for you. Buy the buyer will bare the cost.
    5. Q: Why choose Hannstar for cooperation?
    A: Comparing with our competitors, we have much more advantages as follows:
    1. More than 10 years in manufacturing farming machine
    2. More Professional Sales staffs to guarantee the better service
    3. More agric machines for your choice
    4. More New products into your range to avoid price competition
    5. Larger quantity production and shipment
    6. Better quality to guarantee better Credit.
    7. Faster delivery time: only 20days
    8. More stick quality checking before shipment.
    9. More reasonable after-sales service terms.
    10. "CE" "SGS" ceitification.;
    11. Lower repair rate and bad review rate.
    12. We can give  customers best service.

    Welcome to contact us for more details!!!
