Crawler Dozer 120 HP Small Wheel Dozer with Good Condition
Sinoway SWD120 Bulldozer FeaturesEngine: Choose the pressure rising engine produced with British Ricardo joint-venture technology, lower oil consumption and stronger torsion.Turning clutch: choose dry and multi-piece turning clutch, manually operating with hydraulic pressure, easily maintenance, lig......
Send Inquiry
Product Description

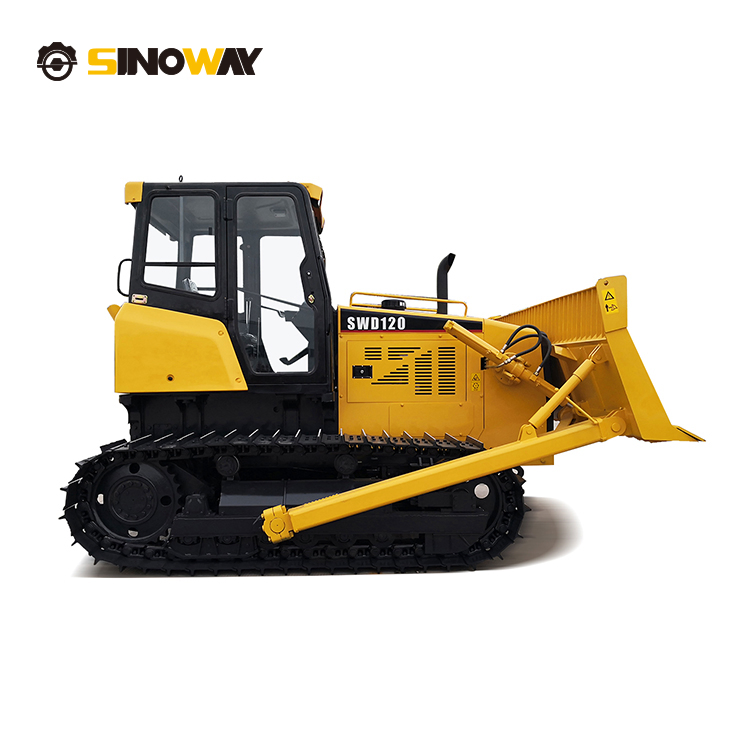

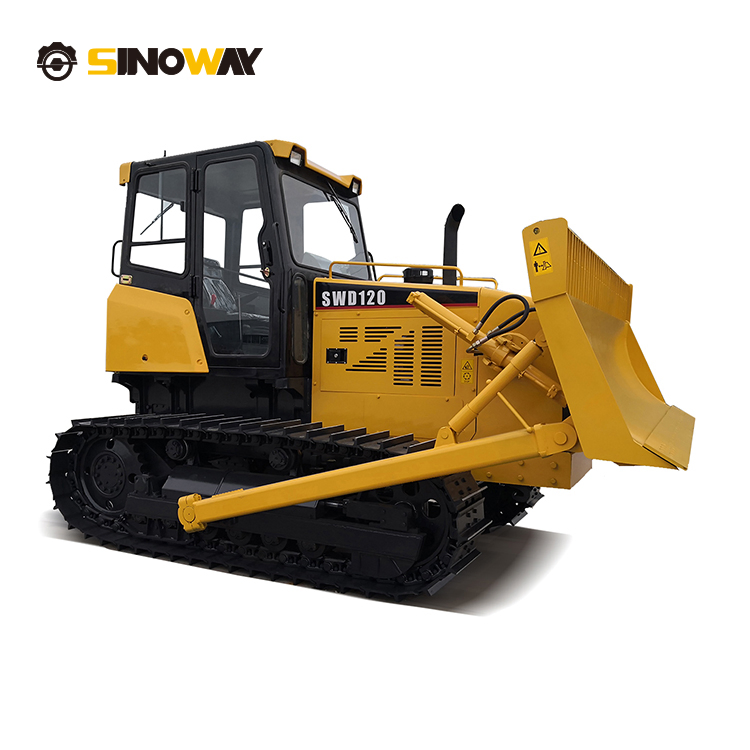

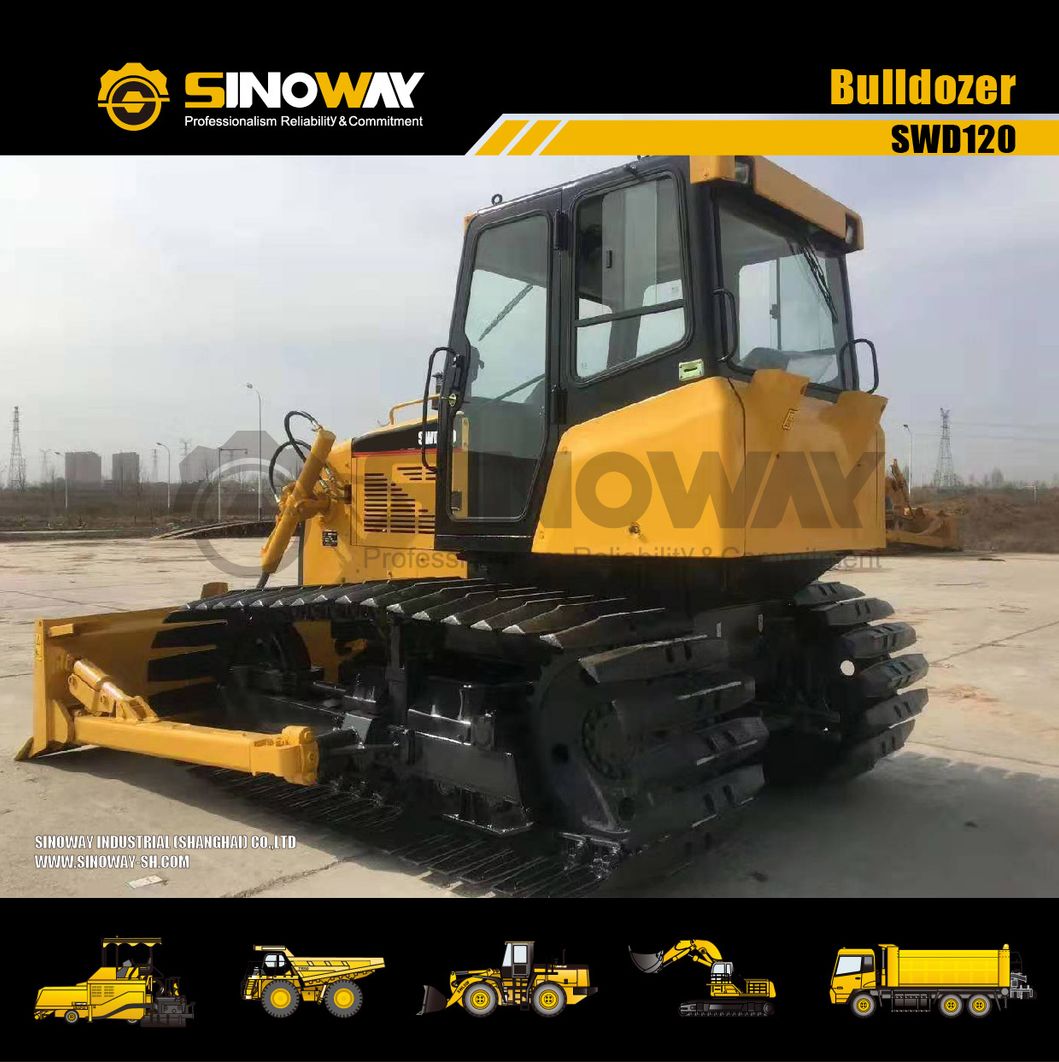

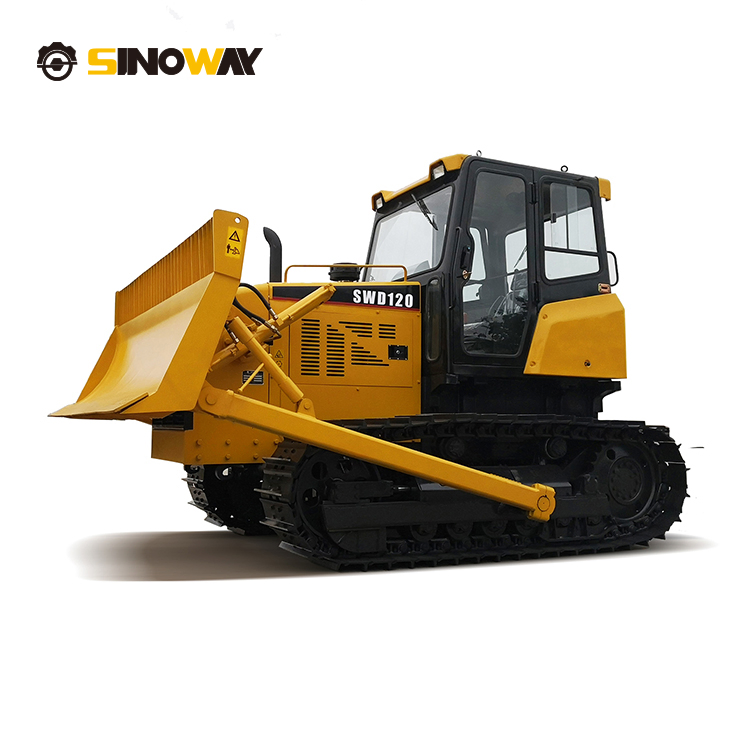

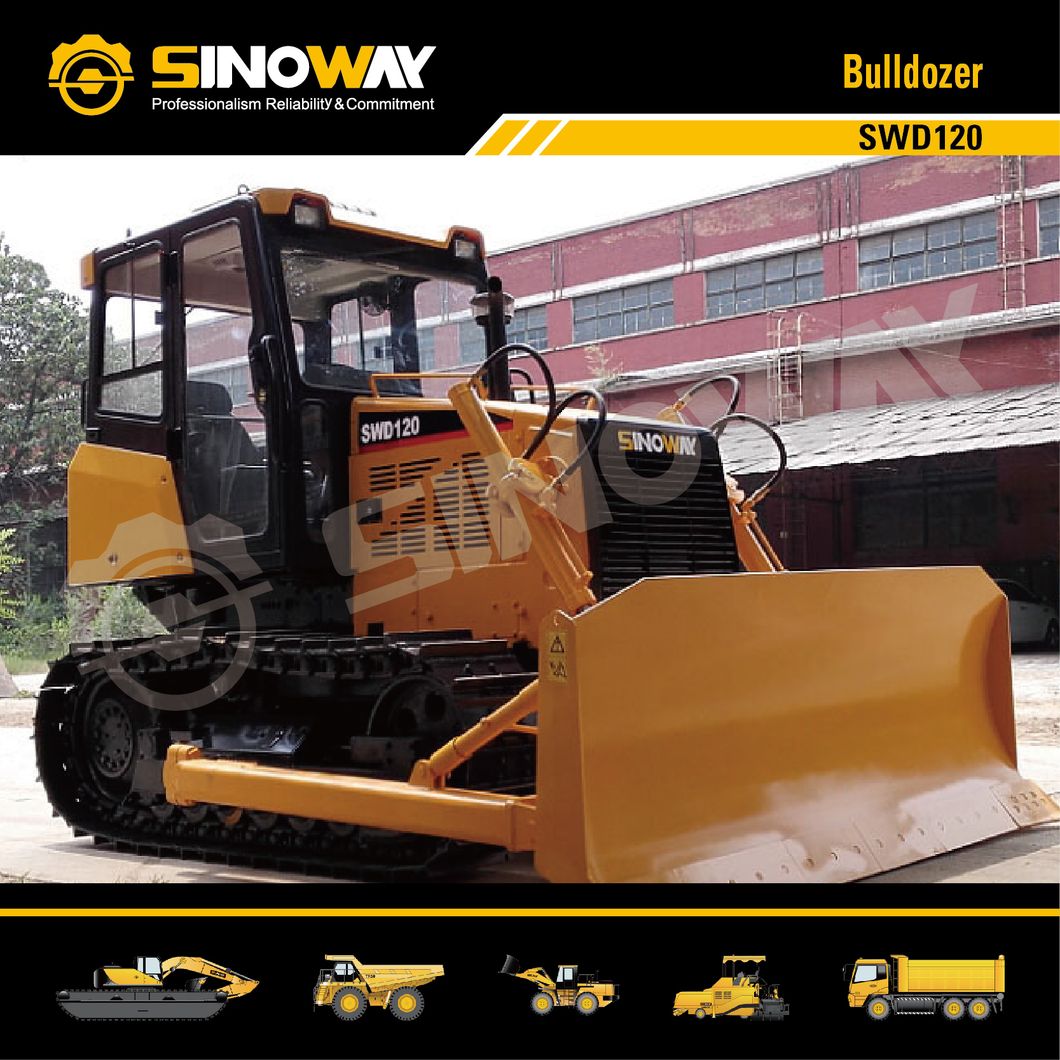

Sinoway SWD120 Bulldozer Features
Engine: Choose the pressure rising engine produced with British Ricardo joint-venture technology, lower oil consumption and stronger torsion.Turning clutch: choose dry and multi-piece turning clutch, manually operating with hydraulic pressure, easily maintenance, lightly and convenient operation.
Filter applied in desert is more applicable for coal reserve site, desert and other special work condition.
Operation environment is fully closed, hexahedral cab with lower noise; effectively reducing noise beside you ear, extending your visual field and effectively improving comfort.
Electric system is characterized by electronic monitor, making real-time monitor for complete machine to assure normal operation.
Operation device: several devices such as direct-pouring shovel, environmentally hydraulic, angle shovel, coal-pushed shovel and soil scarifier are available for user.
With the maturest technology introduced, Sinoway offers both flat design track dozers as Komatsu and elevated track bulldozers as Caterpillar. As a supplement, Sinoway provide also wheeled bulldozer for your application which crawler dozers are not allowed. From a wide horsepower range of 80HP to 430HP, with various blade types and attachments available, the last thing now is just selecting the right bulldozer for your application
.
Specifications
| Engine | |
| Model | Luotuo LR6A3Z |
| Type | Six-cylinder,water-cooled turbocharged,mechanical injectio |
| Rated power | 88.2KW |
| Rated speed | 2000rpm |
| Implement Hydraulic System | |
| Hydraulic flow rate | 130L/min |
| Hydraulic pressure | 16MPa |
| Pump type | Gear pump |
| Control valve | Hand operated |
| Under Carriage System | |
| Sprocket | Segmented |
| Number of track rollers (each side) | 5 |
| Number of carrier rollers (each side) | (3 single, 2 double) |
| Number of front idler (each side) | 21 |
| Track type | Single grouser |
| Track tension | Hydraulic |
| Track pitch | 171mm |
| Track width | 500mm |
| Number of track shoes (each side) | 43 |
| Track length on ground | 2502mm |
| Ground clearance | 368mm |
| Main Technical Specification | |
| Operating weight(without ripper) | 13500Kg |
| Ground pressure(without ripper) | 0.051MPa |
| Grade ability | 58% |
| Overall dimensions (L×W×H,without ripper) | 4565×3135×2980mm |
| Max. tractive force | 115KN |
| Working Equipment | |
| Blade type | Straight |
| Width | 3135mm |
| Height | 970mm |
| Max. digging depth | 400mm |
| Max. lift above ground | 894mm |
| Tilting angle | 8.5° |
| Blade capacity | 3.5m3 |
| Transmission System | |
| Gear box | Mechanical |
| Bevel gear | One pair spiral bevel gear |
| Final drive | One pair columnar gear floating sealing |
| Gear shifts(Forward/Reverse)Travelling speed(km/h) | F4/R2 |
| Forward/Reverse I | 2.4~10.6 |
| Forward/Reverse II | 3.8~7.0 |
| Service Capacities | |
| Fuel tank | 255L |
| Water tank | 22L |
| Implement oil tank | 35L |
| Steering clutch | Dry multi-plate, floating control |
| Steering brake | Mechanical pedal control |

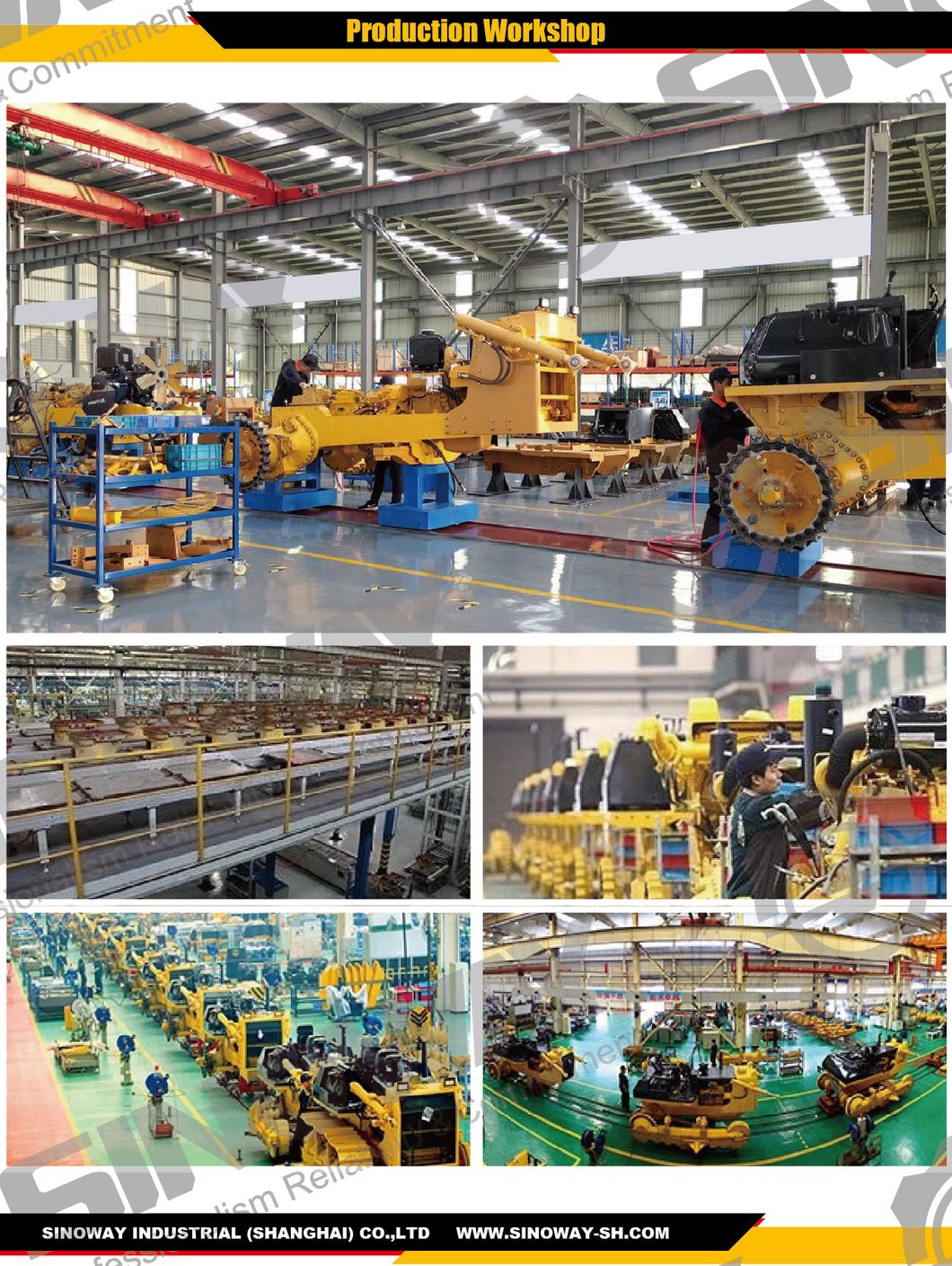

Assembly Line
