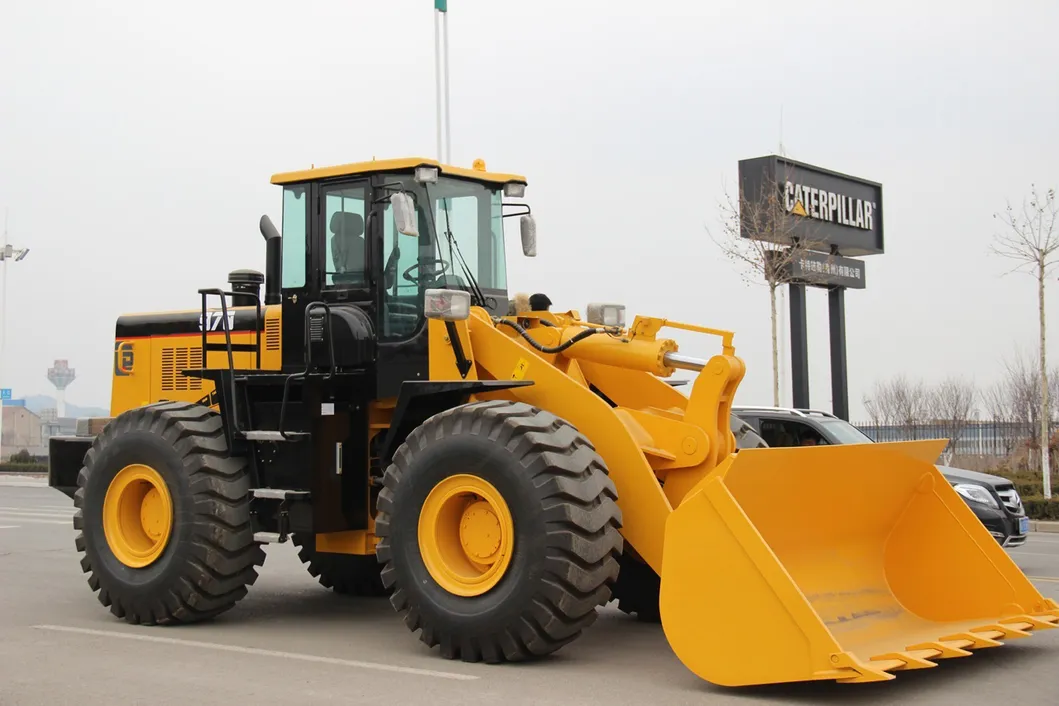

Mining Equipment Front Loader Wl600 Wolf Loader
Wolf 6 ton construction wheel loadersWolf 6 ton wheel loader WL600 is a kind of earthwork construction machinery widely used in roads, railways, construction, hydropower, ports, mines and other construction projects. It is mainly used for shoveling bulk materials such as soil, sand, lime, and coal, ......
Send Inquiry
Product Description

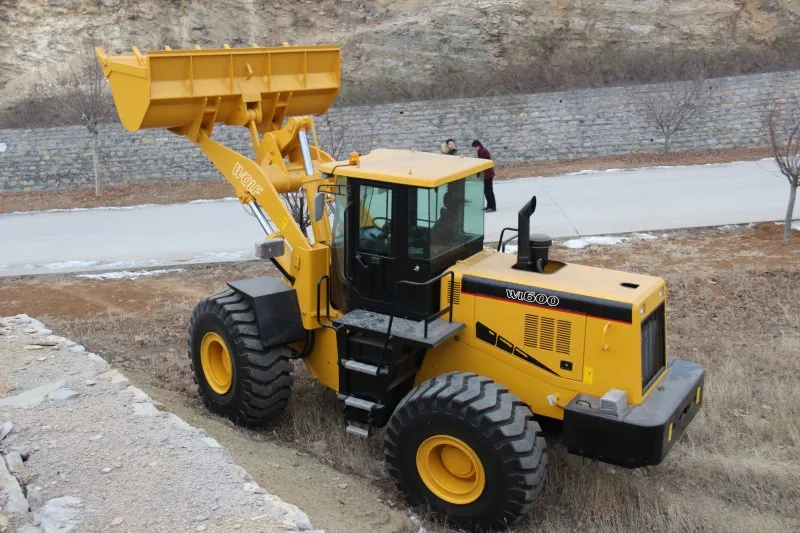

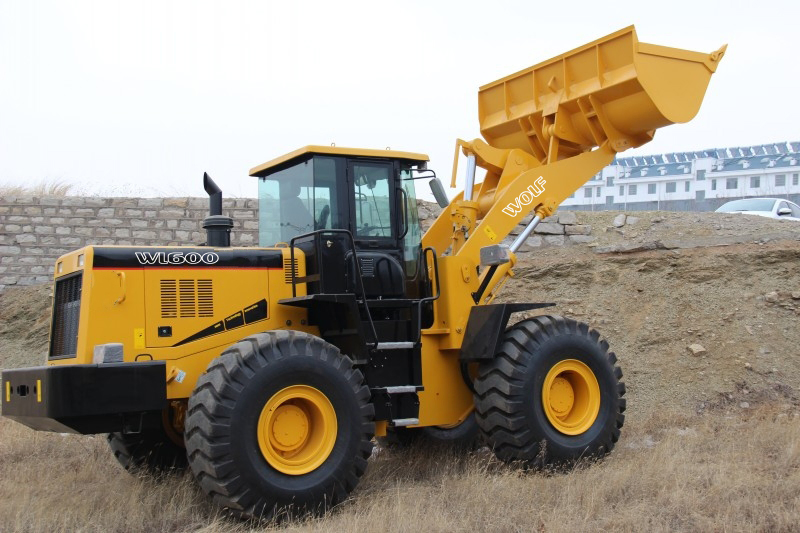

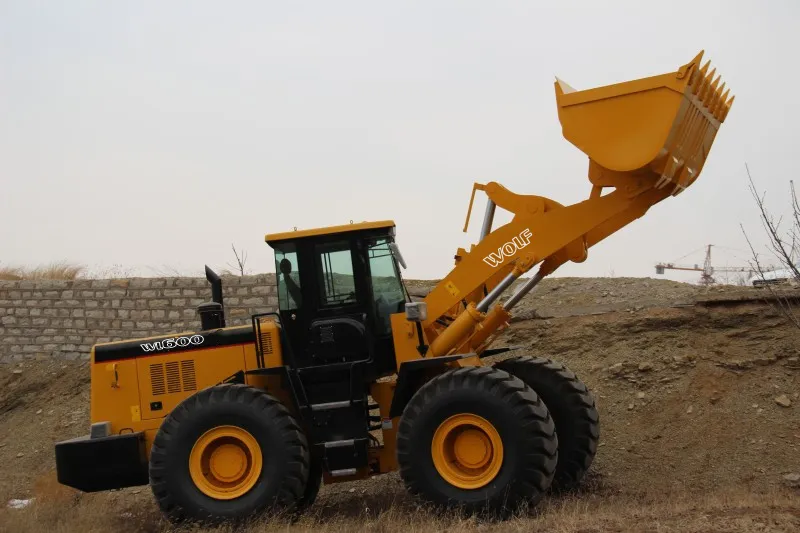

Wolf 6 ton construction wheel loaders
Wolf 6 ton wheel loader WL600 is a kind of earthwork construction machinery widely used in roads, railways, construction, hydropower, ports, mines and other construction projects. It is mainly used for shoveling bulk materials such as soil, sand, lime, and coal, and can also be used for ore , Hard soil, etc. for light shoveling and digging operations. Different auxiliary working devices can also be used for bulldozing, lifting and other materials such as wood loading and unloading operations.
Standard configuration
Weichai engine 175kw, hydraulic joystick,26.5-25 tires
Hangzhou gearbox, Feicheng axle,Jinan pump
adjustable steering wheel and seat,back sound,radio and
USB, fan,bucket can be level automatic
Optioanl configuration
---ShangchaiC6121(CAT3306B technology) engine
---Cummins6CTA8.3-C215 engine 179kw
---Hangzhou advance ZF WG180 gearbox
---Liuzhou Original ZF 4WG200 gearbox
---Permco Pump
---Varta Anti-Freeze Battery
---VDO Instrument Panel
---LED lights
Detailed specification

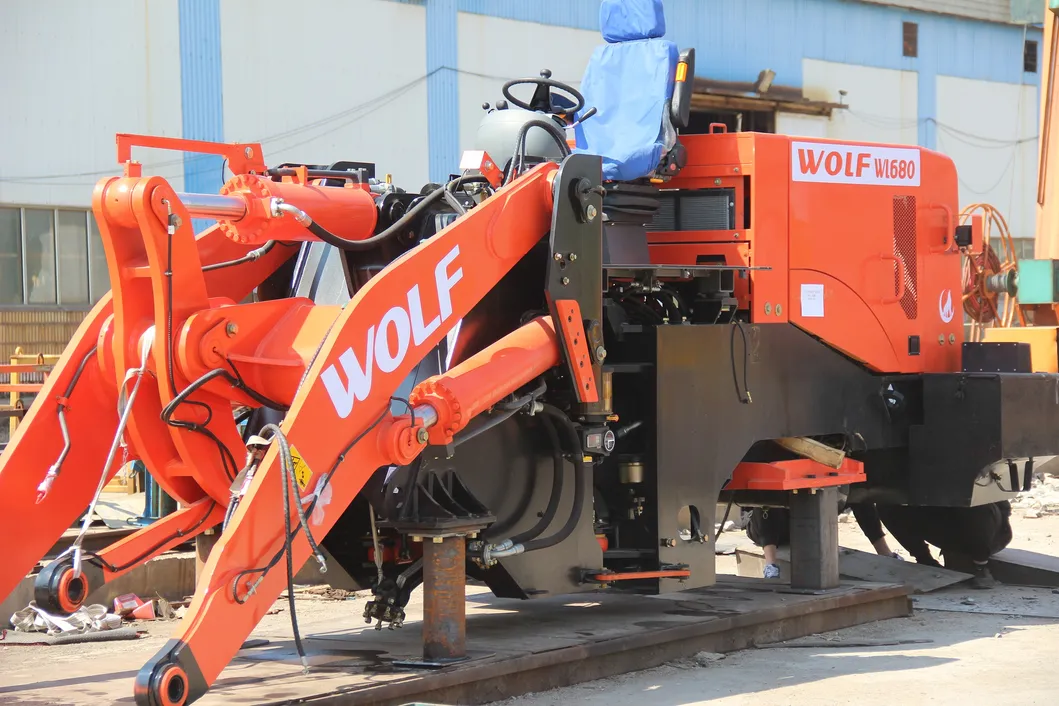

Packaging
Loaders are put into container and fixed by steel cable to avoid collision during shipment.
Breif introduction
1.We are the professional manufacturer of wheel loader,backhoe loader,forklift,skid steer loader and all kinds of attachments,around 10 year experience.
And all our models are CE approved.
2.We could provide one year warranty for free,within the warranty,if there is any quality issues,we will send the new spare parts to you as soon as possible.

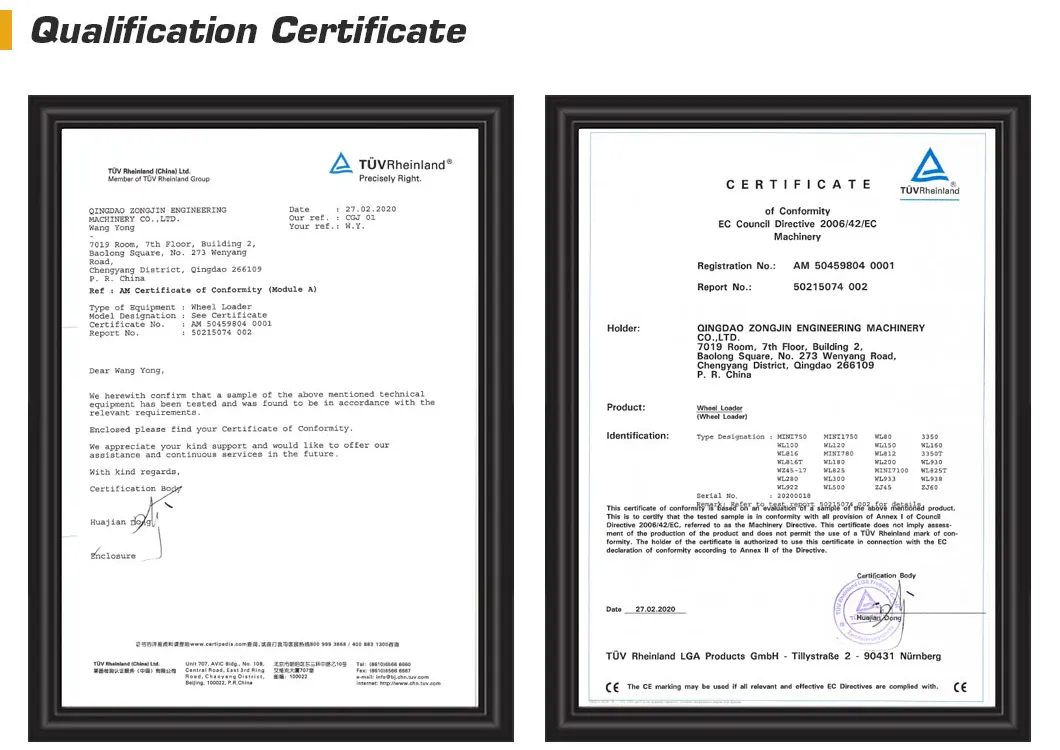

CE APPROVED:
Reasons for choosing WOLF Products:
1. More than 50 professional and technical personnels;
2. Strict control and selection of materials;
3. Completely self manufactured and installed;
4. Advanced equipments and first-class production technology;
5. Sound management system and solid economic strength
6. Exclusive R&D, testing center;
7. Exclusive professional platform
24-hours online service
Welcome to contact us for more information!
Ms Nessa
Mob:86-198 6220 6755
Wolf 6 ton wheel loader WL600 is a kind of earthwork construction machinery widely used in roads, railways, construction, hydropower, ports, mines and other construction projects. It is mainly used for shoveling bulk materials such as soil, sand, lime, and coal, and can also be used for ore , Hard soil, etc. for light shoveling and digging operations. Different auxiliary working devices can also be used for bulldozing, lifting and other materials such as wood loading and unloading operations. |  |
Standard configuration
Weichai engine 175kw, hydraulic joystick,26.5-25 tires
Hangzhou gearbox, Feicheng axle,Jinan pump
adjustable steering wheel and seat,back sound,radio and
USB, fan,bucket can be level automatic
 |  |
---ShangchaiC6121(CAT3306B technology) engine
---Cummins6CTA8.3-C215 engine 179kw
---Hangzhou advance ZF WG180 gearbox
---Liuzhou Original ZF 4WG200 gearbox
---Permco Pump
---Varta Anti-Freeze Battery
---VDO Instrument Panel
---LED lights
Detailed specification
Performance | Rated load | 6000kg | |
| Overall weight | 18200kg | ||
| Rated bucket capacity | 3.3m3 | ||
| Maximum dump height | 3448mm | ||
| Overall dimension (L×W×H) | 7965×3050×3470mm | ||
| Engine | Model | WD10G240E21 | |
| No. of cylinder-bore/stroke | 6-126×130mm | ||
| Rated power | 175kw--2400r/min | ||
| Transmission system | Torque converter | YJ375 | |
| Gearbox mode(WG180) | Power shift normally engaged straight gear | ||
| Gear shift | 4forward shift | 8/15/23/38 | |
| 4reverse shift | 8/15/23/38 | ||
| Maximum speed | 38km/h | ||
| Drive axles | Main reducing spiral | Bevel gear grade 1reduction | |
| Decelerating mode | Planetary reduction,grade 1 | ||
| Wheel base (mm) | 3200mm | ||
| Wheel tread | 2250mm | ||
| Minimum ground clearance | 520mm | ||
| Hydraulic system | System working pressure | 17MPa | |
| Fuel tank capacity | 300L | ||
| Function of leveling automatically | Yes | ||
| Brake system | Service brake | Air over hydraulic disc brake on 4 wheels | |
| Parking brake | Manual parking brake | ||
| Tyre | Type specification | 26.5-25 | |
Packaging
Loaders are put into container and fixed by steel cable to avoid collision during shipment.
 |  |
Breif introduction
1.We are the professional manufacturer of wheel loader,backhoe loader,forklift,skid steer loader and all kinds of attachments,around 10 year experience.
And all our models are CE approved.
2.We could provide one year warranty for free,within the warranty,if there is any quality issues,we will send the new spare parts to you as soon as possible.
CE APPROVED:Reasons for choosing WOLF Products:
1. More than 50 professional and technical personnels;
2. Strict control and selection of materials;
3. Completely self manufactured and installed;
4. Advanced equipments and first-class production technology;
5. Sound management system and solid economic strength
6. Exclusive R&D, testing center;
7. Exclusive professional platform
24-hours online service
Welcome to contact us for more information!
Ms Nessa
Mob:86-198 6220 6755
