Shantui SD23 Bulldozer Best Dozer Earth Moving Equipment
PRODUCT DESCRIPTIONIt's applicable for the operations in the regions with low ground pressure requirement, applicable for the bulldozing,digging, landfill, and other bulk material operations on the roads, railways, mines, and airportsand is an essentialmechanical machine for the building constr......
Send Inquiry
Product Description
PRODUCT DESCRIPTION
It's applicable for the operations in the regions with low ground pressure requirement, applicable for the bulldozing,
digging, landfill, and other bulk material operations on the roads, railways, mines, and airportsand is an essential
mechanical machine for the building constructions and water conservancy constructions (such as nationaldefense
projects, mine constructions, and urban and rural roads).

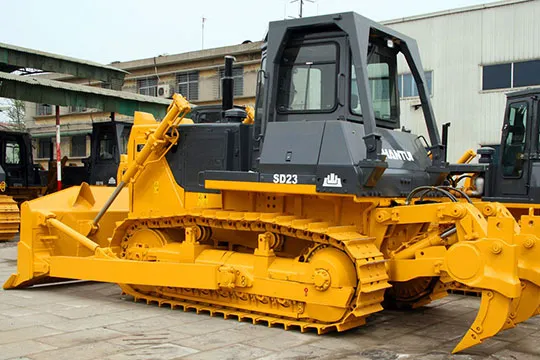

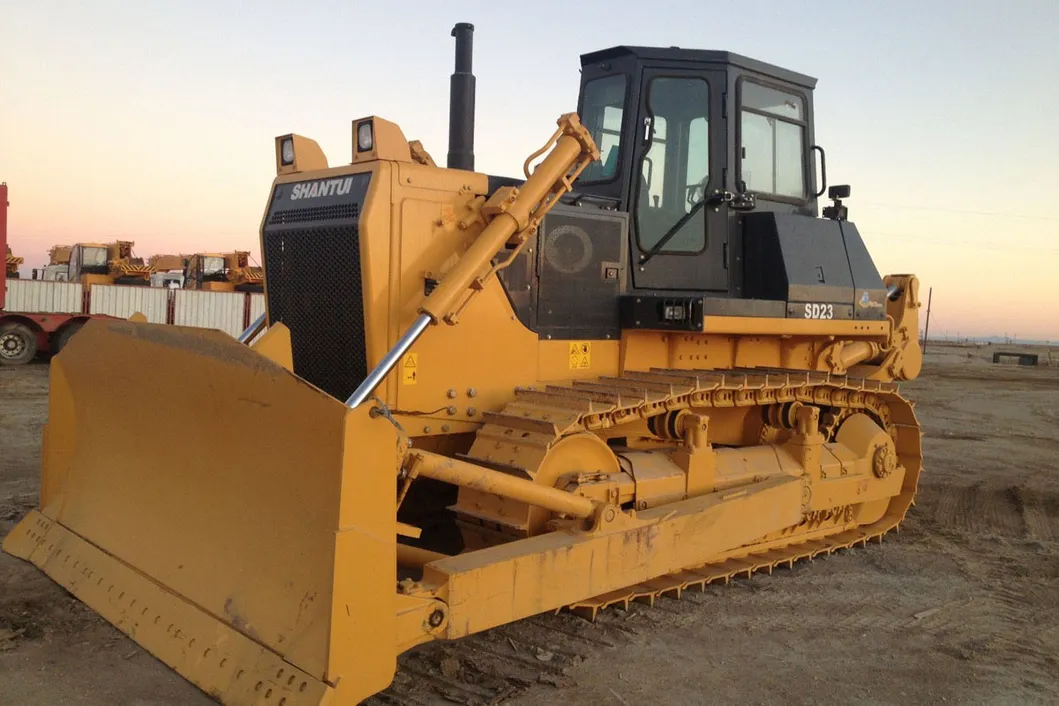

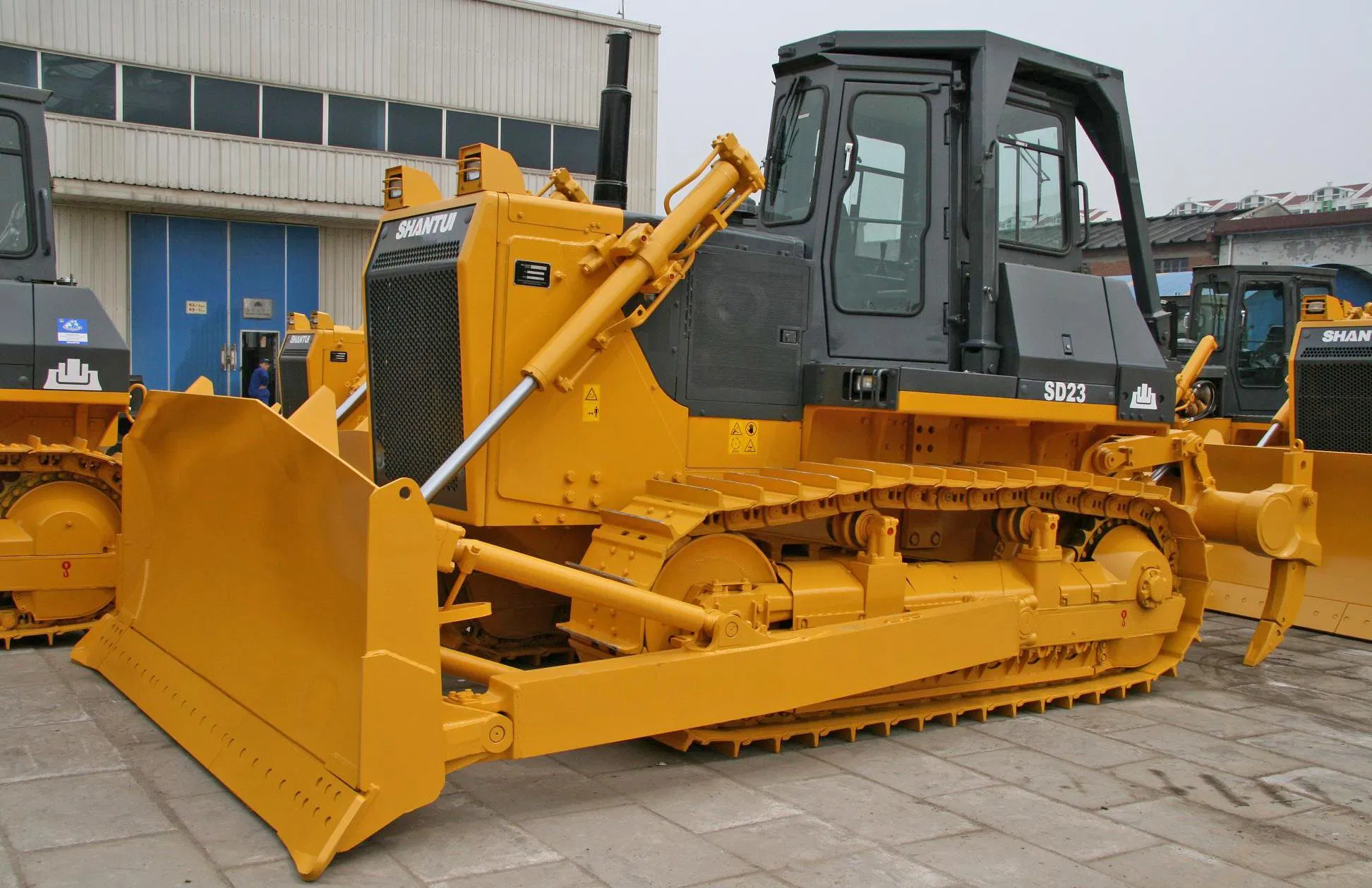

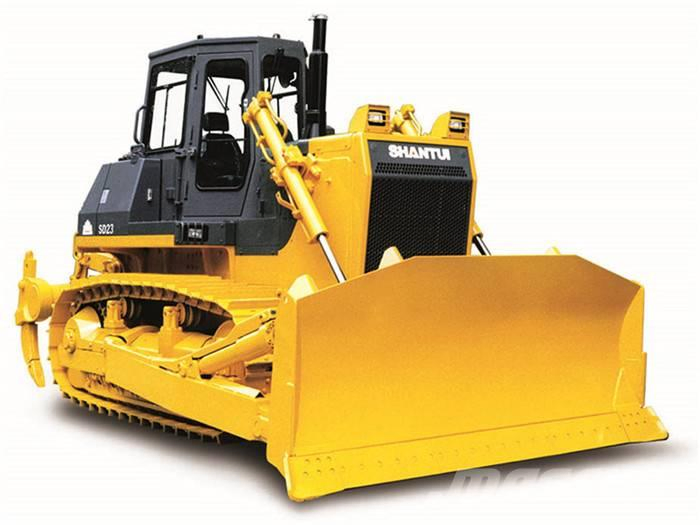

Construction Machinery Brand New Shantui Bulldozer SD23
Engine model: Cummins NT855-C280S10
Rated power: 169kw/1800rpm
Operating weight: 24.6t
TECHNICAL SPECIFICATIONS (SD23)
| ITEM | UNIT | SD23 |
| L×W×H (Ripper not included) | mm | 5874×3725×3360 |
| Operating weight (Ripper not included) | t | 24.6 |
| Engine | - | Cummins NT855-C280S10 |
| Rated power | kW/rpm | 169/2000 |
| Gradeability | ° | 30 |
| Blade type | - | Straight tilt blade U blade Angle blade |
| Blade width | mm | Straight tilt blade 3725×1395 U blade 3860×1379 Angle blade 4365×1107 |
| Dozing capacity | m3 | Straight tilt blade 7.8 U blade 8.4 Angle blade 5.4 |
| Ma× drop below ground of blade | mm | 540 |
| Lift height of blade | mm | 1210 |
| Ripper type | - | Single ripper / Three-shank ripper |
| Ripping depth of ripper | mm | 695 / 666 |
| Lifting height of ripper | mm | 515 / 555 |
| Number of carriers (each side) | - | 2 |
| Number of track rollers (each side) | - | 7 |
| Number of track shoes (each side) | - | 39 |
| Width of track shoe | mm | 560/ 610/ 660 |
| Track gauge | mm | 2000 |
| Ground length and ground pressure | mm/MPa | 2840-0.078 |
| Pitch | mm | 216 |
| Travel speed | |||
| Gear | 1st | 2nd | 3rd |
| Foward(km/h) | 0~3.8 | 0~6.8 | 0~11.8 |
| Reverse(km/h) | 0~4.9 | 0~8.5 | 0~14.3 |
FEATURES & APPLICATION
The widened track shoes guarantee low ground pressure, high stability, and powerful traction to fulfill p
recise horizontal operations.
The wet type steering clutch and brake can prolong the service life and are interlinked with each other to
guarantee the rapid and flexible steering controls by joysticks.

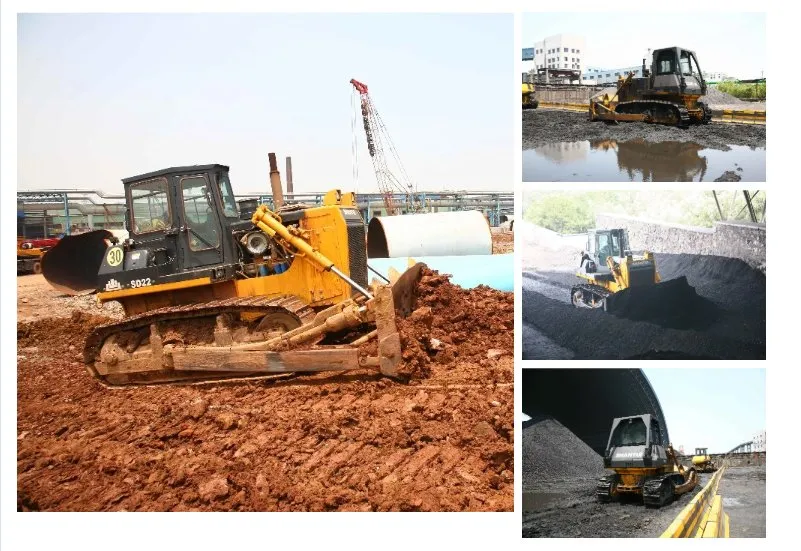

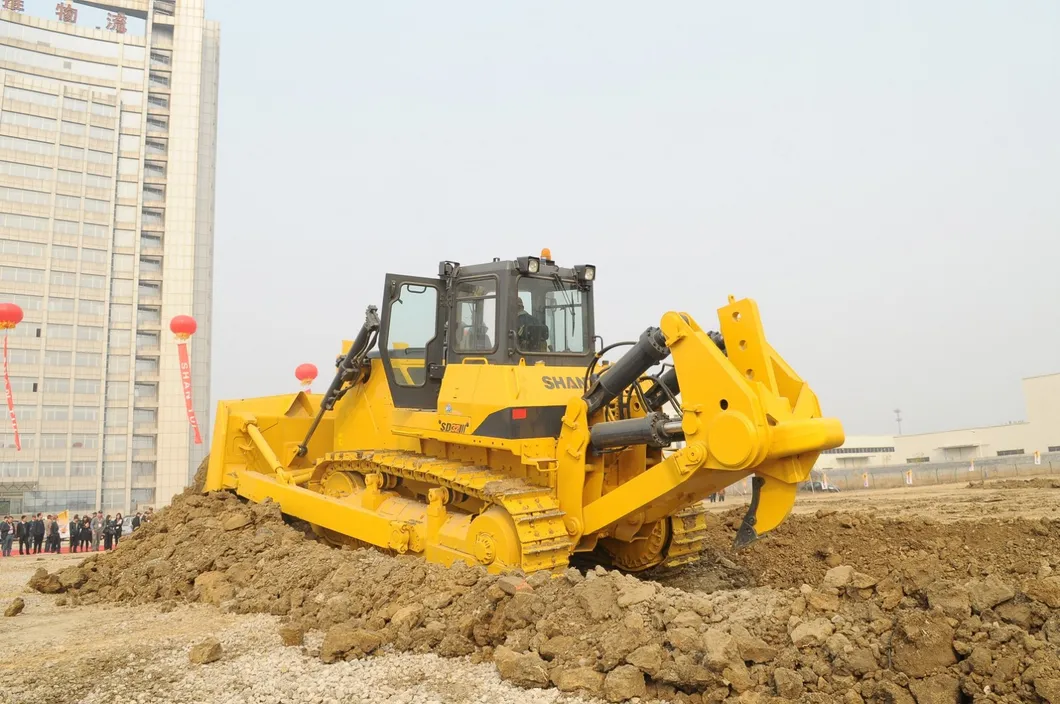

It can complete the digging, handling, and landfill operations of earthworks and is suitable for the engineering
constructionsfor roads, farms, water conservancy projects, municipal projects, and energy projects.
CERTIFICATE
WHAT WE CAN PROVIDE
• Brand accessories, quality assurance
Super-above provides you with the original brand engine,alternator and other spare parts, the quality is more reliable.
• Best solutions
Super-above will provide you best solutions for spare parts,because we have most experienced technical team and after-sale service team.
Quickly intuitive query by 2D/3D makes sure requested spare parts more accurate.
• 24-hour Service
We understand your needs and difficulties. Hence Super-above after-sales team opened 24-hour service hotline to help you solve any problems.
• The most efficient transport
Super-above maintains good cooperation with DHL, TNT etc.international express company. In case of urgent express, promises sending
out within 48 hours, in the shortest time to reach your side.No matter when and where, no matter what you need,

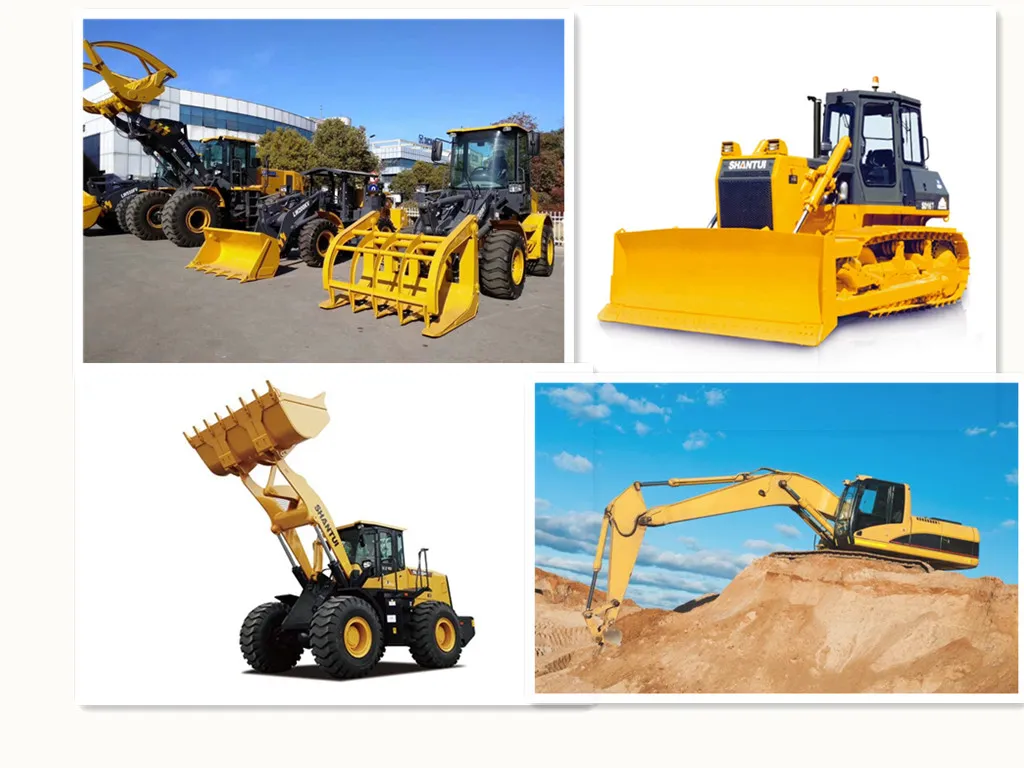

WHAT ELSE WE HAVE
Super-above offer emergency power support for all kinds of outdoor engineering work,such as building road,
construction sites, industrial, mining, television filming, leasing,rescuing and so on.
