4000W Fiber Laser Cutting Machine with 1500 *6000mm for CS Ss
High Power Fiber Laser Cutting Machine Configuration Main configuration of Fiber laser bedModelXTC-F1530H/XTC-F1560H/XTC-F2040HFiber Laser sourceIPG/Raycus/MAXTransmission systemTaiwan brand T-WIN / YYC rack and pinionMachine OuttlookXT LASERSpeed ReducerGermany EREFATMotorJapan FujiGuiderailTaiwan ......
Send Inquiry
Product Description

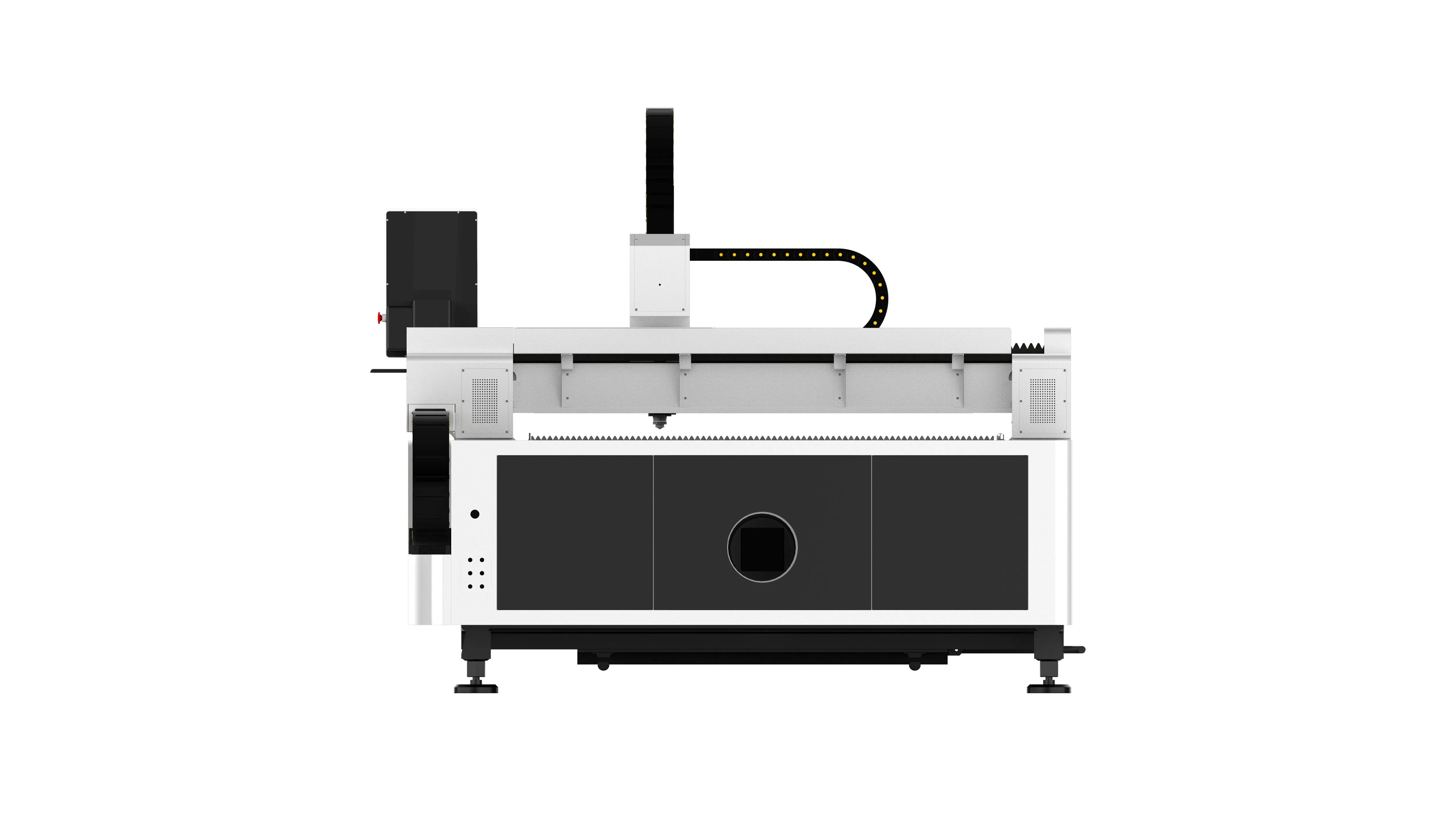

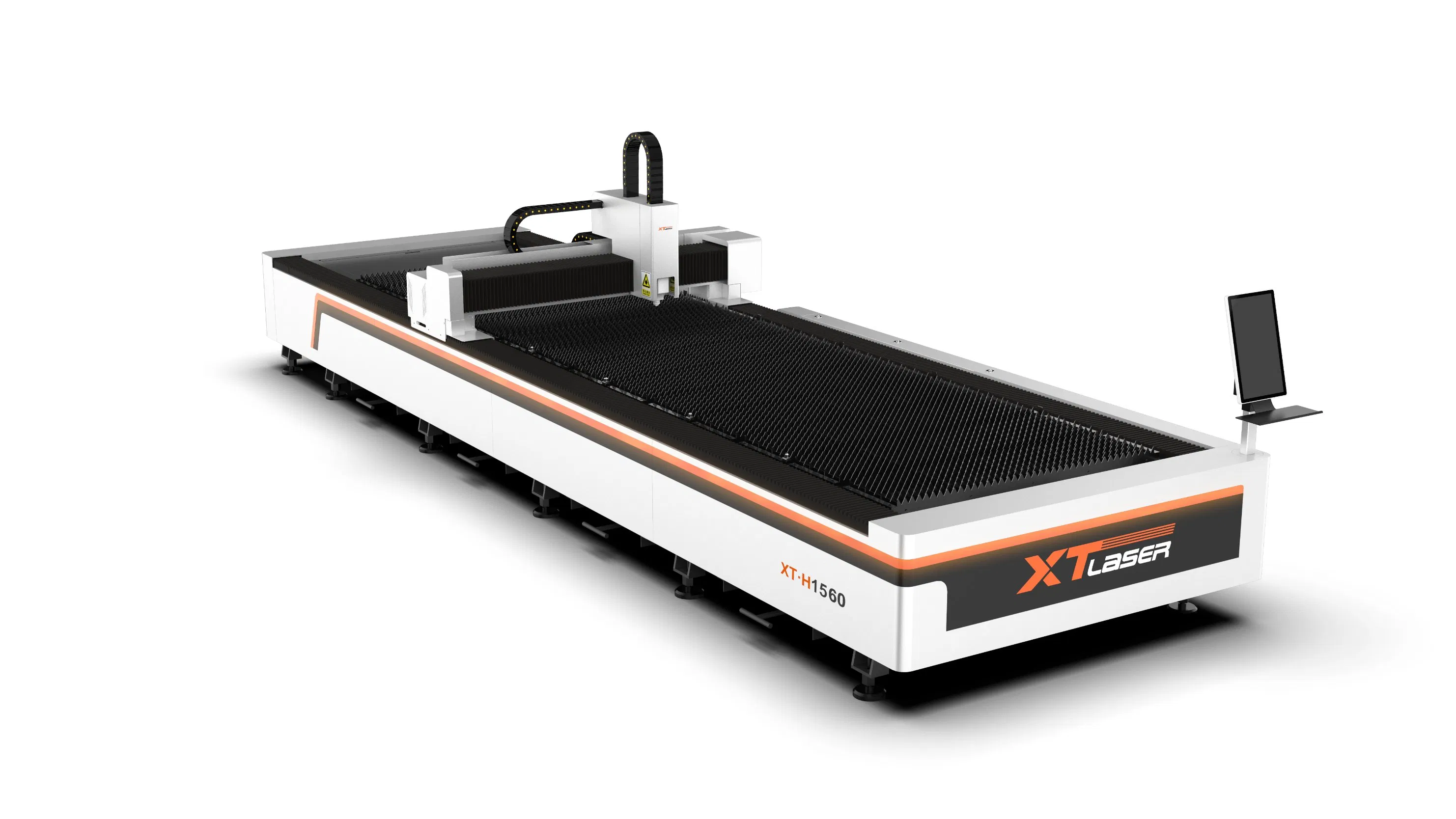

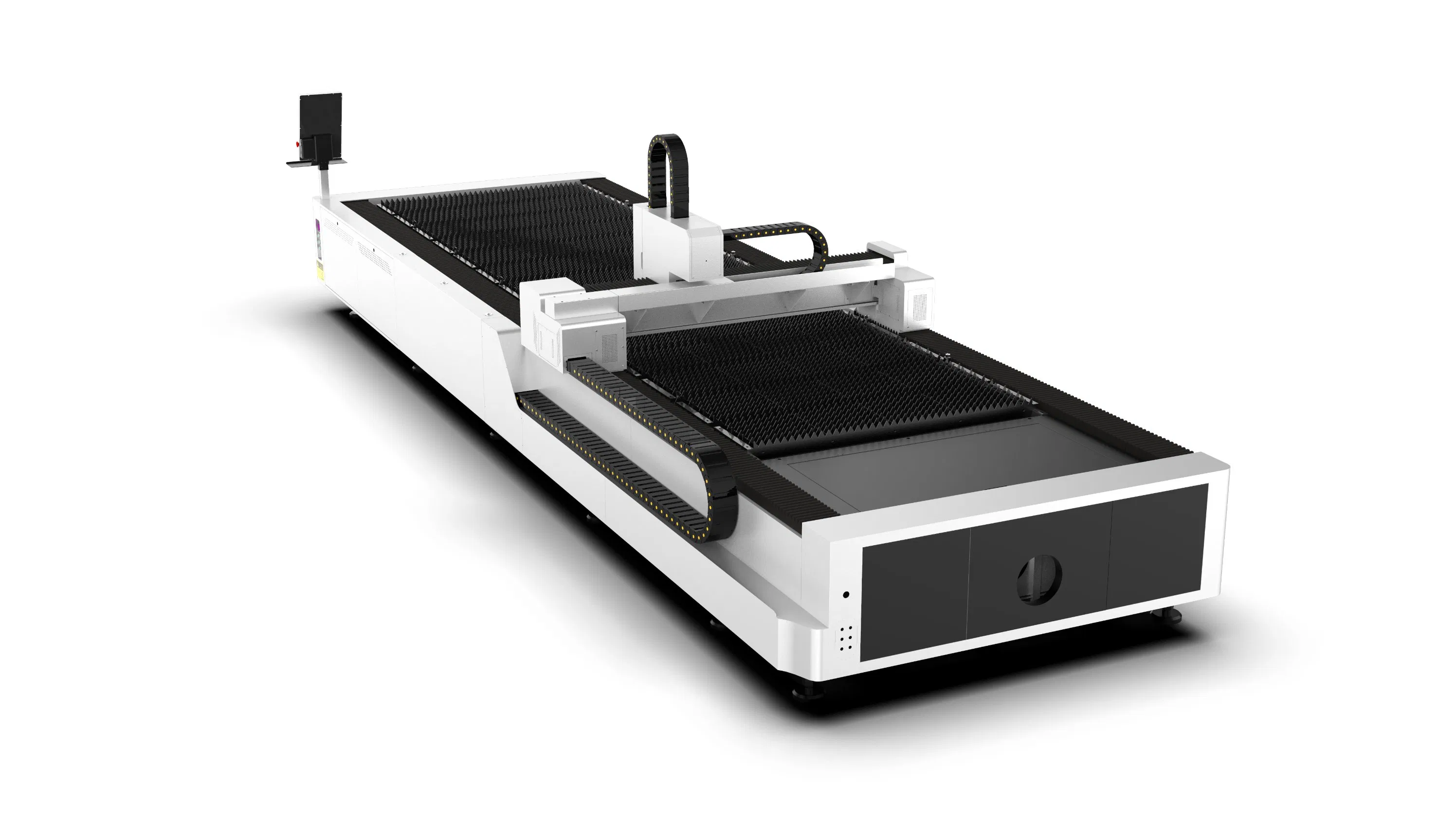

High Power Fiber Laser Cutting Machine
| Main configuration of Fiber laser bed | |||||
| Model | XTC-F1530H/XTC-F1560H/XTC-F2040H | ||||
| Fiber Laser source | IPG/Raycus/MAX | ||||
| Transmission system | Taiwan brand T-WIN / YYC rack and pinion | ||||
| Machine Outtlook | XT LASER | ||||
| Speed Reducer | Germany EREFAT | ||||
| Motor | Japan Fuji | ||||
| Guiderail | Taiwan brand HIWIN | ||||
| Laser Head | Raytools brand auto focus | ||||
| Valve | Japan SMC | ||||
| Cooling system | Hanli brand | ||||
| System | China FSCUT | ||||
| Spare parts | Nozzle, Protective lens, Focus lens, Collimation lens, ceramic ring | ||||
| Cutting thickness | |||||
| Laser power | 2000W | 3000W | 4000W | ||
| Stainless steel (N2) | 1-8 MM | 1-12MM | 1-14MM | ||
| Carbon steel (O2) | 1-18MM | 1-22MM | 1-25MM | ||
| Aluminium (N2) | 1-8MM | 1-12MM | 1-16MM | ||
| Other configuration of Fiber laser machine | |||||
| Model | Name | Quantity | |||
| Standard | fiber laser cutting laser bed | 1 set | |||
| Standard | Fiber laser head | 1 set | |||
| Standard | Water chiller | 1 set | |||
| Standard | Industrial computer | 1 set | |||
| Standard | Fan | 1 set | |||
| Standard | Nozzles | 10 pcs | |||
| Standard | Protective lens | 6 pcs | |||
| Machine Techinical Parameter | |||||
| Working area (L*W) | 1500*3000 mm/1500*6000 mm/2000*4000 mm | ||||
| X-axis running area | 1500 mm | ||||
| Y-axis running area | 3000 mm/6000mm/4000mm | ||||
| Z-axis running area | 120 mm | ||||
| X/Y axis Repeated Position Precision | ±0.03 mm | ||||
| Phase | 3 phase | ||||
| Voltage | 380V | ||||
| Frequency | 50HZ / 60HZ | ||||
| Consumables | |||||
| NO. | Name | Quatity | Time Hours | USD/piece | |
| 1 | Nozzle | 1 pcs | About 500 working hours | 10 | |
| 2 | Protective lens | 1 pcs | About 500 working hours | 15 | |
| 3 | Focus lens | 1 pcs | About 1500-2000 working hours | 130 | |
| 4 | Collimation lens | 1 pcs | About 1500-2000 working hours | 130 | |
| 5 | Ceramic ring | 1 pcs | About 4000 working hours | 40 | |

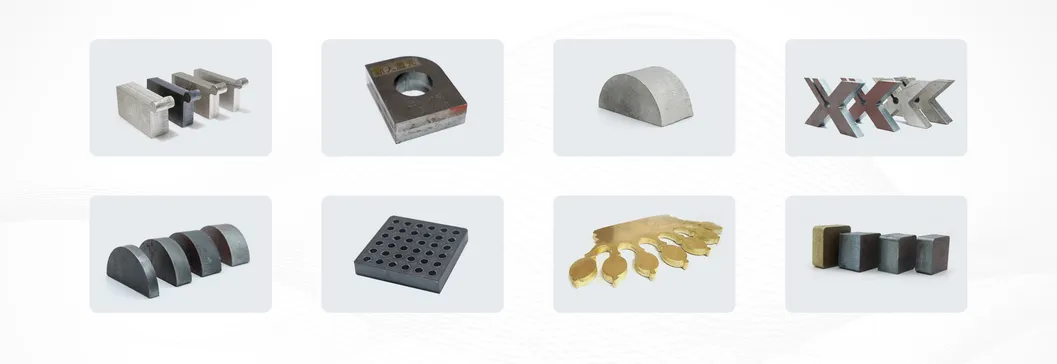

Cutting samples:
24/7 service is available to each customer. And if any technical questions or problems, our engineers will help you and give you solutions on the phone or by face-to-face communication online. |
One-year warranty is provided. (The detailed reference will be written into the final contract.) |
Professional staff for installation and training if needed. |
Spare parts are supplying on time or doing some inventory if promising certain sales volume. |
Faster delivery, we will support our sole agent to do the stock if good sales, then more convenient and helpful. |
If the sales are good, we will arrange some famous exhibition fairs in the local or surroundings, and give our full support to our agents at the fair. We will provide our sample machines, catalog, DVD, manuals, etc. All native customers belong to our local agent, which is our basic rule. And we promise the final delivery is the same as displayed prototype. |
About XTlaser
Jinan XinTian Technology Co., Ltd was established in 2004. It is a professional manufacturer engaged in the research, development, production and service of Diode pumped Laser marking machine, Fiber laser marking machine, CO2 laser marking machine, Pneumatic marking machine, Laser engraving machine, Laser welding machine, Laser cutting machine and Laser trimming machine
certifications
Every set of machine will pass strict quality check and complete packaging.
We have passed SGS, FDA,CE certificates, which also bring out high quality.
Exhibition
We attend domestic and abroad exhibitions every month, and make long-term friends in business and life with new customers from all over the world.
Packing & Delivery
Faq
1. who are we?
We are based in shandong, China, start from 2004,sell to South America(30.00%),South Asia(30.00%),Mid East(10.00%),North America(10.00%),Southeast Asia(5.00%),Eastern Asia(5.00%),Eastern Europe(2.00%),Central America(2.00%),Western Europe(2.00%),Africa(2.00%),Northern Europe(1.00%),Southern Europe(1.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
laser marking machine,laser engraving machine,laser cutting machine,laser welding machine,laser machine
4. why should you buy from us not from other suppliers?
1. 16 years specializing in fiber laser machine manufacturing 2. OEM service all over the world 3. Reserch and Design department, 10 new models at least per year 4. Exclusive service and support for Partners
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,Express Delivery;
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union;
Language Spoken:English,Chinese,Arabic,Korean
