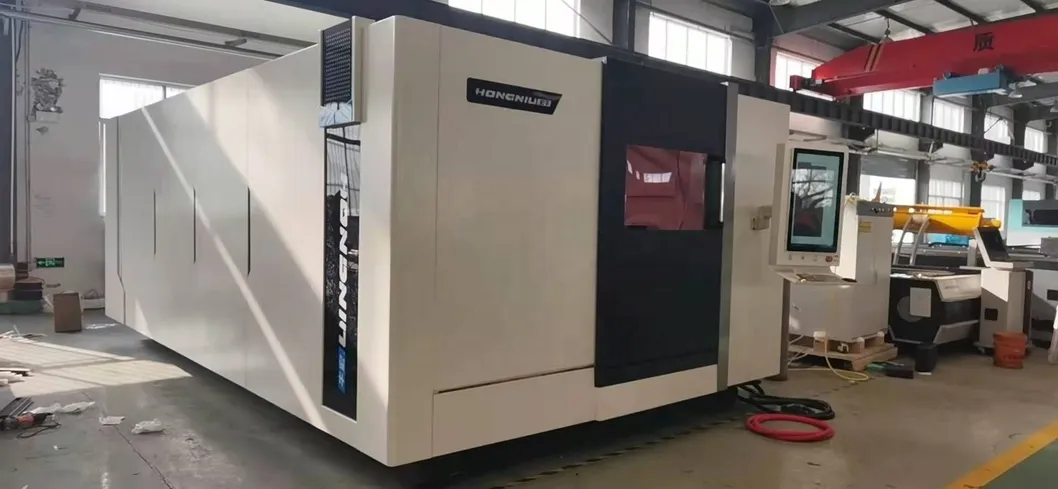

Full Cover Enclosed Fiber Laser Cutting Machine with Auto Exchange Dual Table

Product Description

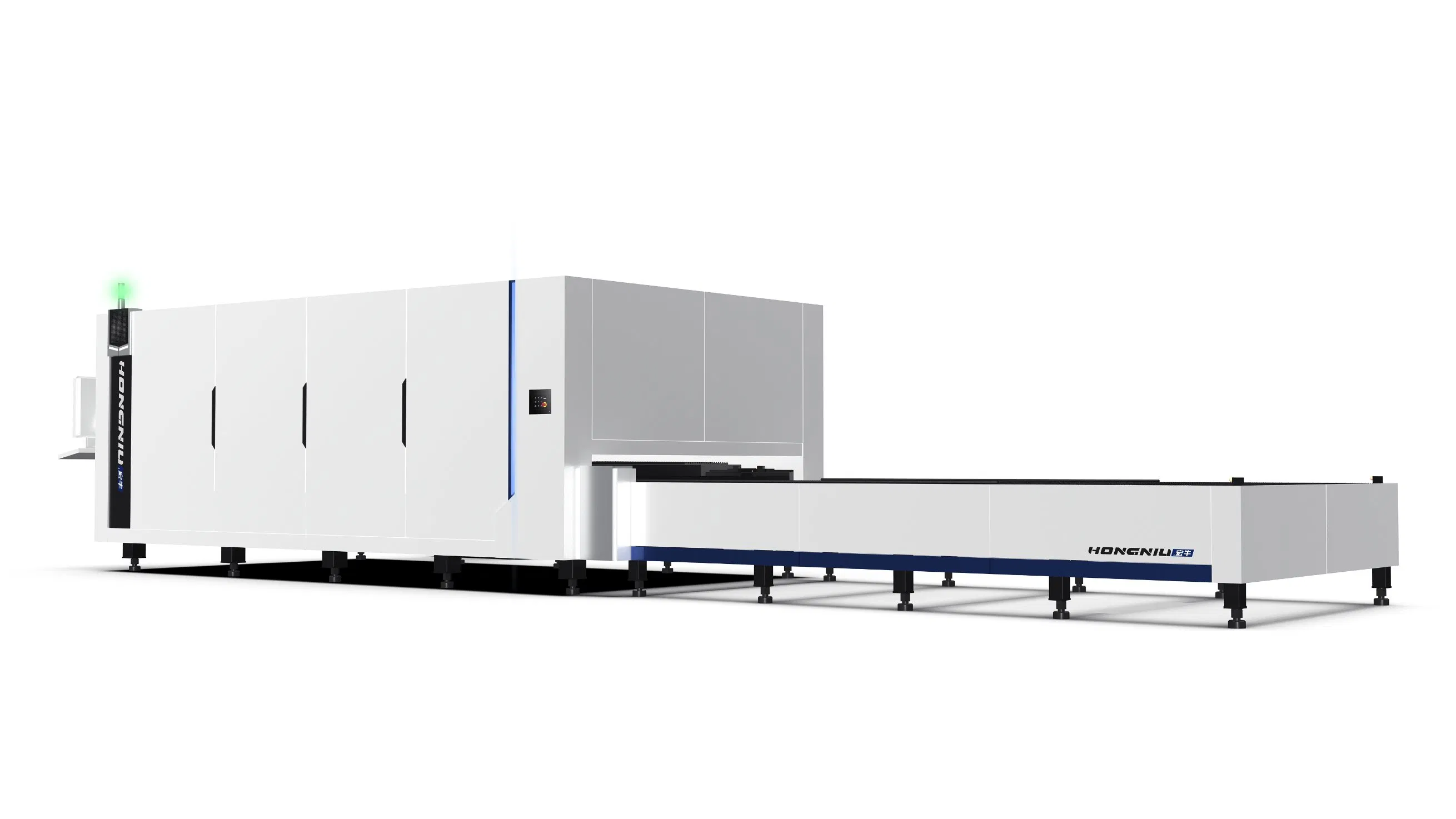

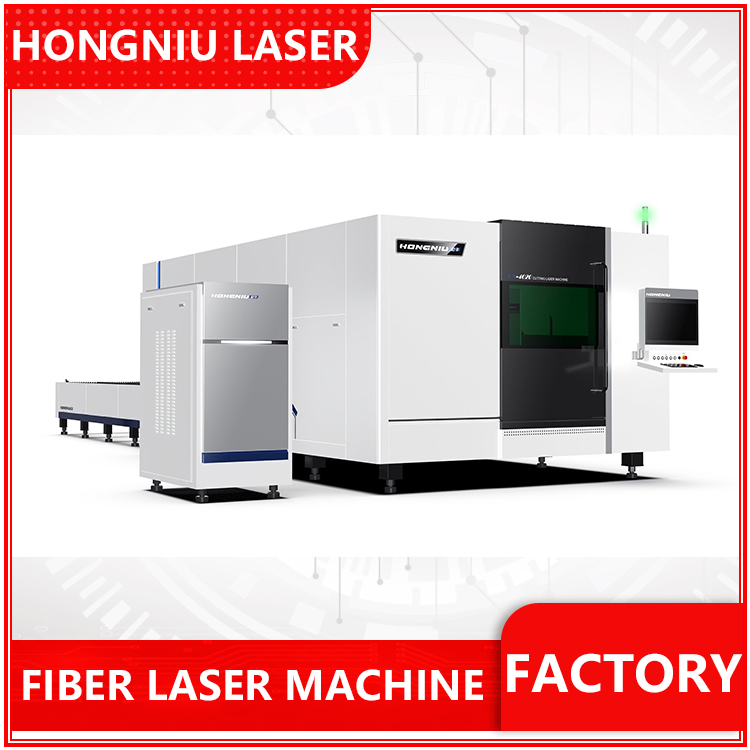

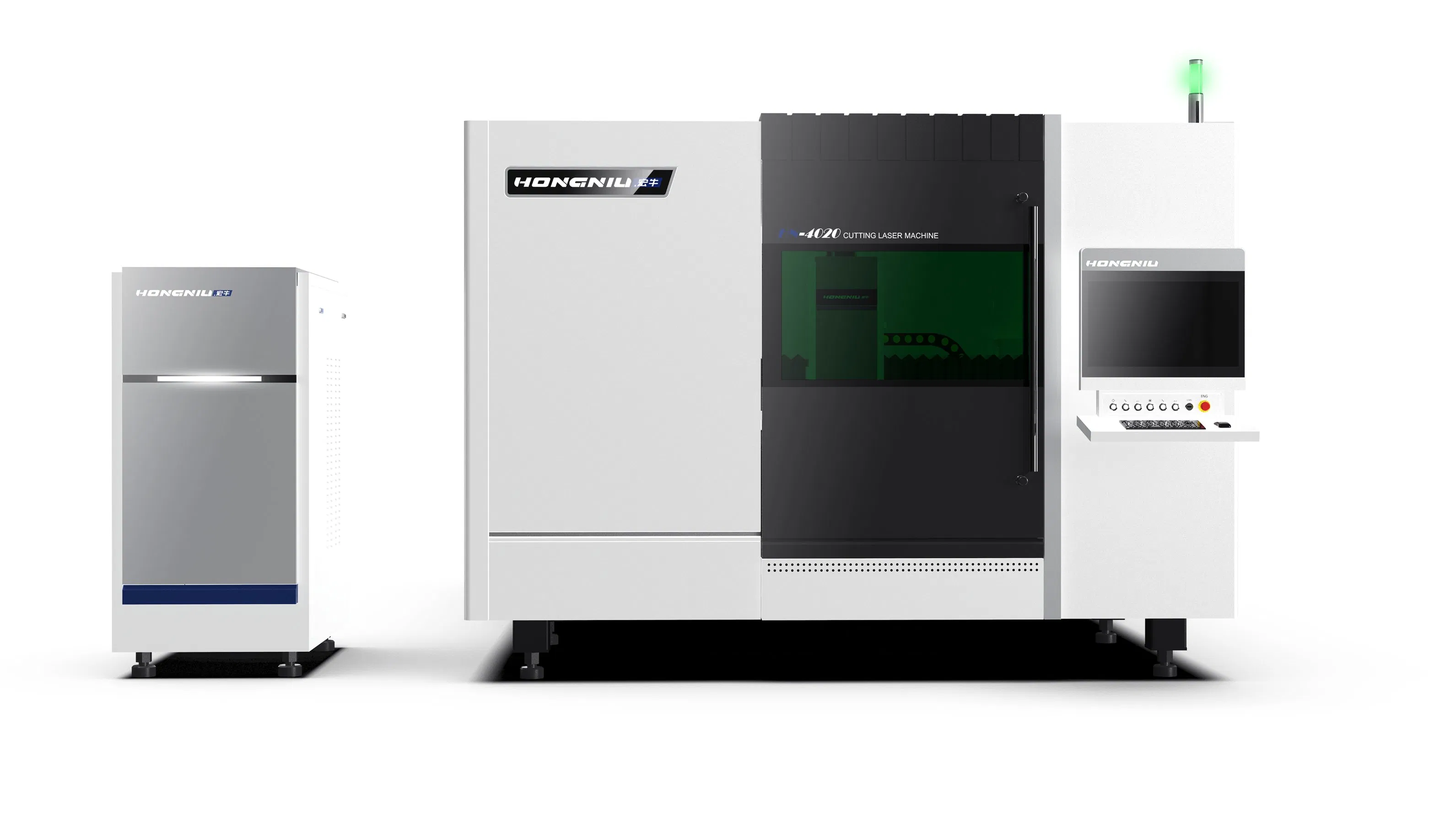

Full Cover Enclosed fiber laser cutting machine with Auto Exchange Dual Table

HN-3015H is a high-speed low-carbon steel cnc fiber laser cutting machine with a working speed of 3000*1500mm.it has full cover and auto exchange dual table.It consists of machine tools, moving parts, electrical equipment control parts and other auxiliary parts.Operating the three-axis moving parts through the control system can drive the fiber laser cutting head to achieve stable,accurate and high-speed motion; The X and Y axis of the aluminum stainless steel sheet cutting machine adopts original imported high-quality high-precision HIWIN/PEK linear guides and worktables It adopts round tube welding machine, stress-relieving annealing treatment, and the maximum load-bearing table can reach 500 KG. It also has universal ball bearings, a peripheral clamping device set outside the machine, a fully enclosed dust-proof device, photoelectric sensor and other precise Position the components to ensure the accuracy of the transmission.
Full Cover Enclosed Fiber Laser Cutting Machine with Auto Exchange Dual Table

HN-3015H Fiber Laser Cutting Machine Configurations advantage
1. Moved crossbeam with imported high precision racks and linear guide rail, transmission stable, working with high precision.

2.Machine tool, crossbeam and worktable adopt integral welding structure, machine tool, crossbeam and worktable adopt integral welding structure, in accordance with the standard large machine, to stress annealing after precision finishing and then for vibration aging treatment, it can completely eliminate the welding stress and processing stress, keep high-strength, high precision, and also keep the 20 years of normal use don't deformation.
3. X, Y and Z axis use imported Japan servo motor, high precision, high speed, large torque and large inertia, performance is stable and durable, ensure the high speed operation of the whole machine.

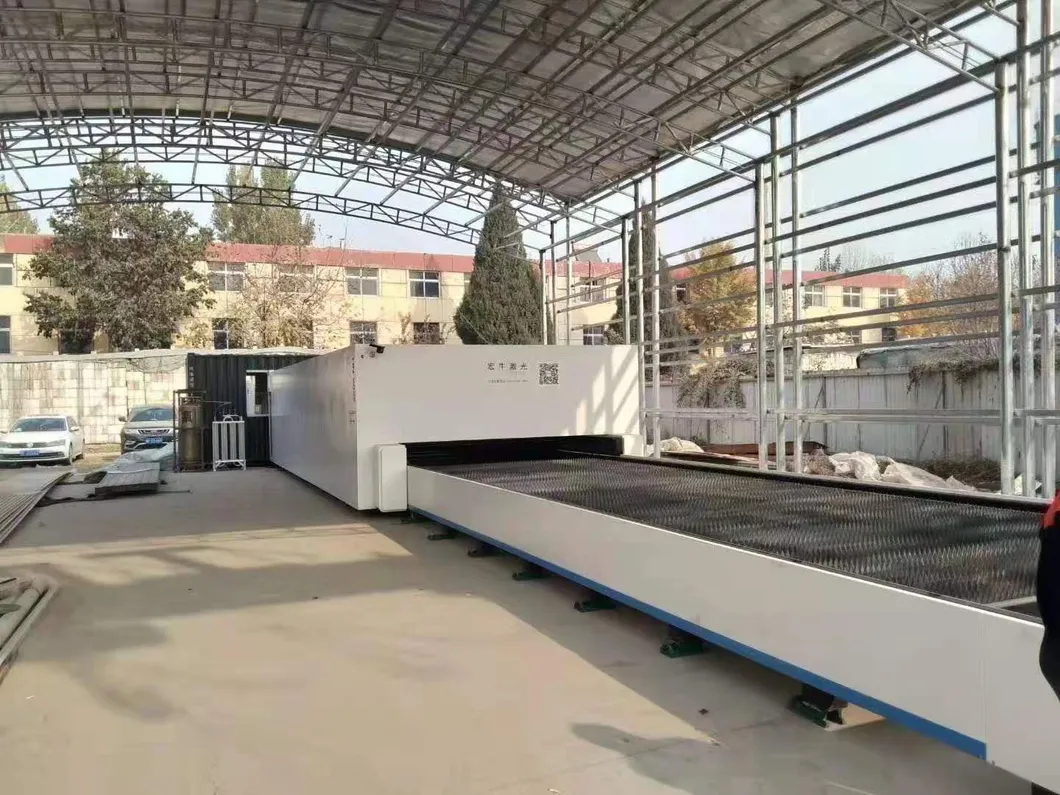

4. Based on Windows operating system, use professional Cypcut numerical control system for fiber laser cutting machine, integrated with laser cutting control special function module which is powerful with a good man-machine interface and easy to operate.Real shot

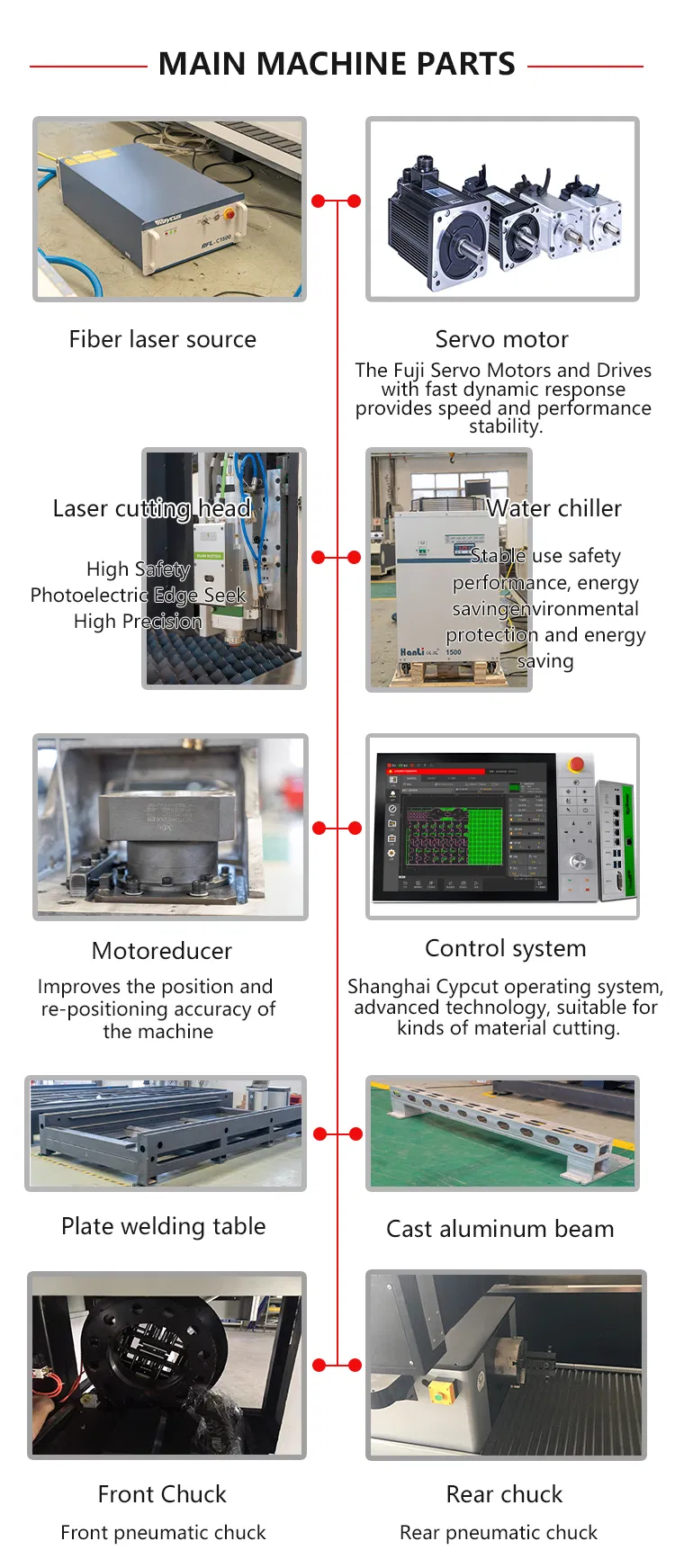

MAIN PARTS
Full Cover Enclosed Fiber Laser Cutting Machine with Auto Exchange Dual Table

Specifications

Equipment Specification
Model	HN-3015H	HN-4015H	HN-4020H	HN-6025H
Cutting Area	3000*1500mm	4000*1500mm	4000*2000mm	6000*2500mm
Laser source	Raycus/IPG/WSX	Raycus/IPG/WSX	Raycus/IPG/WSX	Raycus/IPG/WSX
Max Moving Speed	80m/min,Acc=1.0G	100m/min,Acc=1.2G	120m/min,Acc=1.2G	120m/min,Acc=1.2G
Position Accuracy	±0.03mm	±0.03mm	±0.03mm	±0.03mm
Reposition Accuracy	±0.02mm	±0.02mm	±0.02mm	±0.02mm
Power	380V/220V 50/60Hz 50A	380V 50/60Hz 50A	380V 50/60Hz 50A	380V 50/60Hz 50A
Max Loading(KG)	≤7000	≤7300	≤7700	≤8300

Three reasons to choose HONGNIU LASER

1. Rich experience: more than a decade of experience

2. Quality ensurance: high quality products, win high praise from customers

3. Great service: warrenty/ after-sales service

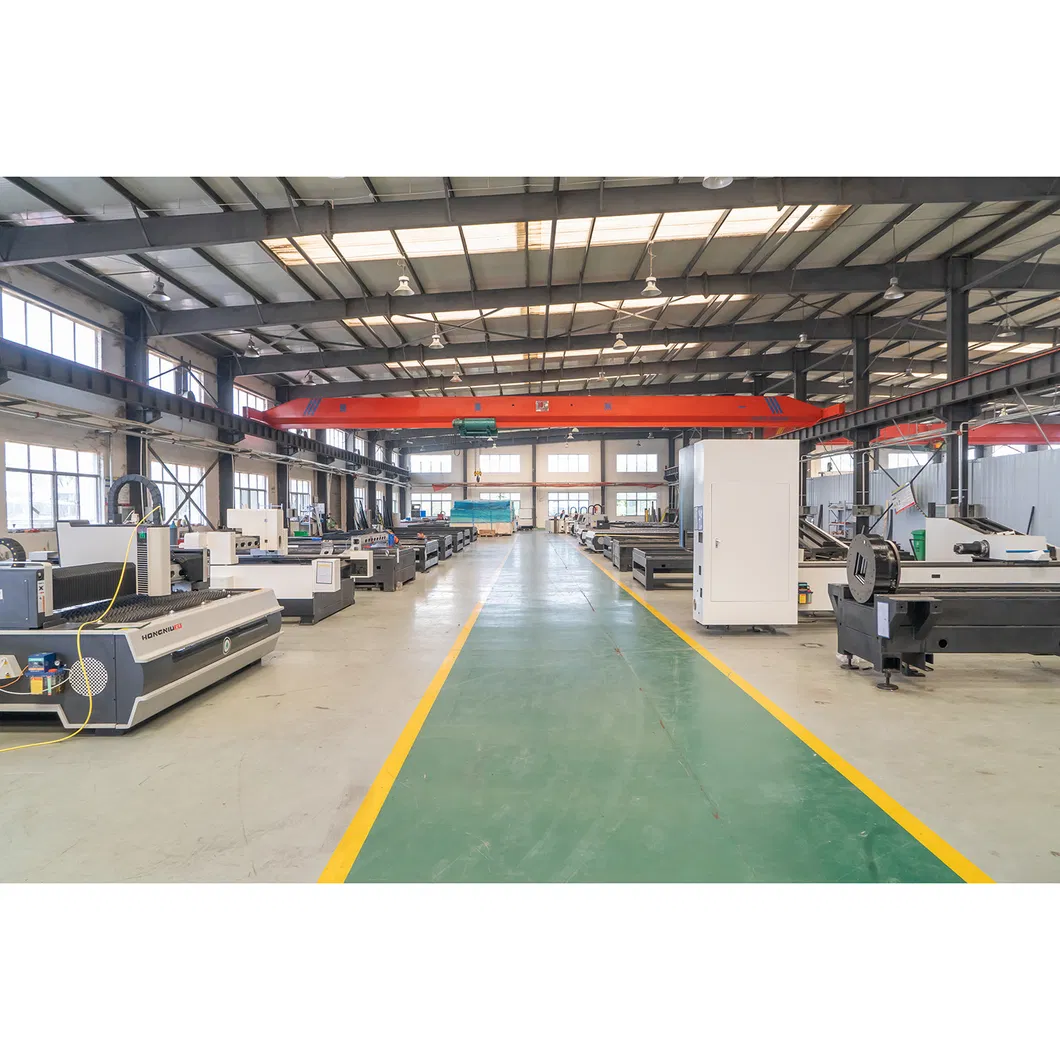

About Shandong HONGNIU Laser Equipment Co., Ltd.

1.Moved crossbeam with imported high precision racks and linear guide rail, transmission stable, working with high precision.
2.Machine tool, crossbeam and worktable adopt integral welding structure, machine tool, crossbeam and worktable adopt integral welding structure, in accordance with the standard large machine, to stress annealing after precision finishing and then for vibration aging treatment, it can completely eliminate the welding stress and processing stress, keep high-strength, high precision, and also keep the 20 years of normal use don't deformation.
3.X, Y and Z axis use imported Japan servo motor, high precision, high speed, large torque and large inertia, performance is stable and durable, ensure the high speed operation of the whole machine.
4.Based on Windows operating system, use professional Cypcut numerical control system for fiber laser cutting machine, integrated with laser cutting control special function module which is powerful with a good man-machine interface and easy to operate.
Full Cover Enclosed Fiber Laser Cutting Machine with Auto Exchange Dual Table

Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have Original. At first we will show you and And after shipment we will give you CE/Packing
list/Commercial Invoice/Sales contract for customs clearance.

Q: Payment terms?
A:Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.

Q: I don't know how to use after i receive Or i have problem during use, how to do?
A: We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your
problems finished.We can also provide Door service if you need.

Q: I don't know which one is suitable for me ?
A2:Please tell me your
1) Your materials
2) Max size of your material
3) Max cut thickness
4) Popular cut thickness.

Q: If we need HONGNIU technician to train us after order,how to charge?
A:1) If you come to our factory to get training,it is free for learning.And the seller also accompany
you in factory 1-3 working days.(Every one learning ability is different,also according to details)
2) If you need our technician go to your local factory to teach you ,you need to bear the technician's
business travelling ticket / room and board/ 100 USD per day.

Q:Why does the machine price not include fiber sources and tube components?
A:Because you can customize the generator, rotary and other configurations, the price is the base bed price.
