High Power Cheap Thick Stainless Steel CNC Fiber Laser Cutter
High Power Cheap Thick Stainless Steel CNC Fiber Laser Cutter JINAN ACMEPRODUCT DESCRIPTIONThis fiber laser cutting machines is designed for high precision sheet metal processing. It provides efficient cutting at optimal speed using a fiber laser. The integration of leading-brand components assures ......
Send Inquiry
Product Description

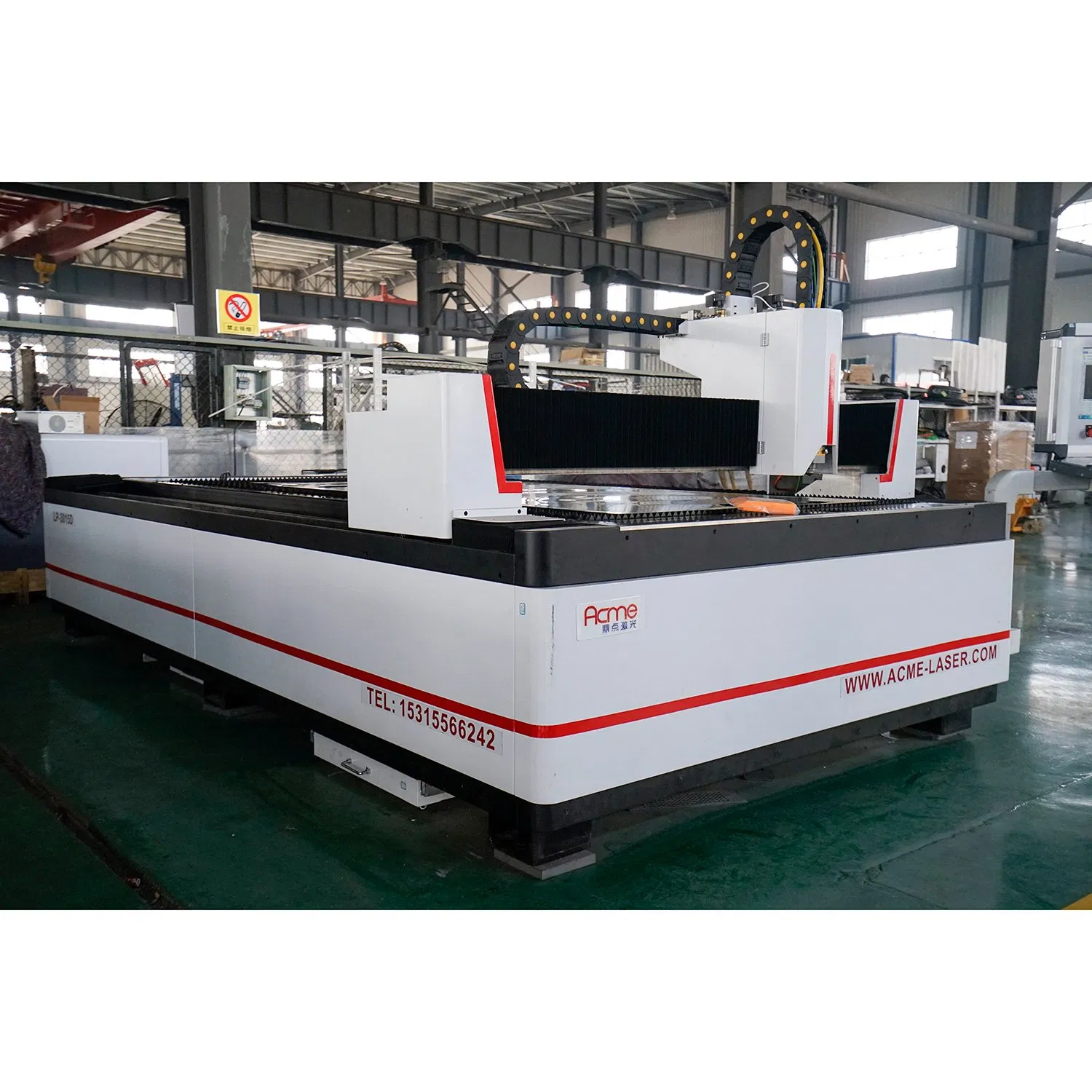

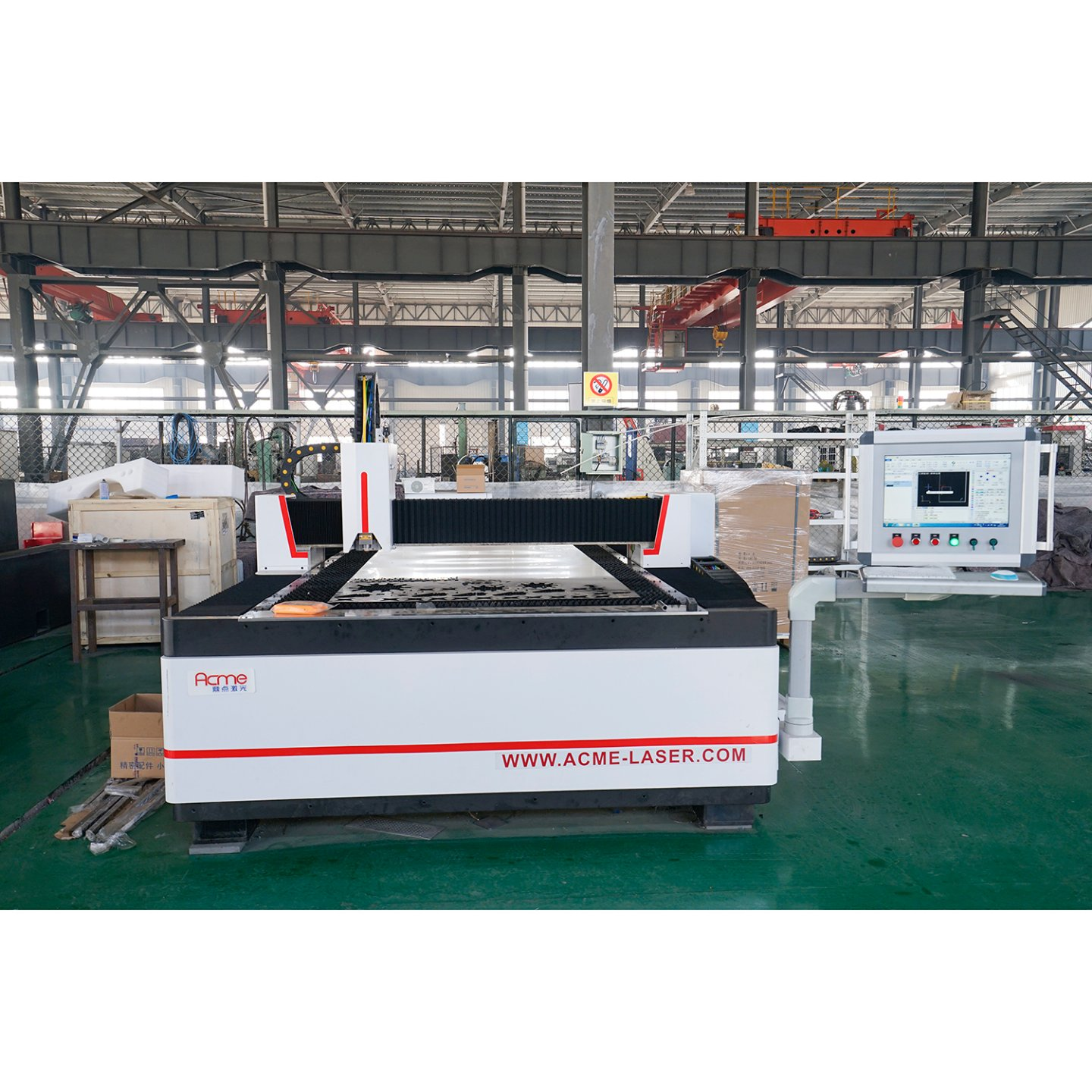

High Power Cheap Thick Stainless Steel CNC Fiber Laser Cutter
JINAN ACME
PRODUCT DESCRIPTION
This fiber laser cutting machines is designed for high precision sheet metal processing. It provides efficient cutting at optimal speed using a fiber laser. The integration of leading-brand components assures you of top performance and high reliability.
PRODUCT FEATURE
CAST ALUMINIUM as Gantry Material for ALL laser source output powers and ALL models

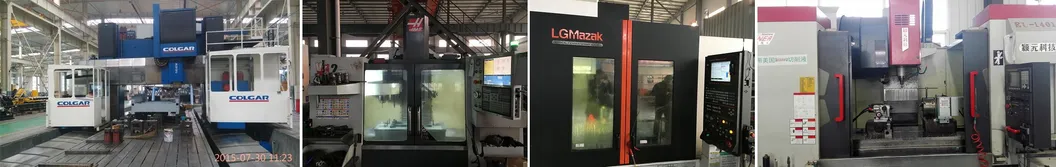

Every screw hole and groove of the machine body as well as other compontents are handled by imported Italy COLGAR Large Gantry Milling Machine, U.S. Hass, Japan Mazak & Taiwan Winner. It guarantees the guide rail, gear and rack and every screw will be installed with high accuracy.
TECHNICAL PARAMETER
| No. | Item | LP-3015S | |
| 1 | Laser Source Output Power | 500w - 10,000w | |
| 2 | X-axis | Travel (mm) | 3050mm |
| Travelling Rated Speed (m/min) | 80 | ||
| Travelling Max. Speed (m/min) | 120 | ||
| 3 | Y-axis | Travel (mm) | 1550mm |
| Travelling Rated Speed (m/min) | 80 | ||
| Travelling Max. Speed (m/min) | 120 | ||
| 4 | Z-axis | Travel (mm) | 120 |
| Travelling Rated Speed (m/min) | 30 | ||
| Travelling Max. Speed (m/min) | 60 | ||
| 5 | Rail Width (Taiwan Brand) | X-25cm, Y-30cm | |
| 6 | Transmission | Helical Rack | |
| 7 | Positionning Accuracy | ±0.03/1000mm | |
| 8 | Repeat Positionning Accuracy | ±0.02 | |
| 9 | Minimum Cutting Width | 0.10mm | |
| 10 | Acceleration | 1.0G | |
| 11 | Power Supply | 380v50Hz ±10% | |
| 12 | Auxiliary Gas | Oxygen / Nitrogen / Air | |

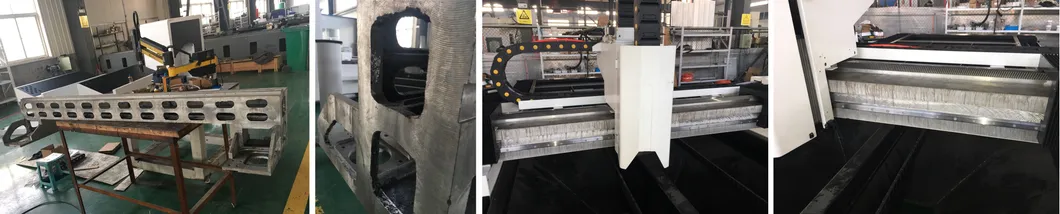

CONFIGURATIONS

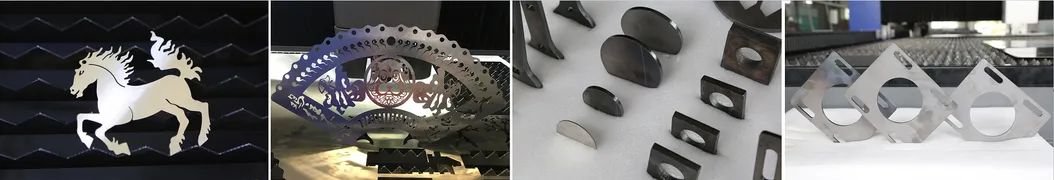

CUTTNG SAMPLES
CERTIFICATION & PATENTS
BRAND STORY
With industry-leading technology and continuous R&D capability, Jinan ACME has provided customers with the highest cost-effective laser equipment.
Fiber laser cutting machine is our core products. All the core components are independently designed and manufactured with high precision.
With the confidence given from years of experience in machine manufacturing sector, we have exported the machines to all around the world with a perfect understanding of customer satisfaction and giving a continuous contribution to the national economy.
FAQ
Q: It will be my first fiber laser cutting machine. I don't know how to operate it.
A: We'll offer videos and English manual with the machine. English-speaking engineers will take charge of machine installation, technical training and sfter-sales service.
Q: How to choose the right model?
A: Just tell me your cutting material and cutting size. Let me help you get the machine easier and quicker.
Q: Any other question?
A: Please don't hesitate to contact me. Anytime
