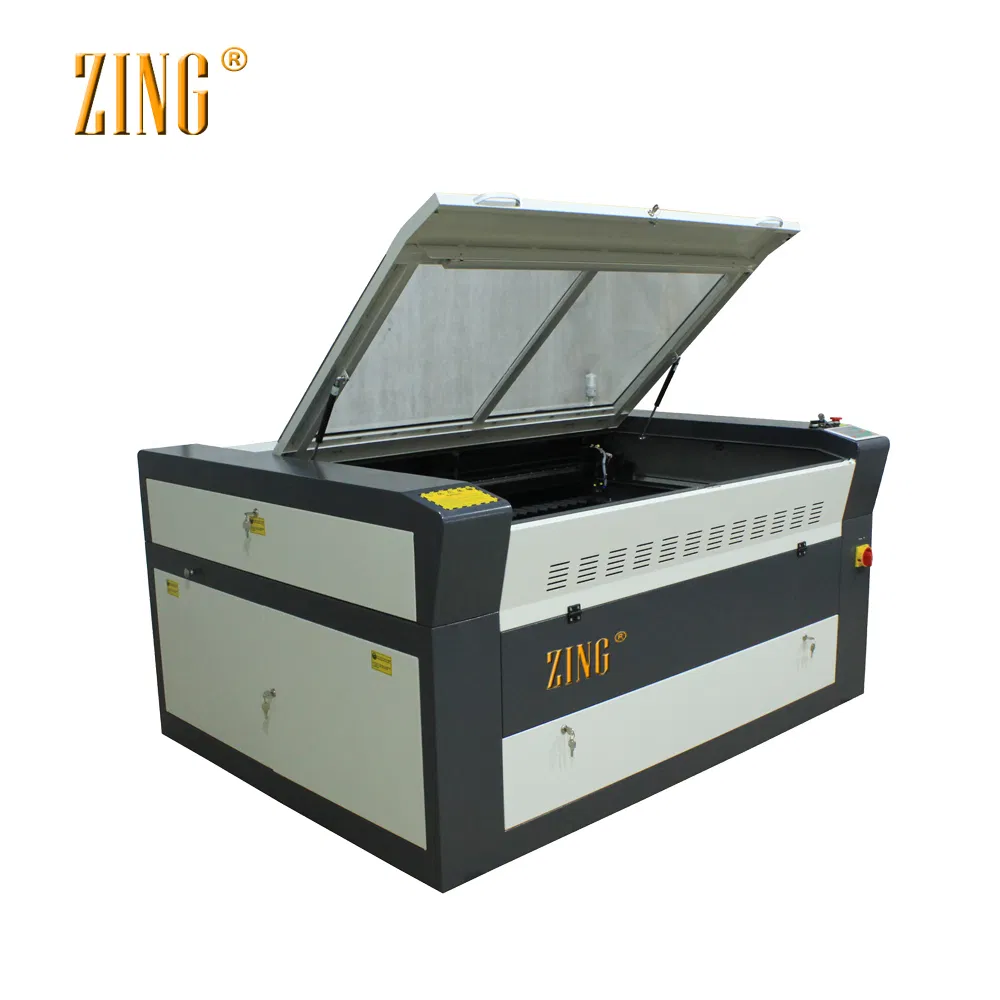

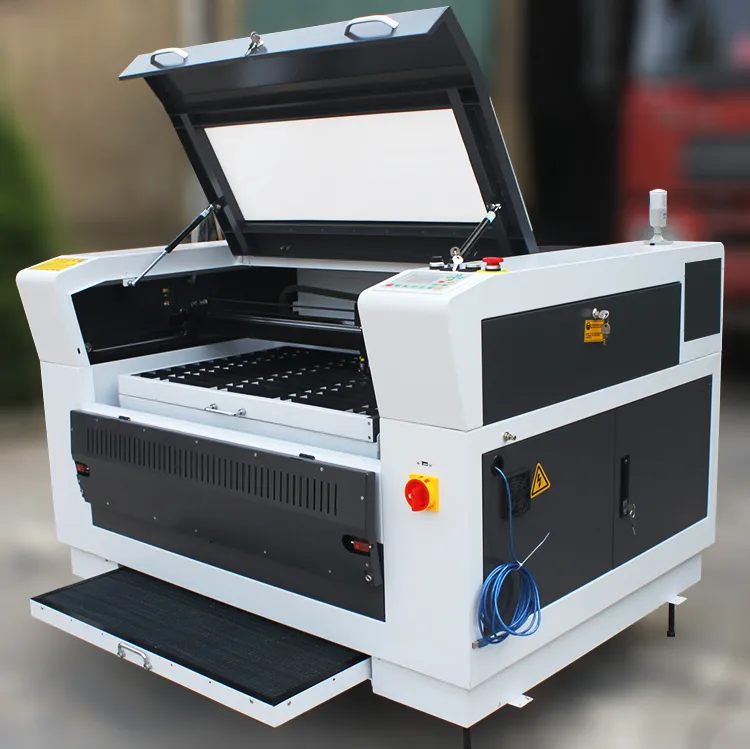

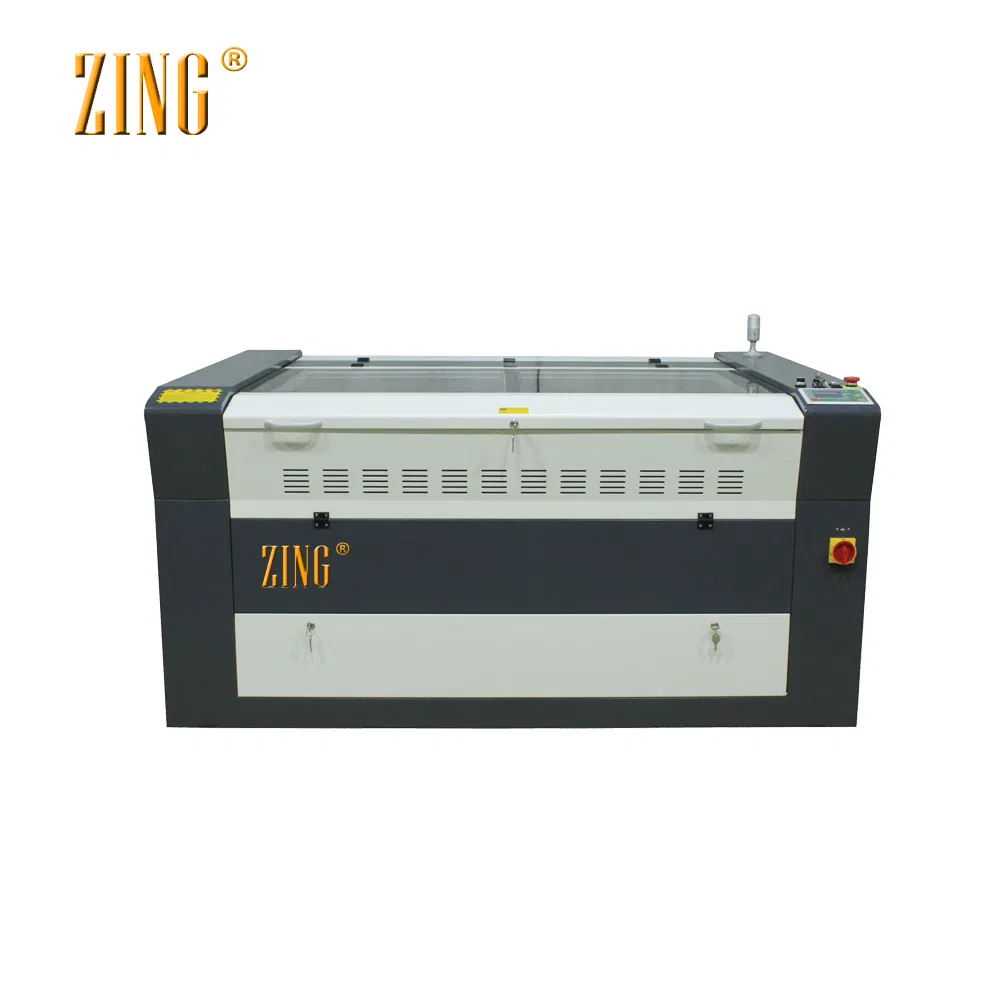

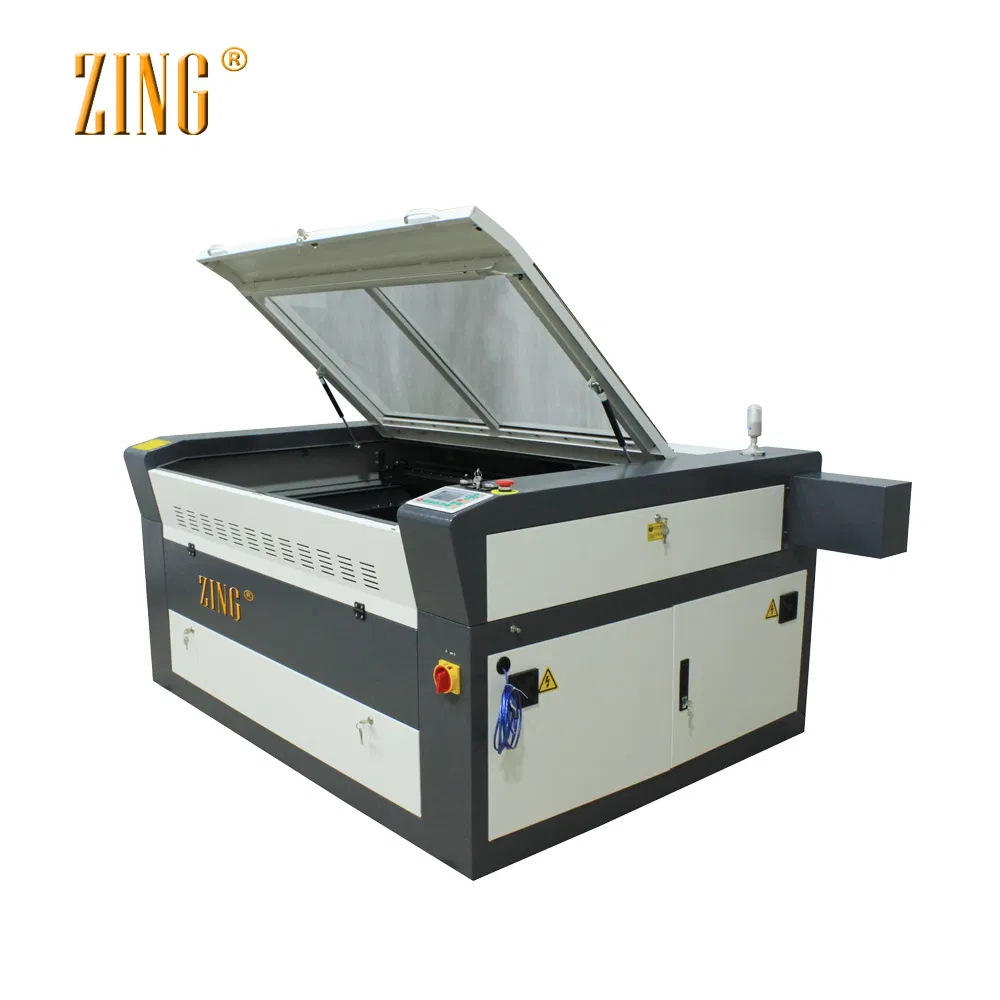

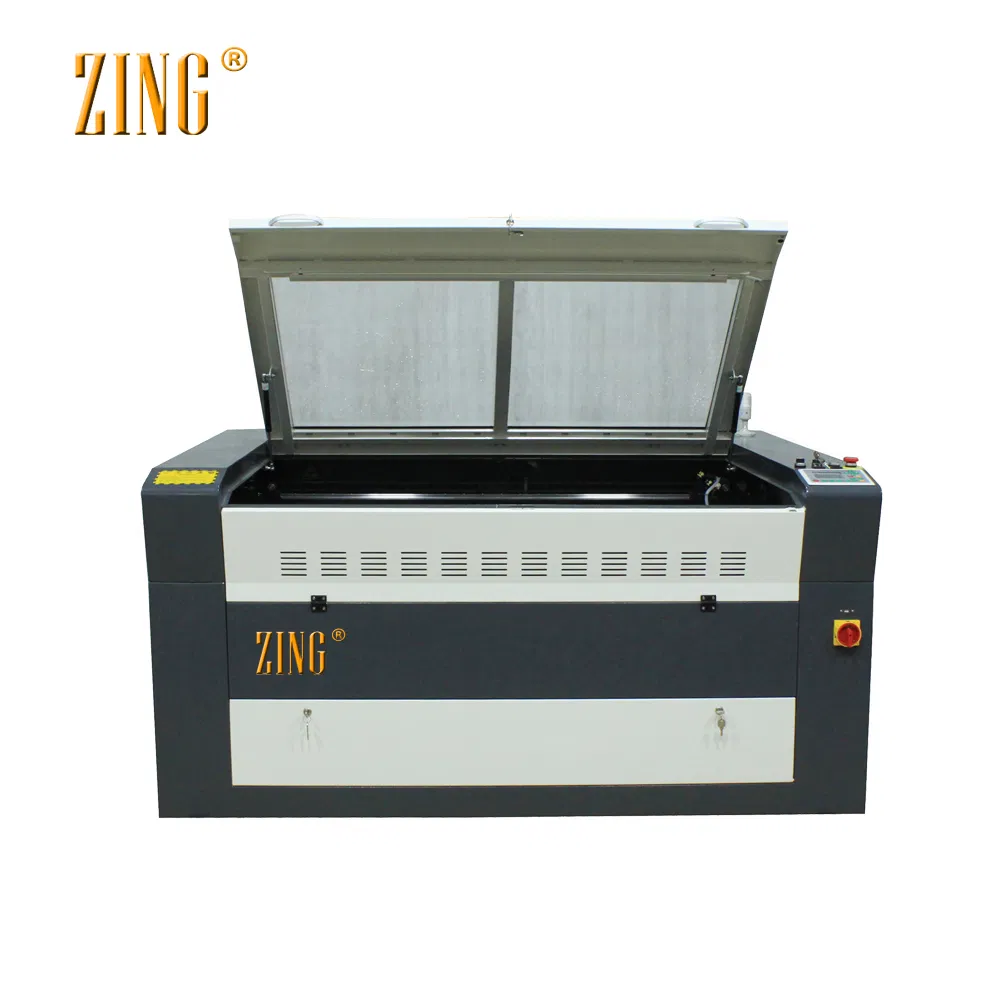

Metal and Nonmetal CO2 1390 1610 Cutting Laser Machine for Wood MDF Plastic Acrylic Plywood Plastic PVC
Product DescriptionTechnical Parameter Products modelZ6040Z9060Z1390Working area600x400mm900x600mm1300x900mmLaser TypesHermetic And Detached CO2 Laser TubeEngraving speed0-75,000mm/minCutting speed0-40,000mm/minLocation precision≤0.01mmResetting positioning accuracy≤0.01mm Power supply......
Send Inquiry
Product Description
Products model | Z6040 | Z9060 | Z1390 |
Working area | 600x400mm | 900x600mm | 1300x900mm |
Laser Types | Hermetic And Detached CO2 Laser Tube | ||
Engraving speed | 0-75,000mm/min | ||
Cutting speed | 0-40,000mm/min | ||
Location precision | ≤0.01mm | ||
Resetting positioning accuracy | ≤0.01mm | ||
Power supply | AC 220V/50~60Hz (110V is optional) | ||
Gross power | <1,000W | ||
Operating temperature | 0 - 45° | ||
Operating humidity | 5 - 95% | ||
Minimum shaping character | English 1×1mm | ||
360°slope engrave | YES | ||
Motors driving system | Stepper (servo is optional) | ||
Cooling mode | Water-cooling and protection system | ||
Operating system | Windows XP, VISTA, Windows7, Windows8 | ||
Software | RDWorksV8(compatible with CorelDraw, AutoCad, Illustrator, PS) | ||
Graphic format supported | DXF,AI,PLT,DST,DSB,CDR,BMP,JPG,GIF,PNG,MNG etc | ||

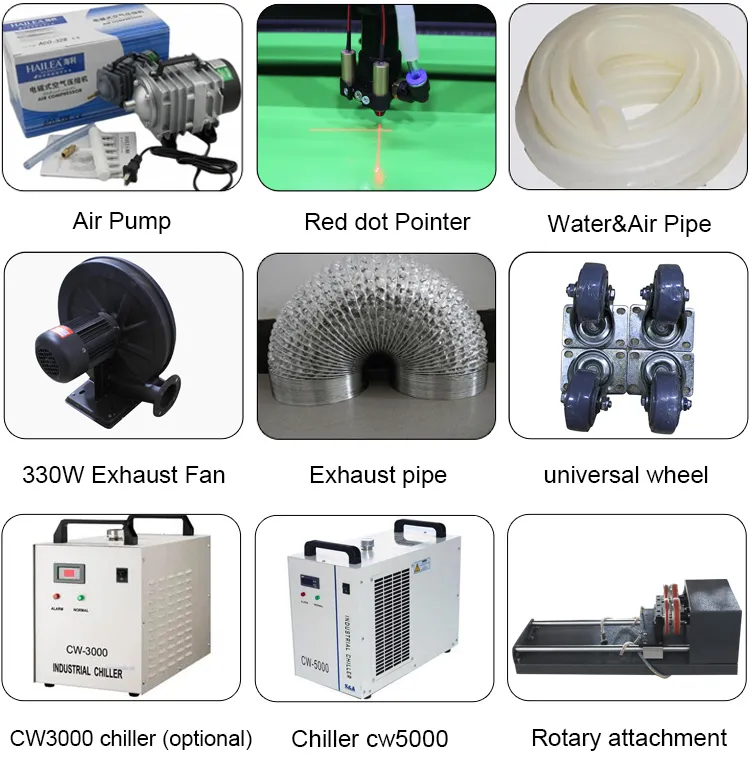

Standard accessories | Water pump, air pump, exhaust fan, water pump | ||
Optional parts | Electrical up/down table, rotary clamp, red light pointer, water chiller | ||
Model | Machine size(L*W*H) | Packing size(L*W*H) |
Z6040 | 1460*810*900mm | 1600*950*1100 |
Z9060 | 1710*1010*900mm | 1900*1250*1100 |
Z1390 | 1760*1310*900mm | 1950*1950*1100 |
|
- We have a lot of experience with CNC Machinery.
- Not only do we design and sell machinery we also have real experience in the cutting business so naturally we have gained the knowledge necessary to give you tips on edging, engraving and cutting all types of materials.
- Our machines are made with high-end materials that are efficient and durable.
- We can teach you how to master your machine, from importing a design to cutting and/or engraving on your desired material.
- We will provide all the necessary training needed to ensure your machine never stops working.
| 1. Guarantee for 3 years. |
| 2. Maintenance free of charge for 3 years . |
| 3. We will provide the consumable parts at an agency price. |
| 4. 24 hours online service, free technical support. |
| 5. Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me. |
| 6. We have manual instruction and CD (Guiding Videos) for software Installation, operation and machine's using and maintenance. |
Q1: I knew nothing about this machine, what kind of machine i should choose?
Very easy to choose. Just tell us what you want to do by using CNC laser machine, then let us give you perfect solutions and suggestions.
Q2: When I got this machine, but I don't know how to use it. What should I do?
We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail.
Q3: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
Q4: Before sending me an inquiry on our cnc laser, it is better for you to provide me the following information

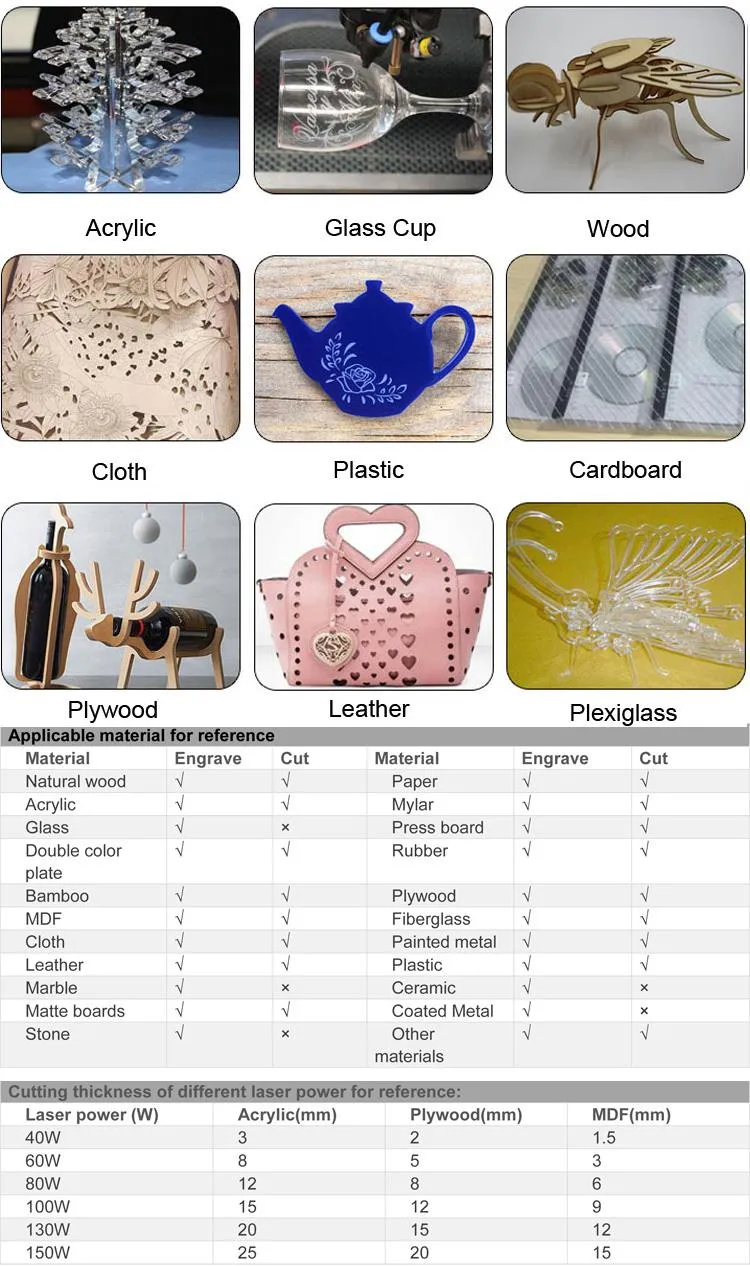

1)Your metal or non-metal material size. Because in our factory, we have different models according to working area.
2)Your materials.
Metal/Acrylic/plywood/MDF?
3)You want to engrave or cut?
If cut, could you tell me your cutting thickness? Because different cutting thickness need different laser tube power and laser power supplier.
