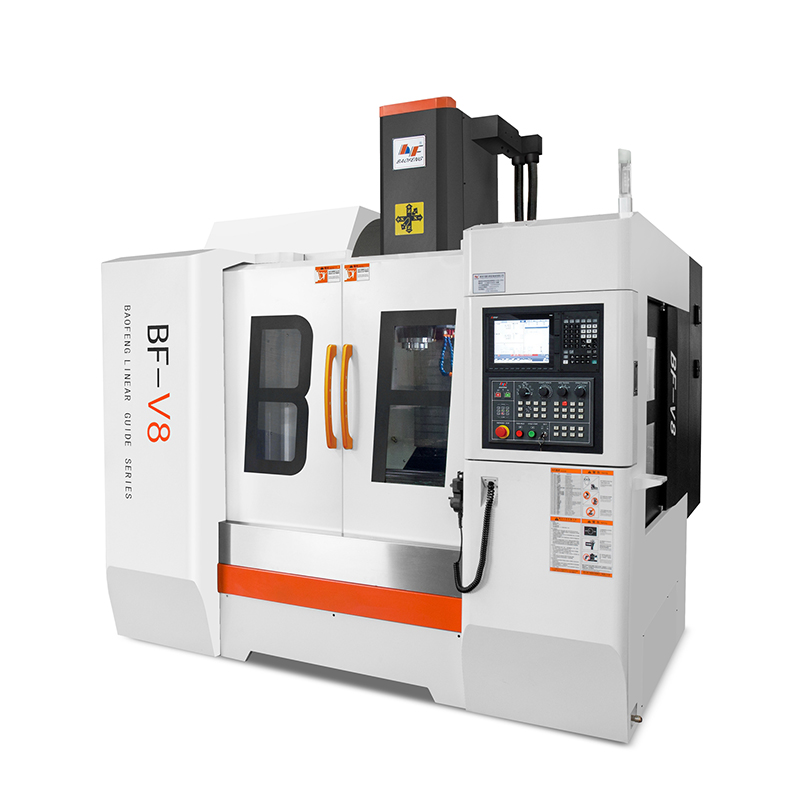

5 Axis Vertical Machining Center Bf- V8
Specification SpecificationUnitBF-V8X/Y/Z axis travelmm800×550×500Table sizemm900×500T-slotmm5-18×100Max load on tablekg600Sindle center to columnmm570Sindle nose to tablemm130-680X/Y/Z axis motorkw2.0/2.0/3.0X/Y/Z axis rapid feedm/min48/48/48ControllerMITSUBI......
Send Inquiry
Product Description
| Specification | Unit | BF-V8 |
| X/Y/Z axis travel | mm | 800×550×500 |
| Table size | mm | 900×500 |
| T-slot | mm | 5-18×100 |
| Max load on table | kg | 600 |
| Sindle center to column | mm | 570 |
| Sindle nose to table | mm | 130-680 |
| X/Y/Z axis motor | kw | 2.0/2.0/3.0 |
| X/Y/Z axis rapid feed | m/min | 48/48/48 |
| Controller | MITSUBISHI:M80 / FANUC:Oi-MF PLUS | |
| Spindle type | Direct drive BBT40-Φ140 | |
| Spiondle speed | rmp | 12000 |
| Positioning accuracy | kw | ±0.003/300 |
| Repeated positioning | mm | ±0.002/300 |
| Air pressure | kg/cm² | 6~7bar |
| Dimension | mm | 2600×2750×3030 |
| Weigh | kg | 5100 |
High precision and high efficiency series

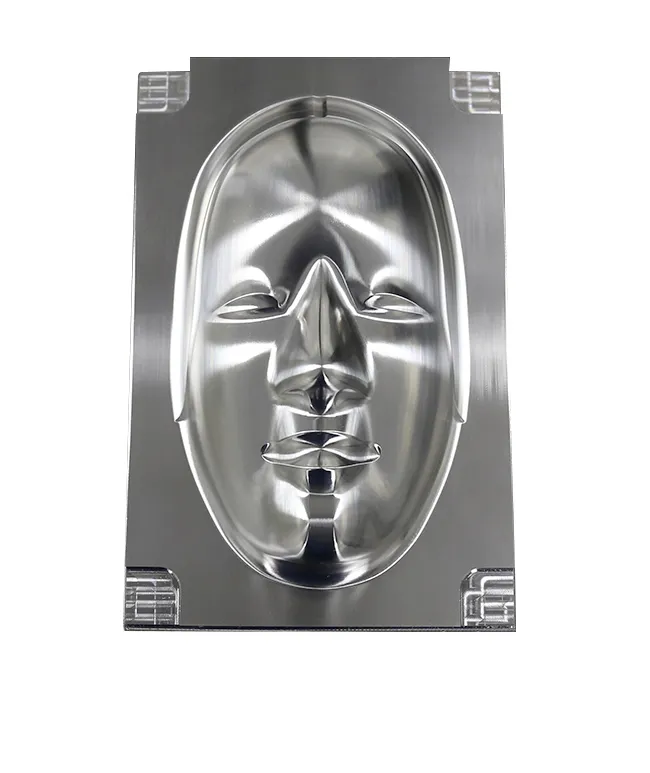

High speed high precision VMC for molds processing

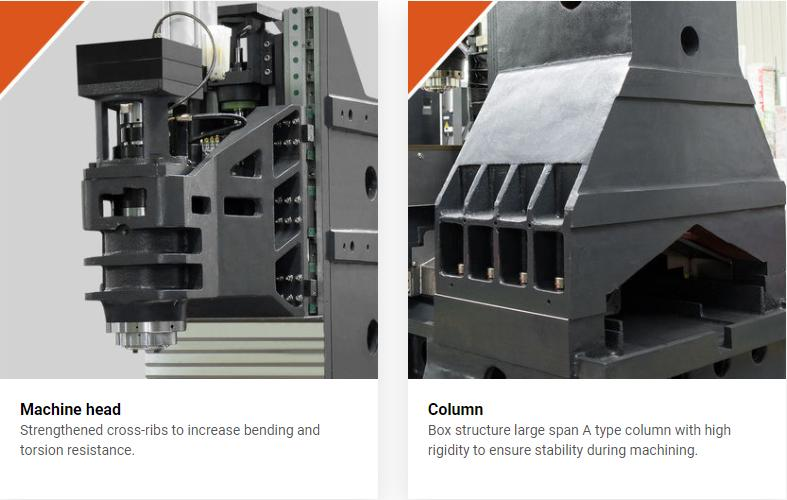

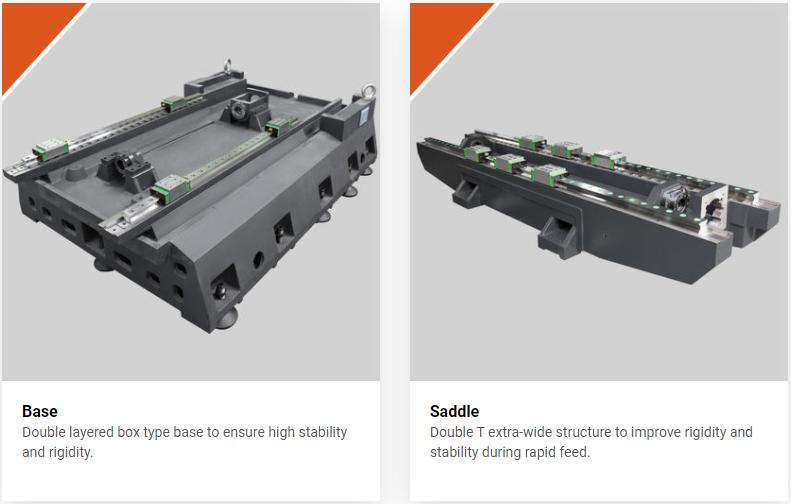

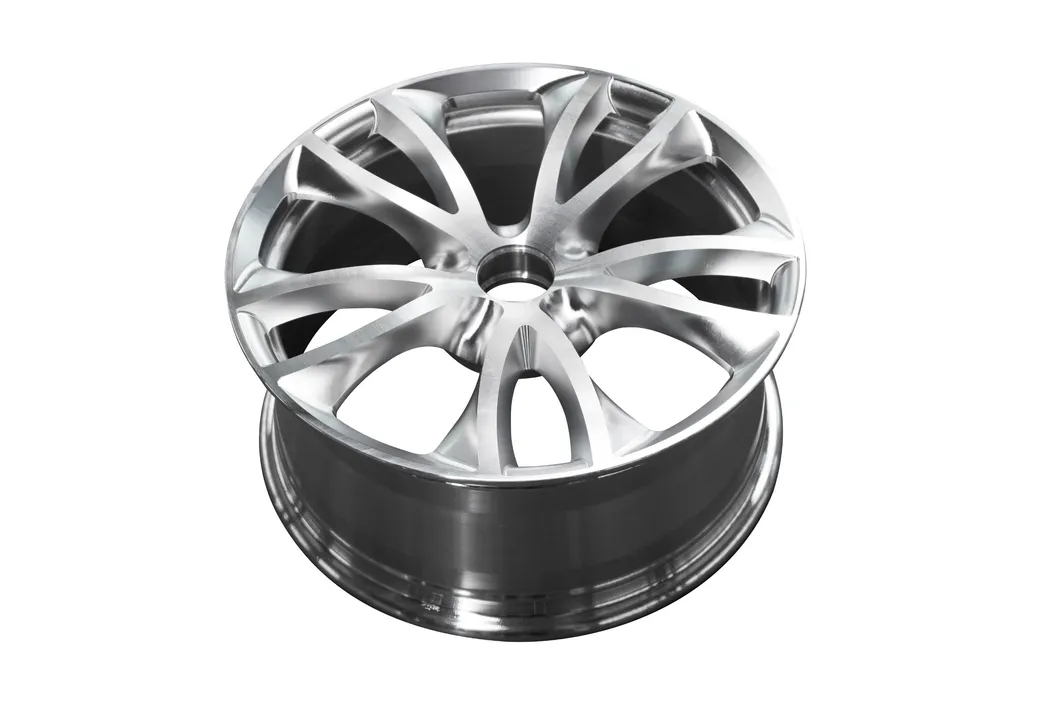

Based on BAOFENG's innovative technology, BF-850V is specialized in high precision molds manufacturing industry. Designed with super rigidity structure and X/Y/Z axis high precision linear guideway and ball screw with locking pretension design, BF-850V could provide you with fast, strong, stable machining performance, which made it applicable to the high precision component machining and die-&-mold machining. It is broadly used in the industry of automobiles, machinery, instrumentation, light industrial textiles, electronic instruments, can fully present high precision and high-efficiency machining ability at a very reasonable cost.

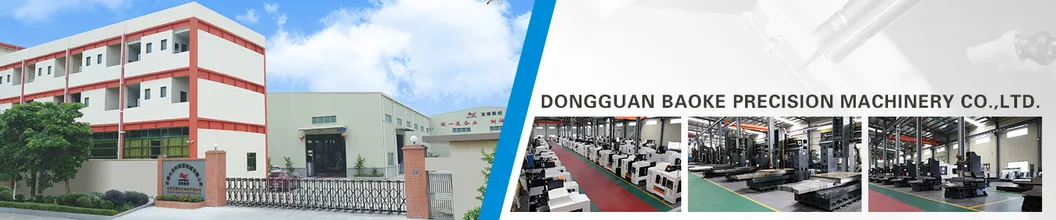

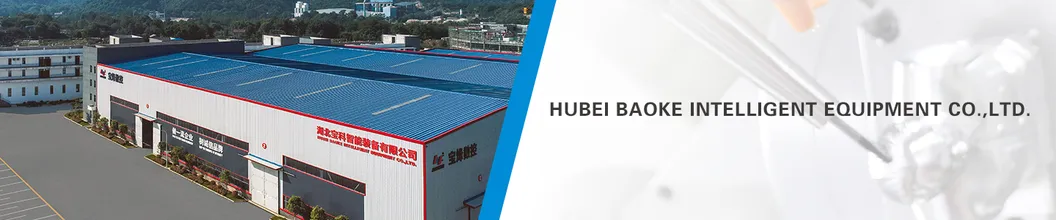

Dongguan Baoke Precision Machinery Co, Ltd is co-founded byTaiwan Baofeng and elites in Mainland China who engages in developing, manufacturing, selling and service of CNC machine centers. Our mainland manufacturing base is established in 2002, Baofeng has become a leading company for high-end machine center manufacturer in china as well as an integrated intelligent solution provider.

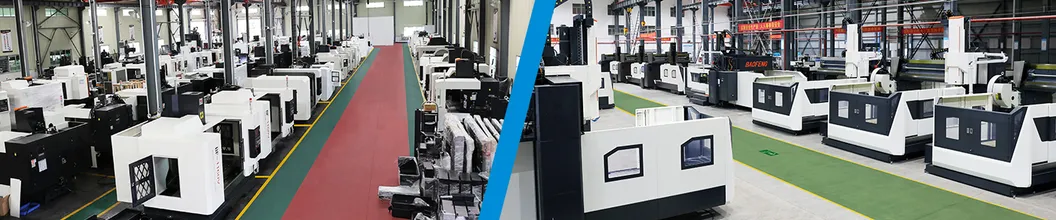

We have 3 factories and we mainly produce various vertical machining center (near guideway and square guideway), high speed engraving and milling machine, double column machining center and CNC tapping center.
At present, Baofeng has complete sales and after-sales service team across the country, but we try to bring our philosophy to the world and become strong and competitive global player. We are now looking for partners overseas to build our dealers network and the same time preparing our local representative office.
