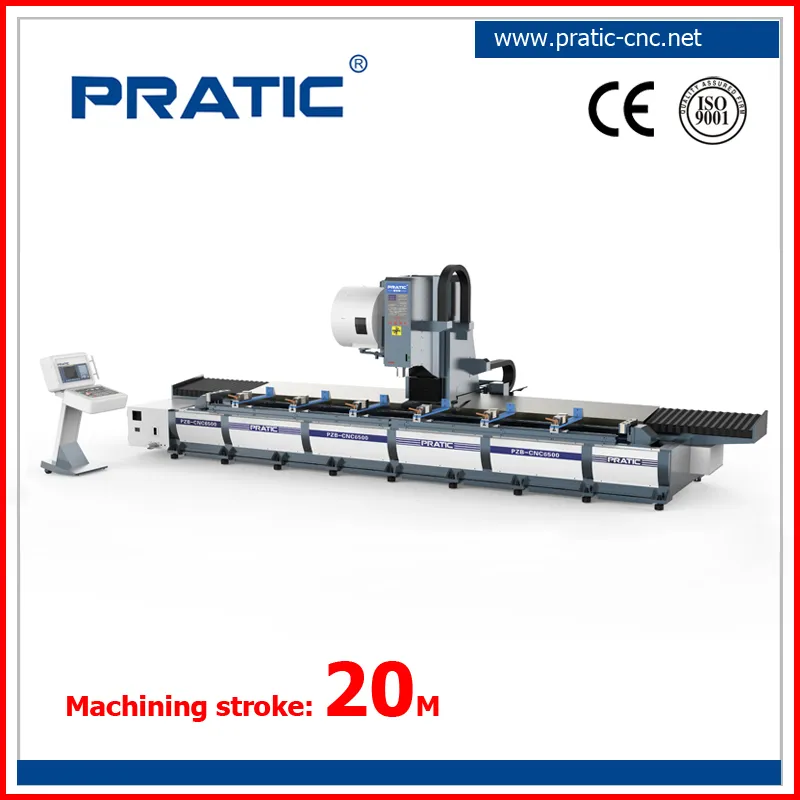

CNC High Speed Curtain Wall Milling Machining Center
Mode:PZB-CNC4500 , Advantages of the mchine:1. Optional accessories for Double head machining center.2. Provided the fourth axis 180 degree rotation processing.3. Humanized single arm design are more convenience for upload and download the workpiece.4. The lathe can be HT250 casting or Q235 welding.......
Send Inquiry
Product Description
Mode:
PZB-CNC4500
,
Advantages of the mchine:
1. Optional accessories for Double head machining center.
2. Provided the fourth axis 180 degree rotation processing.
3. Humanized single arm design are more convenience for upload and download the workpiece.
4. The lathe can be HT250 casting or Q235 welding.
5. Applicable to various lengths of profiles, pvc and thin steel procession.
Application
PZ series CNC Profile Machining Center with multiple functions of drilling, milling, tapping,
chamfering .There are suitable for Achitecture Industry , Aerospcae square parts Industry ,
like Tent-hall , Curtain wall, seat track ,etc.
Technical Data
Our PRATIC:
PRATIC CNC Science & Technology Co., Ltd. is a reputable manufacturer from China that specializes in CNC machining center and automatic machinery. Our products cover a wide range of CNC machining centers for an effective metal machining. Diverse materials from aluminum,steel, composites to plastics can be machined precisely, productively and economically on the milling machines from PRATIC.
FAQ:
1.Q: How is the delivery?
A:For standard configuration, it's usually 30 days after down payment.
2.Q:How is the after-sales service?
A: Our products has one year warranty, and a strong team of engineers to support after-sales service.
3.Q:Are you a trading company or manufacture?
A: PRATIC is a professional manufacturer, and your order will be controlled from very beginning to the last.
solution suppiler:
PRATIC CCNC SCIENCE & TECHNOLOGY CO,.LTD
Website: pratic-cnc.en.made-in-china.com
Welcome to inquire and visit our company!
We are looking forward to serving you!
PZB-CNC4500
,
Advantages of the mchine:
1. Optional accessories for Double head machining center.
2. Provided the fourth axis 180 degree rotation processing.
3. Humanized single arm design are more convenience for upload and download the workpiece.
4. The lathe can be HT250 casting or Q235 welding.
5. Applicable to various lengths of profiles, pvc and thin steel procession.
Application
PZ series CNC Profile Machining Center with multiple functions of drilling, milling, tapping,
chamfering .There are suitable for Achitecture Industry , Aerospcae square parts Industry ,
like Tent-hall , Curtain wall, seat track ,etc.
Technical Data
| ITEM | SPECIFICATION |
| X/Y/Z Travel | 4500 / 450 /330 mm |
| Fixture clamping range | 0-400 mm |
| Spindle speed | 12000/15000 rpm (Mechanical Spindle ) |
| Spindle taper | BT40 |
| Tool Magazine | 24T Arm-type |
| Tool change time | 2 sec |
| X/Y/Z moving speed | 60/28/28 m/min |
| Position precision of X/Y/Z | ±0.05/±0.02/±0.01 mm |
| Power of spindle driven motor | 5.5 KW |
| Lubricating system | Automatic grease lubrication device |
| Cooling system | Spraying cooling |
| Operation system | FANUC/MITSUBISHI |
Our PRATIC:
PRATIC CNC Science & Technology Co., Ltd. is a reputable manufacturer from China that specializes in CNC machining center and automatic machinery. Our products cover a wide range of CNC machining centers for an effective metal machining. Diverse materials from aluminum,steel, composites to plastics can be machined precisely, productively and economically on the milling machines from PRATIC.
FAQ:
1.Q: How is the delivery?
A:For standard configuration, it's usually 30 days after down payment.
2.Q:How is the after-sales service?
A: Our products has one year warranty, and a strong team of engineers to support after-sales service.
3.Q:Are you a trading company or manufacture?
A: PRATIC is a professional manufacturer, and your order will be controlled from very beginning to the last.
solution suppiler:
PRATIC CCNC SCIENCE & TECHNOLOGY CO,.LTD
Website: pratic-cnc.en.made-in-china.com
Welcome to inquire and visit our company!
We are looking forward to serving you!
