Product Description

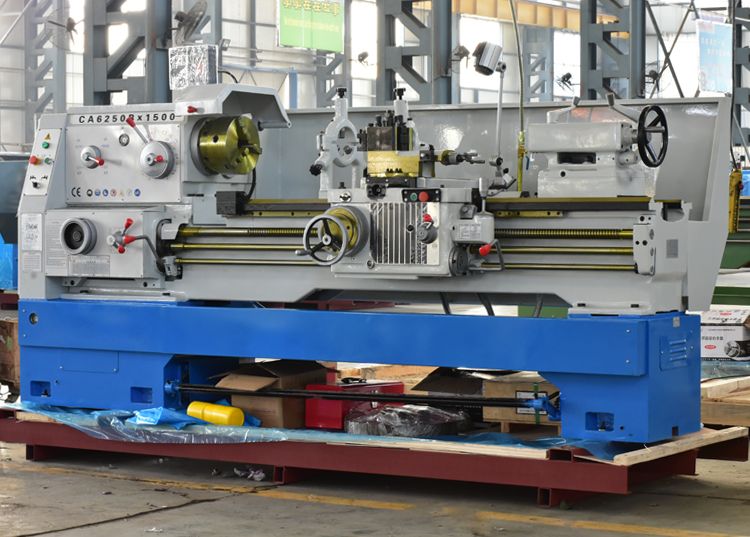

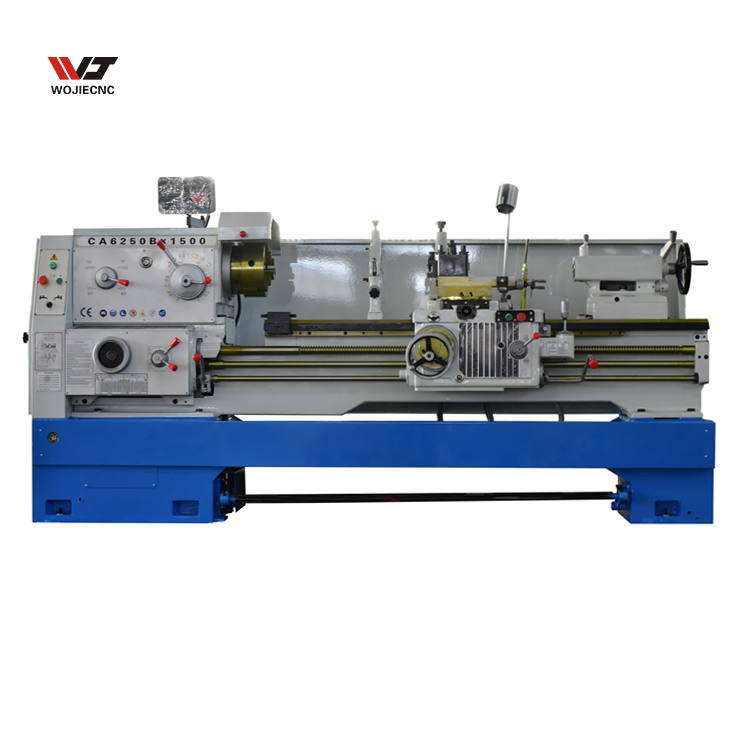

CA6140 CA6150 CA6160 Horizontal parallel manual universal metal lathe machine
Product Application
1 Machine tool head box and bed, tailstock, Supporting plate, etc. the combination of surface between manual scraping, machine to undergo a rigorous inspection, effectively ensure the machine tool accuracy and stability.
2 Machine adopts high strength cast iron, copper and chromium special materials are added, the bed width 400mm, bed rail quenching depth up to 4mm, effectively improves the agreeability and stability of the machine.
3 The machine tool bed head box lubrication uses the pump to carry on the circulation forced lubrication, in view of the south hot weather, has guaranteed the bed head box cleanliness and the heat radiation characteristic, has effectively extended the bearing and gear's service life.

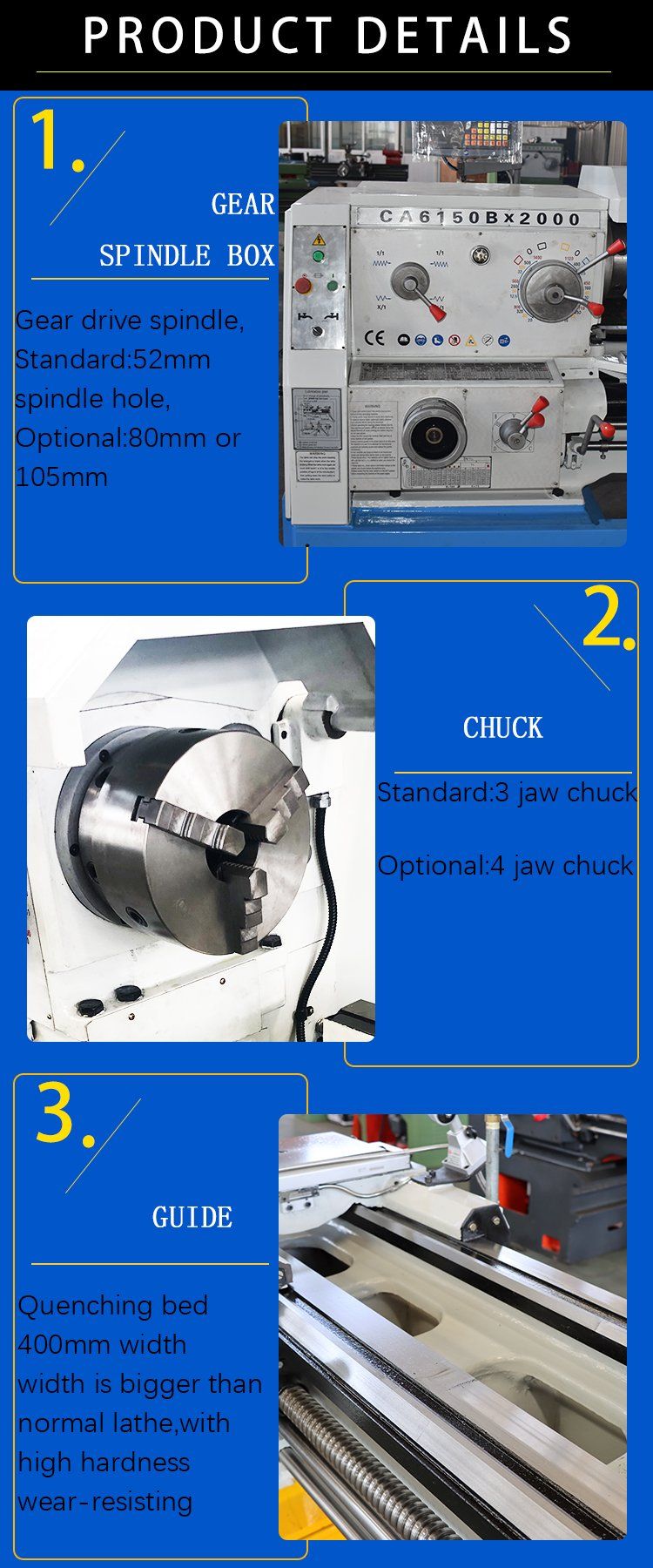

4 Wafangdian Bearing is used in machine tool spindle, the spindle through hole diameter 80mm, machine tool gear with precision grinding, can effectively improve the hardness of the gears, to reduce noise of the machine.
5 Machine tool uses the domestic brand lead screw, the silk mother uses the high quality bronze alloy to guarantee the
wear-resisting property and the precision maintenance.
6 The machine adopts high strength four station turret shank size: 25x25mm
Product main technical specifications:
Type | CA6140 CA6240 | CA6150 CA6250 | CA6161 CA6261 | CA6166 CA6266 | CA6180 CA6280 |
Max. swing over bed | 400mm | 500mm | 610mm | 660mm | 800mm |
Max. swing over carriage | 210mm | 300mm | 370mm | 400mm | 540mm |
Max. swing in gap | 630mm | 720mm | 830mm | 880mm | 1020mm |
Max. effective length in gap | 210mm | ||||
Max. length of workpiece | 750/1000/1500/2000/2200/3000/4000mm | ||||
Width of bed | 400mm | ||||
Section of turning tool | 25×25 mm | ||||
Main spindle motor | 7.5kw(10HP) | ||||
Spindle | |||||
Spindle speed | 16--1400rpm(24step) | ||||
Spindle bore | 52mm (80mm),(105mm) | ||||
Spindle taper | No.6(MT6)(Φ90 1:20)[Φ113:20] | ||||
Feed | |||||
NO. of feed | (64 kinds)(for each) | ||||
Range of metric threads | (1-192mm) (44 kinds) | ||||
Range of inch threads | (1-24tpi) (21kinds) | ||||
Range of module threads | 0.25-48 (module 39 kinds) | ||||
Range of diametral pitch threads | 1-96DP (37 kinds) | ||||

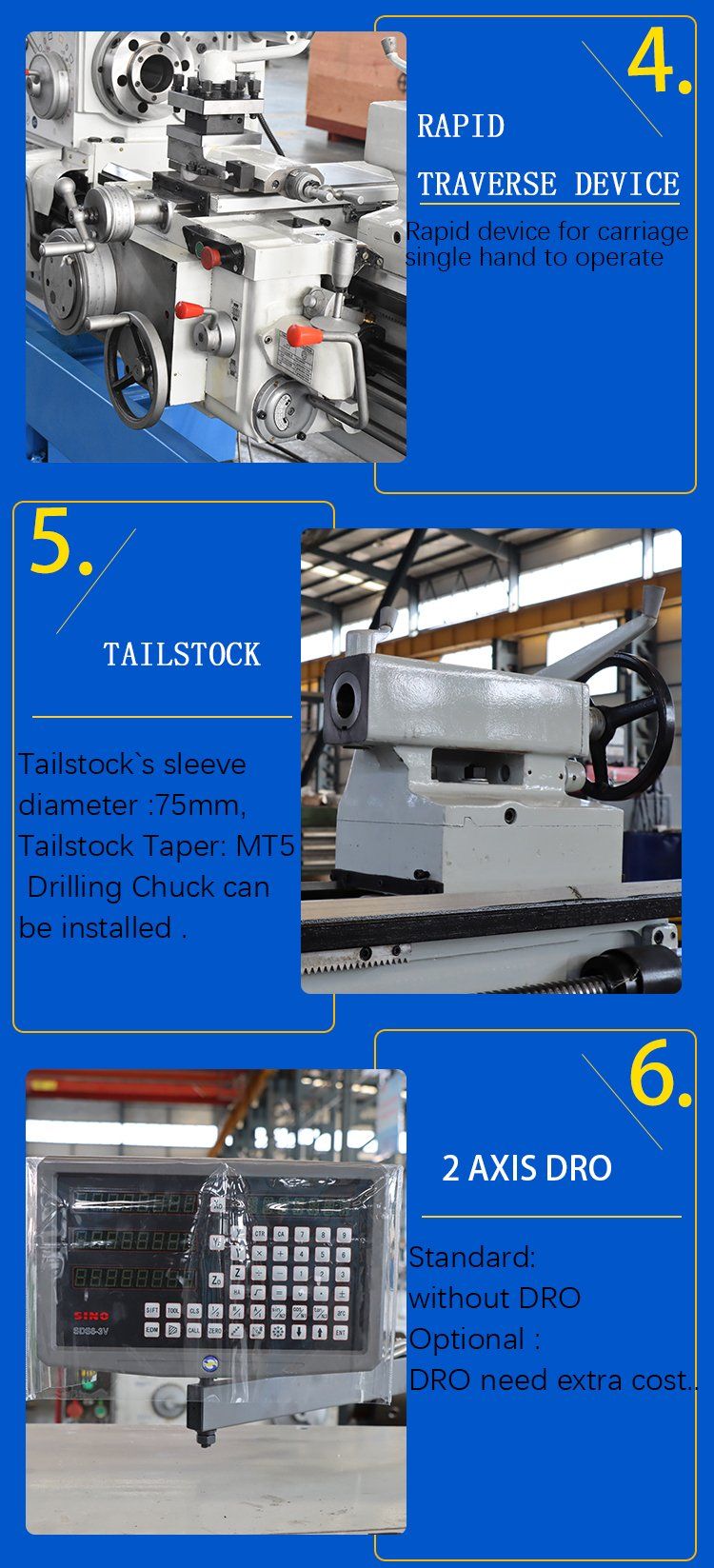

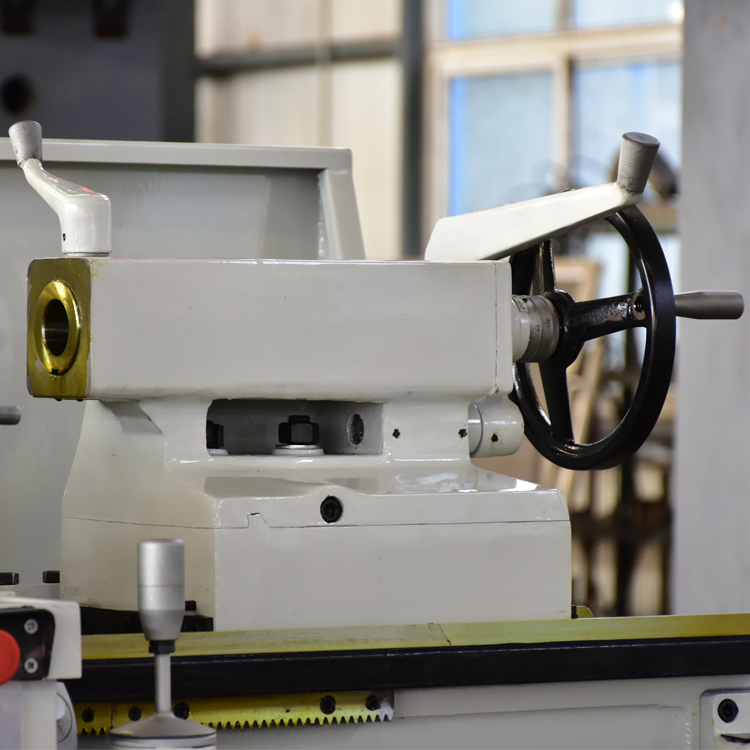

Tailstock | |||||
Max. tailstock spindle travel | 150mm | ||||
Tailstock spindle diameter | 75mm | ||||
Taper of tailstock spindle centre hole | 1-96DP (37 kinds) | ||||
Packing dimensions (L*W*H) | |||||

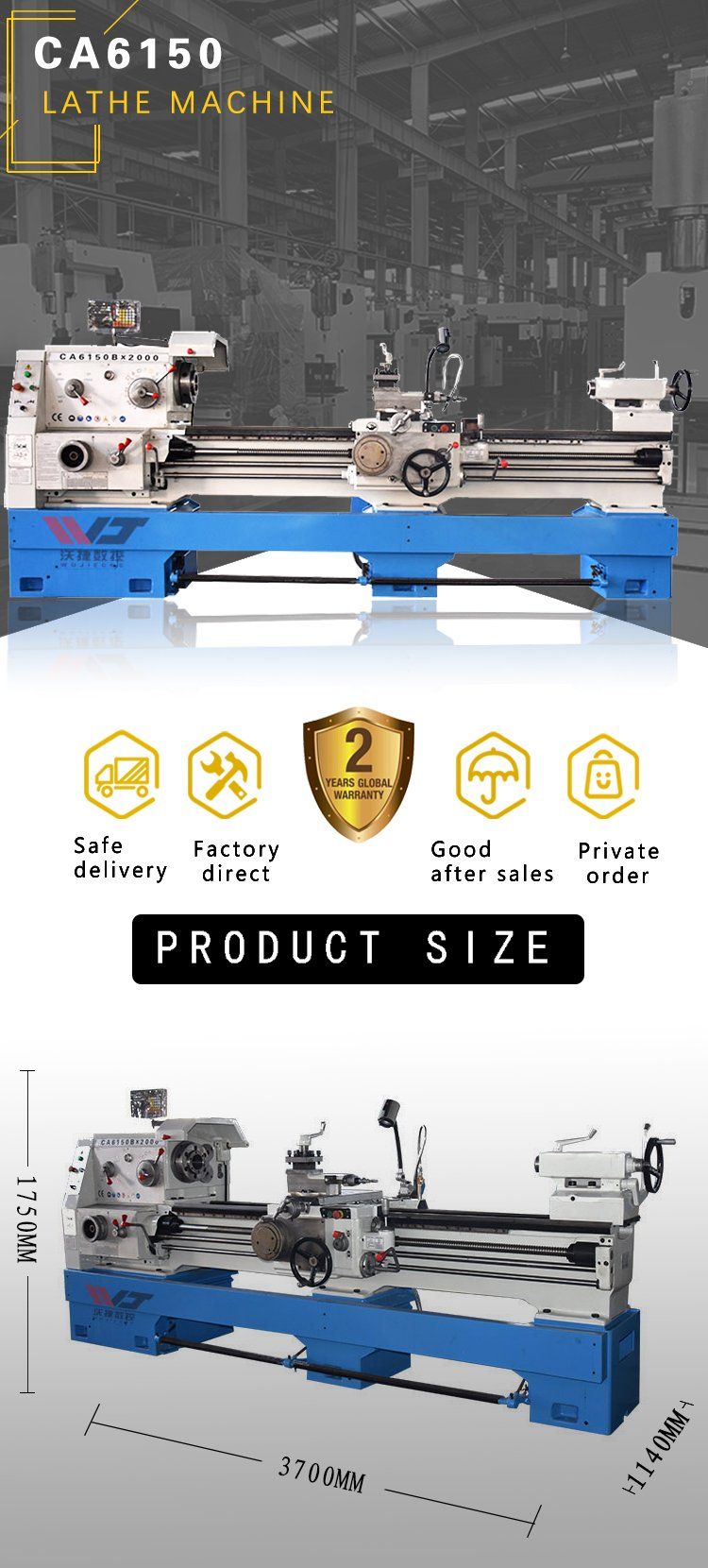

Overall dimensions for 750mm | 2440×1140×1750mm | ||||
Overall dimensions for 1000mm | 2700×1140×1750mm | ||||
Overall dimensions for 1500mm | 3200×1140×1750mm | ||||
Overall dimensions for 2000mm | 3700×1140×1750mm | ||||
Overall dimensions for 2200mm | 4030×1140×1750mm | ||||
Overall dimensions for 3000mm | 4800×1140×1750mm | ||||
Overall dimensions for 4000mm | 5680×1140×1750mm | ||||
Weight (kg) | |||||
Overall dimensions for 750mm | 2100 | 2170 | 2300 | 2400 | 2520 |
Overall dimensions for 1000mm | 2200 | 2260 | 2380 | 2580 | 2720 |
Overall dimensions for 1500mm | 2380 | 2450 | 2577 | 2830 | 3000 |
Overall dimensions for 2000mm | 2750 | 2800 | 3000 | 3050 | 3300 |
Overall dimensions for 2200mm | 2800 | 3000 | 3150 | 3400 | 3500 |
Overall dimensions for 3000mm | 3300 | 3500 | 3600 | 4000 | 4220 |
Overall dimensions for 4000mm | 3500 | 3800 | 3950 | 4600 | 4900 |
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
