Good Quality Tck50A CNC Slant Lathe
Slant Bed CNC LatheSlant bed and Linear guide way CNC latheThe machine is The machine is suitable to process all kinds of small and middle-sized shaft and plate work piece, and could also turn various threads, circle arc, circular cone, inside and outside surface of revolved body. This machine is wi......
Send Inquiry
Product Description

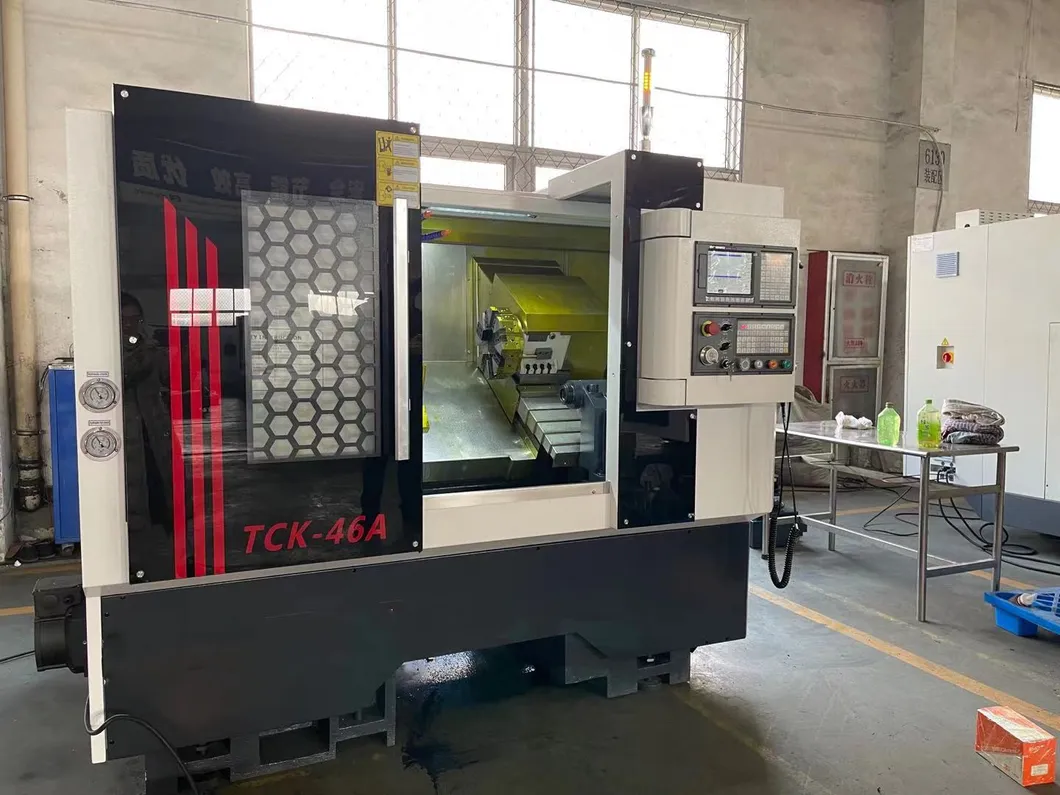

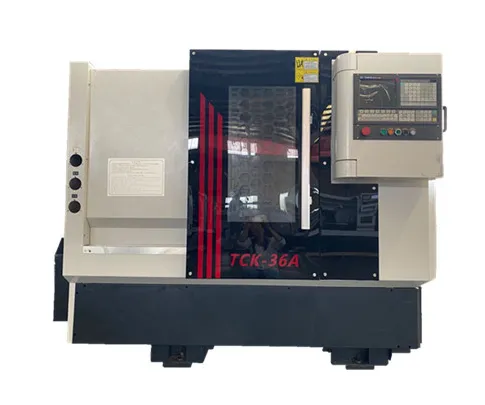

Slant Bed CNC Lathe
Slant bed and Linear guide way CNC lathe
The machine is The machine is suitable to process all kinds of small and middle-sized shaft and plate work piece, and could also turn various threads, circle arc, circular cone, inside and outside surface of revolved body. This machine is widely used in sanitary, valve, electrical appliance, instrument,automobile, motorcycle, bearings and so on
Taiwan linear guideways
Higher speed spindle unit,
Optional homemade spindle
Higher rigidity cast iron
Integrated automatic lubrication

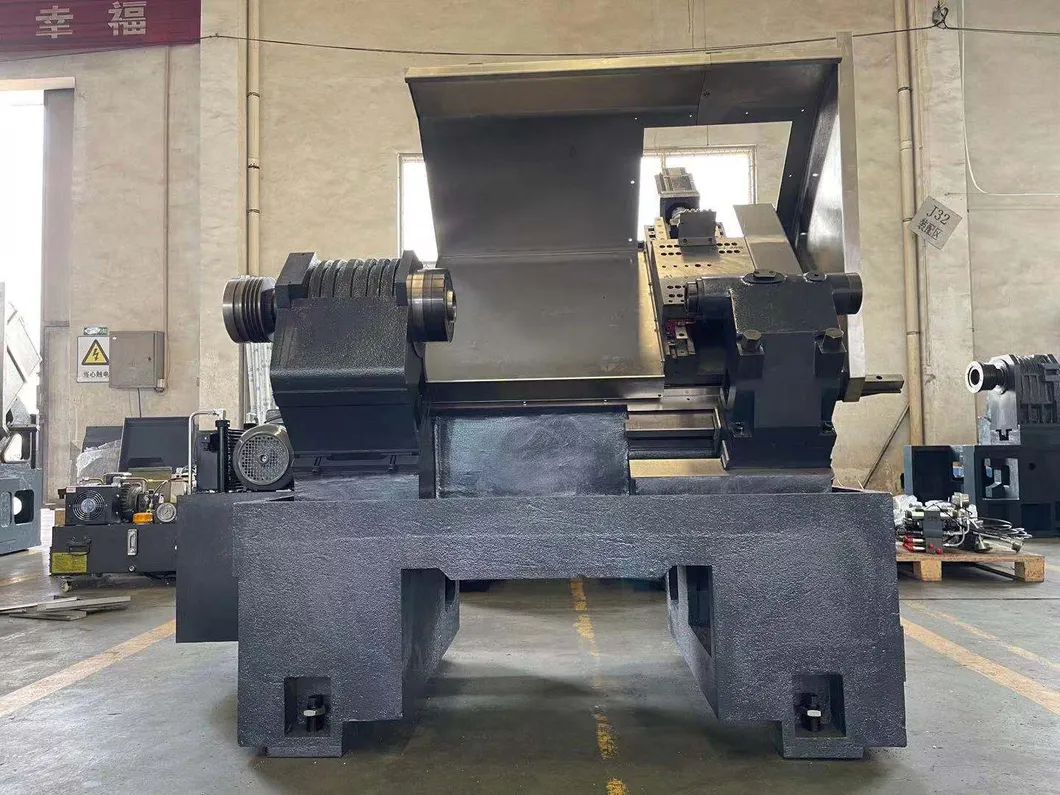

One-piece Casting slant bed CNC lathe
PRODUCT SPECIFICATIONS
Specifications | Units | TCK50A |
Max. Swing over bed | mm | Θ560 |
Max.Swing over cross slide | mm | Θ260 |
Max.processing length | mm | 350/500 |
Spindle Unit | mm | Θ200 |
Spindle nose | A2-6 | |
Spindle bore | mm | Θ66 |
Spindle speed | rpm | 3000 |
Spindle motor | kw | 7.5/10 |
Bar Capacity | mm | Θ55 |
The X/Z axis screw specifications | 3210/4010 | |
The X-axis limit stroke | mm | 240 |
The Z axis stroke limit | mm | 400/500 |
The X axis motor torque | Nm. | 7.5/10 |
The Z Axis motor torque | Nm. | 7.5/10 |
X/Z Axis repeating | mm | ±0.003 |
Tool Turret | 100-8T/12T | |
Turret center height | mm | 100 |
Tailstock quill dia. | mm | Θ70 |
Quill traverse | mm | 80 |
Quill taper | # | MT5 |
Tail Stock Travel | mm | 200/450 |
Total power capacity | kv | 5.5 |
Dimension (LxWxH) | mm | 2500x1700x1890/2600x1850x2000 |
Weight | kgs | 2800/3000 |

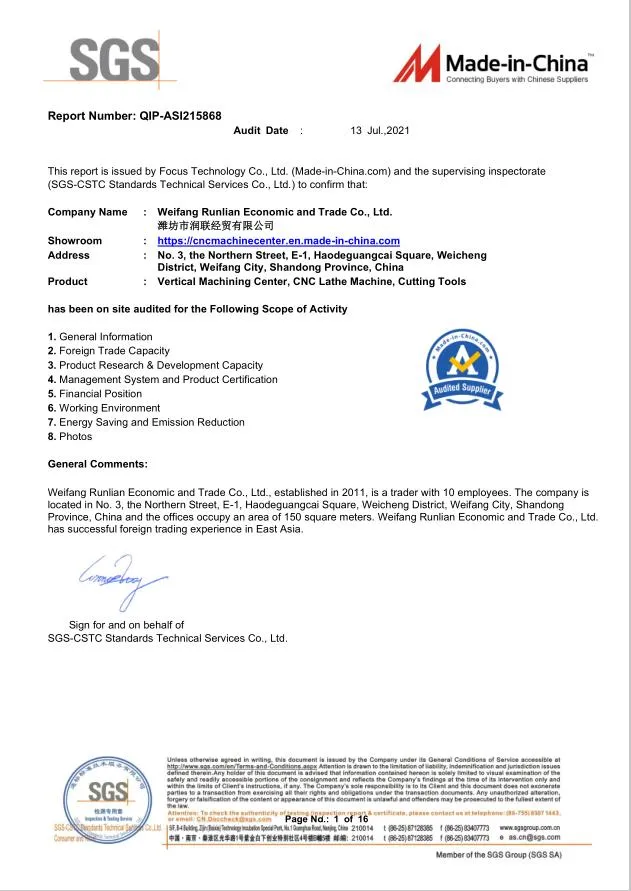

Weifang Runlian Economic and Trade Co., Ltd. was established in 2005. It has 15 years of experience in R&D and sales of lubricants series and engraving milling machine. It has a mature operating team and a professional technical R&D team. It has cooperated with more than 40 well-known enterprises in China. Fully trusted by our customers. In order of market demand and specific technical requirements, we are professional our lubricants series and CNC ,VMC,engraving milling machine, and directly provide high quality products and professional after-sales services for the manufacturing industry.
Company vision: become the first-class industrial service provider
Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Sharper machine and so on .
3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client's specifications requirements,it would be a little longer.
4.Where is our factory located? How can I visit there?
5. What is your trade terms?
FOB, CFR and CIF all acceptable.
6: What's the Payment Terms?
T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
7: What's the MOQ?
1 set .(Only some low cost machines will be more than 1 set ).
