China TCK6340 Horizontal metal high speed precision Slant Bed CNC Turning Lathe Machine

Product Description

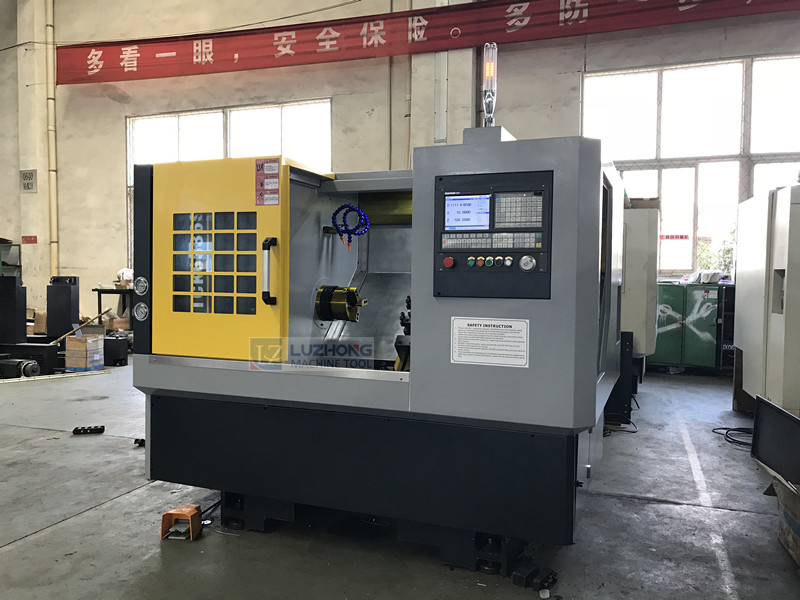

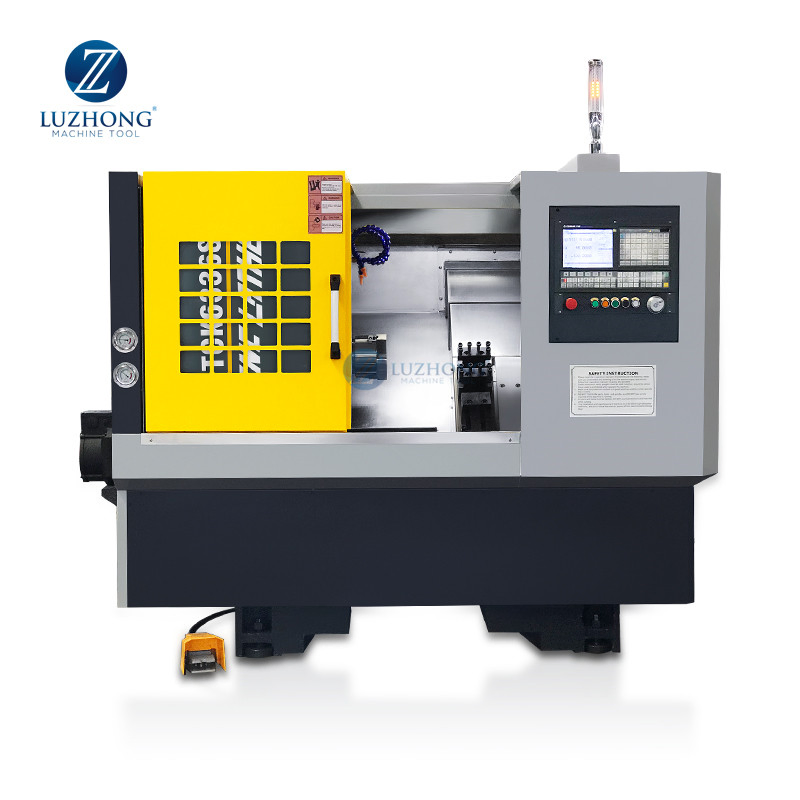

TCK6340 Horizontal metal high speed precision Slant Bed CNC Turning Lathe Machine

TCK6340 Horizontal metal high speed precision Slant Bed CNC Turning Lathe Machine

Application:
This machine is applicable to automobile, motorcycle, electronics, aerospace, military, oil and other industry. It could turn the conical surface, circular arc surface, end face of the rotary parts, could also turn various
metric and inch threads etc, with higher efficiency and higher precision in bulk.

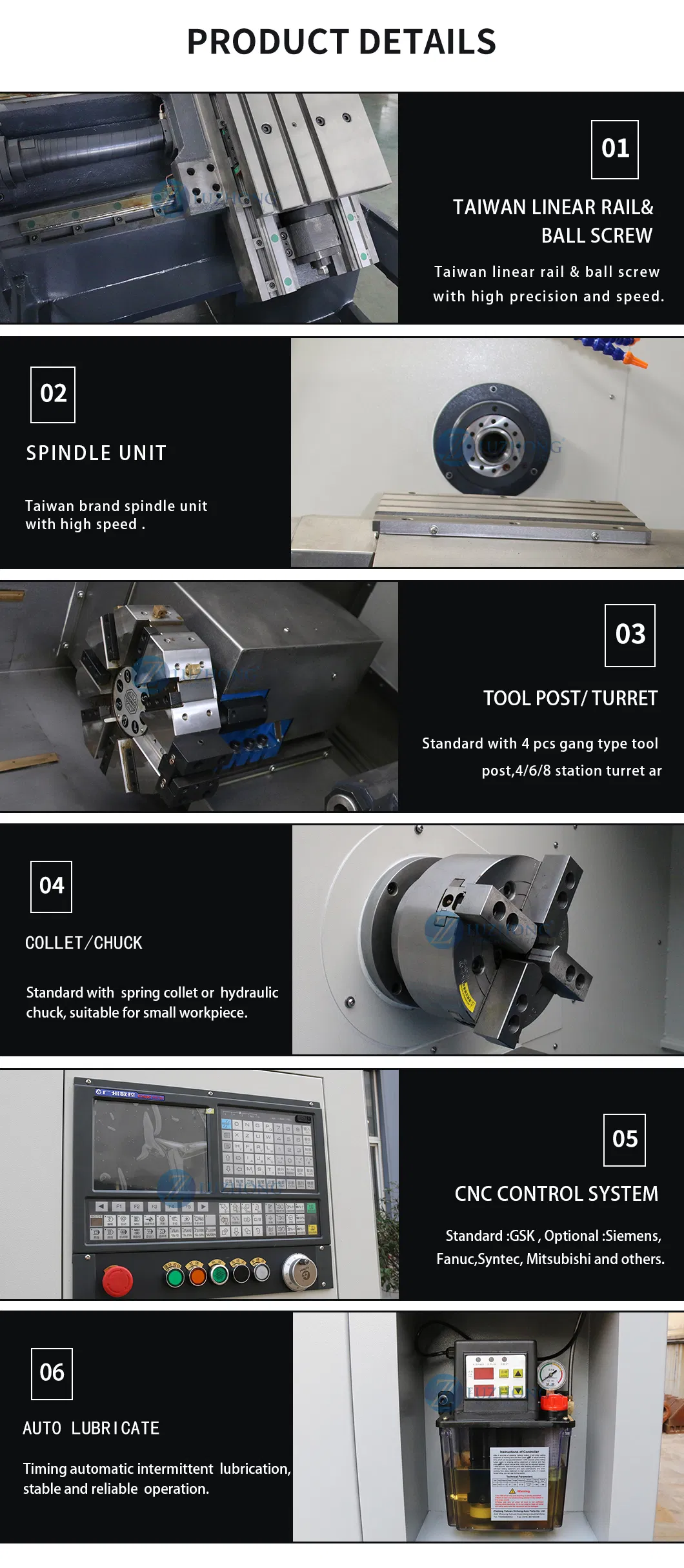

The main performance characteristics:
1.45 degrees slant bed CNC lathe
2.Higher accuracy Taiwan linear
3.Chip conveying capacity is large and convenient, customer could choose chip conveying in the front or in the back
4.Screw pre-stretching structure
5.Gang type tool post
Standard Accessories
Fanuc Oi Mate-TD control system
Servo motor 3.7 kw
4 station gang type tool post
8" non thru-hole type hydraulic chuck
Optional Accessories
Main Motor: Servo5.5/7.5KW , Inverter 7.5KW
Turret: 4 station electric turret ,6 station electric turret
Chuck:6″Non-through hole hydraulic chuck ,8″Non-through hole hydraulic chuck (Taiwan)
8″through hole hydraulic chuck(Taiwan)
Chip conveyor
Steady Rest
Other optional item: Driving tool turret, automatic
feeding device and manipulator.

Product main technical parameters:

Specification	Unit	TCK6340
Max. swing over bed	mm	400
Max. swing over cross slide	mm	140
Max. processing length	mm	300
X/Z axis travel	mm	380/350
Spindle unit	mm	170
Spindle nose		A2-5
Spindle bore	mm	56
Spindle drawing pipe diameter	mm	45
Spindle speed	rpm	3500
Chuck size	inch	6/8
Spindle motor	kw	5.5
X/Z repeatability	mm	±0.003
X/Z axis feed motor torque	N.m	6/6
X/Z rapid traverse	m/min	18/18
Tool post type		Gang type tool post
Cutting tool shape size	mm	20*20
Guide form		45° inclined guide rail
Total power capacity	kva	9/11

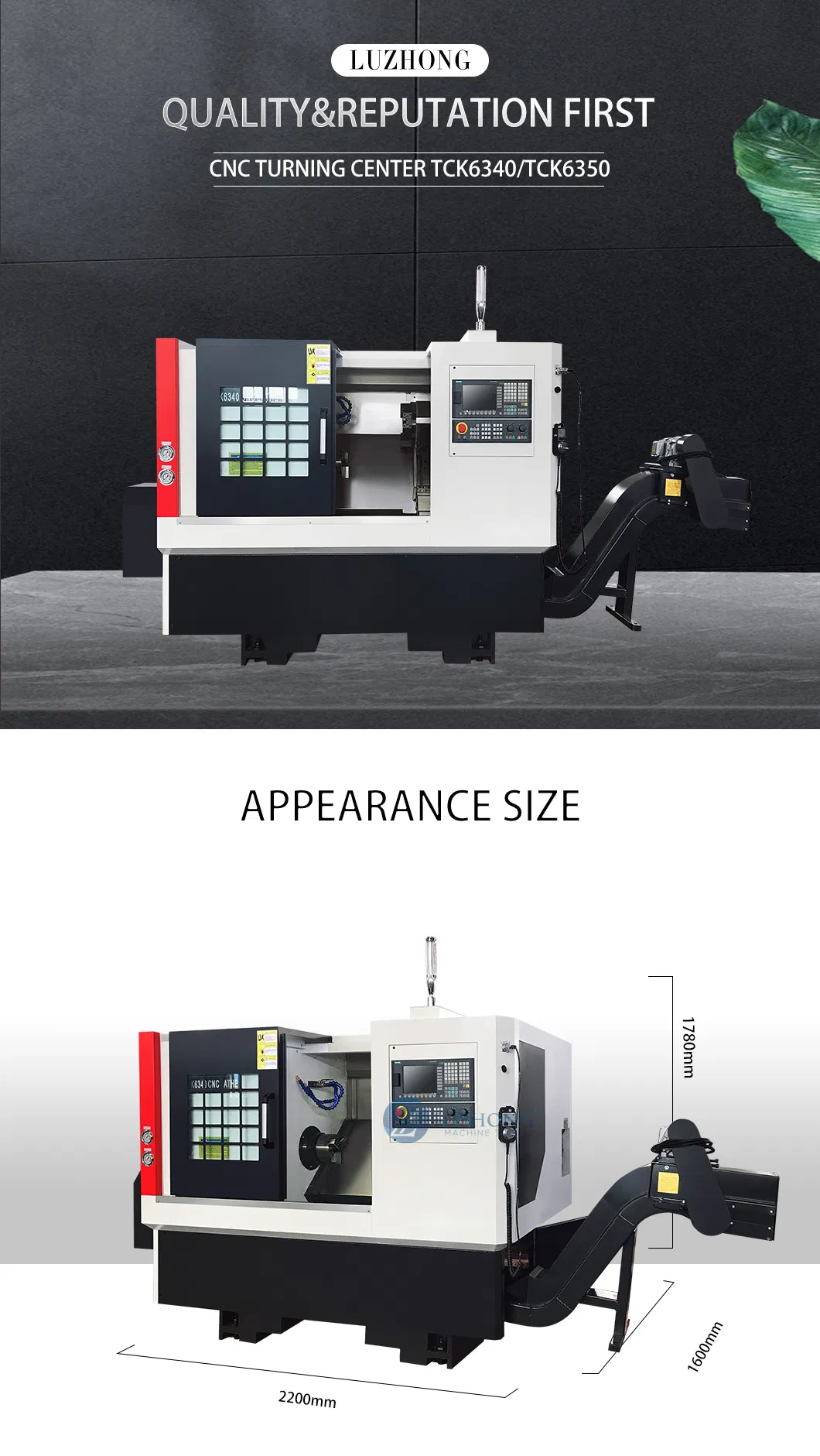

Machine dimension (LWH)	mm	230015001750
N.W.	KG	2500

TCK6340 Horizontal metal high speed precision Slant Bed CNC Turning Lathe Machine

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
