Product Description

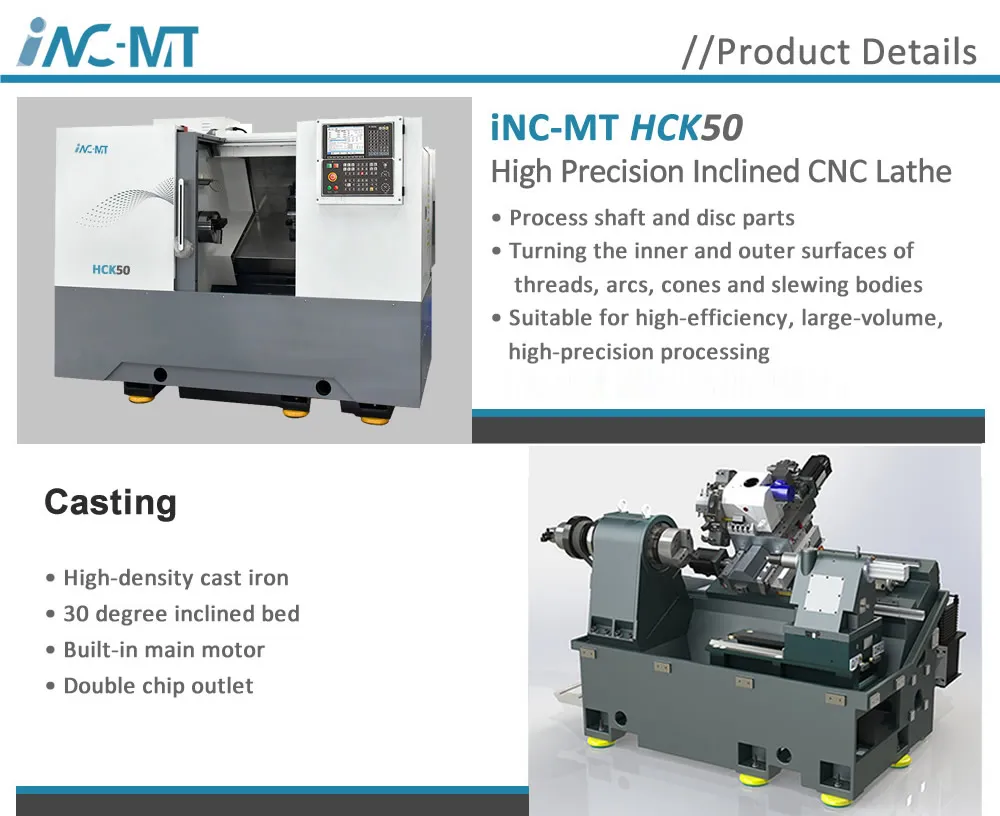

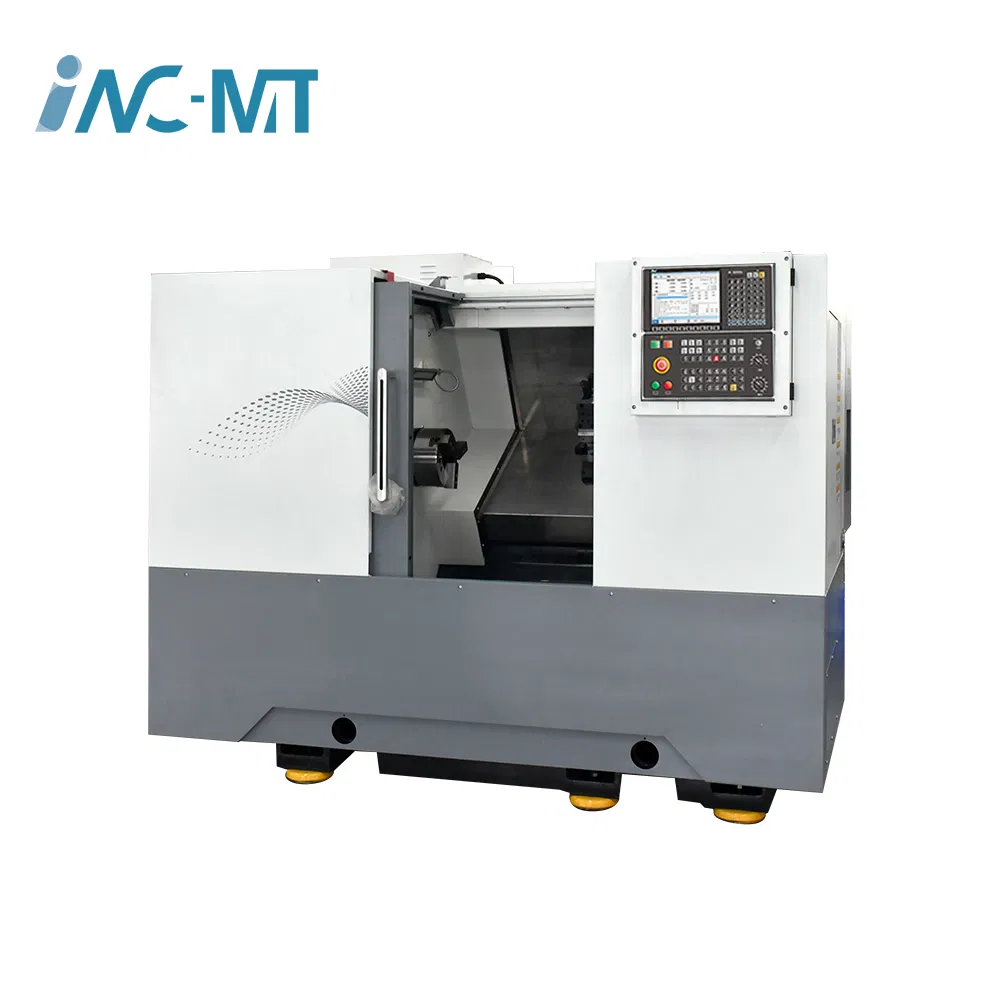

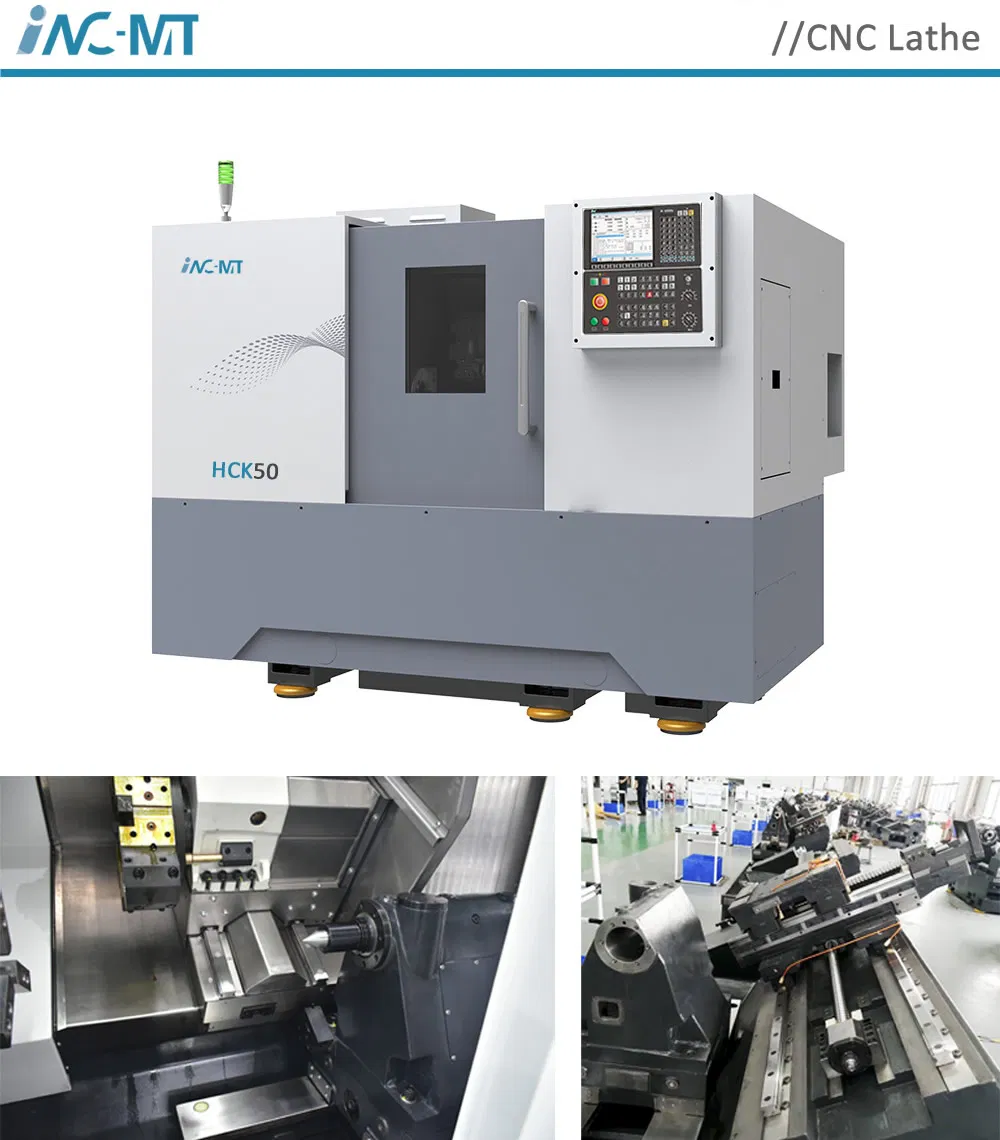

Turning Center Slant Bed CNC Lathe Machine
35 degree incline bed,swivel diameter 500,cutting diameter 360
CNC slant lathe with main accessory like spindle, turret, ball secrew etc, from Taiwan or Japan

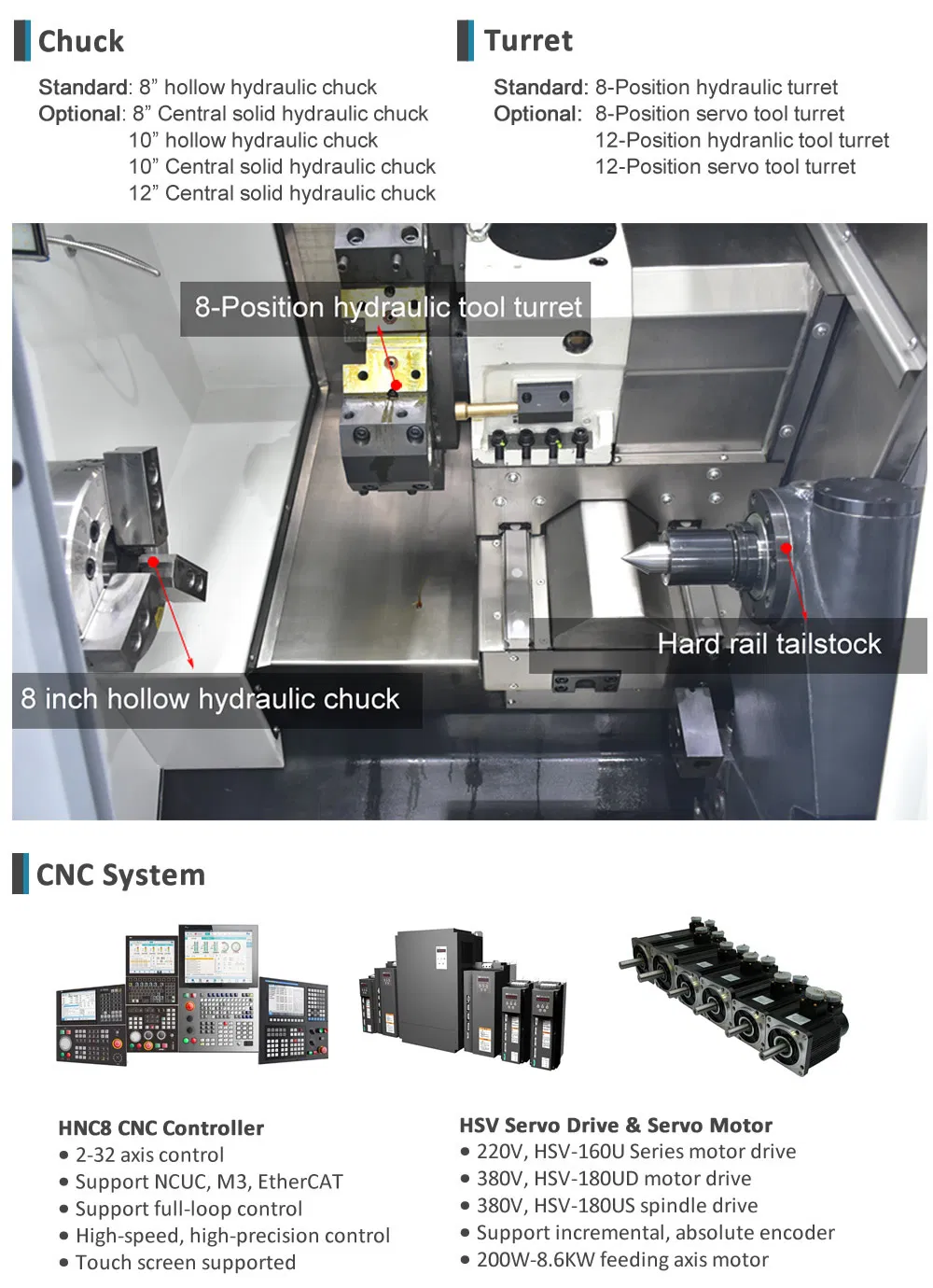

8-inch hollow hydraulic chuck

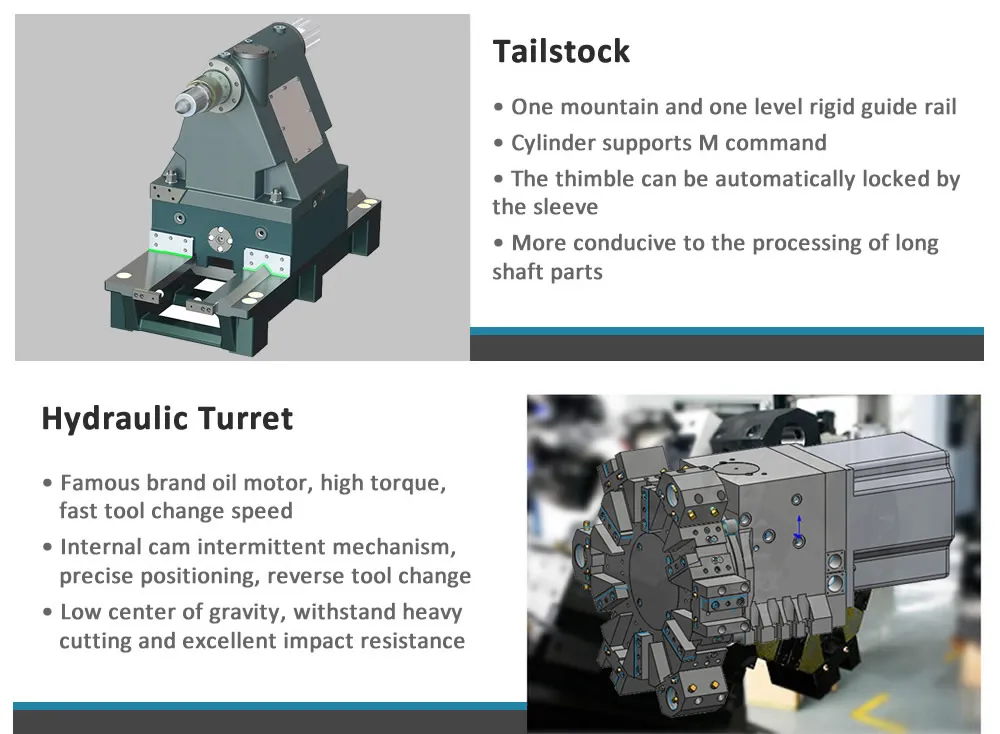

8-workstation hydraulic turret (either servo, turret or driven)
CNC Controller: HNC-808Di
Features of HNC808 series CNC Controller
2. 10.4" color LCD screen
3. Supporting NCUC, etherCAT bus protocol
4. Supporting 16,000,000PPR high-precision encoder
5. Supporting TCP\IP, Ethernet communication protocols
6. Smart function:
7. Big data of CNC machine tool
8. Broken tool inspection
9. Temperature compensation

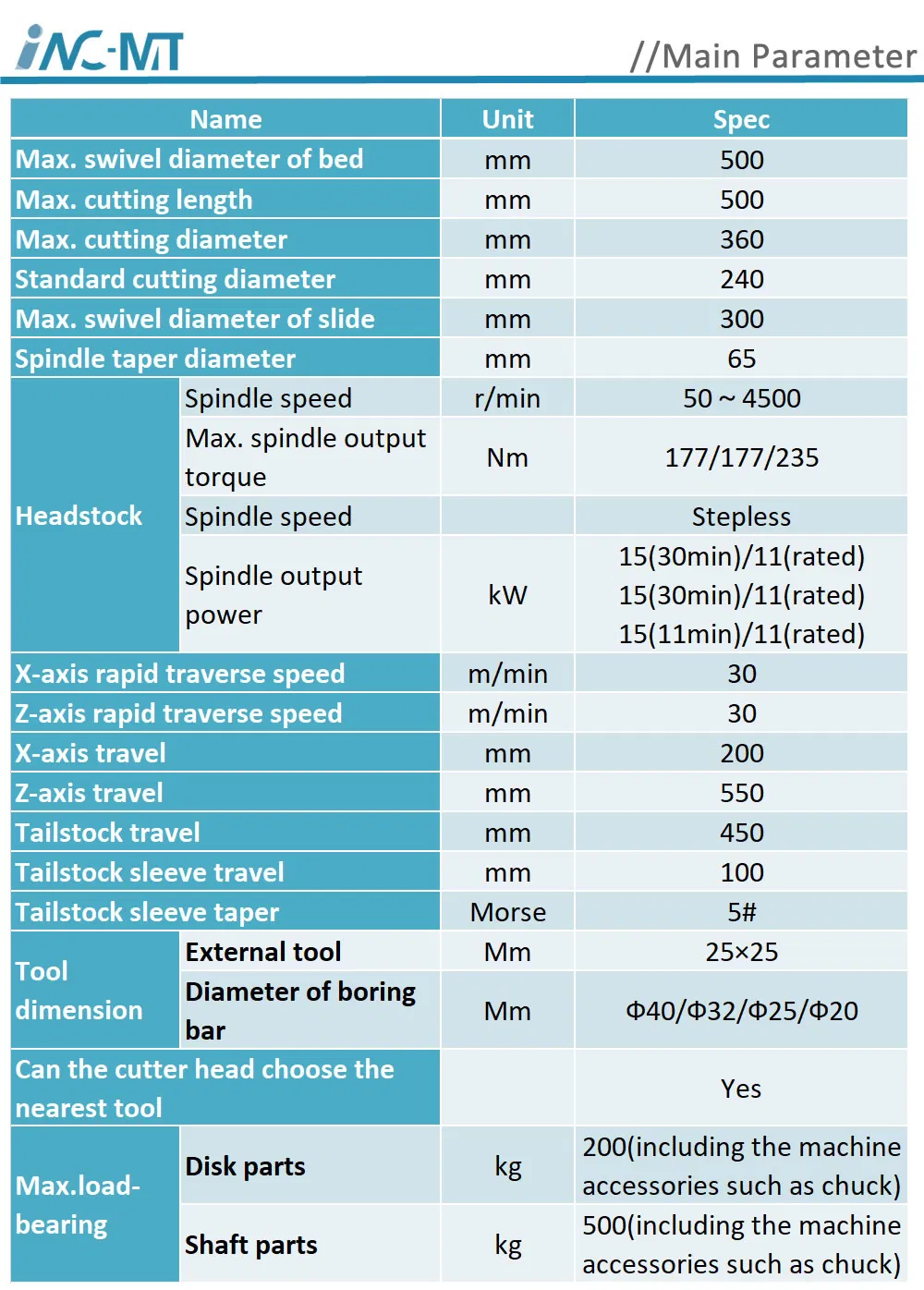

item | value |
Condition | New |
Slant Bed Lathe | |
Max. Length of Workpiece (mm) | 500 |
Max. Spindle Speed (r.p.m) | 4500r.p.m |
Machining Capacity | Medium Duty |
Max. Weight of Workpiece(kg) | 200 |
Spindle Bore(mm) | 200 |
Spindle Motor Power(kW) | 15(30min)/11(rated) |
No. of Spindles | Single |
Max. Turned Length (mm) | 500 |
Number of Axes | 2 |
Travel (X Axis)(mm) | 200mm |
Travel (Z Axis)(mm) | 550mm |
Positioning Accuracy (mm) | ±0.008 |
Repeatability (X/Y/Z) (mm) | ±0.004 |
Dimension(L*W*H) | 2300*1700*1930mm |
Brand Name | HuazhongCNC |
CNC Control System | HuazhongCNC |
Tool Post Stations | 8 |
Weight (KG) | 3600 |
Applicable Industries | Machinery Repair Shops, Manufacturing Plant |
Product name | CNC Lathe |
Max. cutting diameter | 360mm |
Standard cutting diameter | 240mm |
Max. swivel diameter of slide | 300mm |
Max. swivel diameter of bed | 500mm |
X-axis rapid traverse speed | 30m/min |
Z-axis rapid traverse speed | 30m/min |
X-axis travel | 200mm |
Z-axis travel | 550mm |
Tailstock travel | 450mm |
Wuhan Huazhong Numerical Control Co., Ltd. (HuazhongCNC) was established in 1994 with a registered capital of 172, 79 million yuan and its history could be dated back to 1950s.
Our headquartered in Wuhan, the 1st listed company in China's CNC system industry with Stock Code 300161. Our R&D team is supported by National CNC System Engineering Technology Research Center of Huazhong University of Science and Technology.
Our products mainly include:
CNC systems, CNC machine tools and related parts; Industrial robots; Infrared thermal imaging cameras. In 2020, based on our CNC technology, we opened up a new business of mask machine; In addition, we are now expanding our business to new energy vehicles.
Due to business development and growth, we have gradually separated the business and establish more than 30 branch companies to design and product other producst except than the CNC systems, servo drives, and infrared thermal imaging cameras.
The brand of our CNC controller is HNC. The brand of our servo drives is HSV. They support NCUC, etherCAT, Analog and so on.
The brand of our infrared thermal imaging is HNC. Our infrared thermal imaging division was established in 2001. So far, it has helped many countries around the world survive SARS in 2003, H1N1 Influenza in 2009, Avian Influenza in 2012, Ebola in 2014, Mouse Epidemic of Inner Mongolia in 2019.
The brand of our motor are GoldenAge and Huada. They are born for CNC system at first, but now our motors can not only be used in CNC systems and CNC machine tools, but also other applications, such as fans, printer spindles, etc.
The brand of our industrial robot is HSR. There are currently 9 branches and research institutes focusing on the production and research and development of industrial robots.
In 2020, based on our CNC technology, we opened up a new business scope of mask machine. Besides, we are now developing and producing new energy vehicles, which are currently in use in many schools and scenic spots.
HuazhongCNC looks forward to working with you.
